Inverter 300W 24V 375VA Victron Energy Phoenix 24/375 VE.Direct UK (BS 1363)

PIN243750400
€134.42
VAT included 10 %

€122.20 Vat excl.

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

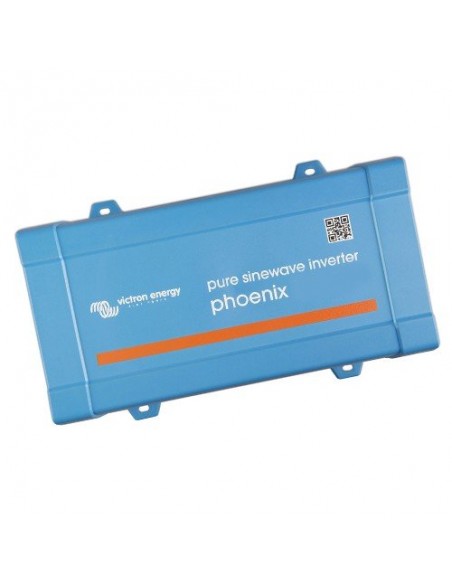

Inverter Phoenix 300W 24V 375VA VE.Direct UK Outlet (BS 1363)

Highly Reliable - built for the years ahead
Phoenix Inverters are built to last. They feature sophisticated full-bridge and toroidal transformer topology - which is suitable for powering sensitive electronics. They are overload, temperature, and short-circuit protected.

Full bursts - High Peak output
Some electronic devices - particularly those which have an electric motor - require short burst of energy on start-up which is much higher than their rated power consumption. No problem - the Phoenix inverter has industry-leading peak-power capability.

IMPORTANT

This inverter has an output with "BS 1363" socket.

Intelligent alarms, shut-downs, and re-starts
A high power draw on start-up can trigger false alarms, and shut-downs. Phoenix makes allowance for this and only shuts down in cases of persistent overload. Intelligently - shut downs will be followed by a series of re-starts - to eliminate 'false alarms'.

Conserve power with Eco mode
In Eco mode the inverter shuts down when no power is required. Phoenix senses the output socket every couple of seconds and automatically turns back on if power is again required.

User-configurable settings
Phoenix has a communication port providing access to status information, alarms and automatic user-configurable low-voltage shut downs. Shut downs will be followed by a series of intelligent re-start attempts. User settings can be accessed from your computer or mobile device via VictronConnect - our free-to-use app.

Features

VE.Direct communication port
The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:
• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:
• In- and output voltage, % load and alarms

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

Technical specifications

  • Model: PIN243750400
  • Nominal Power: 375VA 300W 24V

INVERTER

  • Cont. power at 25°C: 375VA
  • Cont. power at 25°C / 40°C: 300 / 260W
  • Peak power: 700W
  • Output AC voltage / frequency (adjustable): 230VAC +/- 3%  -  50Hz +/- 0,1%
  • Input voltage range: 18,4 - 34 V
  • DC low shut down (adjustable): 18,6V
  • Dynamic (load dependent) DC low shut down (fully configurable): Dynamic cut-off, see https://www.victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
  • DC low restart and alarm (adjustable): 21,8V
  • Battery charged detect (adjustable): 28,0V
  • Max. efficiency: 89%
  • Zero-load power: 6,1W
  • Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable): 1,4W
  • ECO mode stop and start power setting: Adjustable
  • Protection:  Output short circuit; Overload; Battery voltage too high; Battery voltage too low; Temperature too high; DC ripple too high
  • Operating temperature range: -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
  • Humidity (non-condensing): max 95%

ENCLOSURE, ACCESSORIES and STANDARDS

  • Material & Colour: Steel chassis and plastic cover (blue Ral 5012)
  • Battery-connection: Screw terminals
  • Maximum cable cross-section: 10 mm² / AWG8
  • AC outlet: UK (BS 1363)
  • Protection category: IP 21
  • Weight: 3kg
  • Dimensions (H x W x D mm): 86 x 165 x 260
  • Remote on-off: Yes
  • Automatic transfer switch: Filax
  • Safety: EN-IEC 60335-1 / EN-IEC 62109-1 / EMC EN 55014-1 / EN 55014-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
  • Automotive Directive: ECE R10-4

Controller VE.Direct Bluetooth Smart Dongle (not included,but is purchasable separately)

VE.Direct using Bluetooth Dongle you can view the information of BMV or MPPT monitor on iOS and Android devices, using the VictronConnect application. You can look at the information wirelessly, as the state of the battery, the power of the solar panel, and many other useful data ...


N.B.: the product is not included in the kit, but it can be purchased separately.


   Downloads

Datasheet EN [LINK]
Multilingual Manual [LINK]

For all other documents to download, please visit the web site: www.victronenergy.com

   Customer service

0039 (0)882 22 82 47
[email protected]
Product Code
PIN243750400
Model
Phoenix
Output
230VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Cont. output power at 25°C (W)
300
Cont. output power at 40°C (W)
260
Peak power (W)
700
Maximum efficiency (%)
89
Zero load power (W)
1,4W
Protection
output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, DC ripple too high
Safety
EN/IEC 60335-1 / EN/IEC 62109-1
Dimensions (D x W x H)
86x165x260 mm
Net Weight
3 Kg
Rated Power W
300W
Battery Voltage V
24 V
8719076034087
