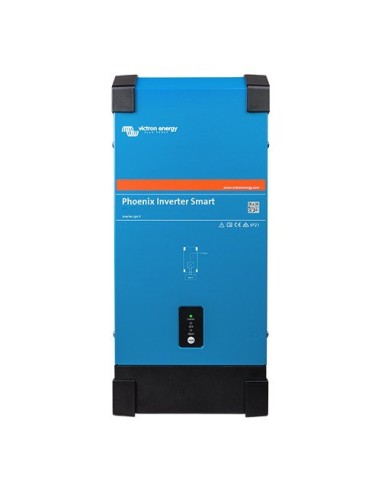

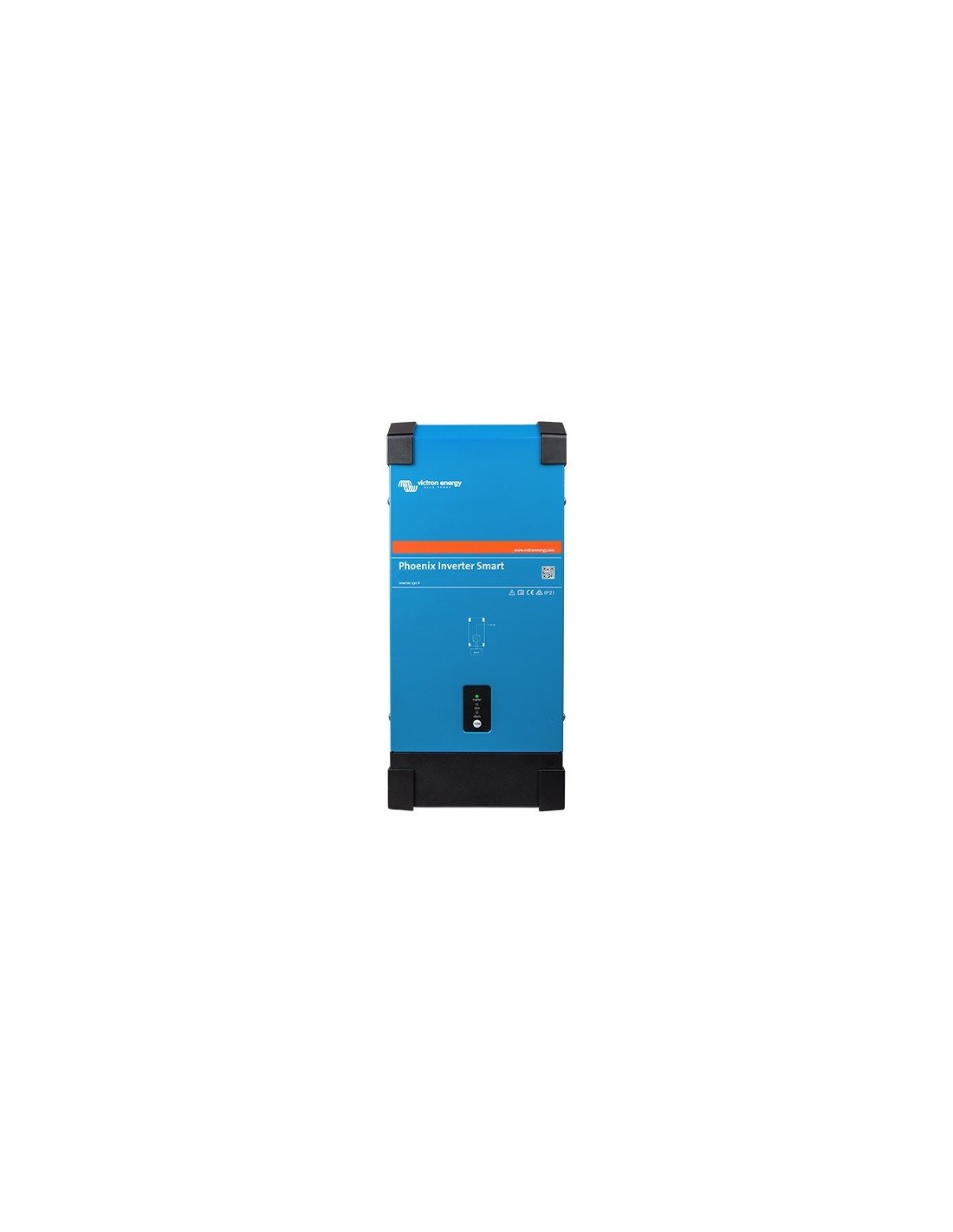

Inverter 1600W 12V 2000VA Victron Energy Phoenix Smart 12/2000 VE.Direct
Inverter 1600W 12V 2000VA Victron Energy Phoenix Smart 12/2000 VE.Direct

Inverter 1600W 12V 2000VA Victron Energy Phoenix Smart 12/2000 VE.Direct

PIN122201000
€769.10
VAT included 10 %

€699.18 Vat excl.

The Phoenix Inverter Smart is an efficient and reliable inverter. It’s powerful enough to supply most common plug in appliances in your car, boat, caravan or home. A toroidal transformer provides a high peak power surge capacity, stable voltage, frequency and high quality sine-wave.



Inverter 1600W 12V 2000VA Victron Energy Phoenix Smart 12/2000 VE.Direct


Features

Bluetooth built-in: fully configurable with a tablet or smartphone

  • Low battery voltage alarm
  • Low battery voltage cut-off and restart levels
  • Dynamic cut-off: load dependent cut-off level
  • Output voltage: 210 - 245V
  • Frequency: 50 Hz or 60 Hz
  • ECO mode on/off and ECO mode sense level
  • Alarm relay

Monitoring:

  • In- and output voltage, load and alarms

VE.Direct communication port

The VE.Direct port can be connected to a computer (VE.Direct to USB interface cable needed) to configure and monitor the same parameters.

Proven reliability

The full bridge plus toroidal transformer topology has proven its reliability over many years.
The inverters are short circuit proof and protected against overheating, whether due to overload or high ambient temperature.

High start-up power

Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

ECO mode

When in ECO mode, the inverter will switch to standby when the load decreases below a preset value. Once in standby the inverter will switch on for a short period every 2,5 seconds
(adjustable). If the load exceeds the preset level, the inverter will remain on.

Remote on/off

A remote on/off switch or relay contact can be connected to a two pole connector.
Alternatively, the H terminal (left) of the two pole connector can be switched to battery plus, or the L terminal (right) of the two pole connector can be switched to battery minus (or the chassis of a vehicle, for example).


To transfer the load to another AC source: the automatic transfer switch

For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax
features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption. Alternatively use a MultiPlus with built-in transfer switch.


Technical specifications

  • Model: PIN122201000
  • Nominal power: 2000VA 1600W 12V

INVERTER

  • Input voltage range:  9,3 – 17V
  • Cont. output power at 25ºC : 2000VA
  • Cont. output power at 25ºC / 40°C / 60°C: 1600 / 1450W /1000W
  • Peak power: 4000W
  • Dynamic (load dependent) DC low shut down (fully configurable): Dynamic cut-off, see https://victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
  • Max. efficiency: 92%
  • Zero load power: 8W
  • Zero load power in ECO mode: 0,6W

GENERAL, ENCLOSURE and  STANDARDS

  • Programmable relay: Yes
  • Stop & start power ECO-mode: adjustable
  • Protection: Output short circuit; Overload; Battery voltage too high; Battery voltage too low; Temperature too high; 230 V AC on inverter output; Input voltage ripple too high
  • Bluetooth wireless communication: For remote monitoring and system integration
  • VE.Direct communication port: For remote monitoring and system integration
  • Remote on-off: Yes
  • Operating temperature range: da -40 a +60°C (fan assisted cooling)
  • Humidity (non-condensing): max 95%
  • Material & Colour: stainless steel (blue RAL 5012; and black RAL 9017)
  • Protection category: IP 21
  • Battery-connection: M8 Bolts
  • 230 V AC-connection: Screw terminals
  • Weight: 13 kg
  • Dimensions (A x L x P mm): 485 x 219 x 125mm
  • Safety: EN 60335-1
  • Emission Immunity: EN 55014-1 / EN 55014-2/ IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
  • Automotive Directive: ECE R10-5


For more details, download the following documents:



Customer service


0882 22 82 47

Product Code
PIN241501200
Model
Phoenix
Output
230VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Peak power (W)
4000W
Protection
a - g
Safety
EN 55014-1 / EN 55014-2/ IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3
Dimensions (D x W x H)
485 x 219 x 125mm
Net Weight
13kg
Rated Power W
1600
Battery Voltage V
12 V
8370000025863
