Inverter 230W 12V 250VA Victron Energy Phoenix 12/250 VE.Direct UK (BS 1363)

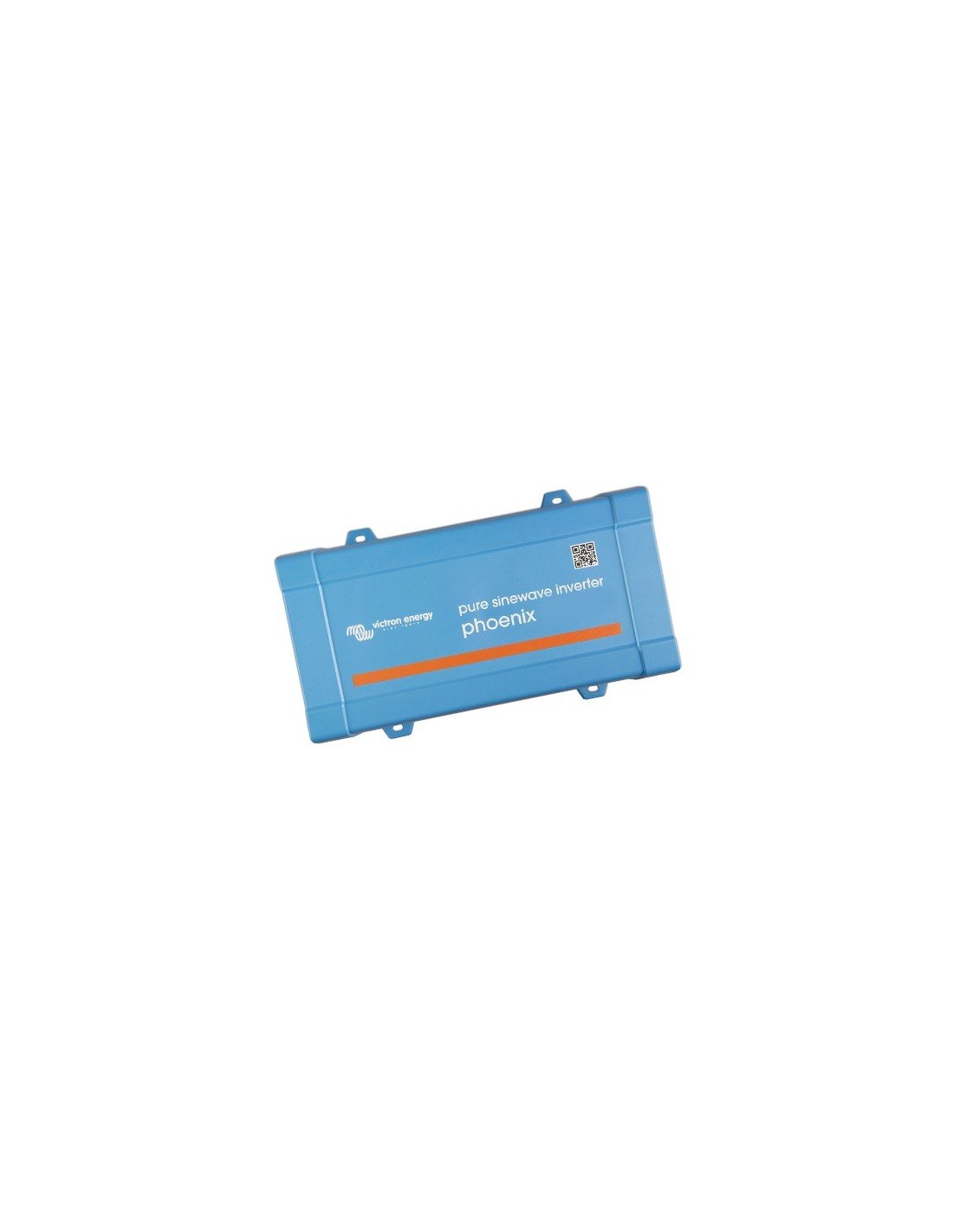

Name: Inverter 230W 12V 250VA Victron Energy Phoenix 12/250 VE.Direct UK (BS 1363)
Brand: Victron Energy
SKU: PIN121251400
Price: 104.1 EUR
Availability: InStock

Reference PIN121251400

€104.10

VAT included 10 %

€94.64 Vat excl.

Developed for professional duty, the Phoenix range of inverters is suitable for the widest range of applications.
The design criteria have been to produce a true sine wave inverter with optimized efficiency but without compromise in performance. Employing hybrid HF technology, the result is a product with compact dimensions, light in weight and capable of supplying power, problem-free, to any load.

Inverter Phoenix 230W 12V 250VA VE.Direct UK Outlet

Features

VE.Direct communication port
The VE.Direct port can be connected to:
• A computer (VE.Direct to USB interface cable needed)
• Apple and Android smartphones, tablets, MacBook’s and other devices (VE.Direct Bluetooth Smart dongle needed)

Fully configurable:
• Low battery voltage alarm trip and reset levels
• Low battery voltage cut-off and restart levels
• Dynamic cut-off: load dependent cut-off level
• Output voltage 210 - 245V
• Frequency 50 Hz or 60 Hz
• ECO mode on/off and ECO mode sense level

Monitoring:
• In- and output voltage, % load and alarms

High start-up power
Needed to start loads such as power converters for LED lamps, halogen lamps or electric tools.

Remote on/off
A remote on/off switch can be connected to a two pole connector, or between battery plus and the left hand contact of the two pole connector.

To transfer the load to another AC source: the automatic transfer switch
For our low power inverters we recommend our Filax Automatic Transfer Switch. The Filax features a very short switchover time (less than 20 milliseconds) so that computers and other electronic equipment will continue to operate without disruption.

IMPORTANT

This inverter has an output with "BS 1363" socket.

Technical specifications

Cont. power at 25°C: 250VA
Cont. power at 25°C / 40°C: 230 / 175W
Peak power: 400W
Output AC voltage / frequency (adjustable): 230VAC +/- 3% - 50Hz +/- 0,1%
Input voltage range: 18,4 - 34 V
DC low shut down (adjustable): 18,6V
Dynamic (load dependent) DC low shut down (fully configurable): Dynamic cut-off, see https://victronenergy.com/live/ve.direct:phoenix-inverters-dynamic-cutoff
DC low restart and alarm (adjustable): 21,8V
Battery charged detect (adjustable): 28,0V
Max. efficiency: 87%
Zero-load power: 4,2W
Default zero-load power in ECO mode (default retry interval: 2,5 s, adjustable): 0,8W
ECO mode stop and start power setting: Adjustable
Protection: Output short circuit; Overload; Battery voltage too high; Battery voltage too low; Temperature too high; DC ripple too high
Operating temperature range: -40 to +65°C (fan assisted cooling) Derate 1,25% per °C above 40°C
Humidity (non-condensing): max 95%

For more details, download the following documents:

Datasheet: [Download]

Customer service

0882 22 82 47

[email protected]

Product Code: PIN242510400
Model: Phoenix
Output: 230VAC +/- 3% 50Hz or 60Hz +/- 0,1%
Peak power (W): 400
Protection: output short circuit, overload, battery voltage too high, battery voltage too low, temperature too high, DC ripple too high
Safety: EN/IEC 60335-1 / EN/IEC 62109-1
Dimensions (D x W x H): 86x165x260 mm
Net Weight: 2.4 Kg
Rated Power W: 200W
Battery Voltage V: 12 V
