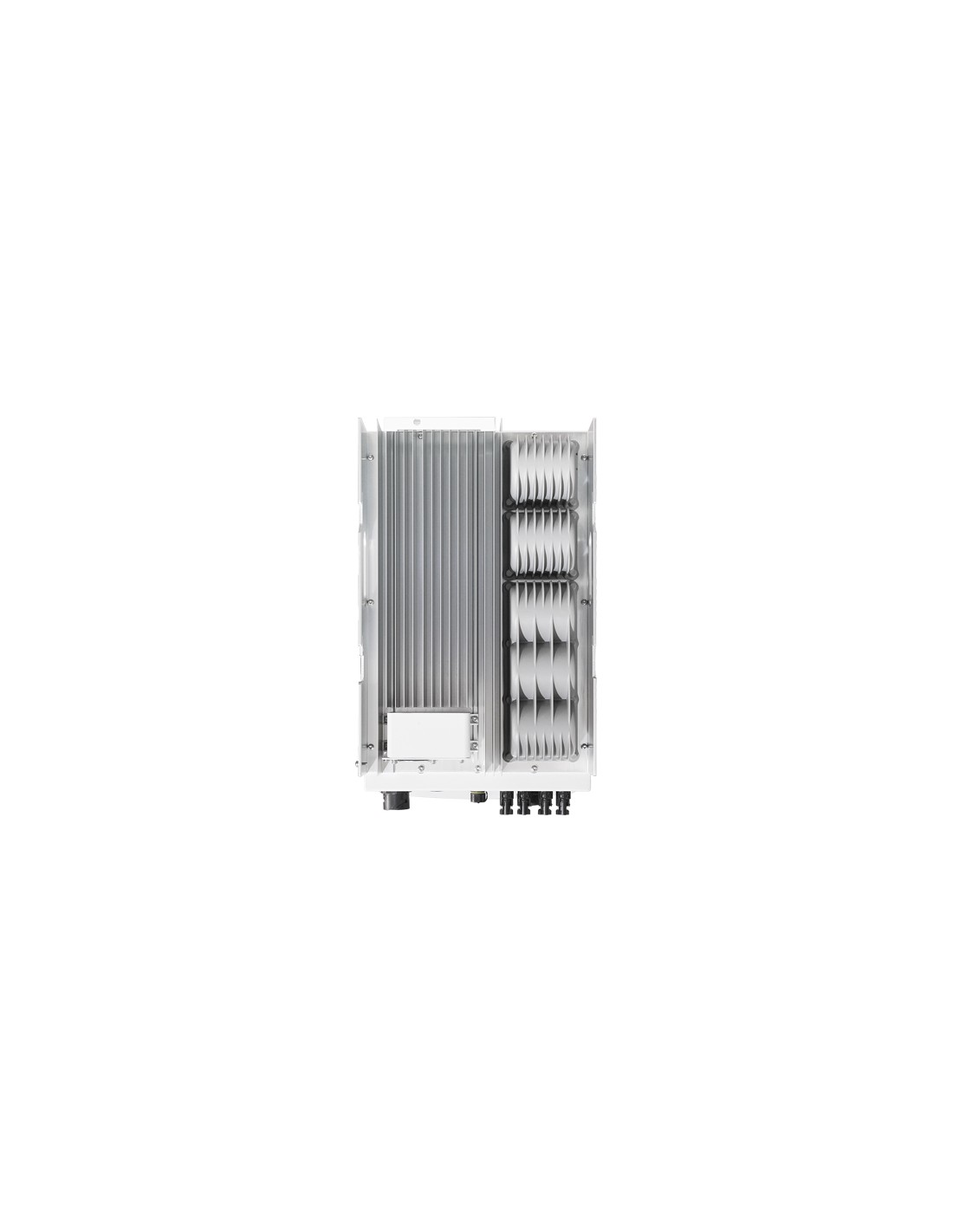

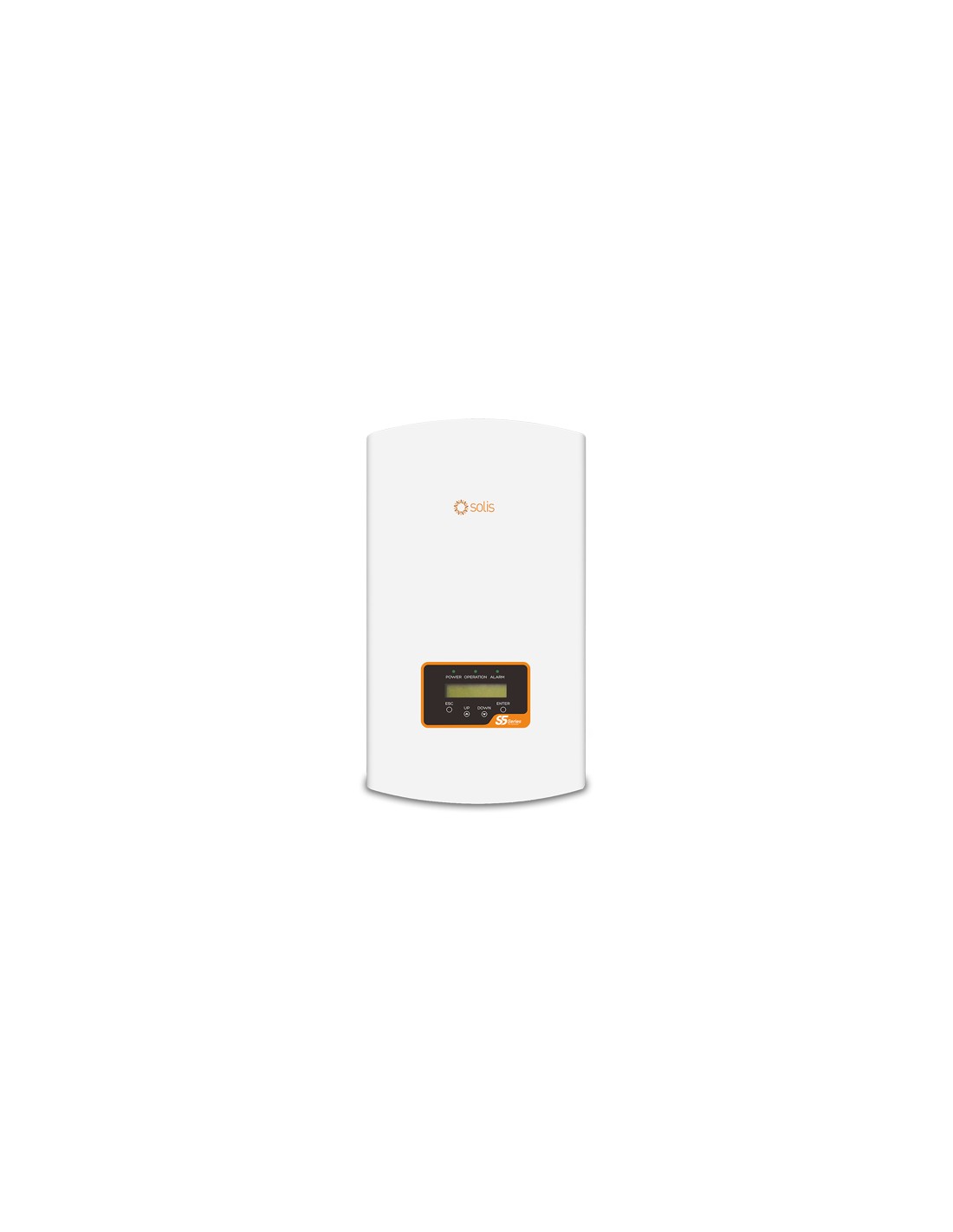

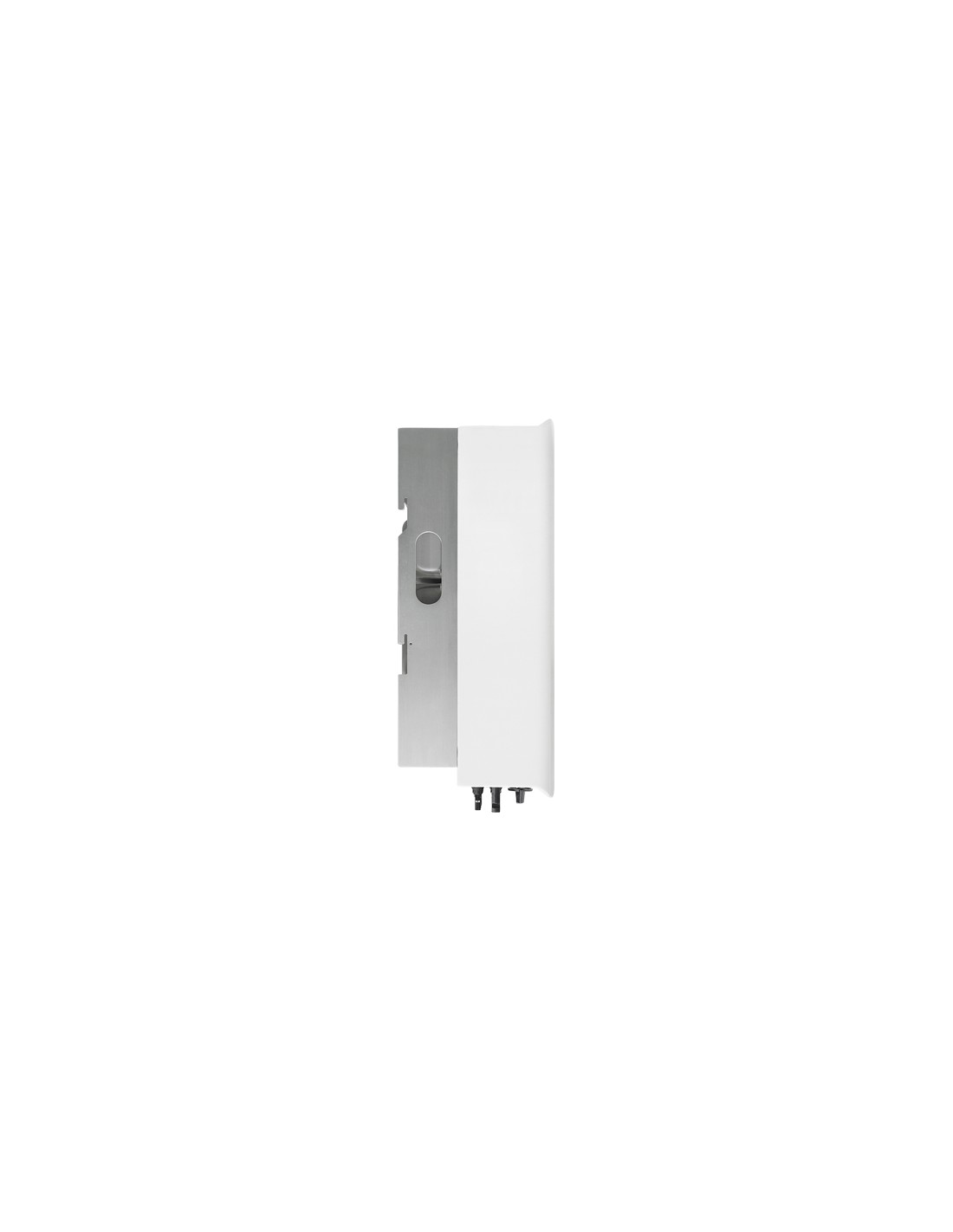

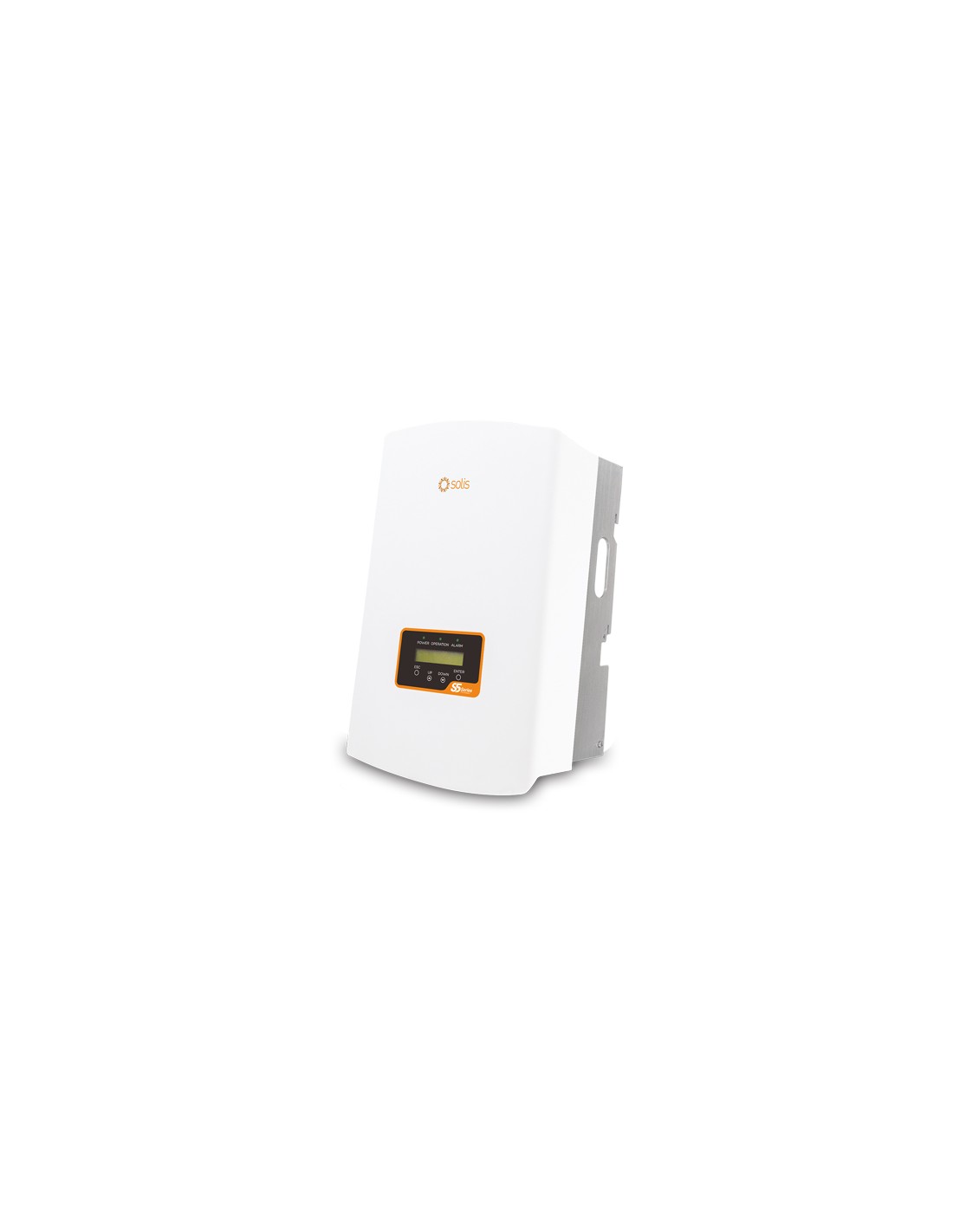

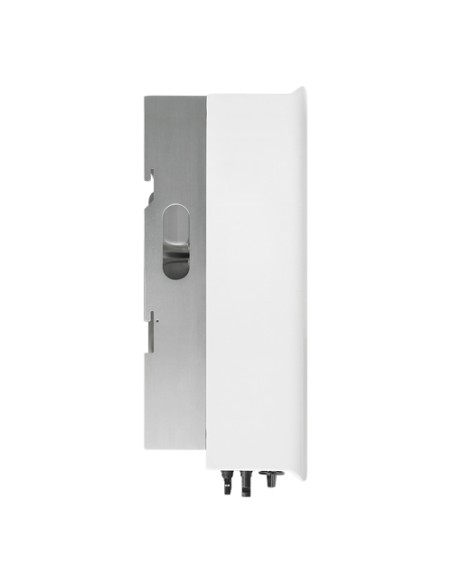

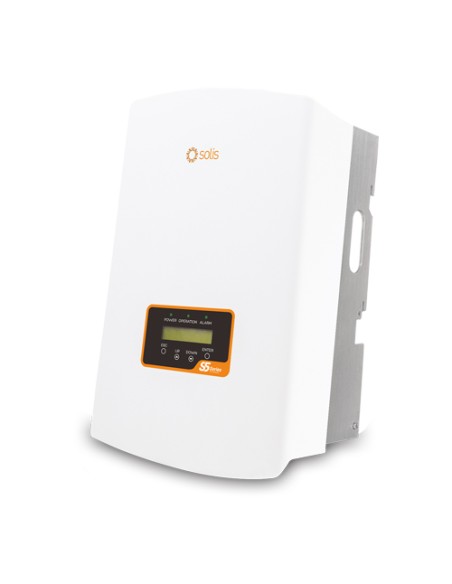

SLS-S5-GR3P15K
€1,311.71
VAT included 10 %

€1,192.46 Vat excl.

S5-GR3P three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.

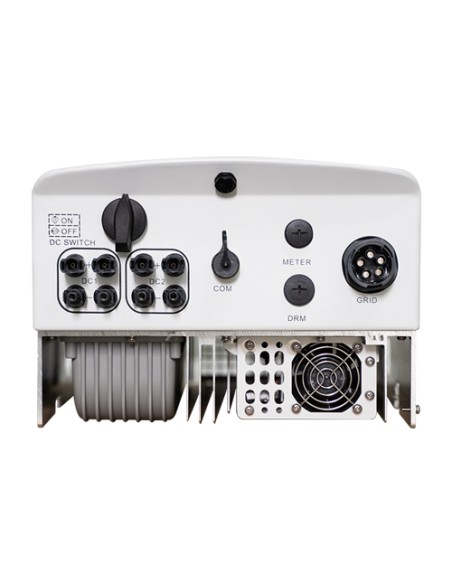

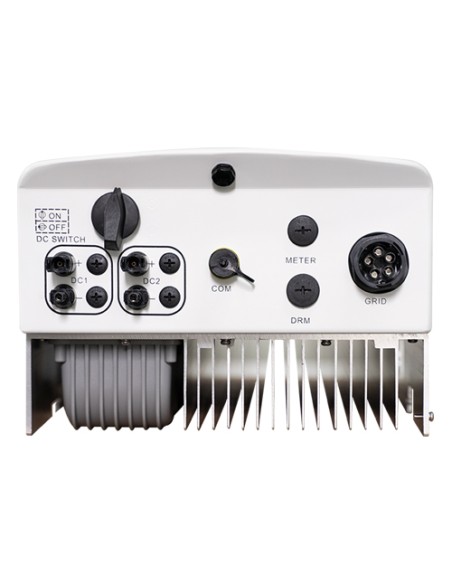

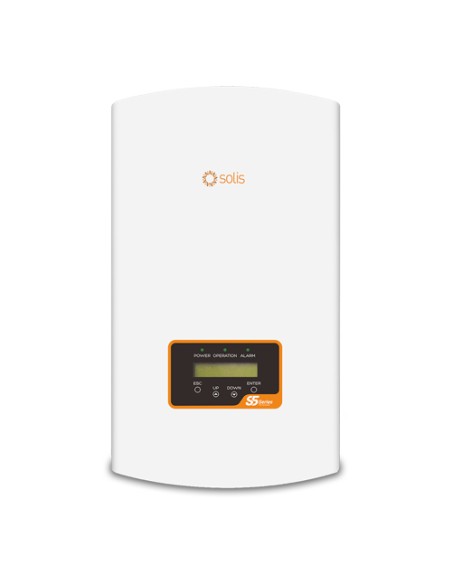

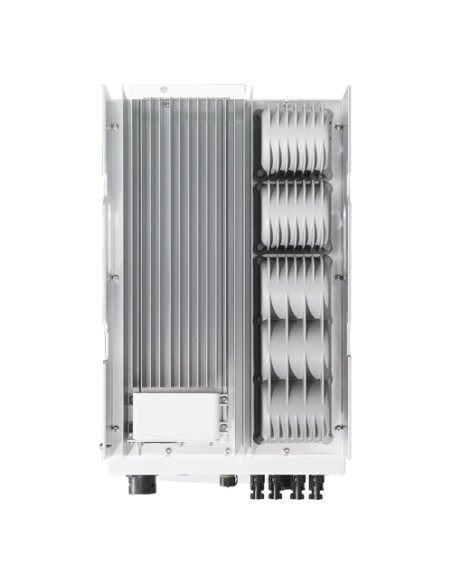

Three-phase string inverter 15kW Solis S5 double MPPT

S5-GR3P three phase series string inverter are reliable preferred equipment for residential, small industrial and commercial pv power stations.Smaller size, higher efficiency, a variety of power models Available for selection. Adopt two MPPT access, more flexible and efficient.

  • Max. efficiency 98.7%;
  • String current up to 16A;
  • Wide voltage range and low startup voltage;
  • AFCI protection, proactively reduces fire risk;
  • Supports export power control;
  • Supports RS485, WiFi, GPRS;
  • Scan to register on SolisCloud, supports remote upgrade and control;
  • Automatic voltage stabilization technology in weak gridconditions;
  • Compact design, simple installation and maintenance;
  • Supports high power modules for lower installation costs;
  • > 150% DC/AC ratio;
  • IP66.

For more details, download the following documents:

Technical features:

Input DC
Recommended max. PV power 22.5kW
Max. input voltage 1100V
Rated voltage 600V
Start-up voltage 180V
MPPT voltage range 160-1000V
Max. input current 32 A / 32 A
Max. short circuit current 40 A / 40 A
MPPT number/Max. input strings number 2/4
Output AC
Rated output power 15kW
Max. apparent output power 16.5 kVA
Max. output power 16.5kW
General Data
Dimensions (WxHxD) 310*563*219 mm
Weight 18.8kg
Self consumption(night) <1W
Ingress protection IP66
Safty/EMC standard IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-2/-3/-4
Grid connection standard G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530
Features

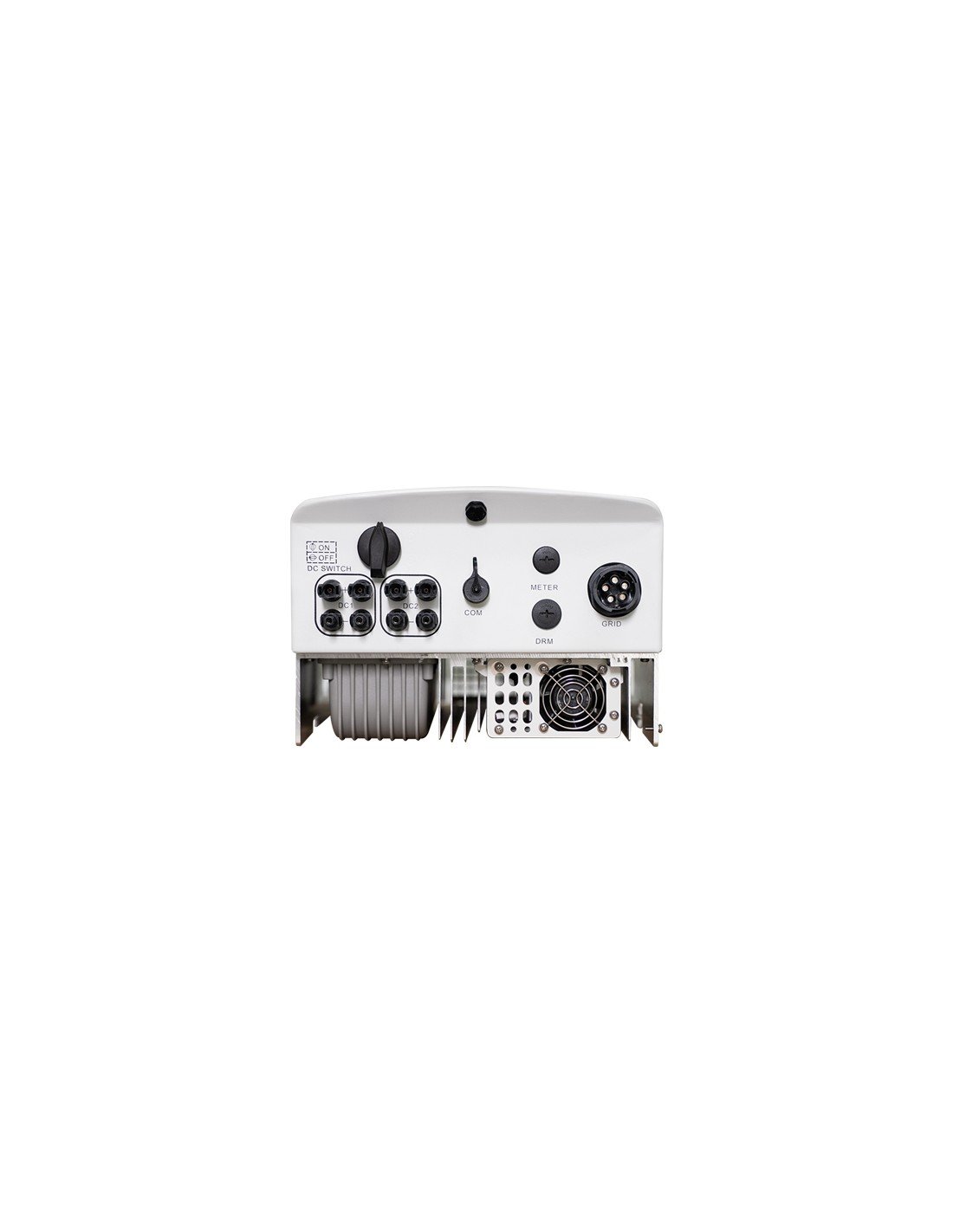

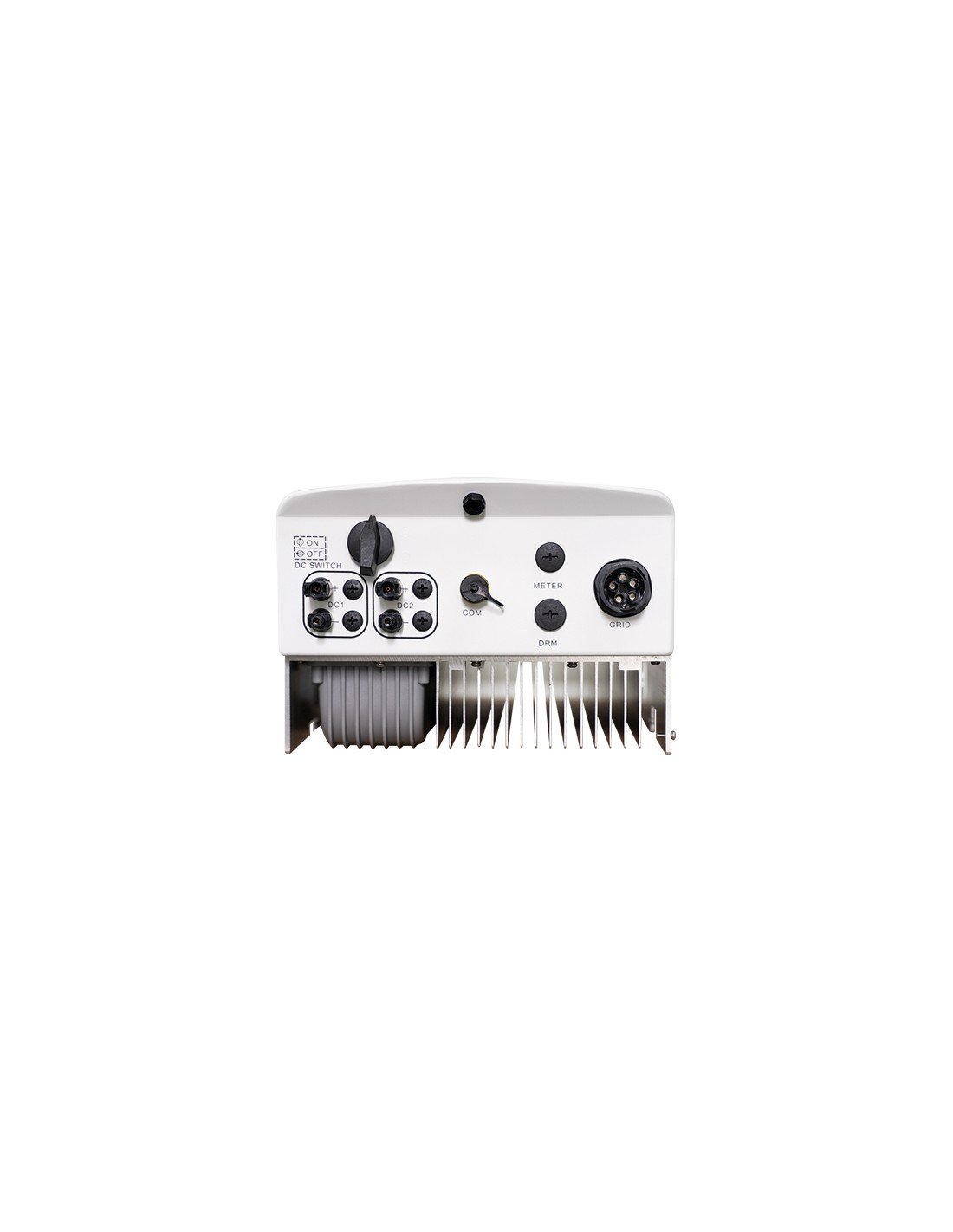

DC connection MC4 connector
AC connection Quick connection plug
Display LCD
Communication RS485, Optional: Wi-Fi, GPRS


Customer Service

0882 22 82 47
[email protected]

MPPT number
2
Typology
Three-phase
Inverter power
15kW
8370000018940
