SLS-S5-GC50K
€3,144.49
VAT included 10 %

€2,858.63 Vat excl.

S5-GC50K three-phase series string inverters are suitable for three-phase input pv system installation of commercial and industrial PV systems. It adopts 5 MPPT design to provide more flexible configuration scheme and high generation efficiency. Perfect commercial post monitoring solution, smart redundancy fan.

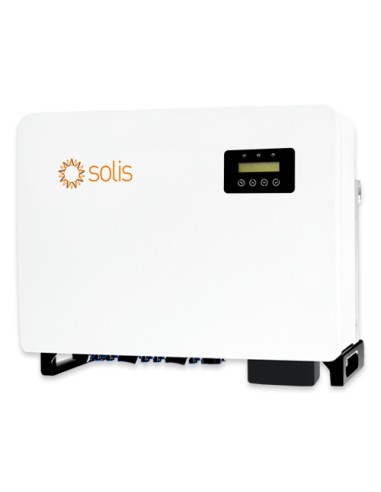

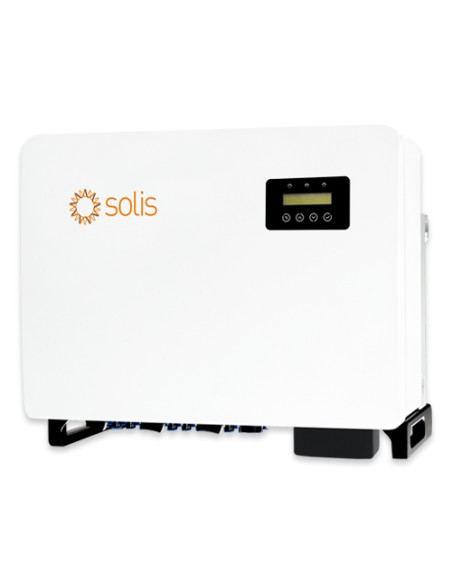

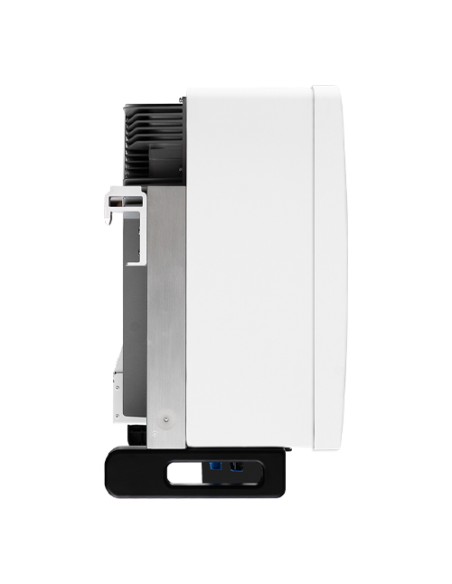

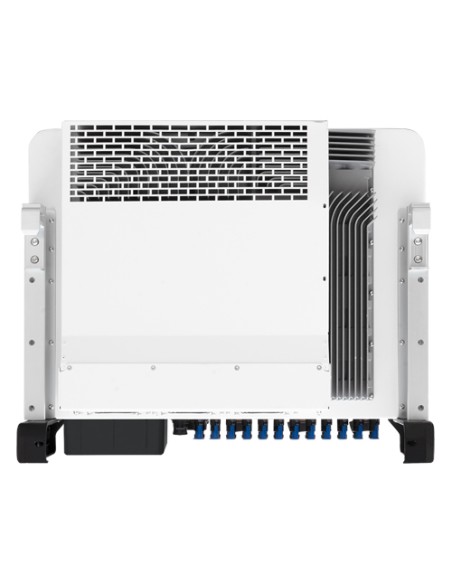

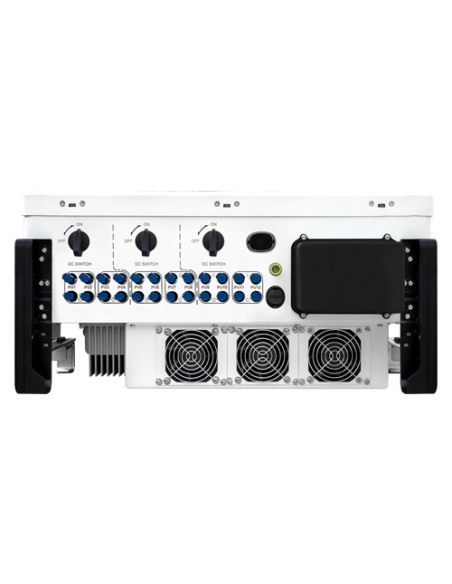

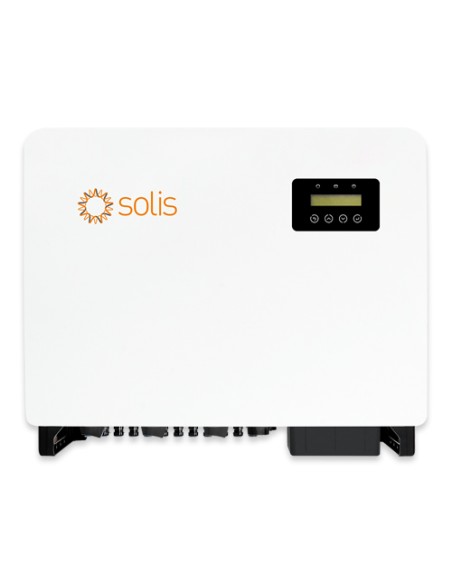

Three-phase string inverter 50kW Solis S5 5 MPPT


S5-GC50K three-phase series string inverters are suitable for three-phase input pv system installation of commercial and industrial PV systems. It adopts 5 MPPT design to provide more flexible configuration scheme and high generation efficiency. Perfect commercial post monitoring solution, smart redundancy fan.

  • Max. efficiency 98.7%;
  • String current up to 16A;
  • Night SVG function;
  • Supports export power control;
  • IP66;
  • Intelligent redundant fan-cooling;
  • DC side supports "Y" connectors;
  • Supports aluminium wire access to reduce cost;
  • AFCI protection, proactively reduces fire risk;
  • 10 string inputs allow for 150%+ DC oversizing;
  • Intelligent string monitoring, smart I-V curve scan;
  • Globally recognised branded componentry for longer life;
  • 5 MPPT design, supports multiple orientation system design;
  • Night time PID recovery function, increases overall system yield (optional);
  • Scan to register on SolisCloud, supports remote upgrade and control;
  • Supports GPRS/WiFi communication with less wiring and reduced installation costs.

For more details, download the following documents:


Technical features:

Input DC
Max. input voltage 1100V
Rated voltage 600V
Start-up voltage 195V
MPPT voltage range 180-1000V
Max. input current 5*32 A
Max. short circuit current 5*40 A
MPPT number/Max. input strings number 5/10
Output AC
Rated output power 50kW
Max. apparent output power 55 kVA
Max. output power 55kW
General Data
Dimensions (WxHxD) 691*578*338 mm
Weight 54.5 kg
Self consumption(night) <1W
Ingress protection IP66
Safty/EMC standard IEC 62109-1/-2, IEC62116 & IEC 61000-6-1/-2/-3/-4
Grid connection standard G98 or G99, VDE-AR-N 4105 / VDE V 0124, EN 50549-1, VDE 0126 / UTE C 15 / VFR:2019, RD 1699 / RD 244 / UNE 206006 / UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC60068, IEC 61683, EN 50530
Features

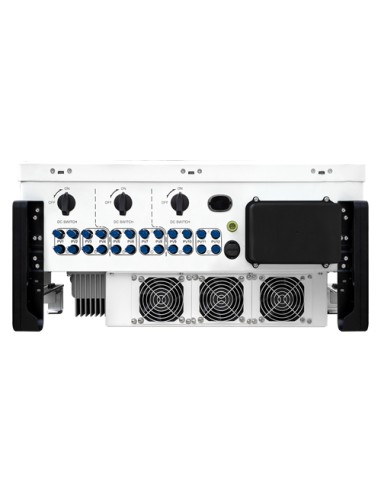

DC connection MC4 connector
AC connection OT terminal (max. 70 mm²)
Display LCD, Capacitive touch buttons
Communication RS485, USB, Optional: Wi-Fi, GPRS



Customer Service


0882 22 82 47

MPPT number
5
Typology
Three-phase
Inverter power
50kW
