Lithium Battery 3.5kWh 48V Pylontech...

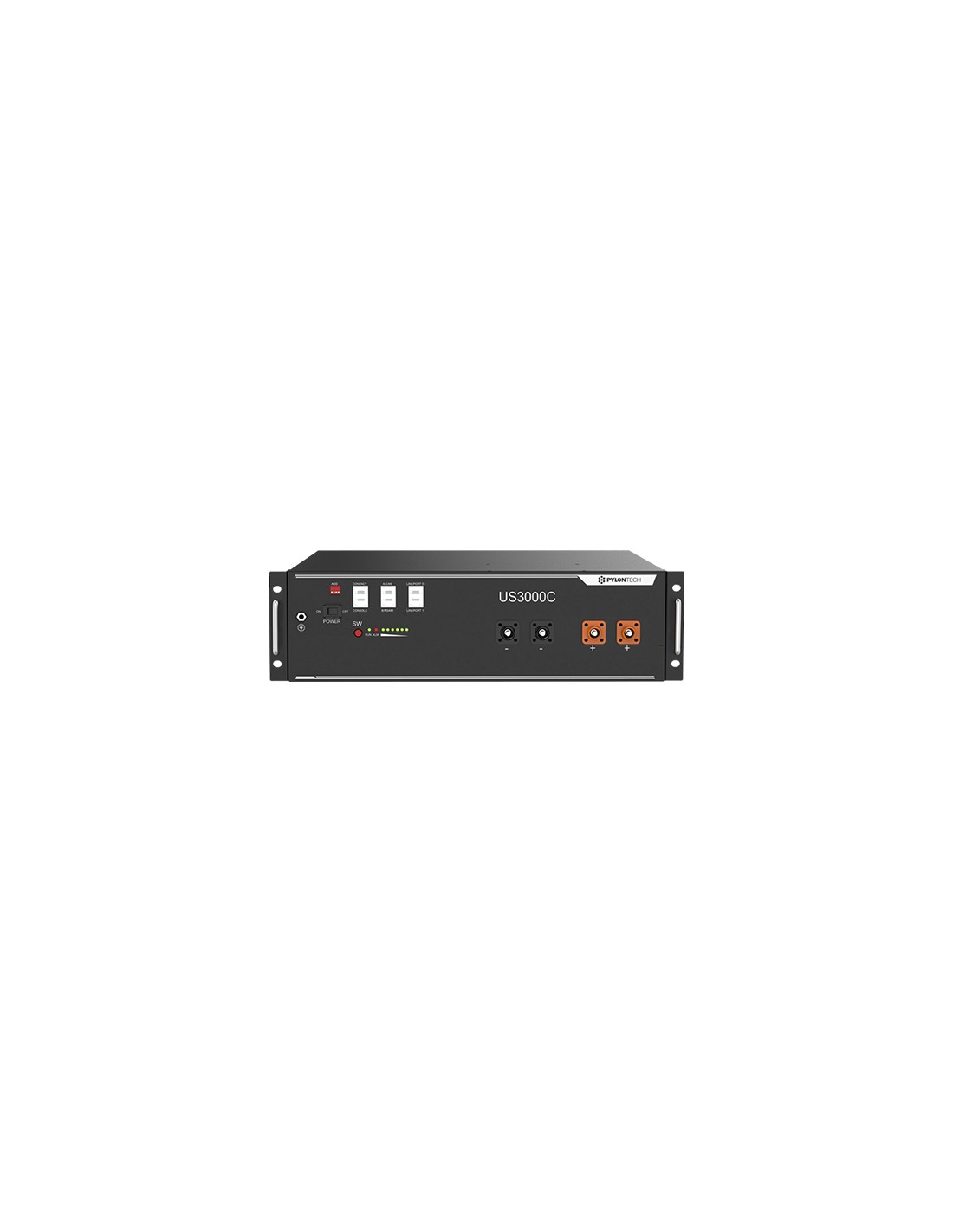

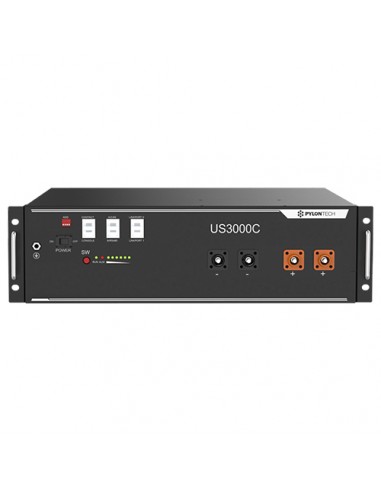

Lithium Battery 3.5kWh 48V Pylontech US3000C Photovoltaic Accumulation Storage

US3000C
Delivered in 3-4 days
€1,582.64
VAT included 10 %

€1,438.76 Vat excl.

US3000C lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems.

Quantity Unit price You Save
2 €1,550.98 €63.31
4 €1,519.33 €253.22
8 €1,487.68 €759.67
100% secure payments


Lithium Battery 3.5kWh 48V Pylontech US3000C Photovoltaic Accumulation Storage


US3000C lithium iron phosphate battery is one of new energy storage products developed and produced by Pylontech, it can be used to support reliable power for various types of equipments and systems.

US3000C is especially suitable for application scene of high power, limited installation space, restricted load-bearing and long cycle life.

US3000C has built-in BMS battery management system, which can manage and monitor cells information including voltage, current and temperature. What’s more, BMS can balance cells charging and discharging to extend cycle life.





FEATURES

  • The whole module is non-toxic, non-polluting and environmentally friendly;
  • Cathode material is made from LiFePO4 with safety performance and long cycle life;
  • Battery management system (BMS)has protection functions including over-discharge, over-charge, over-current and high/low temperature;
  • The system can automatically manage charge and discharge state and balance current and voltage of each cell;
  • Flexible configuration, multiple battery modules can be in parallel for expanding capacity and power Adopted self-cooling mode rapidly reduced system entire noise;
  • The module has less self-discharge, up to 6 months without charging it on shelf, no memory effect, excellent performance of shallow charge and discharge;
  • Working temperature range is from -10°C to 50°C , (Charging 0~50°C ; discharging -10~50°C ) with excellent discharge performance and cycle life;
  • Small size and light weight, standard of 19-inch embedded designed module is comfortable for installation and maintenance;


TECHNICAL FEATURES
  • Nominal Voltage: 48V
  • Nominal Capacity: 3552Wh
  • Usable Capacity: 3200Wh
  • Dimension: 442 x 420 x 132mm
  • Weight: 32Kg
  • Discharge Voltage: 45 ~ 53.5V
  • Charge Voltage: 52.5 ~ 53.5V
  • Recommend Charge/Discharge Current: 37A
  • Max. Charge/Discharge Current: 74A
  • Peak Charge/Discharge Current: [email protected]
  • Communication: RS485, CAN
  • Configuration: (max. in 1 battery group) 8pcs
  • Working Temperature: 0°C ~ 50°C Charge  -  10°C ~ 50°C Discharge
  • Shelf Temperature: -20°C ~ 60°C
  • Protective class: IP20
  • Cooling type: Natural Cooling
  • IP rating of enclosure: IP20
  • Humidity: 5% ~ 85%
  • Certification: IEC62619 / CE / UN38.3
  • Design life: 10+ Years (25°C/77̧°F)
  • Cycle Life: >6,000 25°C


For more details on the products, download the Documents:




Customer Service


0882 22 82 47

Voltage battery (V)
48V
Accumulation capacity
3.5kW
