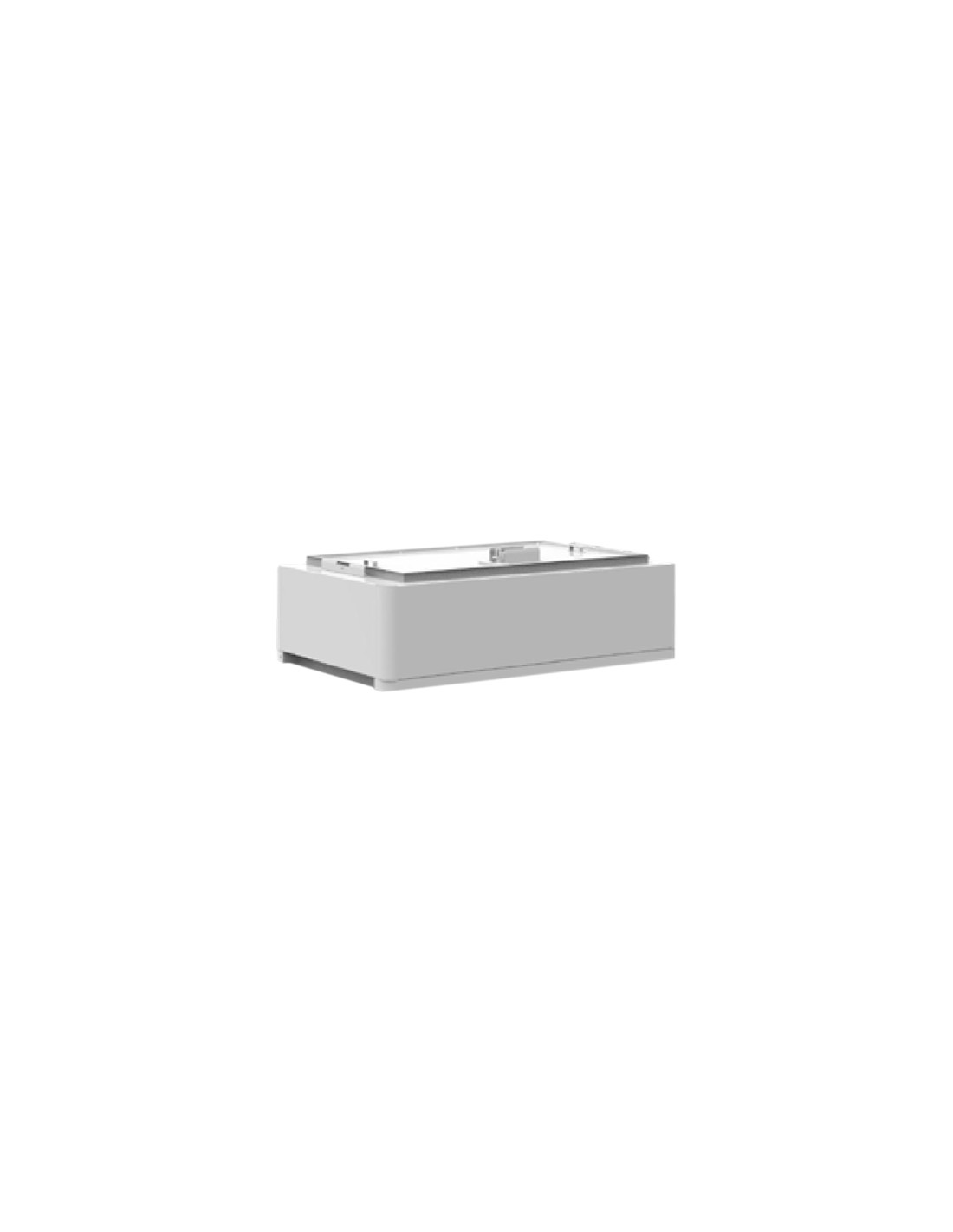

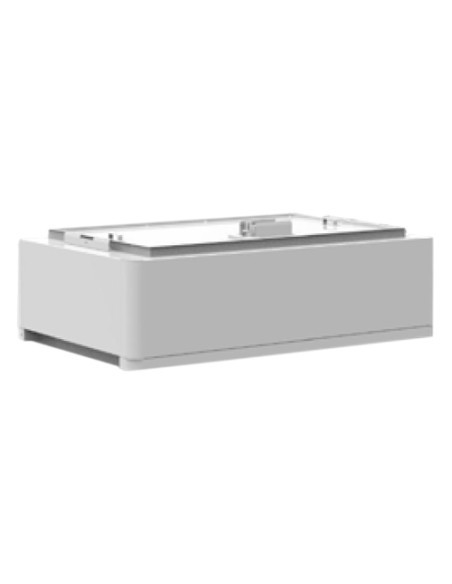

FH48074 battery module for FORCE H1 3.55kWh high voltage storage system
FH48074 battery module for FORCE H1 3.55kWh high voltage storage system

FH48074 battery module for FORCE H1 3.55kWh high voltage storage system

FH48074-H1
€1,377.77
VAT included 10 %

€1,252.52 Vat excl.

Force H1 high voltage Pylontech batteries are particularly suitable for residential applications because they are aesthetically elegant and can be installed quickly without the need to connect cables between the various elements; in fact, to assemble these batteries, simply place them on top of each other.



Pylontech FH48074 Li-ion battery module for FORCE H1 high voltage storage system 3.55kWh modules


Force H1 high voltage Pylontech batteries are particularly suitable for residential applications because they are aesthetically elegant and can be installed quickly without the need to connect cables between the various elements; in fact, to assemble these batteries, simply place them on top of each other.

The basic module is 3.55 kWh, the depth of discharge is 95% and a capacity of 24.85 kWh can be reached for each 7-cell battery.


For more details, download the following documents:


Technical features

MODEL FH48074
Cell technology Li-ion (LFP)
Battery module voltage 48V
Battery module capacity 3,552 / 74k Wh/Ah
Battery Type 2p 15s
Length 600mm
Height 170mm
Depth 380mm
Weight 36kg
GENERAL DATA
Battery cell voltage 3.2V
Battery cell capacity [Wh/Ah] 118.4/37
Operation temperature 0~50 °C
Storage temperature -20 ~ 60 °C
Operation life [years] 15+
Operation cycle life 5000
Transport certificate UN38.3



Customer service


0882 22 82 47

Typology
Lithium
Voltage (V)
48V
Accumulation capacity
3.5kW
8370000010821
