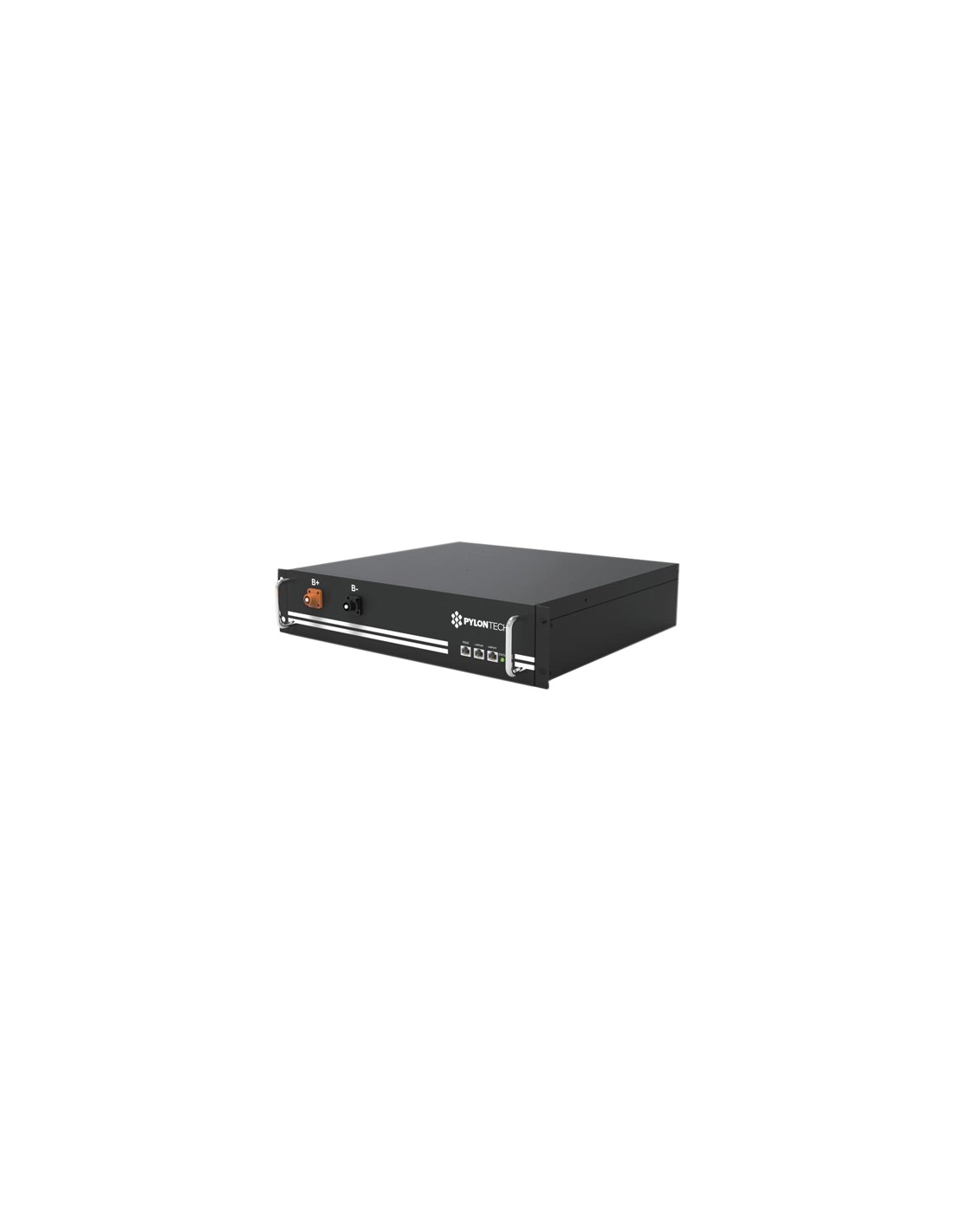

ZCS Pylontech H48050 2.4kWh high voltage lithium battery photovoltaic storage

ZCS Pylontech H48050 2.4kWh high voltage lithium battery photovoltaic storage

Name: ZCS Pylontech H48050 2.4kWh high voltage lithium battery photovoltaic storage
Brand: Pylontech
SKU: ZST-BAT-2.4KWH-HV
Price: 1012.19 EUR
Availability: InStock

Reference ZST-BAT-2.4KWH-HV

Delivered in 3-4 days

€1,012.19

VAT included 10 %

€920.17 Vat excl.

The Pylontech H48050 high voltage battery makes it suitable for creating small and large capacity storage systems, making it suitable for any energy need. Thanks to its size and modularity, the battery can also be inserted in small spaces.

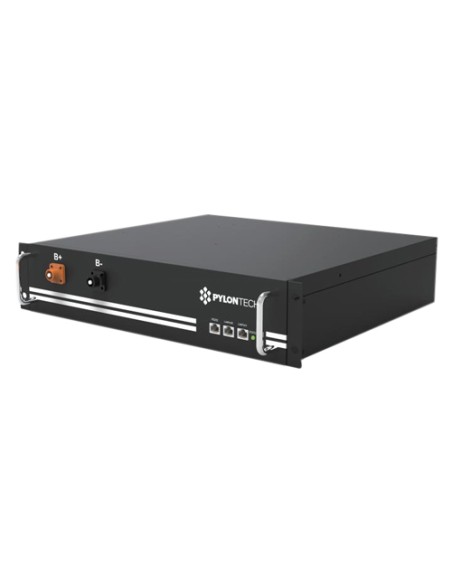

ZCS Pylontech H48050 2.4kWh high voltage lithium battery

The Pylontech H48050 high voltage battery makes it suitable for creating small and large capacity storage systems, making it suitable for any energy need. Thanks to its size and modularity, the battery can also be inserted in small spaces.

The battery must be combined with an external BMS and a rack cabinet, they can be used in series from 4 to 12 units.

For more details, download the following documents:

Datasheet: [Download]

Technical features

General data
Technology	Lithium Iron Phosphate
Dimensions	440mm410mm89mm
Weight	24Kg
Protection Class	IP20
Mounting	On ground, on support structure
Operating temperature while charging	0°C - +50°C
Operating temperature while discharging	-10°C - +50°C
Operating cycles under standard conditions	>5000
Maximum number of batteries that can be installed in parallel on inverters	In series: minimum no. of modules: 4 maximum no. of modules: 12
BMS	SC500-SC1000 (compulsory)
Certifications	TUV, CEI-021, CE, UN 38.3
Warranty	10 years
Communication	RS232, RS485, CAN bus
Capacity data
Nominal capacity of single module	2.4kWh / 50 Ah
Useful capacity of single module (Depth of Discharge 90%)	2.16kWh
Total Useful capacity (Depth of Discharge 90%)	From 8.64kWh (with 4 modules in series) From 25.92kWh (with 12 modules in series)
Nominal voltage	From 192V (with 4 modules in series) Up to 576 (with 12 modules in series)
Maximum charge current	25A
Maximum discharge current	25A
Maximum Depth of Discharge (DoD)	90%
