KSA-FORCE-H1-PYL-24.8
Last items in stock
€10,392.01
VAT included 10 %

€9,447.29 Vat excl.

Force-H1 is a 3.55kWh high voltage battery storage system based on lithium iron phosphate cells, and one of the new energy storage products developed and manufactured by Pylontech. It can be used with various types of residential and commercial storage equipment and systems.

This system contains 7 BATTERY MODULES.

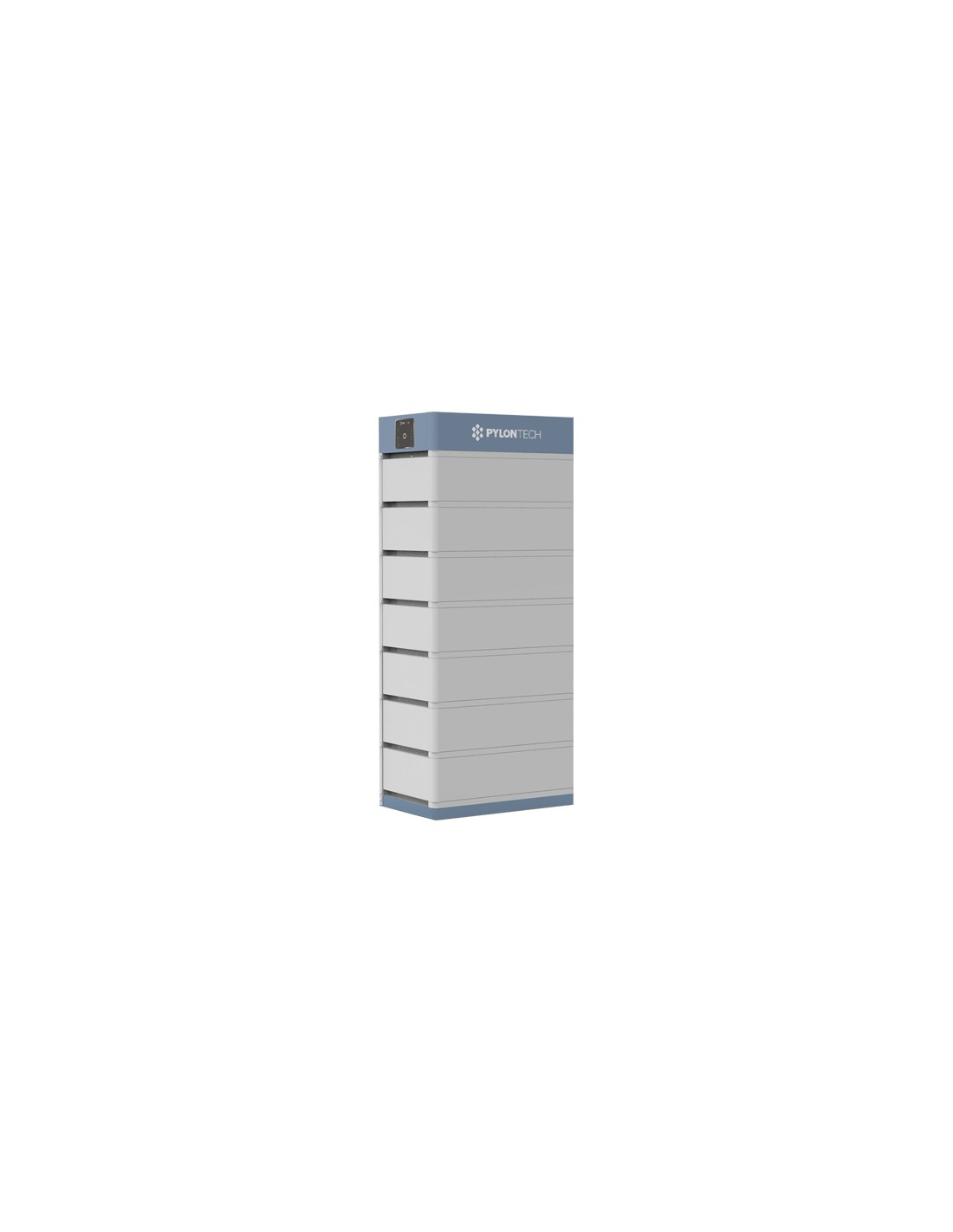

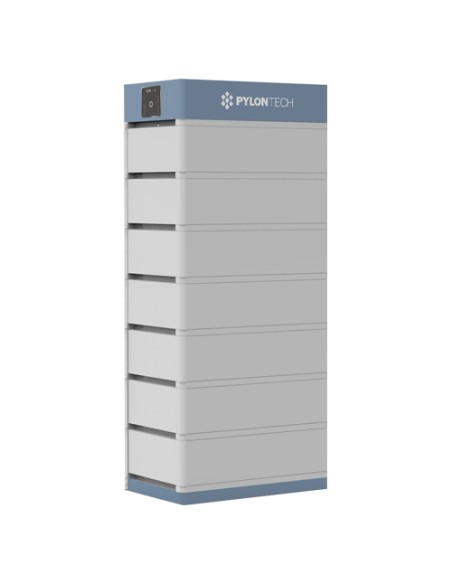

24.86kWh storage system in high voltage FORCE H1 Pylontech


Main features

Force-H1 is a 3.55kWh high voltage battery storage system based on lithium iron phosphate cells, and one of the new energy storage products developed and manufactured by Pylontech. It can be used with various types of residential and commercial storage equipment and systems.

The basic module is 3.55kWh, the depth of discharge is 95% and a capacity of 24.85kWh can be reached for each 7-cell battery. The battery is completed by the BMS, the upper element of the structure, which controls and regulates the charges and discharges of the system. 10-year warranty included, IP55.
Circuit breaker on board.


For more details, download the following documents:


Technical features

Model Force H1
Battery module quantity 4 5 6 7
Battery system voltage 192 240 288 336
Battery system capacity [kWh/Ah] 1 stack 14.20 / 74 17.76 / 74 21.31 / 74 24.86 / 74
Battery system charge/discharge current 37A
Dimension (mm) 870 1040 1210 1210
Weight (kg) 158 194 230 266
Battery system charge voltage [min~max,V] 174 ~ 216 217.5 ~ 270 261 ~ 324 304.5 ~ 378
Battery system charge/discharge current 14.8V
Battery system charge/discharge current 40@15s
Battery module name FH48074
Battery module voltage 48V
Battery module capacity 3.552 / 74kWh/Ah
Depth of Discharge 95%
Usable capacity 3.374 / 70.3kWh/Ah
Efficiency 96%

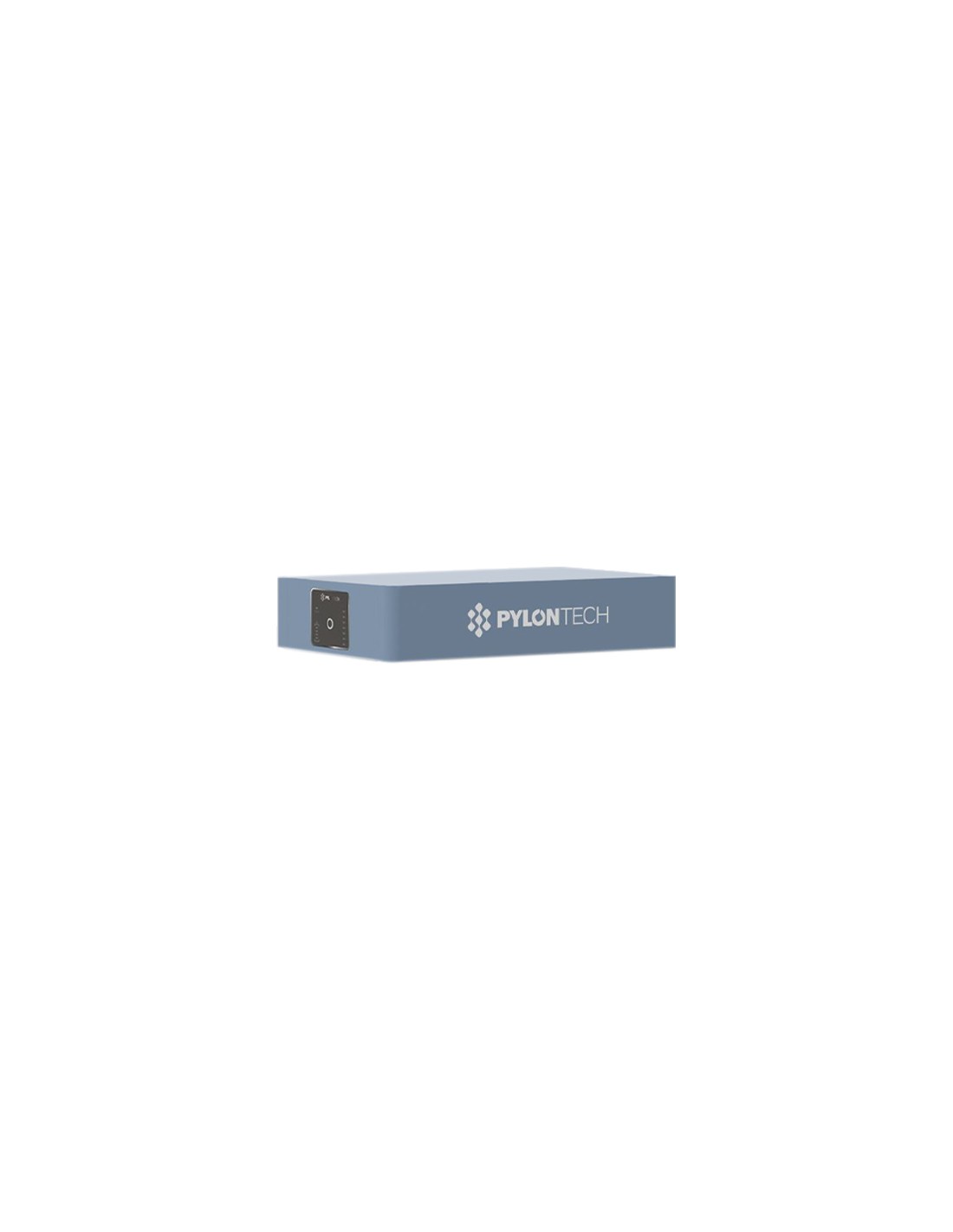

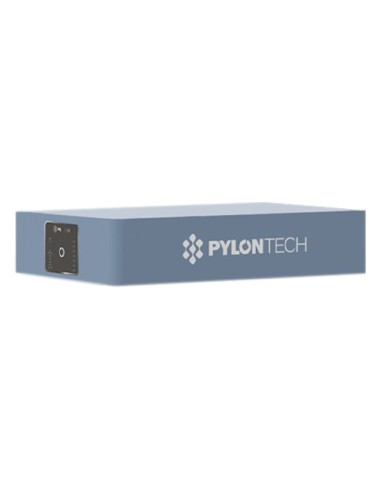

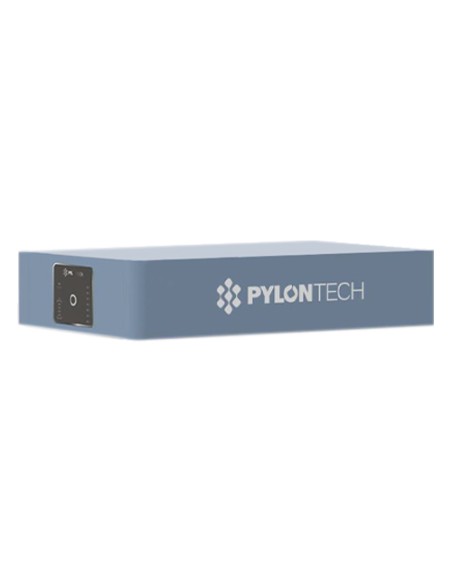

Battery controller name FC0500-40S
Communication bus CANBUS / Modbus RTU
Operation temperature °C 0 ~ 50
Storage temperature °C -20 ~ 60
Humidity 5 ~ 95%
Protection class IP55
Operation life (years) 15+
Operation cycle life >5000
Transport certificate UN38.3
Product certificate VDE2510-50, IEC62619, UL1973,
IEC62477-1, IEC62040-1, CEC, CE
Battery controller dimension [WxHxD, mm]
Battery module dimension [WxHxD, mm]

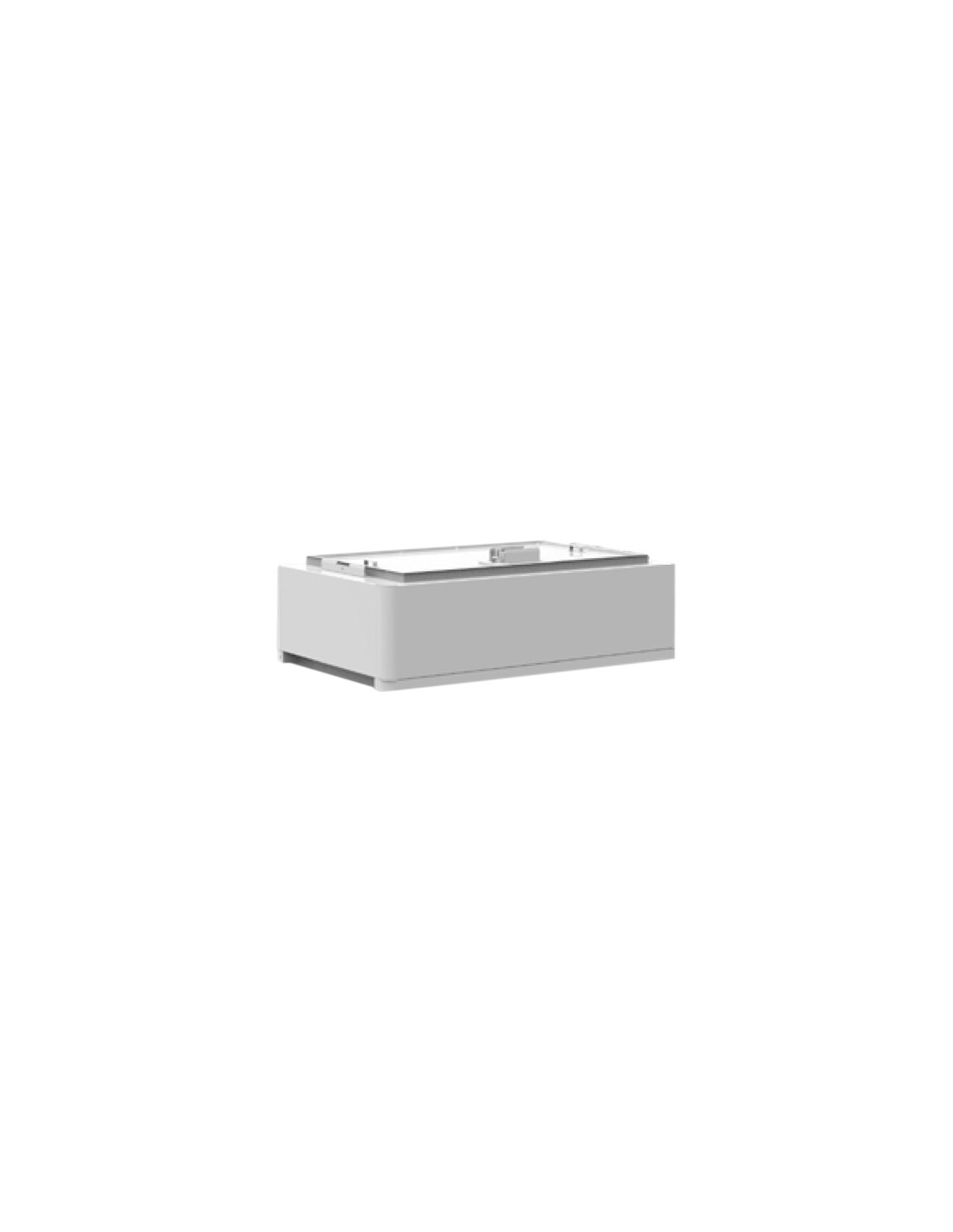

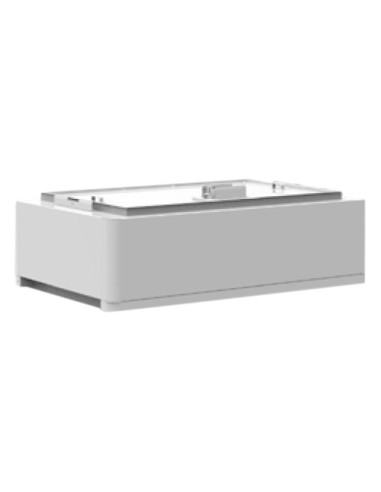

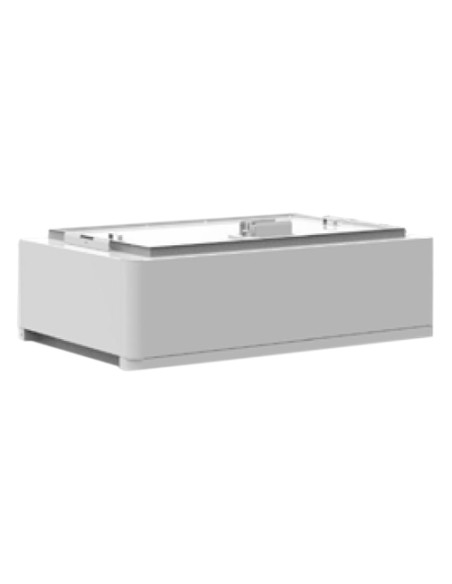

Battery bottom base dimension [WxHxD, mm]
600x150x380
600x170x380
600x40x380
