Set of 7 AIKO Neostar 2P 465W total 3255W mono photovoltaic solar panels
Set of 7 AIKO Neostar 2P 465W total 3255W mono photovoltaic solar panels
  • Pack
Set of 7 AIKO Neostar 2P 465W total 3255W mono photovoltaic solar panels
Set of 7 AIKO Neostar 2P 465W total 3255W mono photovoltaic solar panels

Set of 7 AIKO Neostar 2P 465W total 3255W mono photovoltaic solar panels

SET7-AIKO-A465-MAH54Mw
€632.66
VAT included 10 %

€575.12 Vat excl.

465W monocrystalline silicon photovoltaic solar panel is ideal for both grid-connected (on-grid photovoltaic systems) and stand-alone photovoltaic systems (off-grid photovoltaic systems)

This pack contains

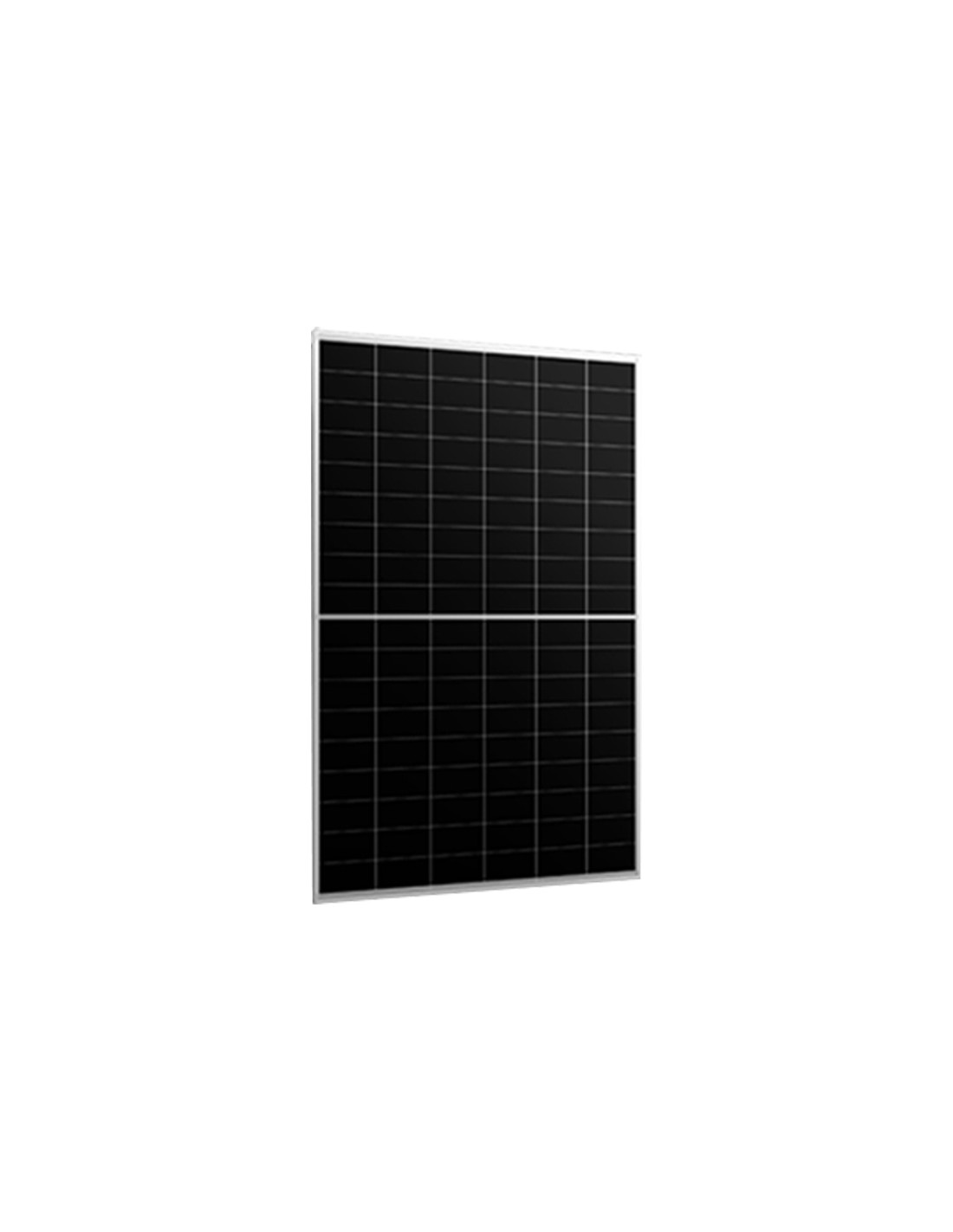

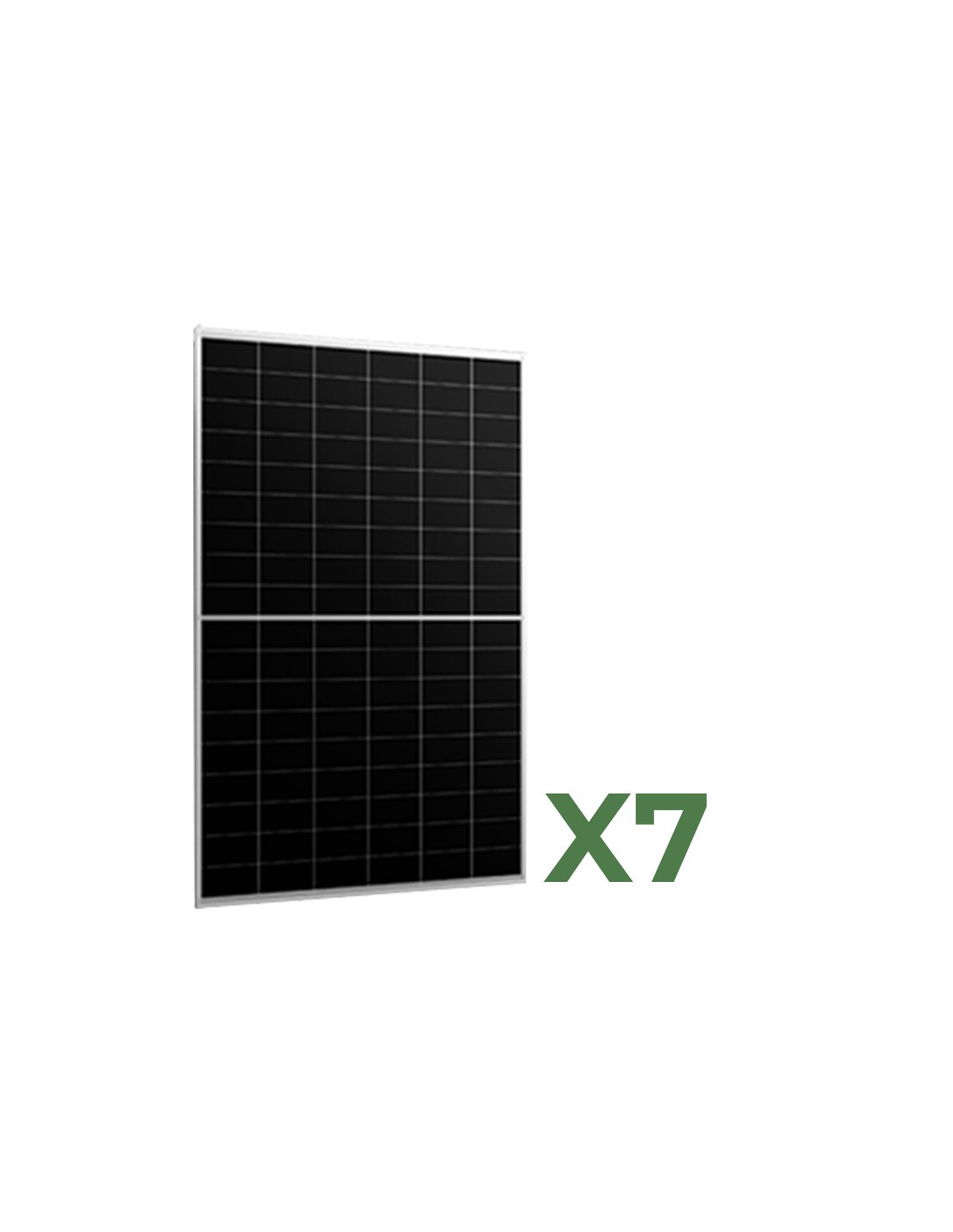

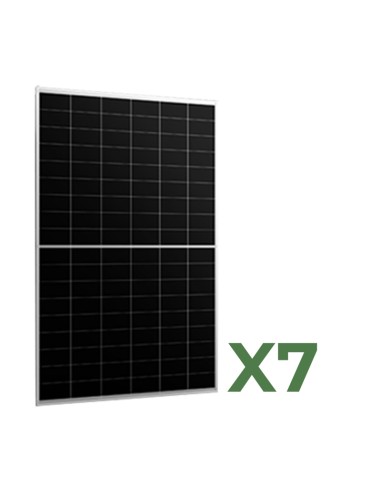

Set of 7 AIKO Neostar 2P 465W total 3255W monocrystalline photovoltaic solar panels

Model: AIKO-A465-MAH54Mw


The 108-cell module combines high energy production efficiency with an excellent quality/price ratio. The ABC N-Type configuration improves the electrical distribution inside the panel to increase the product's yield. It is suitable not only for industrial installations but also for residential and commercial installations.

Features

  • Efficiency: up to 23.3%.
  • Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in subsequent years
  • Premium warranty: 15 years product warranty, extendable to 25 and 30 years performance warranty
  • Best temperature coefficient: -0.26%/°C
  • Maximisation of installation capacity; optimisation of partial shading
  • Reduced O&M costs;
  • Temperature limitation and micro-fracture resistance; No front grid; Roof safety and reduced module failure rate;
  • The same DC capacity with connection points reduced by approximately 5.5%.

For more details, download the following documents:


Technical features:

ELECTRICAL CHARACTERISTICS
MODEL AIKO-A465-MAH54Mw
Nominal Output (Pmax) 465W
Voltage at Pmax (Vmp) 34,68V
Current at Pmax (Imp) 13,41A
Open Circuit Voltage (Voc) 41,12V
Short Circuit Current (Isc) 14,29A
Maximum System Voltage DC1500V
Maximum Series Fuse Rating 25A
Module Efficiency 23,3%
MECHANICAL CHARACTERISTICS
Solar Cells 108 monocrystalline ABC N-Type
Frame Anodized aluminum
Junction Box IP68, three bypass diodes
Cables Section 4 mm² (IEC) 12 AWG (UL) ±1200 mm
Dimensions 1757 x 1134 x 30 mm
Weight 21.5 kg
Pieces per pallet 36 pieces per pallet



Customer Service


0882 22 82 47

Nominal Output (Pmax) W
465W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
108
8370000052678
