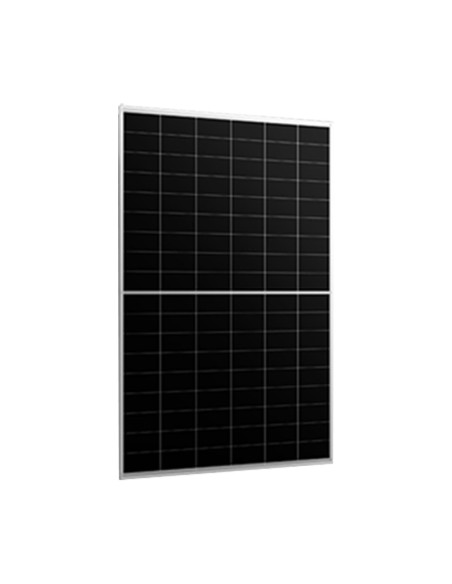

Monocrystalline photovoltaic solar panel AIKO 465W Neostar 2P
AIKO-A465-MAH54Mw
€83.14
VAT included
10 %
€75.58 Vat excl.
465W monocrystalline silicon photovoltaic solar panel is ideal for both grid-connected (on-grid photovoltaic systems) and stand-alone photovoltaic systems (off-grid photovoltaic systems)
AIKO Neostar 2P 465W monocrystalline photovoltaic solar panel
Model: AIKO-A465-MAH54Mw
The 108-cell module combines high energy production efficiency with an excellent quality/price ratio. The ABC N-Type configuration improves the electrical distribution inside the panel to increase the product's yield. It is suitable not only for industrial installations but also for residential and commercial installations.
Features
- Efficiency: up to 23.3%.
- Low performance degradation: ≤1% in the first year, and ≤ 0.35%/year in subsequent years
- Premium warranty: 15 years product warranty, extendable to 25 and 30 years performance warranty
- Best temperature coefficient: -0.26%/°C
- Maximisation of installation capacity; optimisation of partial shading
- Reduced O&M costs;
- Temperature limitation and micro-fracture resistance; No front grid; Roof safety and reduced module failure rate;
- The same DC capacity with connection points reduced by approximately 5.5%.
For more details, download the following documents:
- Datasheet: [Download]
Technical features:
ELECTRICAL CHARACTERISTICS | |
MODEL | AIKO-A465-MAH54Mw |
Nominal Output (Pmax) | 465W |
Voltage at Pmax (Vmp) | 34,68V |
Current at Pmax (Imp) | 13,41A |
Open Circuit Voltage (Voc) | 41,12V |
Short Circuit Current (Isc) | 14,29A |
Maximum System Voltage | DC1500V |
Maximum Series Fuse Rating | 25A |
Module Efficiency | 23,3% |
MECHANICAL CHARACTERISTICS | |
Solar Cells | 108 monocrystalline ABC N-Type |
Frame | Anodized aluminum |
Junction Box | IP68, three bypass diodes |
Cables Section | 4 mm² (IEC) 12 AWG (UL) ±1200 mm |
Dimensions | 1757 x 1134 x 30 mm |
Weight | 21.5 kg |
Pieces per pallet | 36 pieces per pallet |
- Nominal Output (Pmax) W
- 465W
- Connector Type
- MC4 o connettori compatibili
- Type Panel
- framed
- Product Origin
- Asian
- Cell type
- Monocrystalline
- Number of cells
- 108
- Single-sided/Double-sided
- Single-sided
8370000054580
