€493.86 Vat excl.

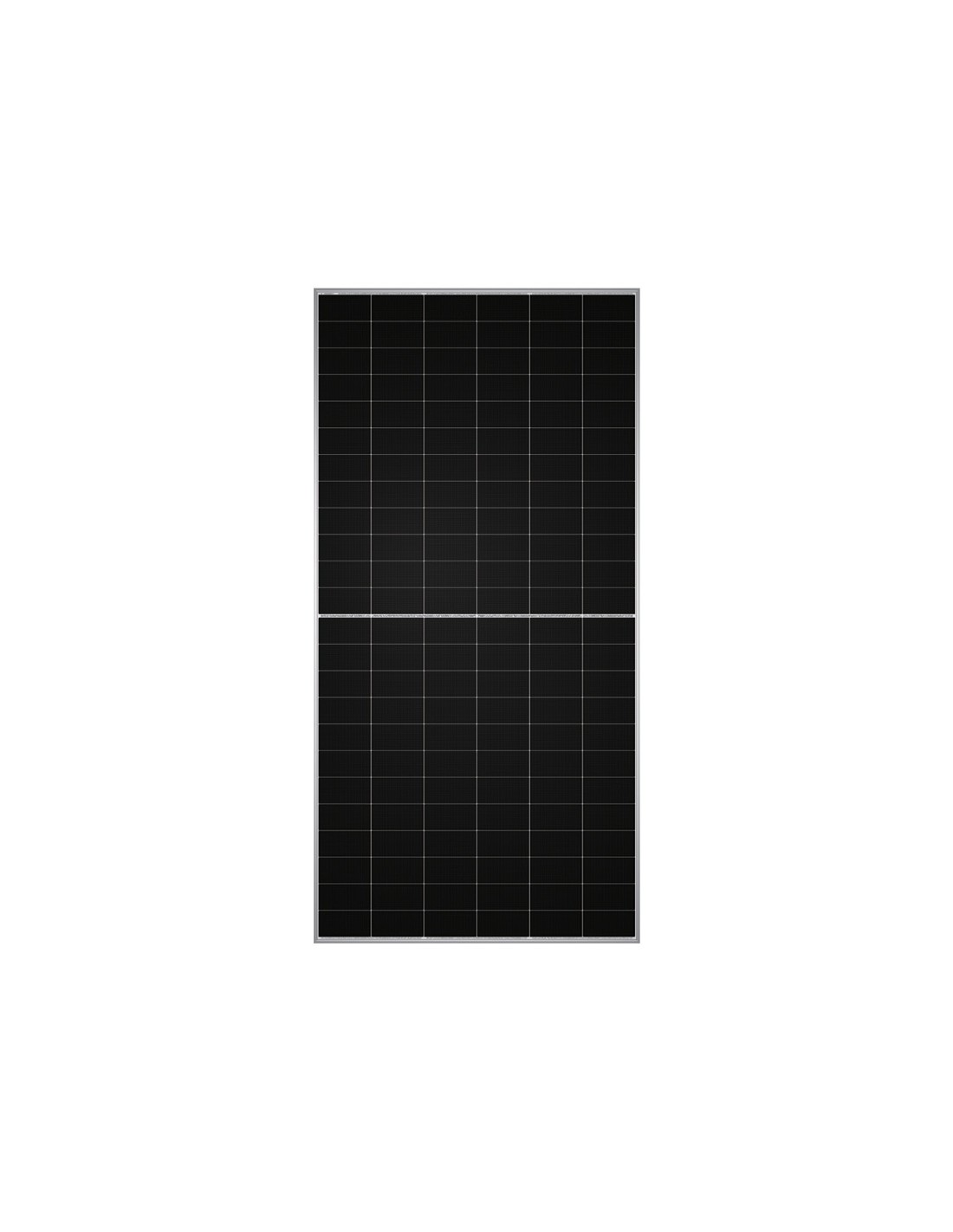

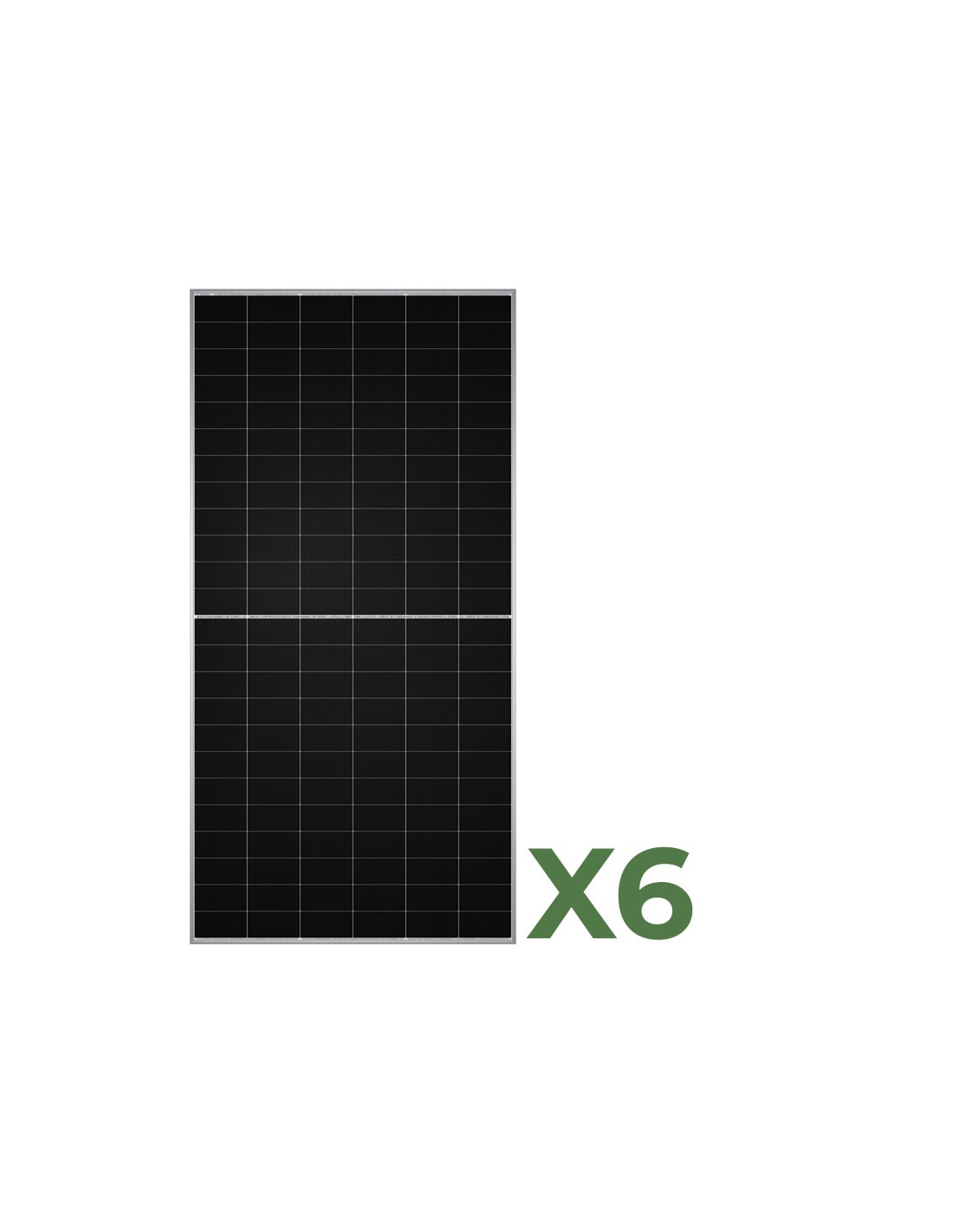

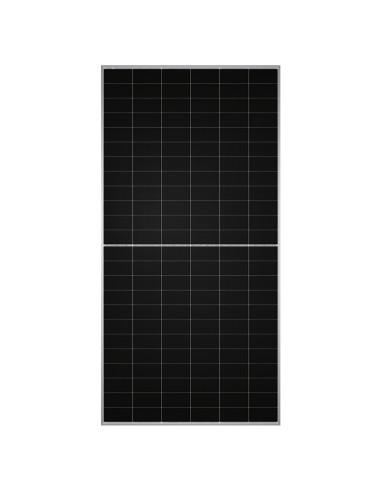

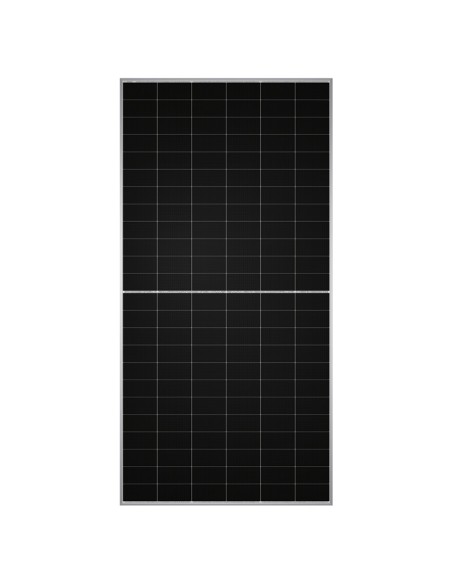

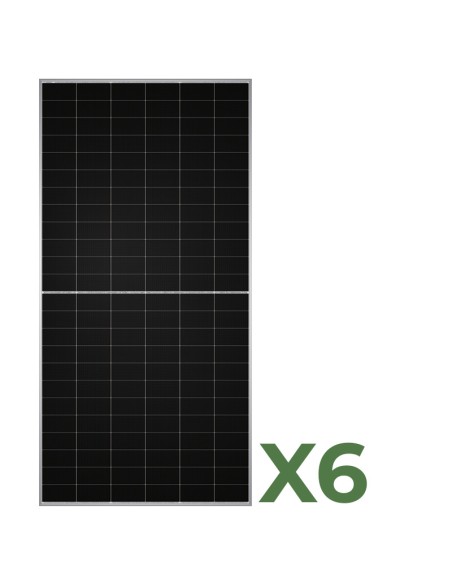

Photovoltaic solar panel 590W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
The 144-cell Half Cell module combines the high production efficiency of half cell technology with an excellent quality/price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the product's yield.
For these reasons, it is suitable not only for industrial installations but also for residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| MODEL | TWMND-72HD590W |
| Nominal Output (Pmax) | 590W |
| Voltage at Pmax (Vmp) | 44.27V |
| Current at Pmax (Imp) | 13.33A |
| Open Circuit Voltage (Voc) | 52.70V |
| Short Circuit Current (Isc) | 13.95A |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 30A |
| Module Efficiency | 22.5% |
| MECHANICAL CHARACTERISTICS | |
| Solar Cells | 144 (6x24) TNC (N-type monocrystalline cell) |
| Frame | Anodized aluminium alloy |
| Junction Box | IP68 |
| Cables Section | 4.0 mm² |
| Dimensions | 2278 x 1134 x 30 mm |
| Weight | 31.5 kg |
| Pieces per pallet | 36 pcs |
