€680.80 Vat excl.

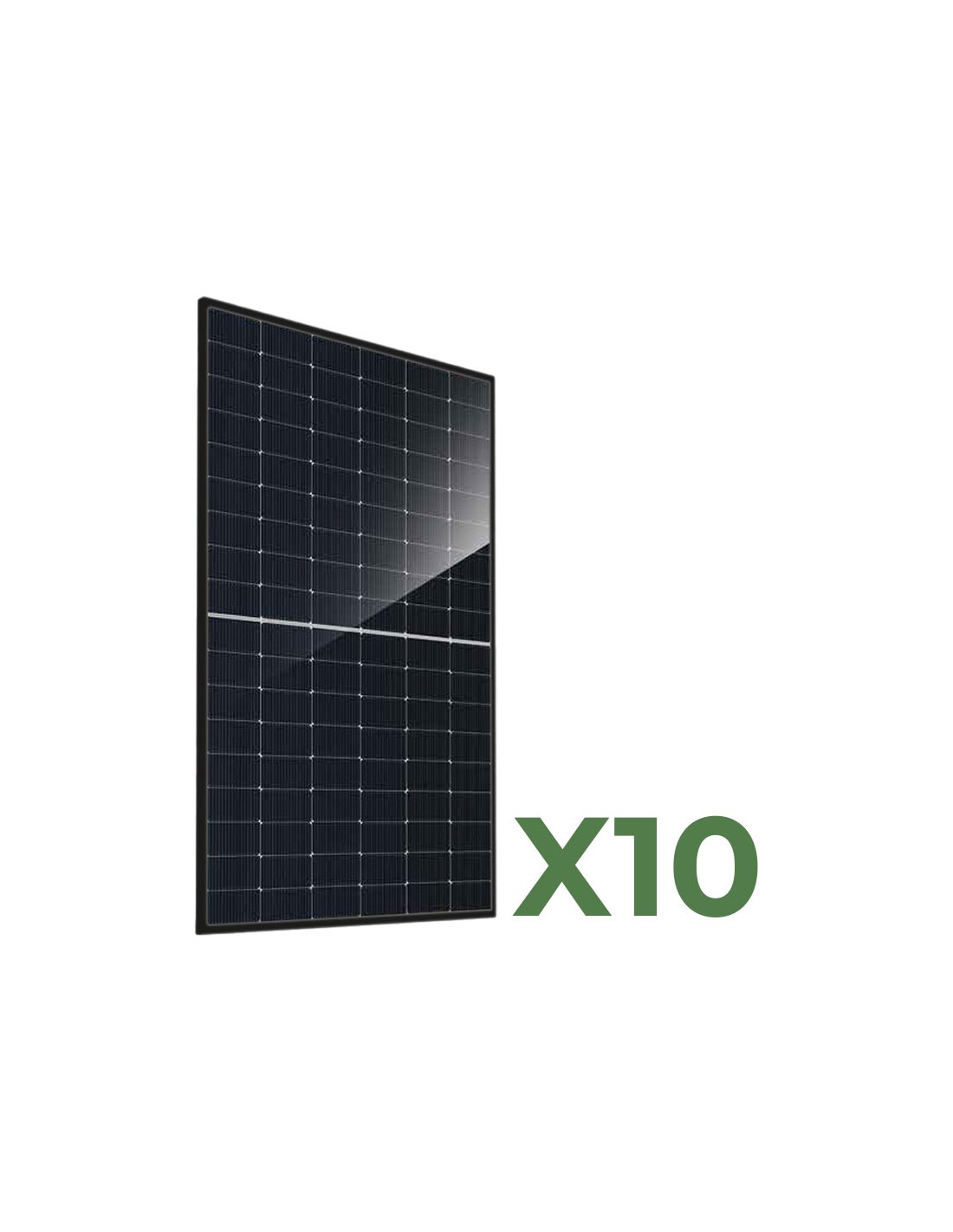

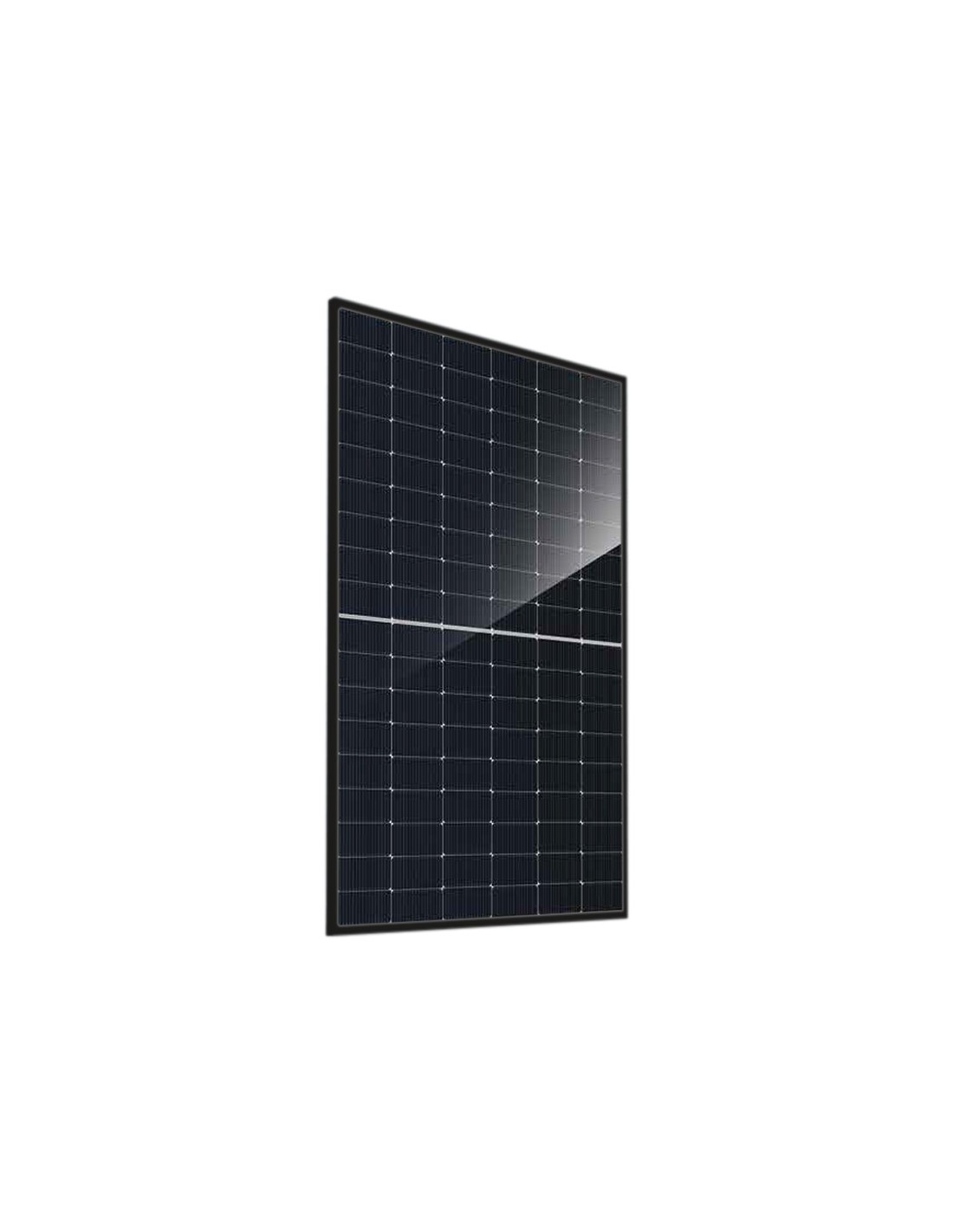

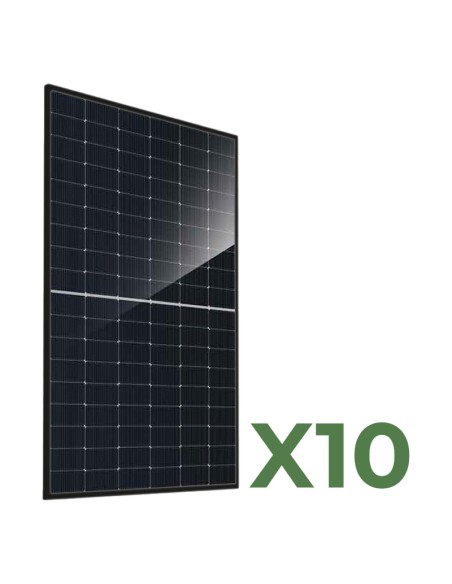

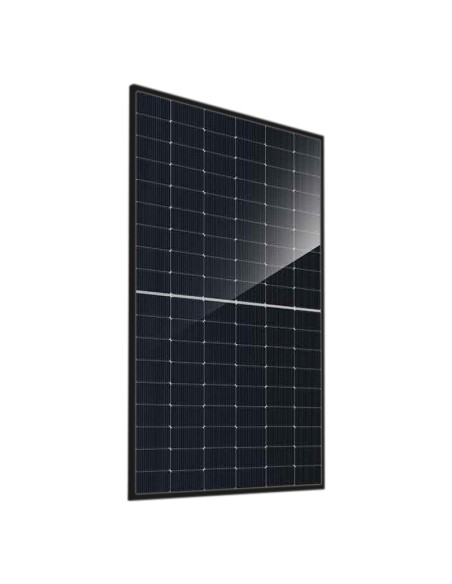

Photovoltaic solar panel 460W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
| ELECTRICAL CHARACTERISTICS | |
| MODEL | JAM54D40-460/LB |
| Peak power (Pmax) | 460W |
| Voltage at Pmax (Vmp) | 33.17V |
| Current at Pmax (Imp) | 13.87A |
| Open Circuit Voltage (Voc) | 39.70V |
| Short Circuit Current (Isc) | 14.64A |
| Maximum System Voltage | 1500V DC |
| Maximum Fuse Rating | 30A |
| Efficiency module | 23% |
| MECHANICAL CHARACTERISTICS | |
| Cells |
Mono |
| Junction Box | IP68, 3 diodes |
| Cable Section | 4mm² (IEC), 12AWG(UL) |
| Dimensions | 1762 x 1134 x 30 mm |
| Weight | 22Kg |
| Pallet panels | 36 pieces per pallet |
