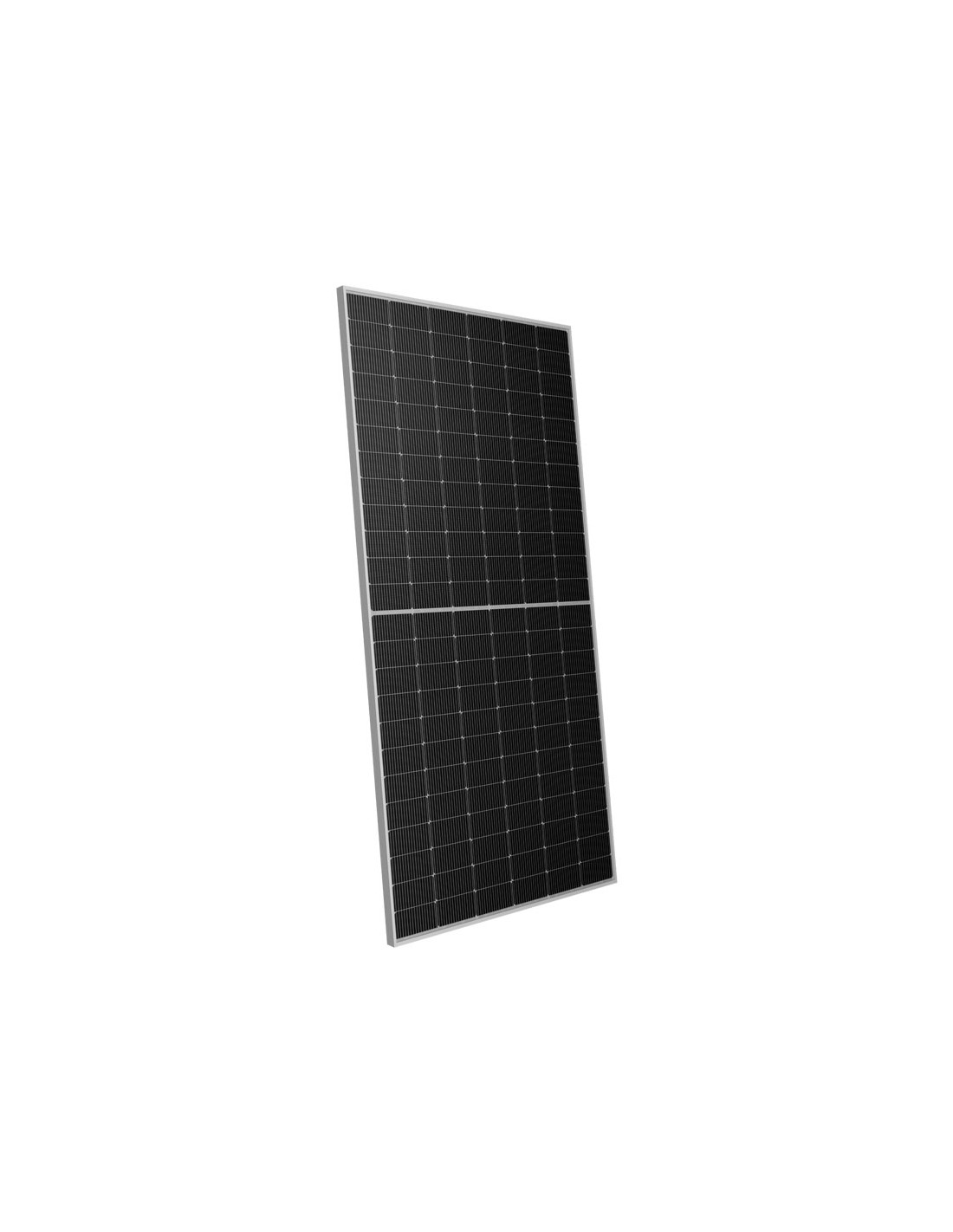

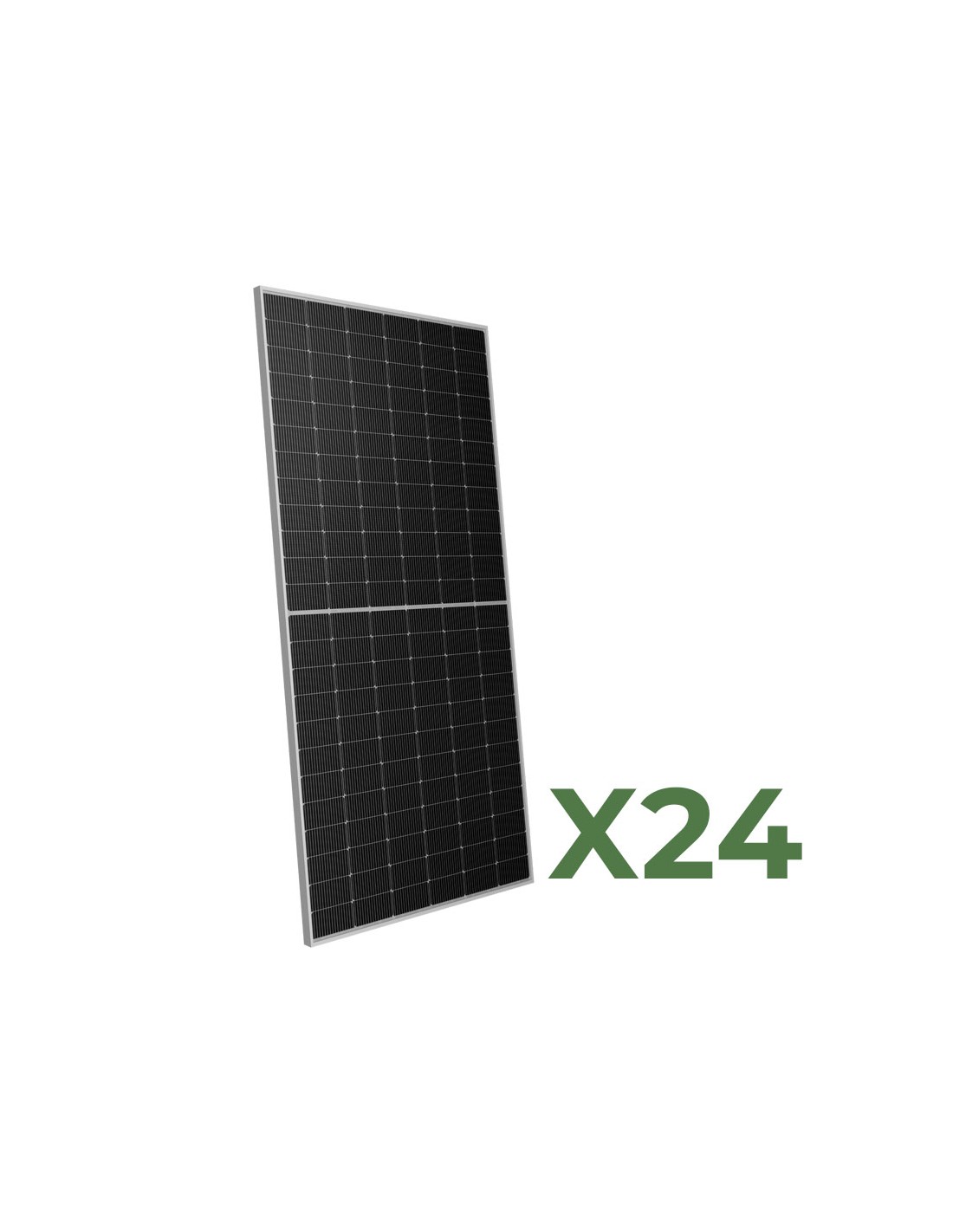

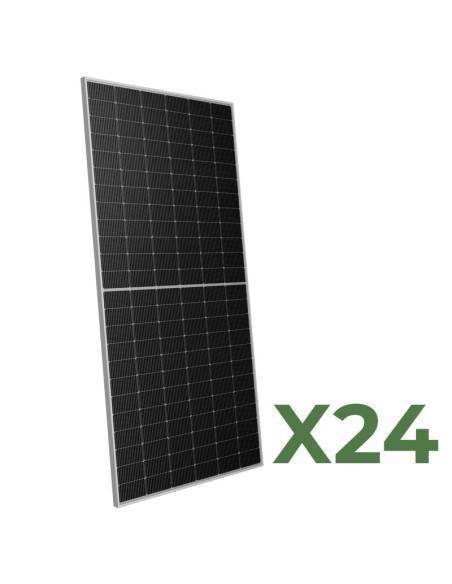

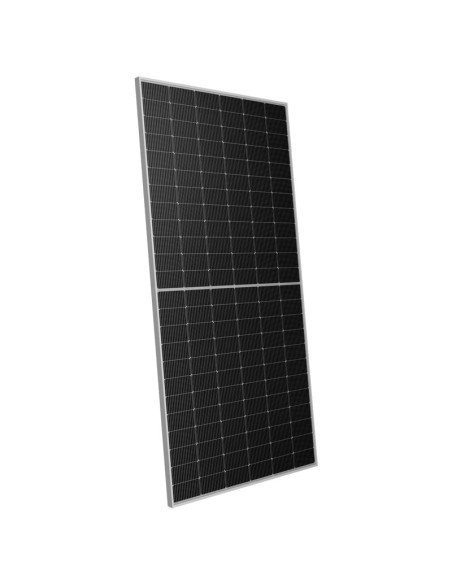

Set 24 595W total 14280W Peimar mono bifacial photovoltaic solar panel half cell
Set 24 595W total 14280W Peimar mono bifacial photovoltaic solar panel half cell
  • Pack
Set 24 595W total 14280W Peimar mono bifacial photovoltaic solar panel half cell
Set 24 595W total 14280W Peimar mono bifacial photovoltaic solar panel half cell

Set 24 595W total 14280W Peimar mono bifacial photovoltaic solar panel half cell

SET24-OR10H595MNDB
€2,238.24
VAT included 10 %

€2,034.72 Vat excl.

Photovoltaic solar panel 595W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).

This pack contains



Set 24 595W total 14280W Peimar mono bifacial photovoltaic solar panel half cells

Model: OR10H595MNDB

The 144-cell Half Cut module from the Half Cell Line combines the high production efficiency of half cell technology with an excellent quality/price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the product's yield. In addition, this product uses TOPCon bifacial technology, which allows sunlight to be captured on both sides of the module, further increasing overall efficiency. The Half Cut range from the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.

Features

  • TOPCon DOUBLE-SIDED TECHNOLOGY;
  • ANTI-REFLECTIVE DOUBLE GLASS;
  • FIRE REACTION:CLASS I.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
TEMPLATE OR10H595MNDB
Peak power (Pmax) 595W
Voltage at Pmax (Vmp) 44.48V
Current at Pmax (Imp) 13.38A
Voltage open circuit current (Voc) 53.12V
Short circuit current (Isc) 14.13A
Maximum system voltage 1500V
Maximum fuse rating 30A
Module efficiency 23.03%
MECHANICAL CHARACTERISTICS
Cells 144 M10 HALF monocristalline N-TYPE
Frame Double thickness anodized aluminum alloy
Junction Box IP68 certified
Cable Section 4.0 mm²
Dimensions 2278 x 1134 x 30 mm
Weight 31.4 Kg
Pallet panels 36 pieces per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
595W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
144
