€321.00 Vat excl.

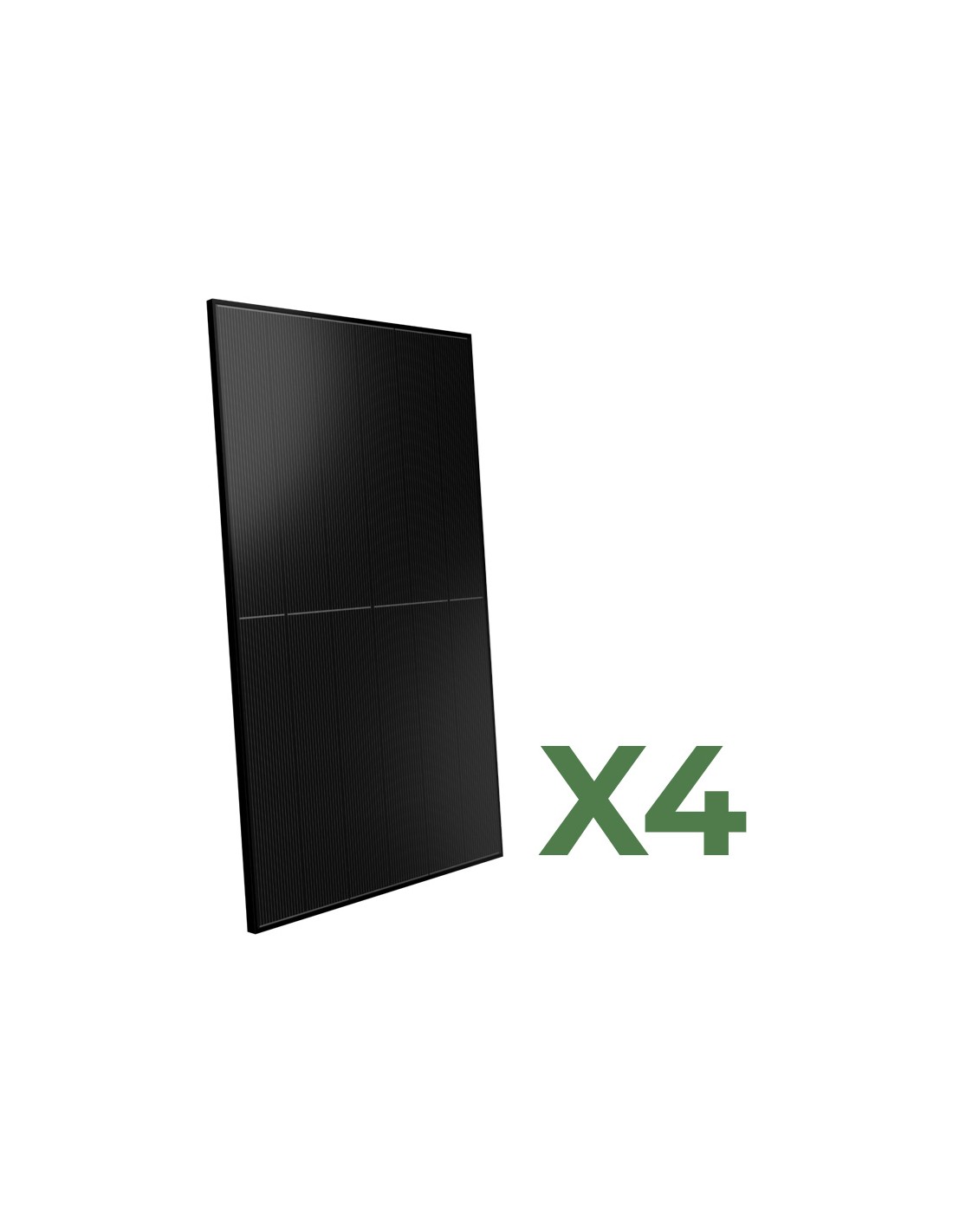

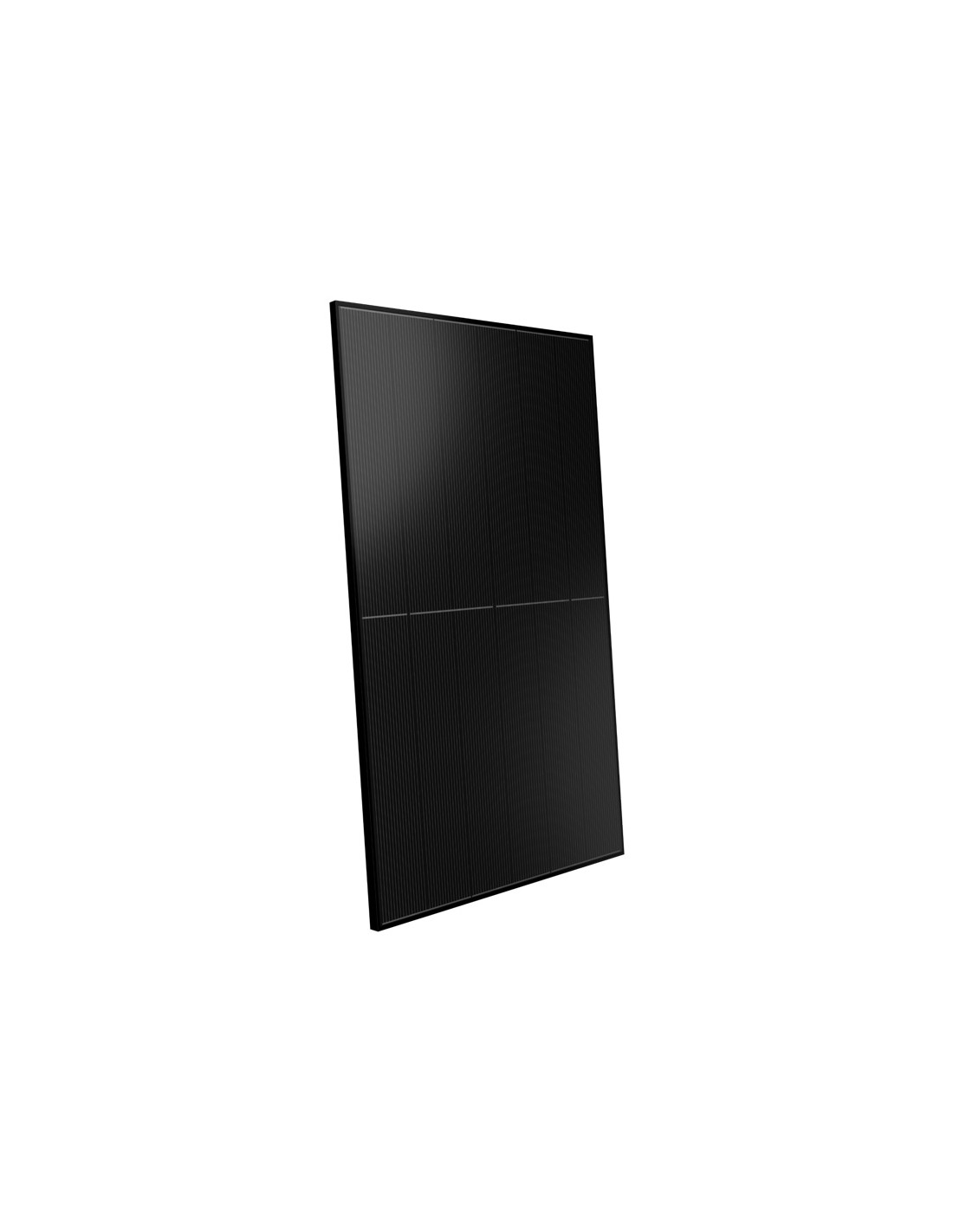

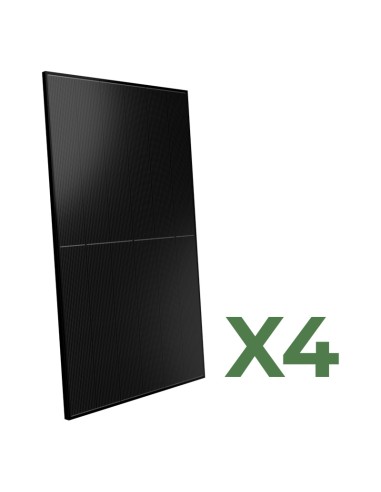

Photovoltaic solar monocrystalline panel 500W, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
The 120-cell module guarantees high production efficiency, combined with an excellent quality/price ratio. The optimized cell configuration ensures better electrical distribution within the panel, thus increasing the overall yield of the product. In addition, this product uses TOPCon bifacial technology, which allows sunlight to be captured on both sides of the module, further increasing overall efficiency. Ideal for industrial, residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| MODEL | OR10H500MNDB-FB |
| Peak power (Pmax) | 500W |
| Voltage at Pmax (Vmp) | 36.93V |
| Current at Pmax (Imp) | 13.54A |
| Voltage open circuit current (Voc) | 43.32V |
| Short circuit current (Isc) | 14.26A |
| Maximum system voltage | 1500V |
| Maximum fuse rating | 30A |
| Module efficiency | 23.17% |
| MECHANICAL CHARACTERISTICS | |
| Cells | 120 M10 HALF monocrystalline N-TYPE |
| Frame | Double thickness anodized aluminum alloy |
| Junction Box | IP68 certified |
| Cable Section | 4.0 mm² |
| Dimensions | 1903 x 1134 x 30 mm |
| Weight | 26.7 kg |
| Pallet panels | 36 pieces per pallet |
