€1,196.28 Vat excl.

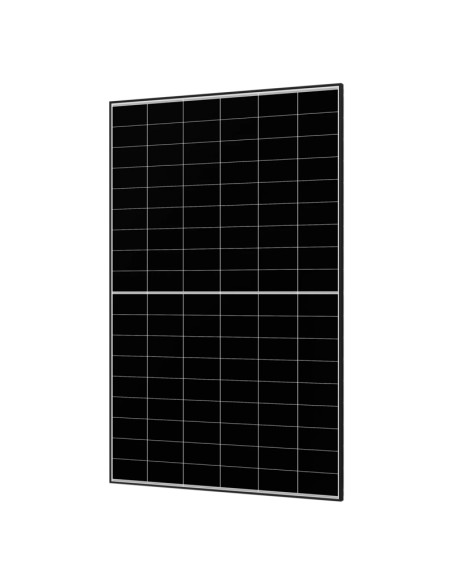

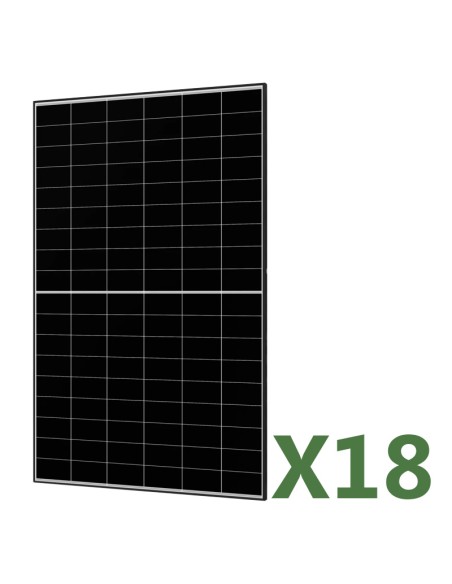

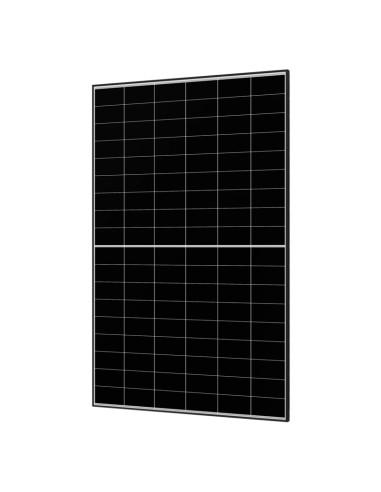

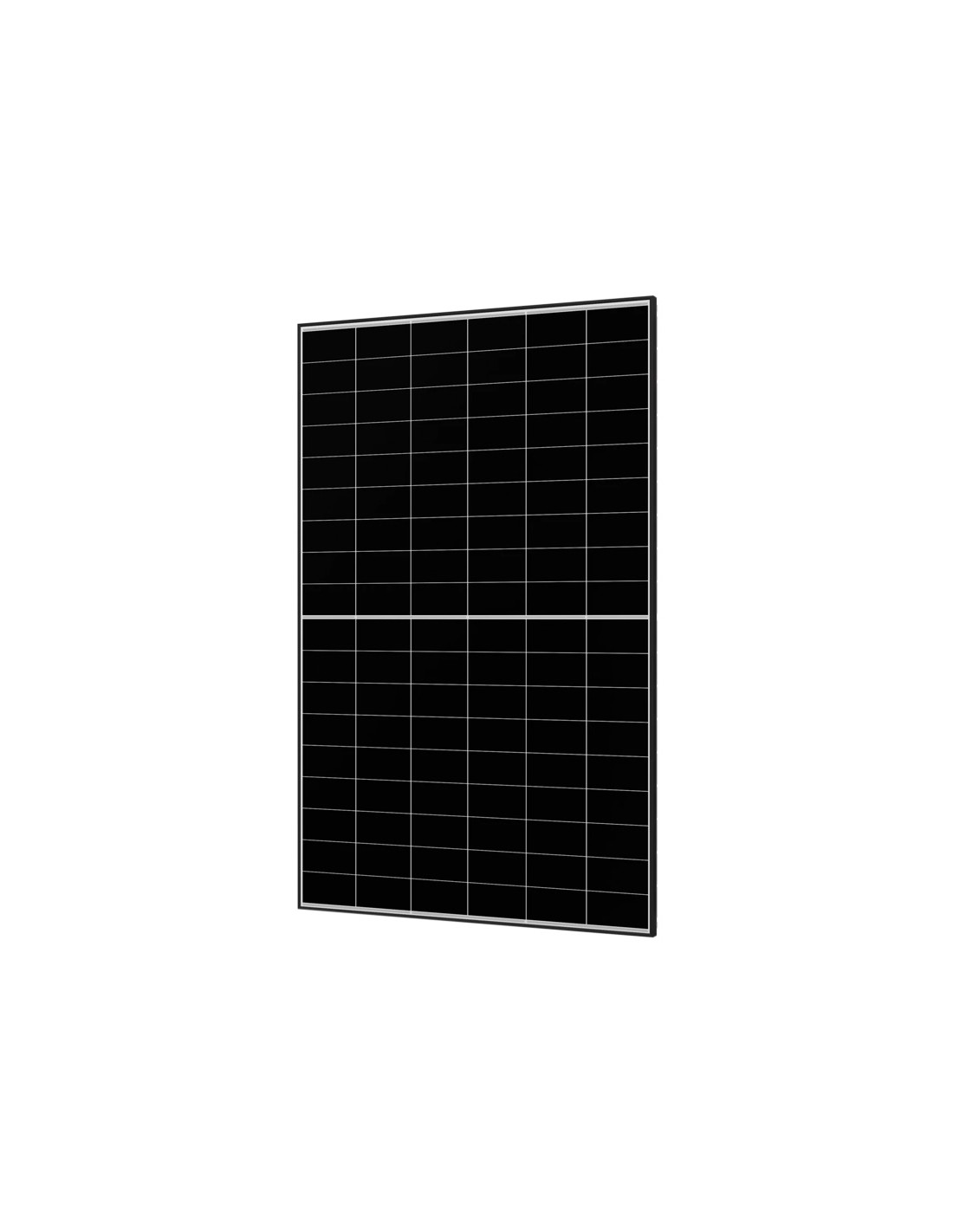

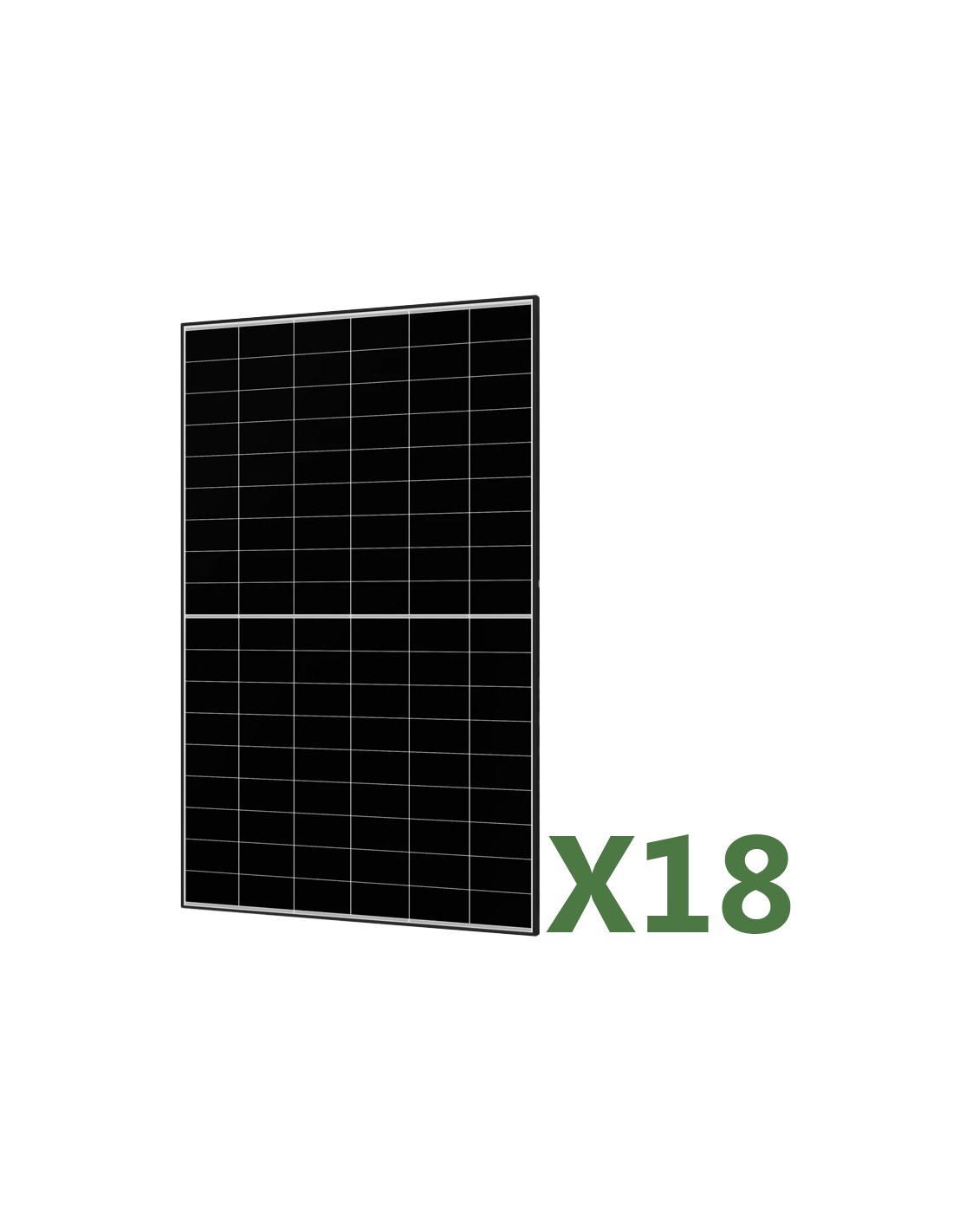

Photovoltaic solar panel 470W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
The 108-cell module combines high energy production efficiency with an excellent quality/price ratio. The ABC N-Type configuration improves the electrical distribution inside the panel to increase the product's yield. It is suitable not only for industrial installations but also for residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| MODEL | AIKO-A470-MAH54Dw |
| Nominal Output (Pmax) | 470W |
| Voltage at Pmax (Vmp) | 34.74V |
| Current at Pmax (Imp) | 13.54A |
| Open Circuit Voltage (Voc) | 41.18V |
| Short Circuit Current (Isc) | 14.32A |
| Maximum System Voltage | 1500V |
| Maximum Series Fuse Rating | 25A |
| Module Efficiency | 23,6% |
| MECHANICAL CHARACTERISTICS | |
| Solar Cells | 108 monocrystalline ABC N-Type |
| Frame | Black anodized aluminum |
| Junction Box | IP68, three bypass diodes |
| Cables Section | 4 mm² (IEC) 12 AWG (UL) 1200 mm |
| Dimensions | 1757 x 1134 x 30mm |
| Weight | 24.2 kg |
| Pieces per pallet | 37 pieces per pallet |
