Fixing components
€1,150.24 Vat excl.

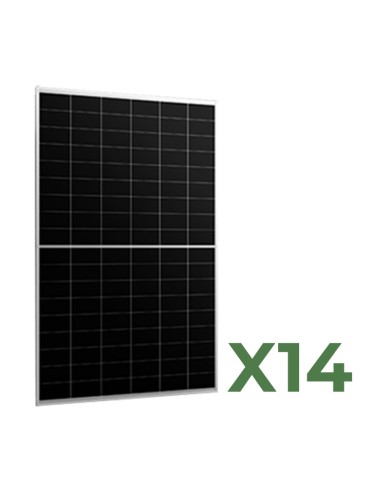

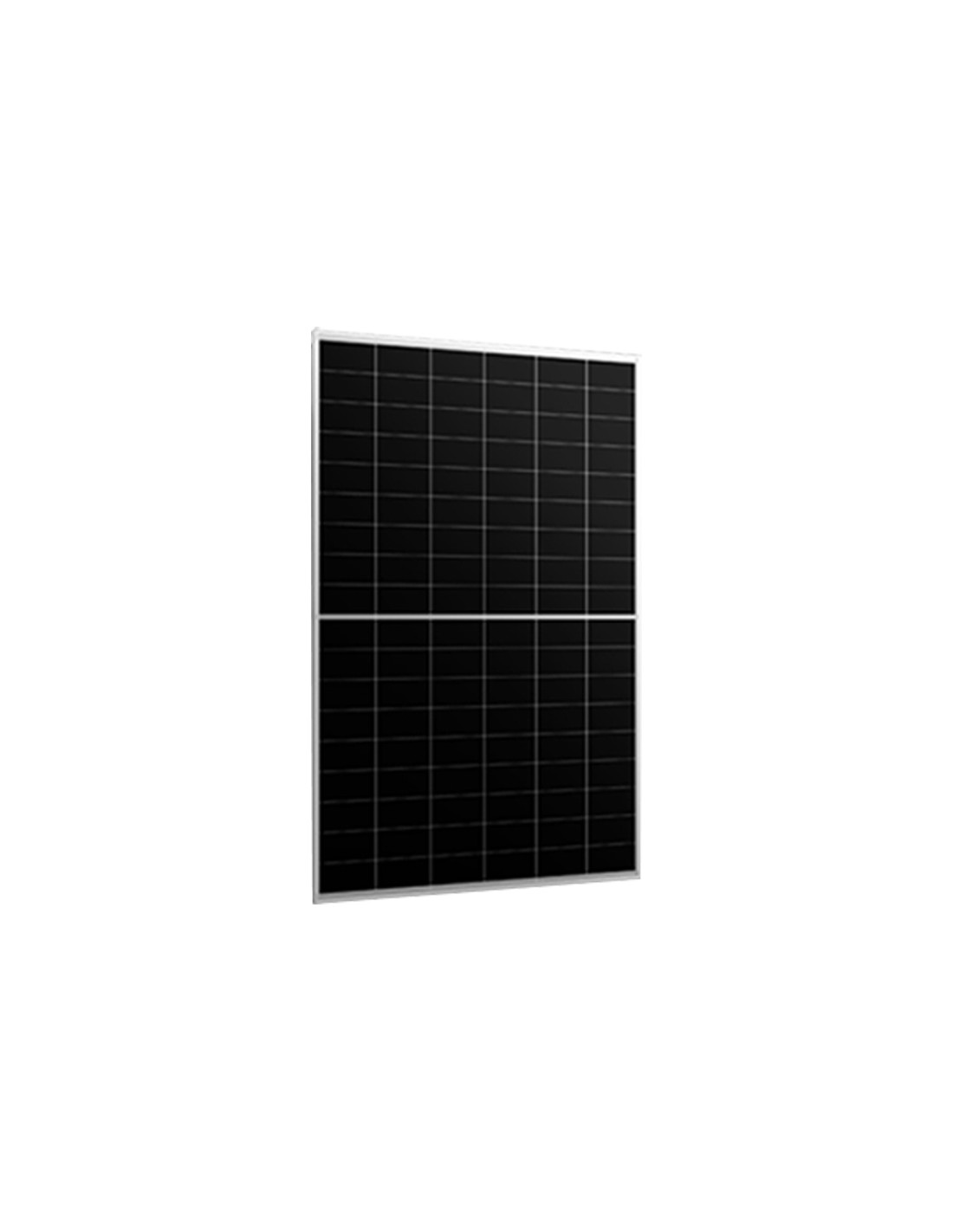

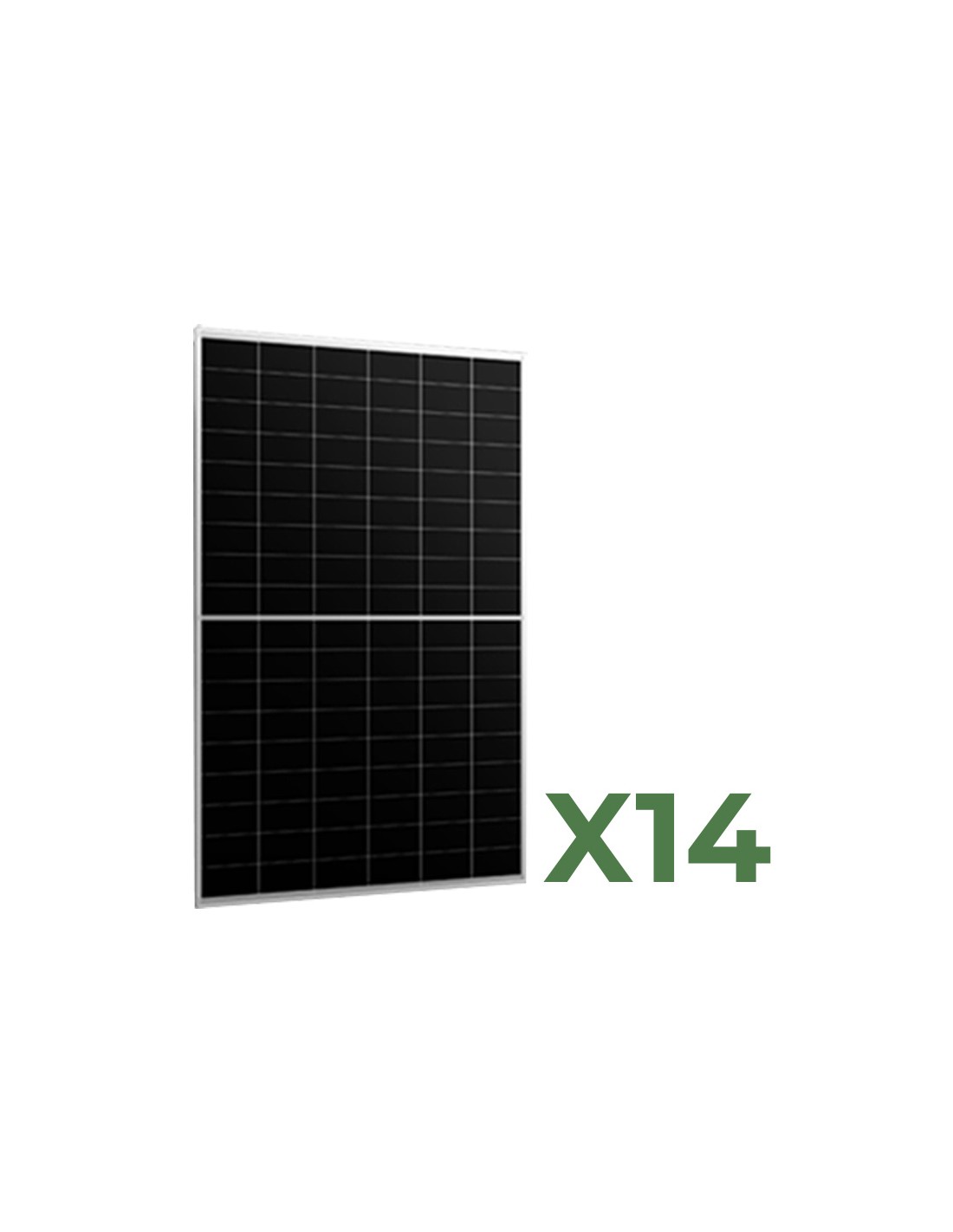

465W monocrystalline silicon photovoltaic solar panel is ideal for both grid-connected (on-grid photovoltaic systems) and stand-alone photovoltaic systems (off-grid photovoltaic systems)
The 108-cell module combines high energy production efficiency with an excellent quality/price ratio. The ABC N-Type configuration improves the electrical distribution inside the panel to increase the product's yield. It is suitable not only for industrial installations but also for residential and commercial installations.
ELECTRICAL CHARACTERISTICS | |
MODEL | AIKO-A465-MAH54Mw |
Nominal Output (Pmax) | 465W |
Voltage at Pmax (Vmp) | 34,68V |
Current at Pmax (Imp) | 13,41A |
Open Circuit Voltage (Voc) | 41,12V |
Short Circuit Current (Isc) | 14,29A |
Maximum System Voltage | DC1500V |
Maximum Series Fuse Rating | 25A |
Module Efficiency | 23,3% |
MECHANICAL CHARACTERISTICS | |
Solar Cells | 108 monocrystalline ABC N-Type |
Frame | Anodized aluminum |
Junction Box | IP68, three bypass diodes |
Cables Section | 4 mm² (IEC) 12 AWG (UL) ±1200 mm |
Dimensions | 1757 x 1134 x 30 mm |
Weight | 21.5 kg |
Pieces per pallet | 36 pieces per pallet |
