€821.15 Vat excl.

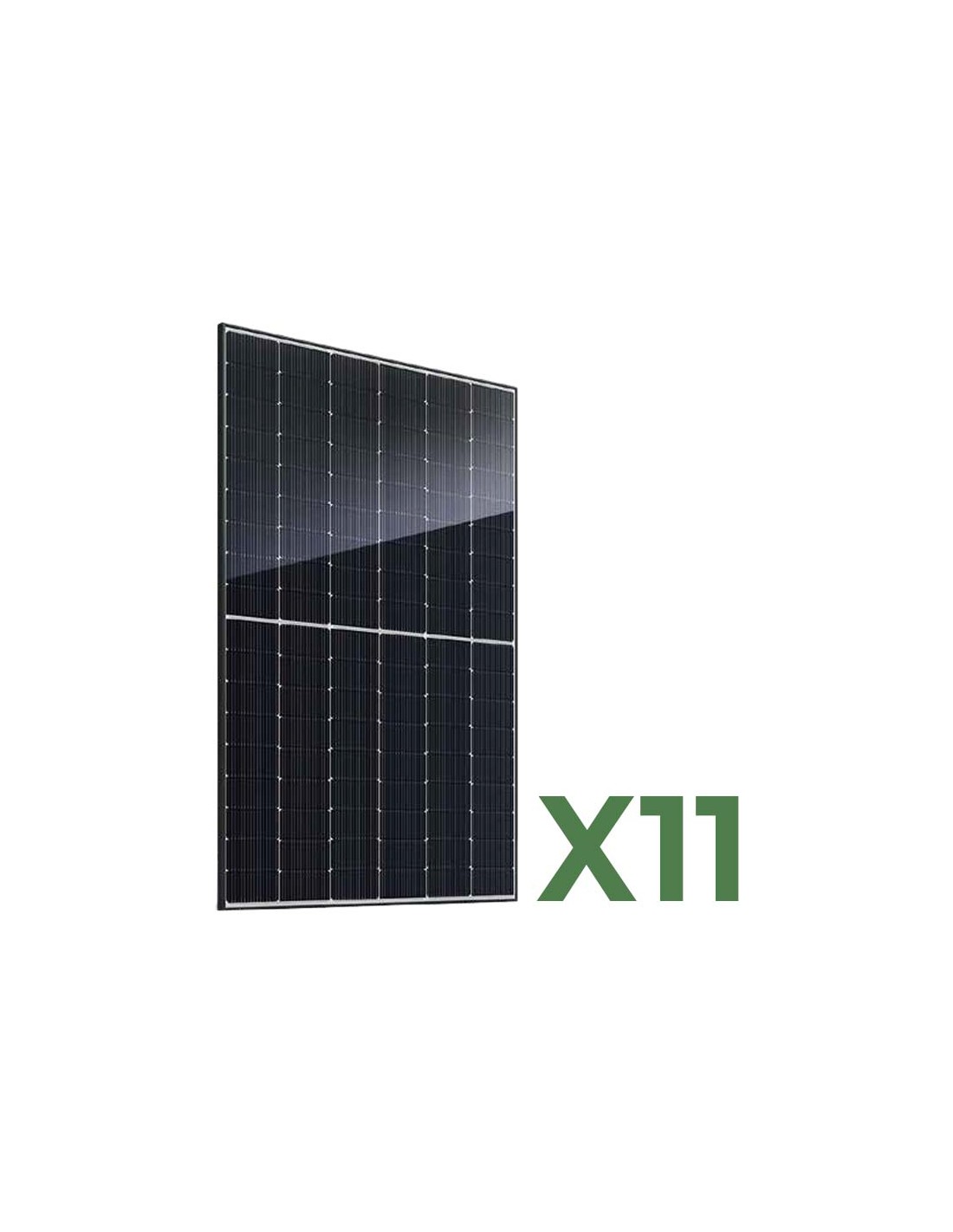

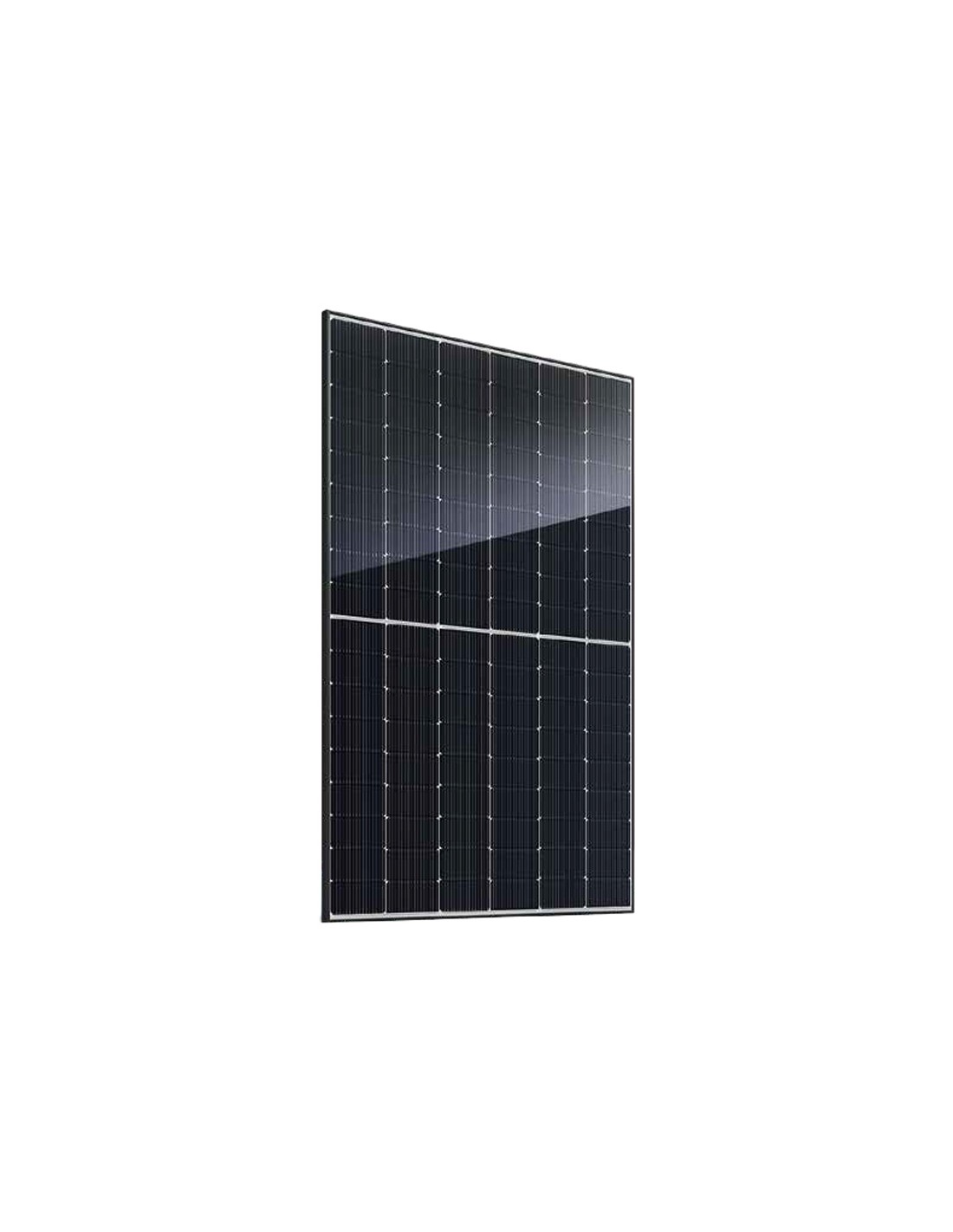

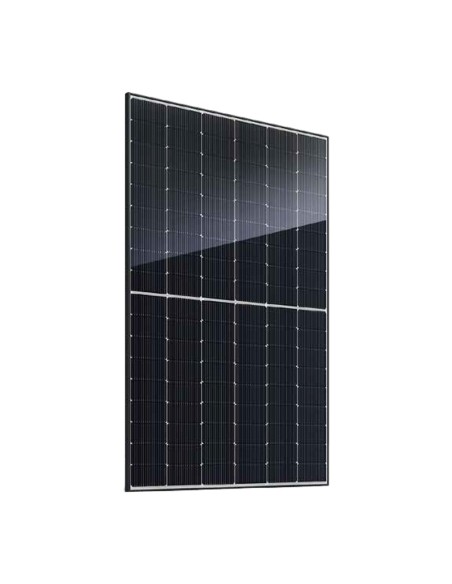

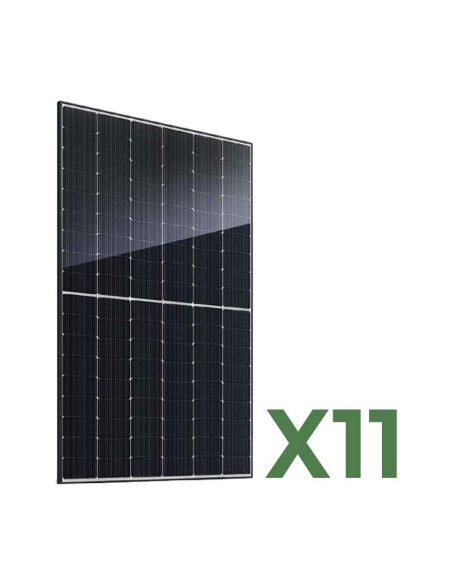

Photovoltaic solar panel 520W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
| ELECTRICAL CHARACTERISTICS | |
| MODEL | JAM60D42-520/LB |
| Peak power (Pmax) | 520W |
| Voltage at Pmax (Vmp) | 36.37V |
| Current at Pmax (Imp) | 14.30A |
| Open Circuit Voltage (Voc) | 43.53V |
| Short Circuit Current (Isc) | 15.16A |
| Maximum System Voltage | 1500V DC |
| Maximum Fuse Rating | 30A |
| Efficiency module | 22.2% |
| MECHANICAL CHARACTERISTICS | |
| Cells |
Mono-16BB |
| Junction Box | IP68, 3 diodes |
| Cable Section | 4mm² (IEC), 12AWG(UL) |
| Dimensions | 2063 x 1134 x 30 mm |
| Weight | 28.8Kg |
| Pallet panels | 36 pieces per pallet |
