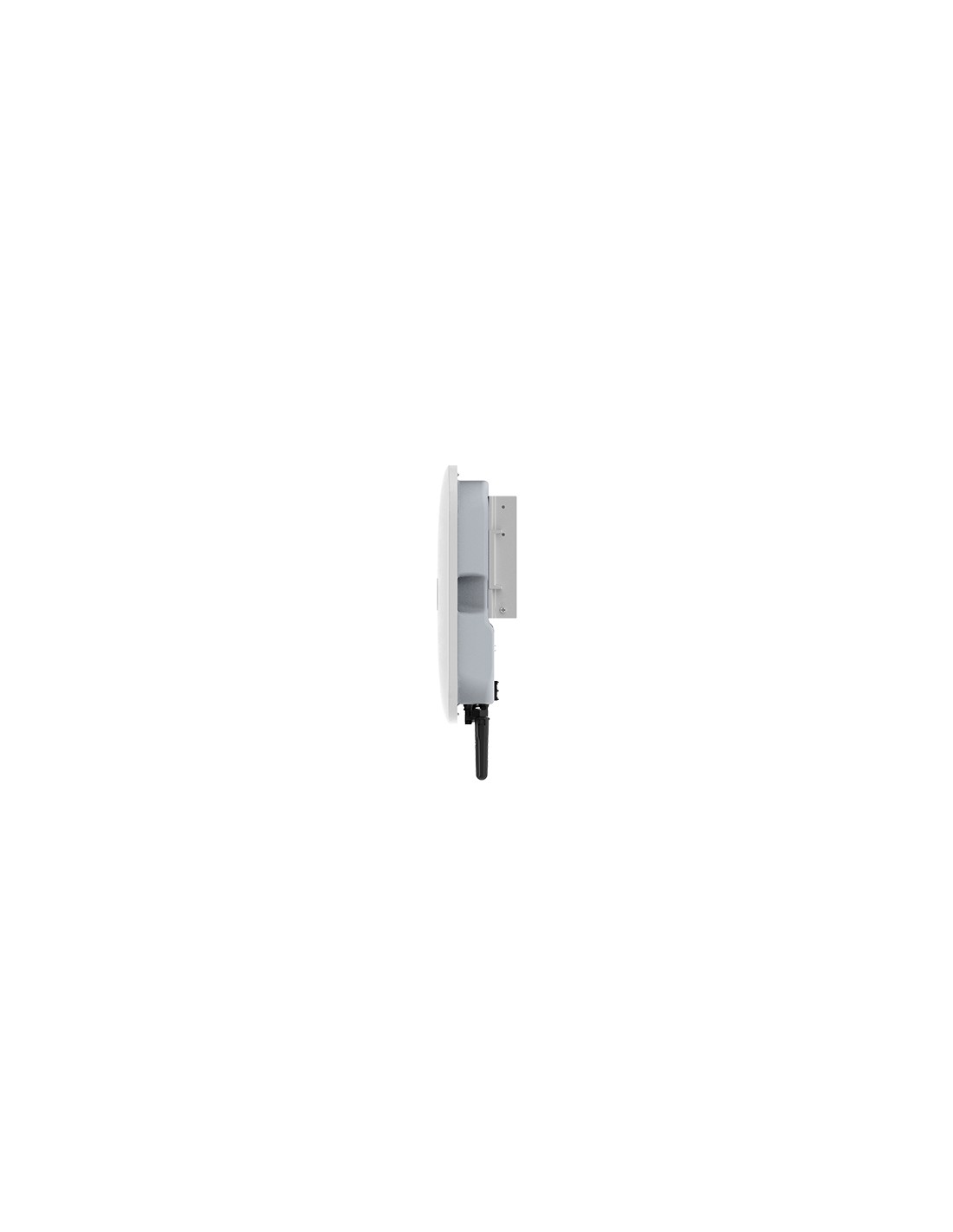

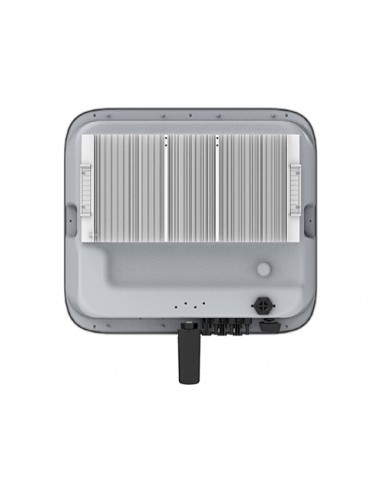

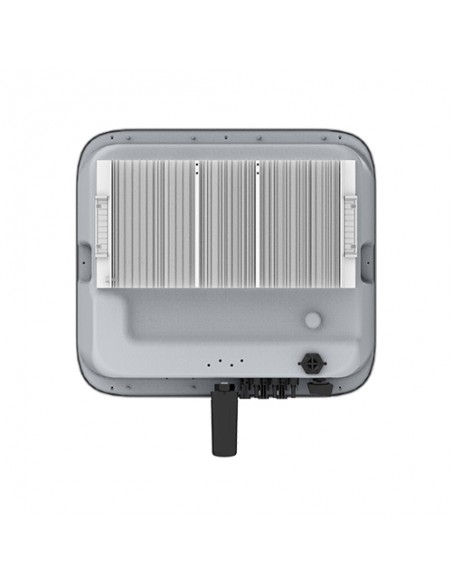

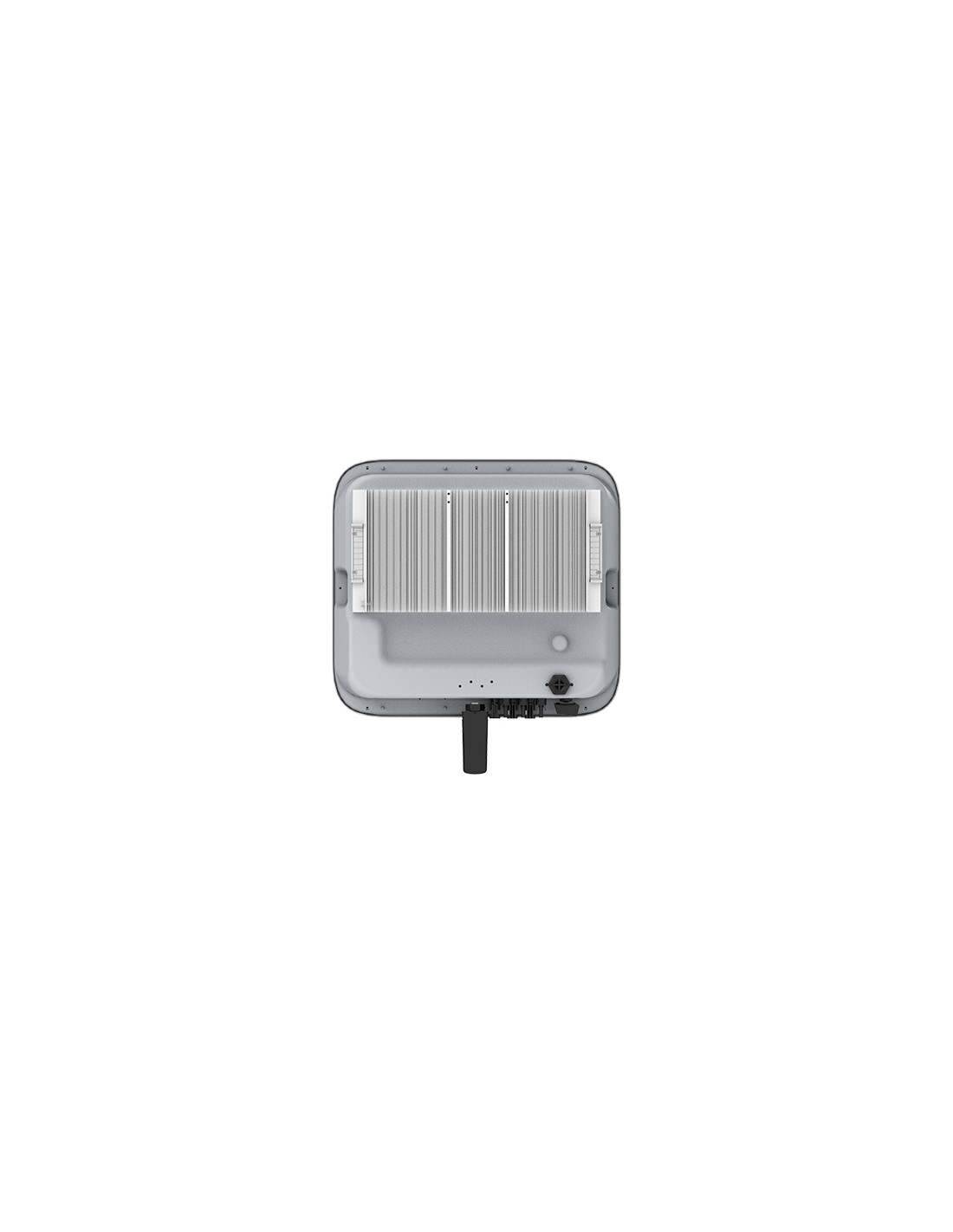

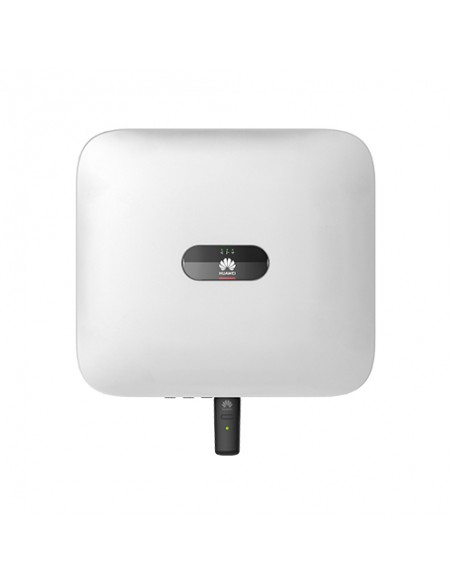

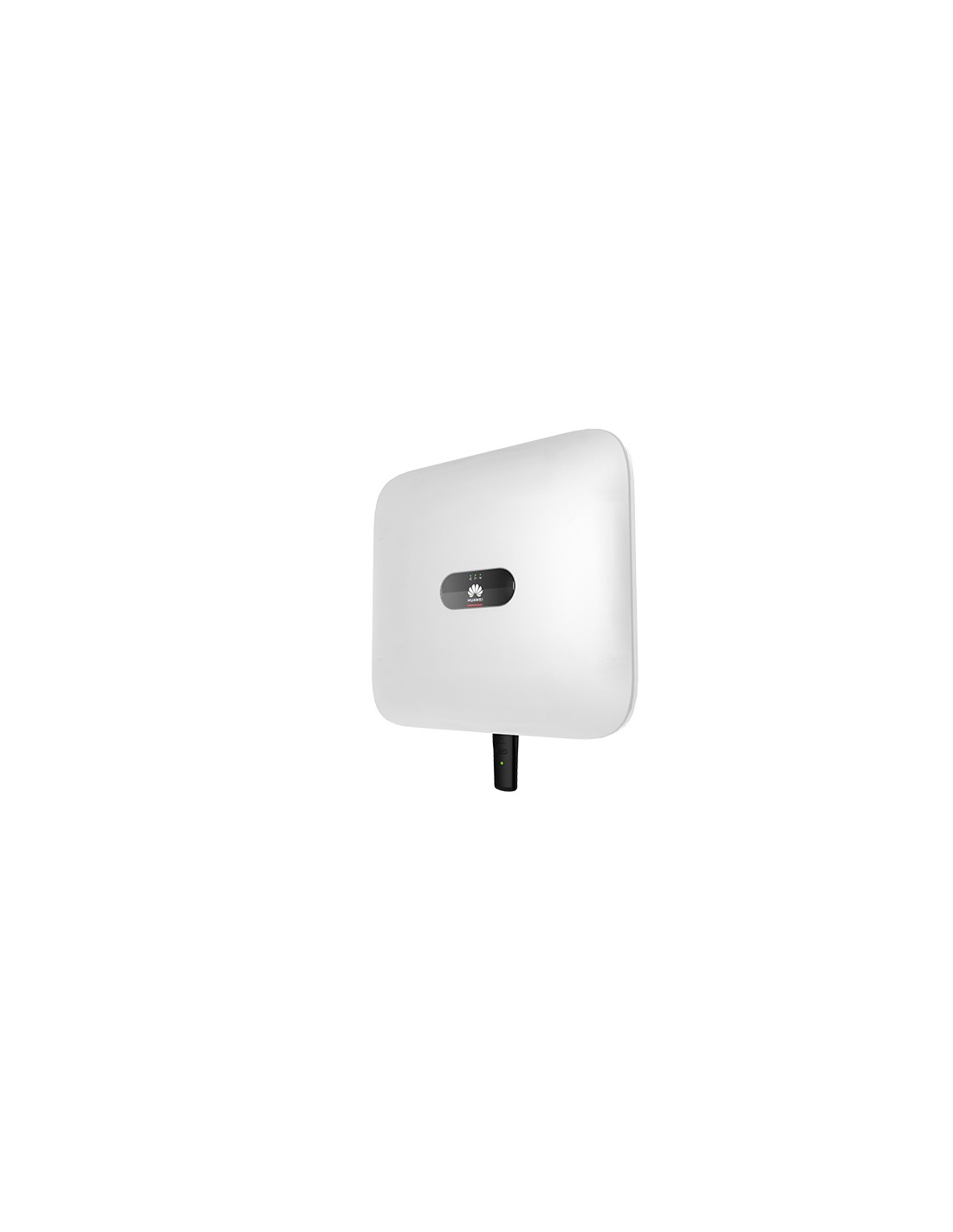

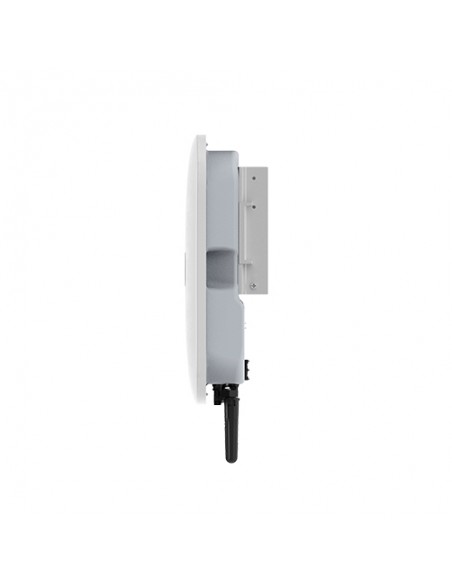

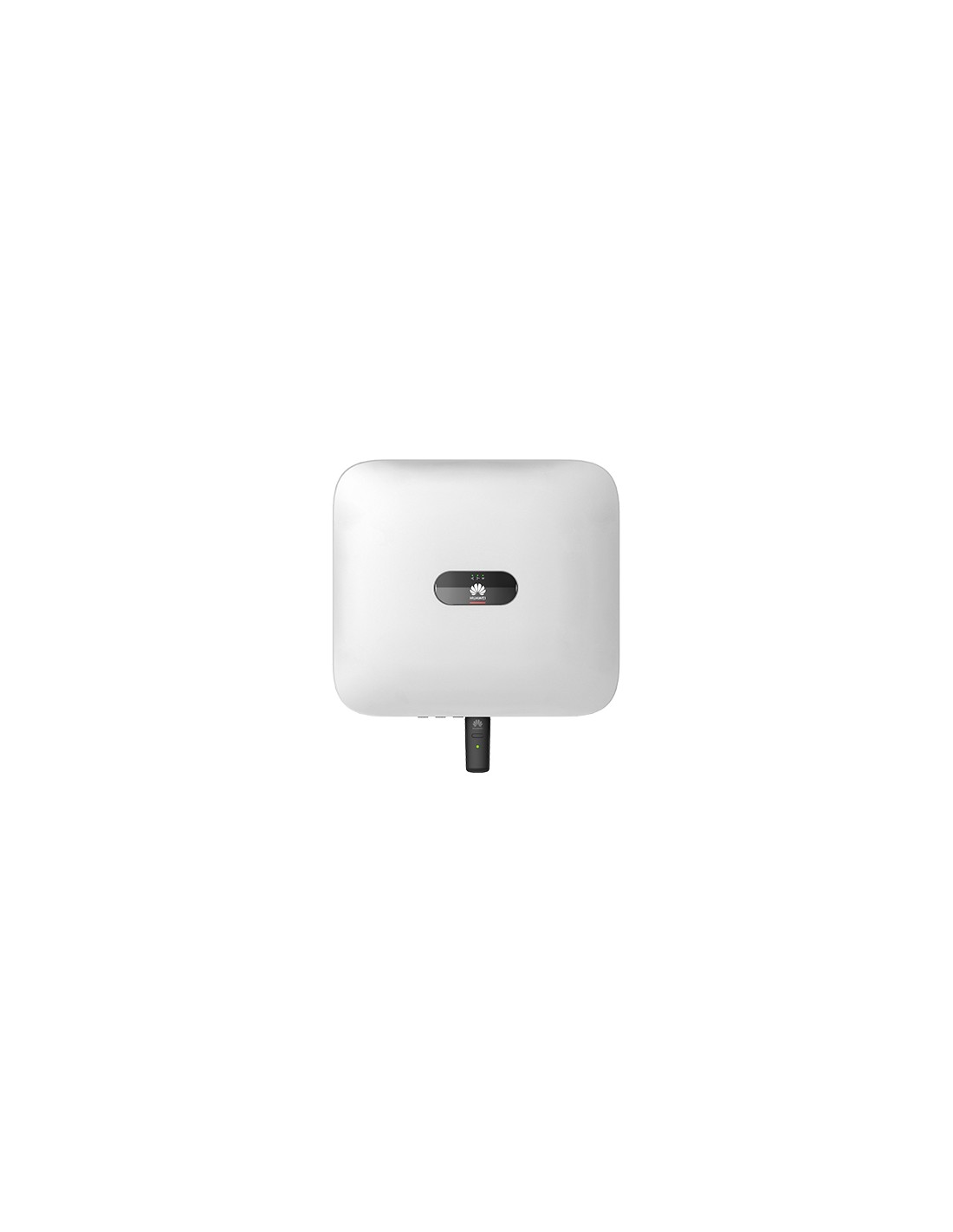

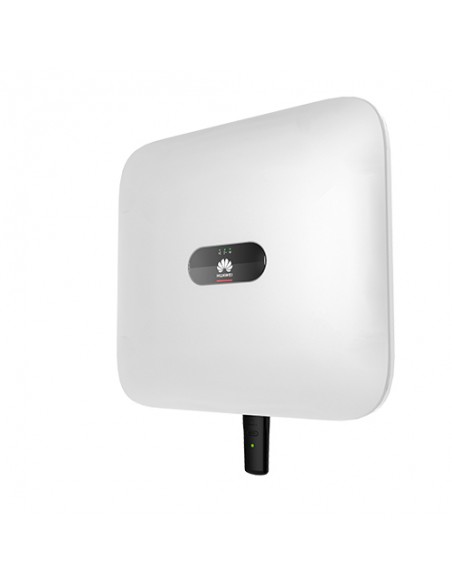

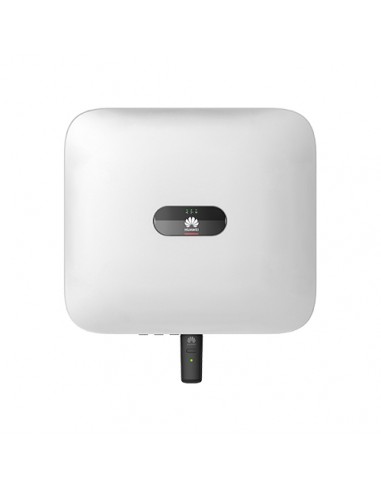

Huawei Hybrid Inverter 3kW Three-phase SUN2000-3KTL-M1 Solar Photovoltaic Accumulation Battery

Huawei Hybrid Inverter 3kW Three-phase SUN2000-3KTL-M1 Solar Photovoltaic Accumulation Battery

Name: Huawei Hybrid Inverter 3kW Three-phase SUN2000-3KTL-M1 Solar Photovoltaic Accumulation Battery
Brand: Huawei
SKU: SUN2000-3KTL-M1
Price: 865.88 EUR
Availability: InStock

Reference SUN2000-3KTL-M1

Last items in stock

€865.88

VAT included 10 %

€787.16 Vat excl.

Huawei's Three-phase inverters of the SUN2000 series (Smart Energy Center) are Huawei's Hybrid solution for residential connected photovoltaic systems. The particularity of these products and that are already prepared for the contextual or future insertion of lithium batteries for accumulation. All Huawei inverters comply with CEI 0-21.

Hybrid Three-phase Inverter Huawei 3kW SUN2000

Model: SUN2000-3KTL-M1

Huawei SUN2000 three-phase

The SUN2000 inverter is a three-phase grid-tied PV string inverter that converts the DC power generated by PV strings into AC power and feeds the power into the power grid.

The SUN2000 applies to residential rooftop grid-tied systems and small-sized ground PV plant grid-tied systems. Typically, a grid-tied system consists of PV strings, grid-tied inverters, AC switches, and power distribution units.

Strength points:

Character: the inverter has an attractive design;
Innovative:the brid inverter works in Ac and is ready for the Accumulation with Lithium Ion batteries. Management options Huawei optimizers (optional);
Easy to Install: It can also be installed by one person thanks to the reduced weight. It has an optimized AC connector for fast wiring and supports one-click inverter configuration;
Safe and Reliable: integrated electronic protections Ac and Dc and IP65 protection degree with natural cooling.

Technical Specification

Input (Photovoltaic)
Recommended Max PV Power	4,500 Wp
Max Input Voltage	1100 V
Operating Voltage Range	140 V ~ 980 V
Number of MPPT	2
Max MPPT Input Current	13.5 A
Max Short-Circuit Current	19.5 A
Input (Battery)
Compatible Battery	HUAWEI Smart LUNA2000 ESS Battery 5kWh – 30kWh
Operating Voltage Range	600 V ~ 980 V
Max Operating Current	16.7 A
Output (Grid)
Grid Connection	Three-phase
Rated Output Power	3,000 W
Max Apparent Power	3,300 VA
Rated Output Voltage	220 Vac / 380 Vac, 230 Vac / 400 Vac, 3W + N + PE
Rated AC Grid Frequency	50 Hz / 60 Hz
Max Output Current	5.1 A
Output (Backup)
Backup Box (Optional)	Backup Box – B1
Max Apparent Power	3,000 VA
Rated Output Voltage	220 V / 230 V
Max Output Current	13.6 A
Functions and Protections
Protections	Input disconnection device, Anti-Islanding protection, DC reverse polarity protection, Isolation monitoring, DC overvoltage protection, AC overvoltage protection, Residual current monitoring, AC overcurrent protection, AC short-circuit protection, Arc fault protection, Ripple receiver control, Integrated PID Recovery 5, Battery charging from grid.
General Data
Cooling	Natural convection
Display	LED indicators; Integrated WLAN + FusionSolar APP
Communication	RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (including mounting bracket)	17.0 kg
Dimensions (including mounting bracket)	525mm x 470mm x 146.5mm
Protection Rating	IP65
Nighttime Power Consumption	< 5.5 W
Compatible Optimizers
DC MBUS Compatible Optimizer	SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P
Standards Compliance
Certificates	EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Grid Connection Standards	G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT, UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA
