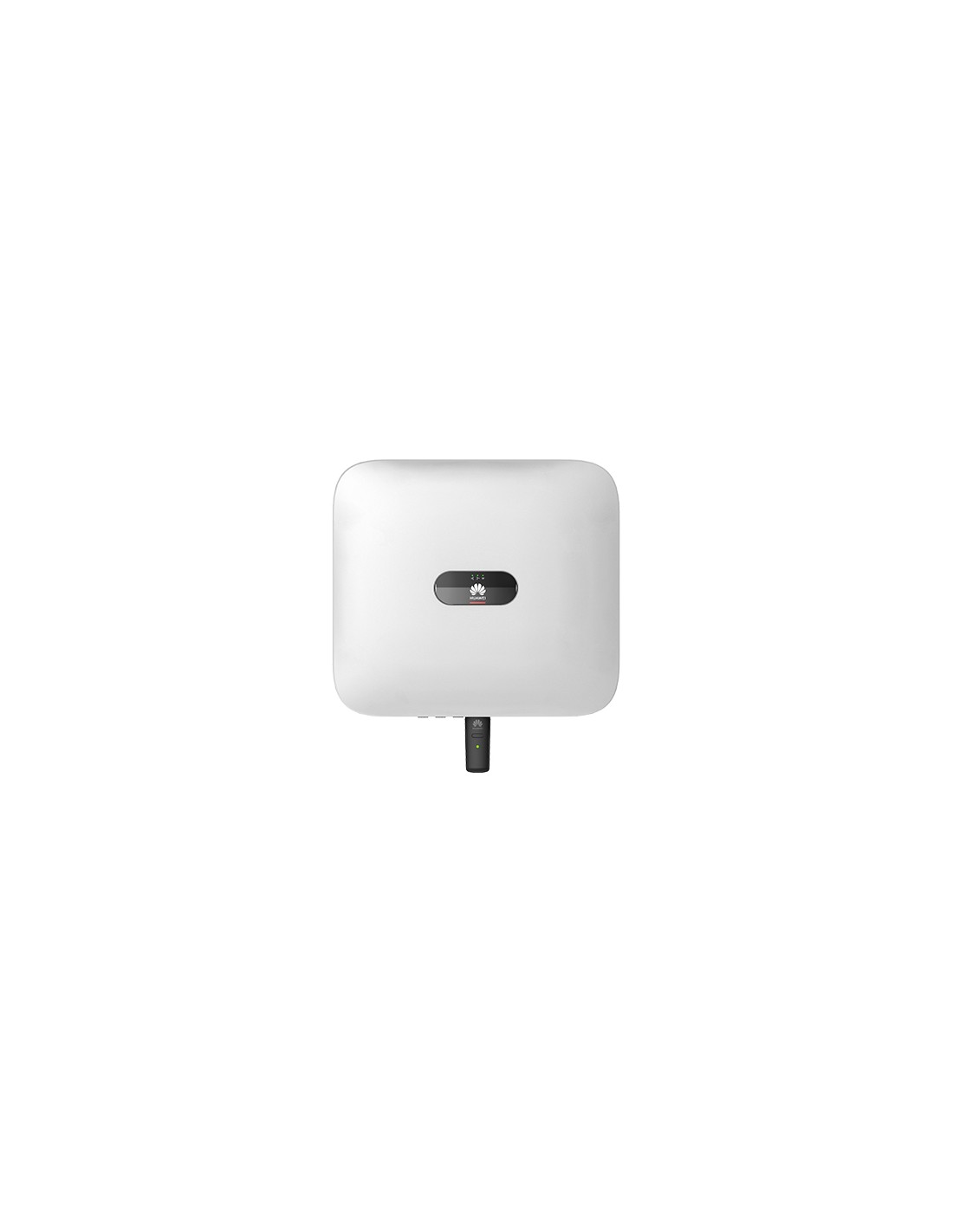

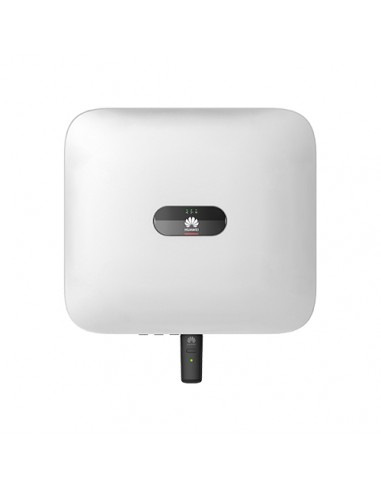

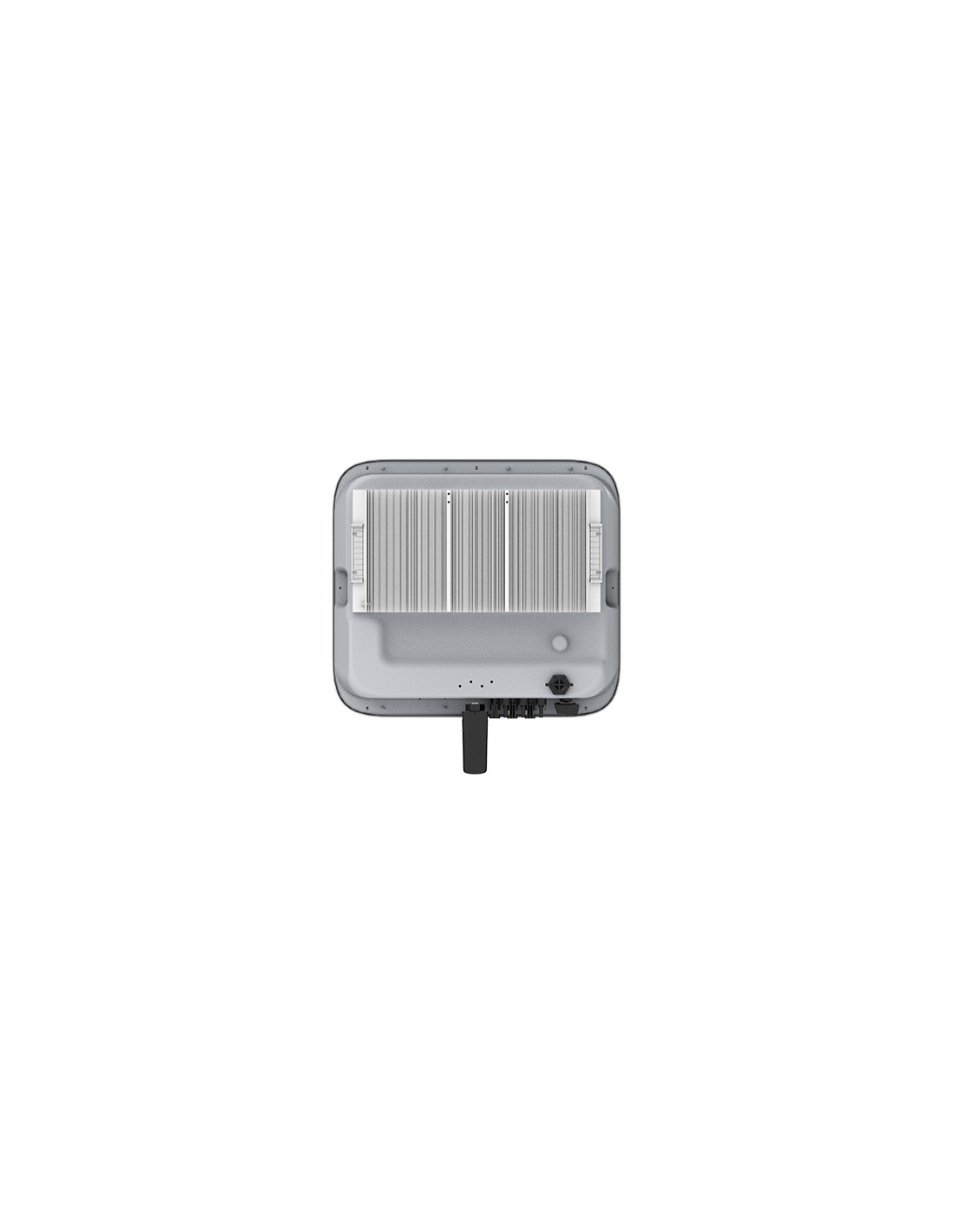

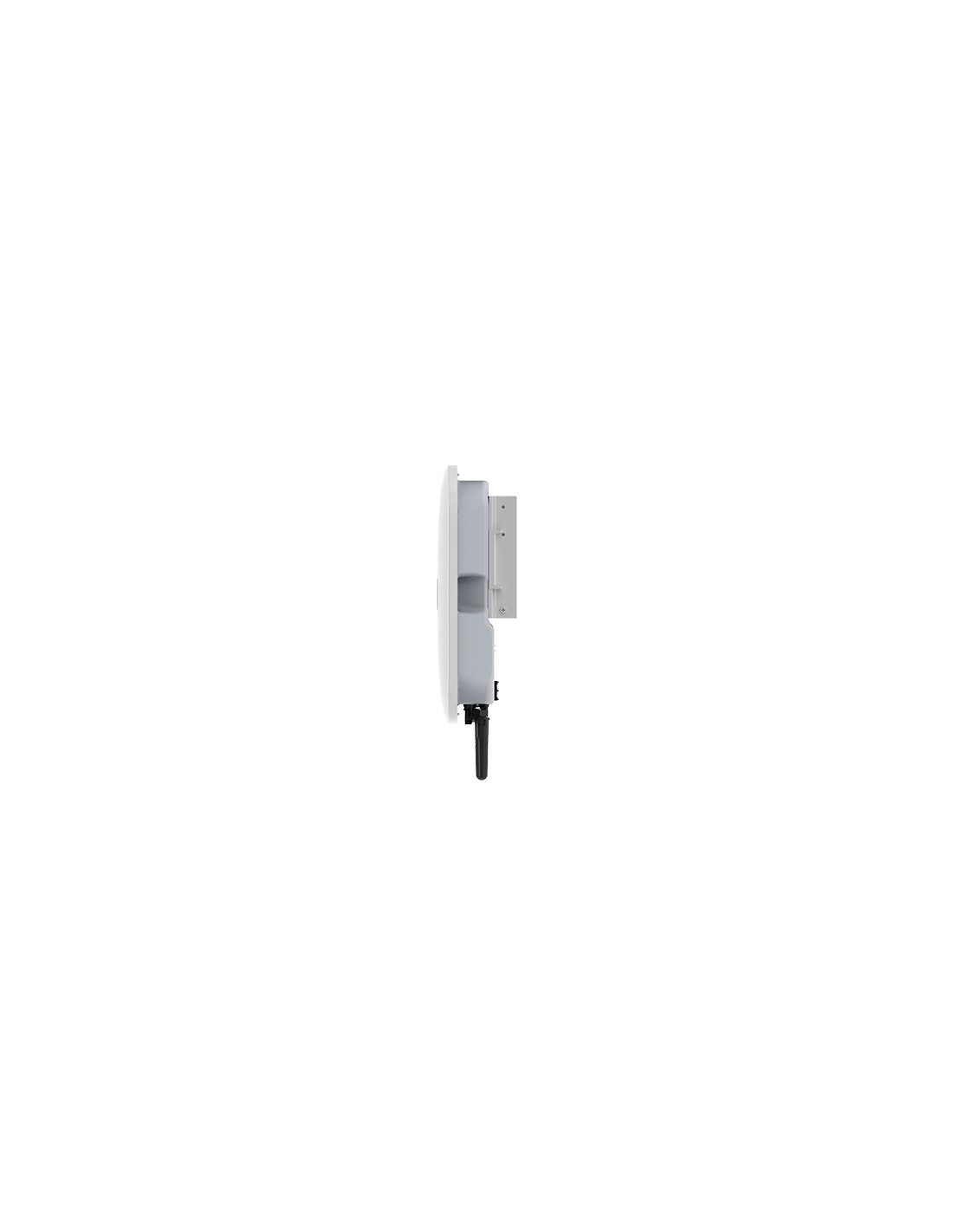

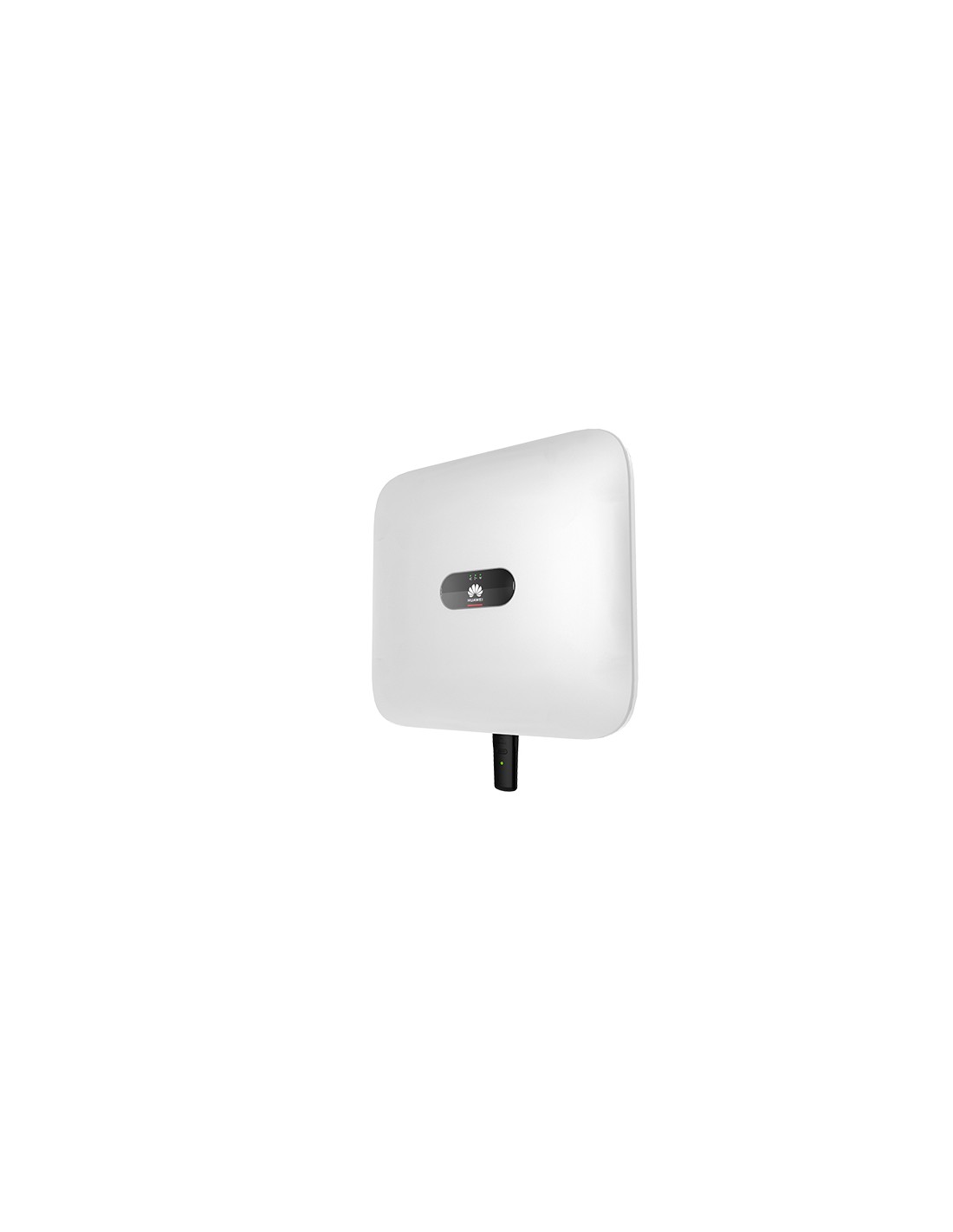

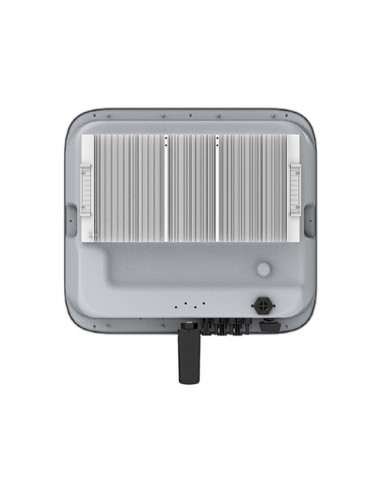

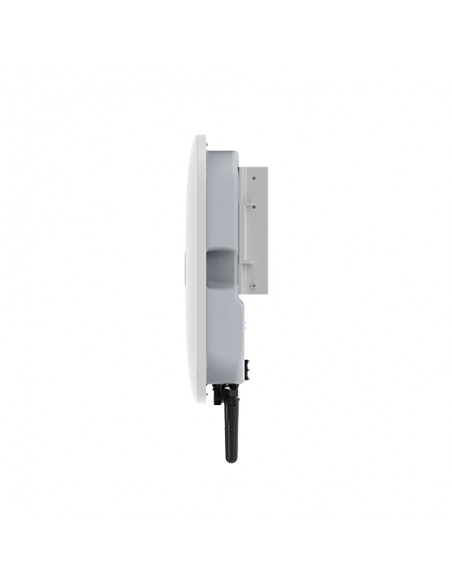

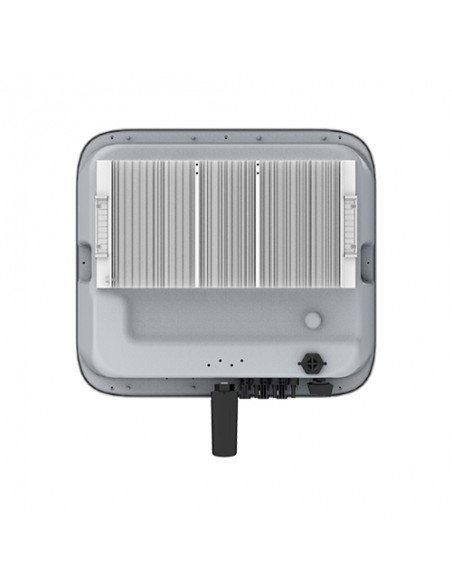

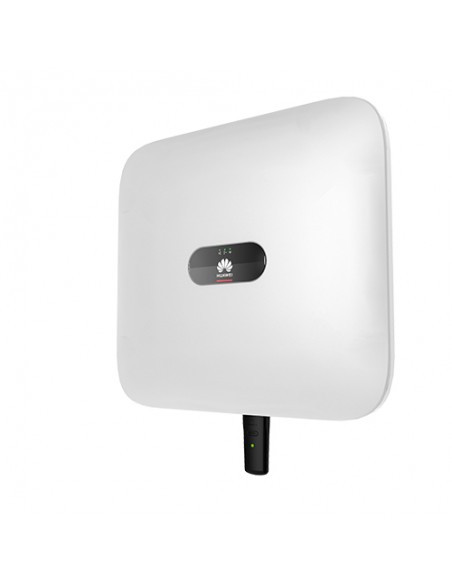

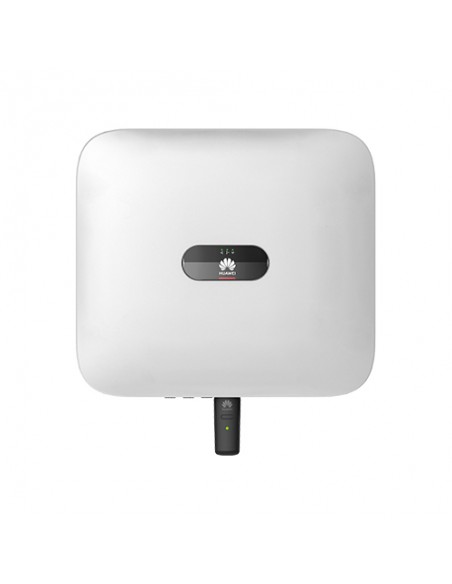

Three-phase Hybrid Inverter 6kW Huawei SUN2000-6KTL-M1-HC Solar High Current

SUN2000-6KTL-M1-HC
€1,310.28
VAT included 10 %

€1,191.16 Vat excl.

Huawei's Three-phase inverters of the SUN2000 series (Smart Energy Center) are Huawei's Hybrid solution for residential connected photovoltaic systems. The particularity of these products and that are already prepared for the contextual or future insertion of lithium batteries for accumulation. All Huawei inverters comply with CEI 0-21.



Hybrid Three-phase Inverter Huawei 6kW SUN2000 High Voltage

Model: SUN2000-6KTL-M1-HC


Huawei SUN2000 three-phase

The SUN2000 inverter is a three-phase grid-tied PV string inverter that converts the DC power generated by PV strings into AC power and feeds the power into the power grid.

The SUN2000 applies to residential rooftop grid-tied systems and small-sized ground PV plant grid-tied systems. Typically, a grid-tied system consists of PV strings, grid-tied inverters, AC switches, and power distribution units.


Strength points:

  • Character: the inverter has an attractive design;
  • Innovative:the brid inverter works in Ac and is ready for the Accumulation with Lithium Ion batteries. Management options Huawei optimizers (optional);
  • Easy to Install: It can also be installed by one person thanks to the reduced weight. It has an optimized AC connector for fast wiring and supports one-click inverter configuration;
  • Safe and Reliable: integrated electronic protections Ac and Dc and IP65 protection degree with natural cooling.

Technical Specification

Input (PV)
Recommended max. PV power 9,000 Wp
Max. input voltage 1,100 V
Operating voltage range 140 V ~ 980 V
Number of MPP trackers 2
Max. input current per MPPT 13.5 A
Max. short-circuit current 19.5 A
Input (DC Battery)
Compatible Battery HUAWEI Smart String ESS 5kWh –30kWh
Operating voltage range 600 V ~ 980 V
Max operating current 16.7 A
Output (On Grid)
Grid connection Three-phase
Rated output power 6,000 W
Max. apparent power 6,600 VA
Rated output voltage 220 Vac/ 380 Vac, 230 Vac/ 400 Vac, 3W / N+PE
Rated AC grid frequency 50 Hz / 60 Hz
Max. output current 10.1 A
Output (Off Grid)
Backup Box (Optional) Backup Box –B1
Maximum apparent power 3,300 VA
Rated output voltage 220 V / 230 V
Maximum output current 15 A
Features & Protections
Protection Input-side disconnection device, Anti-Islanding protection, DC reverse polarity protection, Insulation monitoring, DC surge protection, AC surge protection, Residual current monitoring, AC overcurrent protection, AC short-circuit protection, AC overvoltage protection, Arc fault protection, Ripple receiver control, Integrated PID recovery 5, Battery reverse charging from grid.
General Data
Cooling Natural convection
Display LED Indicators; Integrated WLAN + FusionSolar App
Communication RS485; WLAN/Ethernet via Smart Dongle-WLAN-FE; 4G / 3G / 2G via Smart Dongle-4G (Optional)
Weight (incl. mounting bracket) 17 kg (37.5 lb)
Dimension (incl. mounting bracket) 525mm x 470mm x 146.5mm (20.7 x 18.5 x 5.8 inch)
Degree of protection IP65
Nighttime Power Consumption < 5.5 W
Optimizer Compatibility
DC MBUS compatible optimizer SUN2000-450W-P, SUN2000-450W-P2, SUN2000-600W-P
Standard Compliance
Certificate  EN/IEC 62109-1, EN/IEC 62109-2, IEC 62116
Grid connection standards G98, G99, EN 50438, CEI 0-21, VDE-AR-N-4105, AS 4777, C10/11, ABNT,
UTE C15-712, RD 1699, TOR D4, NRS 097-2-1, IEC61727, IEC62116, DEWA


For more details on the product, download the Datasheet (EN):
[Download]



Customer Service



0882 22 82 47

Product Code
SUN2000-6KTL-M1-HC
MPPT number
2
Typology
Three-phase
Inverter power
6.0kW
