Three-phase AC panel 12/15kW 25A 400V CEI-021 for 1 inverter Icierre
MM007-L
€1,600.23
VAT included
10 %
€1,454.75 Vat excl.
Electrical Characteristics
- ICR-QAC 12/15 kW 25A (1 Inverter);
- Complies with CEI-021 Current 25A 400 V;
- IMTD 4x25A 6 kA-300 mA Cl. A;
- 1 IMT 4x25A 6 kA (Prot. Inverter);
- Contactor (DDI) 30A-AC3;
- Surge arrester 4P 440VAC (SPD);
- 2 - 1P+N fuse holders (SPI Power / Auxiliary Gen. Protection);
- 3P+N fuse holders (SPI Meter Protection);
- Provision for external Auxiliary Power;
- Provision for input/output (DDI/M2);
- Provision for external trip;
- UPS IN/OUT provision;
- SPI CEI 021;
- 36-Module IP65 Panel;
- Input/Output Terminal Blocks;
- Single-line diagram - Di.co - SPI test report.
Three-phase AC panel 12/15kW 25A 400V CEI-021 for 1 inverter Icierre
Electrical Characteristics
- ICR-QAC 12/15 kW 25A (1 Inverter);
- Complies with CEI-021 Current 25A 400 V;
- IMTD 4x25A 6 kA-300 mA Cl. A;
- 1 IMT 4x25A 6 kA (Prot. Inverter);
- Contactor (DDI) 30A-AC3;
- Surge arrester 4P 440VAC (SPD);
- 2 - 1P+N fuse holders (SPI Power / Auxiliary Gen. Protection);
- 3P+N fuse holders (SPI Meter Protection);
- Provision for external Auxiliary Power;
- Provision for input/output (DDI/M2);
- Provision for external trip;
- UPS IN/OUT provision;
- SPI CEI 021;
- 36-Module IP65 Panel;
- Input/Output Terminal Blocks;
- Single-line diagram - Di.co - SPI test report.

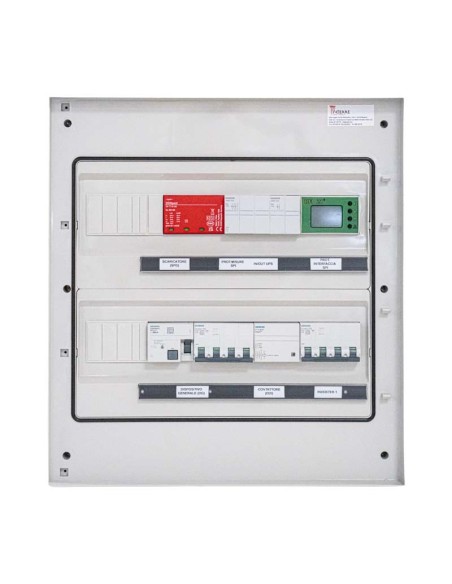

The photo represented is purely indicative.
- Nominal tension (V)
- 400V
- Typology
- Three-phase
- Nominal power
- 12kW
15kW - AC/DC side
- AC side
- CEI
- 0-21
- Number of inverters
- 1
