Three-phase AC panel 16/20kW 32A 400V CEI-021 for 1 inverter Icierre

Three-phase AC panel 16/20kW 32A 400V CEI-021 for 1 inverter Icierre

Name: Three-phase AC panel 16/20kW 32A 400V CEI-021 for 1 inverter Icierre
Brand: ICIERRE
SKU: MM008-L
Price: 1727.96 EUR
Availability: InStock

Reference MM008-L

€1,727.96

VAT included 10 %

€1,570.87 Vat excl.

Electrical Characteristics

ICR-QAC 16/20 KW 32A (1 inverter);
Complies with CEI-021 - Current 32 A - 400 V;
IMTD 4x32A 6kA 300 mA Cl. A;
1 IMT 4x32A 6kA (Inverter Protection);
Contactor (DDI) 38A-AC3;
Surge arrester 4P 440VAC (SPD);
2 - Fuse holder 1P+N (SPI Power Protection / Auxiliary Power);
Fuse holder 3P+N (SPI Meter Protection);
Provision for external Auxiliary Power;
Provision for input/output (DDI/M2);
Provision for external trip;
Provision for UPS IN/OUT;
SPI CEI 021;
36-Module Panel IP65;
Input/Output Terminal Blocks;
Single-Line Diagram - Di.co - SPI Test Report.

Three-phase AC panel 16/20kW 32A 400V CEI-021 for 1 inverter Icierre

Electrical Characteristics

ICR-QAC 16/20 KW 32A (1 inverter);
Complies with CEI-021 - Current 32 A - 400 V;
IMTD 4x32A 6kA 300 mA Cl. A;
1 IMT 4x32A 6kA (Inverter Protection);
Contactor (DDI) 38A-AC3;
Surge arrester 4P 440VAC (SPD);
2 - Fuse holder 1P+N (SPI Power Protection / Auxiliary Power);
Fuse holder 3P+N (SPI Meter Protection);
Provision for external Auxiliary Power;
Provision for input/output (DDI/M2);
Provision for external trip;
Provision for UPS IN/OUT;
SPI CEI 021;
36-Module Panel IP65;
Input/Output Terminal Blocks;
Single-Line Diagram - Di.co - SPI Test Report.

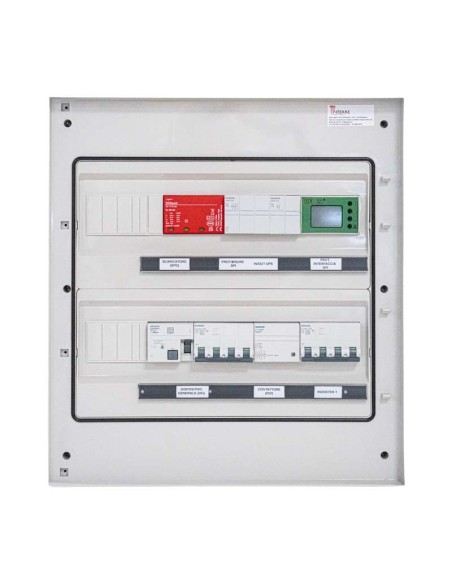

The photo represented is purely indicative.

Customer Service

0882 22 82 47

[email protected]

Nominal tension (V): 400V
Typology: Three-phase
Nominal power: 16kW
20kW
AC/DC side: AC side
CEI: 0-21
Number of inverters: 1
