Three-phase AC panel 26/30kW 50A 400V CEI-021 for 1 inverter Icierre
MM009-L
€2,483.71
VAT included
10 %
€2,257.92 Vat excl.
Electrical Characteristics
- ICR-QAC 26/30 kW 50A (1 inverter);
- Compliant with CEI-021 Current 50A 400 V;
- IMT 4x50A 6kA + Differential Block 63A 300 mA Cl. A (DG);
- Current launch coil with backup function (DDR);
- 1 IMT 4x50A 6kA Inverter Protection;
- Contactor (DDI) 50A-AC3;
- Surge arrester 4P 440VAC (SPD);
- 2 - 1P+N fuse holder (SPI Power Protection / Auxiliary Power);
- 3P+N fuse holder (SPI Measurement Protection);
- Provision for external Auxiliary Power;
- Provision for input/output (DDI/M2);
- Provision for external release;
- Provision for UPS IN/OUT;
- SPI CEI 021;
- 72-Module Panel in Thermosetting Glass Resin, IP66;
- Input/Output Terminal Blocks;
- Single-Line Diagram - Di.co - SPI Test Report.
Three-phase AC panel 26/30kW 50A 400V CEI-021 for 1 inverter Icierre
Electrical Characteristics
- ICR-QAC 26/30 kW 50A (1 inverter);
- Compliant with CEI-021 Current 50A 400 V;
- IMT 4x50A 6kA + Differential Block 63A 300 mA Cl. A (DG);
- Current launch coil with backup function (DDR);
- 1 IMT 4x50A 6kA Inverter Protection;
- Contactor (DDI) 50A-AC3;
- Surge arrester 4P 440VAC (SPD);
- 2 - 1P+N fuse holder (SPI Power Protection / Auxiliary Power);
- 3P+N fuse holder (SPI Measurement Protection);
- Provision for external Auxiliary Power;
- Provision for input/output (DDI/M2);
- Provision for external release;
- Provision for UPS IN/OUT;
- SPI CEI 021;
- 72-Module Panel in Thermosetting Glass Resin, IP66;
- Input/Output Terminal Blocks;
- Single-Line Diagram - Di.co - SPI Test Report.

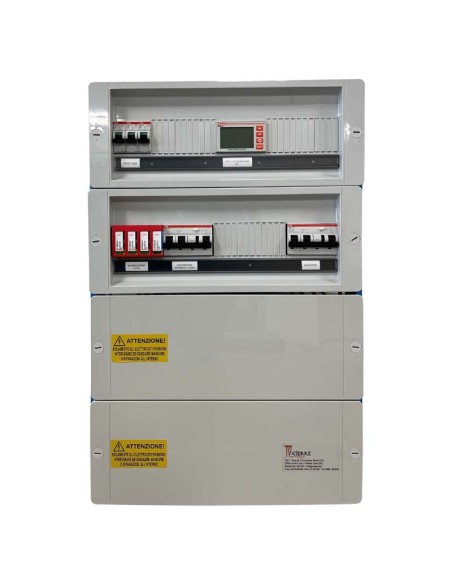

The photo represented is purely indicative.
- Nominal tension (V)
- 400V
- Typology
- Three-phase
- Nominal power
- 26kW
30kW - AC/DC side
- AC side
- CEI
- 0-21
- Number of inverters
- 1
