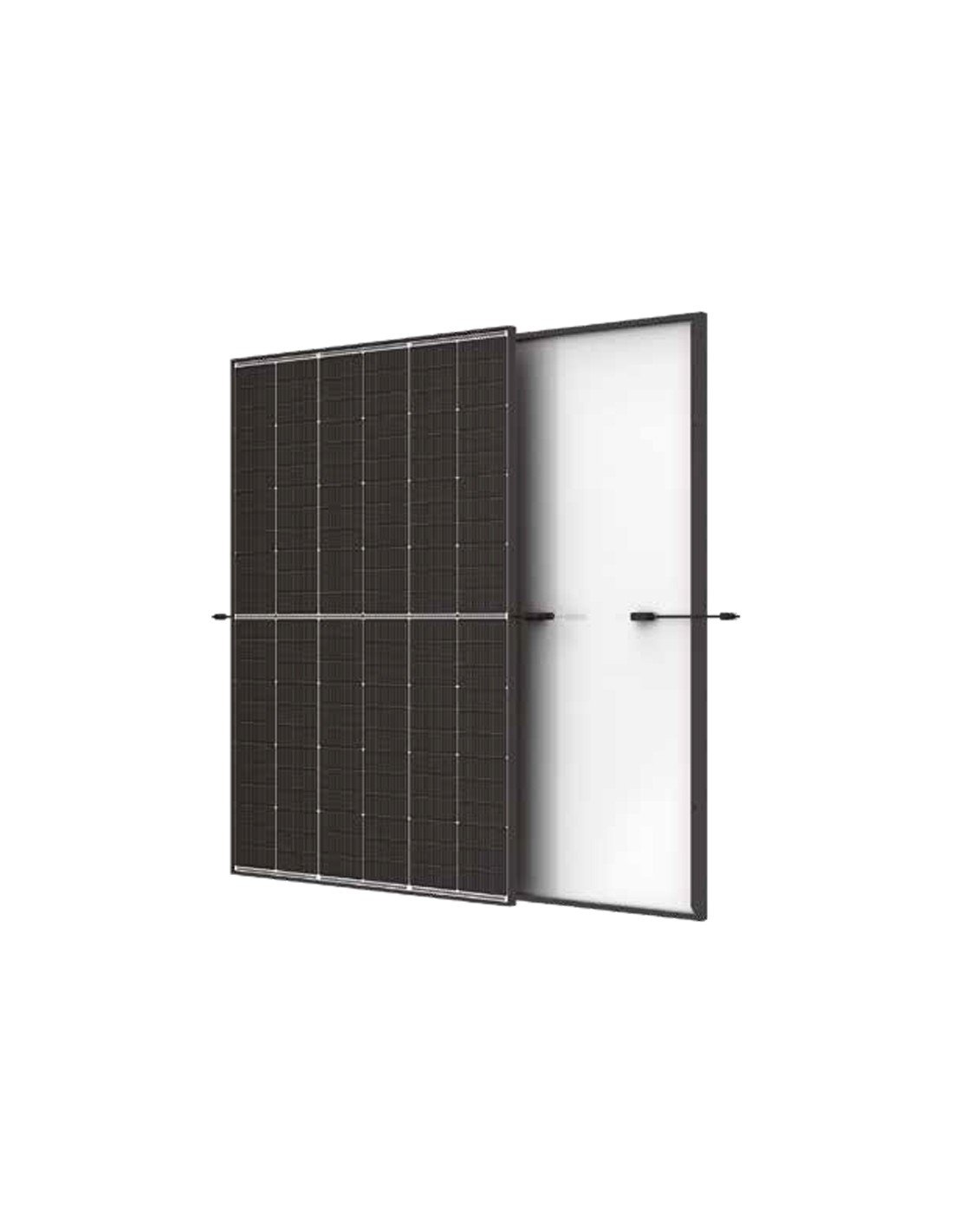

TRINASOLAR Vertex S+ 505W black frame monocrystalline photovoltaic solar panel
TRINASOLAR Vertex S+ 505W black frame monocrystalline photovoltaic solar panel

TRINASOLAR Vertex S+ 505W black frame monocrystalline photovoltaic solar panel

TSM-505-NEG18R.28
€84.16
VAT included 10 %

€76.51 Vat excl.

Photovoltaic solar panel N-type TOPCon Dual Glass 505W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).



TRINASOLAR Vertex S+ 505W black frame monocrystalline photovoltaic solar panel N-type TOPCon Dual Glass black frame

Model: TSM-505-NEG18R.28

Features

  • Maximum power output: 505W;
  • Positive power tolerance: (0~+5W);
  • Maximum efficiency: up to 22.7%.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL TSM-505-NEG18R.28
Peak Power (Pmax) 505W
Maximum Power Voltage-VMPP 33.5V
Maximum Current power-IMPP 15.09A
Open circuit voltage (Voc) 40.3V
Short circuit current (Isc) 15.89A
Maximum system voltage 1500V DC (IEC)
Maximum series fuse rating 30A
Efficiency module 22.7%
MECHANICAL CHARACTERISTICS
Number of Cells 108
Solar cells In monocrystalline silicon
Frame 30 mm Anodized aluminum alloy, Black
Junction box IP 68, 3 bypass diodes
Cable Section Single-core UV-resistant cables 4.0 mm2
Dimensions 1961×1134×30 mm
Weight 23.5Kg
Packaging 36 pieces per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
505W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
108
8370000054634
