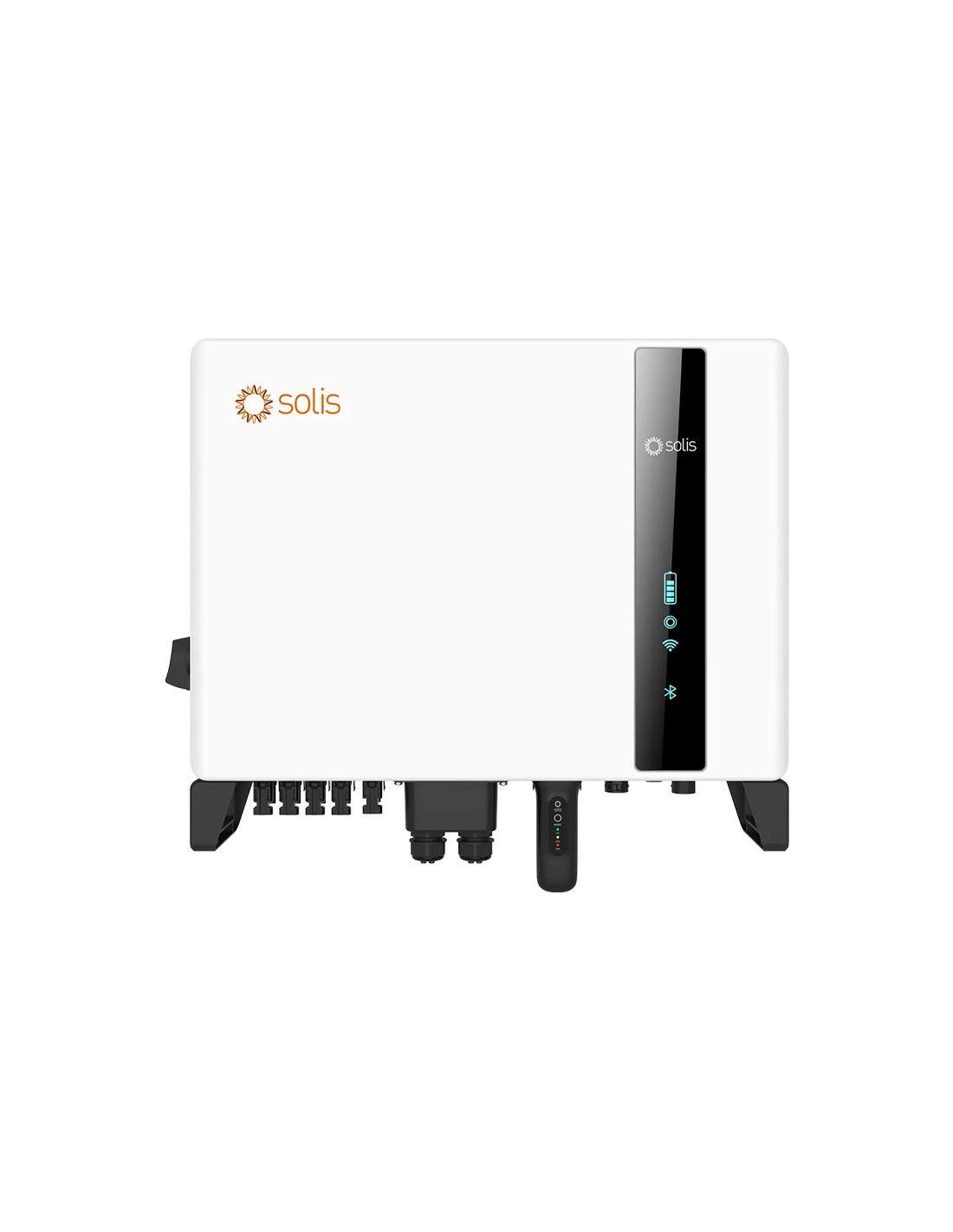

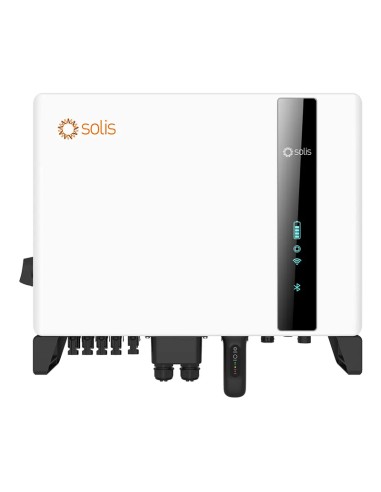

Three-phase hybrid inverter 5kW Solis S6 3 MPPT DC switch photovoltaic solar

Three-phase hybrid inverter 5kW Solis S6 3 MPPT DC switch photovoltaic solar

Name: Three-phase hybrid inverter 5kW Solis S6 3 MPPT DC switch photovoltaic solar
Brand: Solis
SKU: S6-EH3P5K-H-EU
Price: 1382.76 EUR
Availability: InStock

Reference S6-EH3P5K-H-EU

Last items in stock

€1,382.76

VAT included 10 %

€1,257.05 Vat excl.

The Solis S6 inverter is suitable for connecting solar panels and a high voltage battery.

Three-phase hybrid inverter 5kW Solis S6 3 MPPT DC switch

The Solis S6 inverter is suitable for connecting solar panels and a high voltage battery. This inverter captures solar energy during the day and supplies energy to household loads and charges the battery.

At night, it will use the high voltage battery to meet household loads. This avoids using energy from the electricity grid.

Main features

Automatic UPS switching;
Supports Peak Shaving mode;
Built-in 3 or 4 MPPTs for multiple field orientations;
Industry-leading 50A/10kW maximum charge/discharge power;
Compatible with multiple lithium battery models from various brands;
Prefabricated battery, meter and CAN wiring to reduce installation time;
Supports unbalanced and half-wave loads on both the grid and backup ports;
Enhanced battery protection and operating features to extend battery life.

For more details, download the following documents:

Datasheet [Download]

Technical features:

DC Input (PV Side)
Recommended maximum size of the photovoltaic field	10kW
Recommended maximum PV input power	8kW
Maximum absolute voltage	1000 V
Nominal voltage	600 V
Startup voltage	160 V
MPPT voltage range	200 - 850 V
Maximum input current	3 × 16 A
Maximum short-circuit current	3 × 24 A
Number of MPPTs / Maximum number of strings	3 / 3
Battery
Battery type	Lithium-ion
Permitted voltage range	120 - 600 V
Maximum charge / discharge power	5kW
Maximum charge / discharge current	25 A
Communication	CAN / RS485
AC Output (Grid Side)
Nominal output power	5kW
Maximum apparent output power	5 kVA
Nominal grid voltage	3/N/PE, 380 V / 400 V
Nominal grid frequency	50 Hz / 60 Hz
Nominal grid output current	7.6 A / 7.2 A
Maximum output current	7.6 A / 7.2 A
Power factor	> 0.99 (0.8 leading - 0.8 lagging)
THDi	< 3%
AC Input (Grid Side)
Maximum AC transmission current	11.4 A
Nominal input voltage	3/N/PE, 380 V / 400 V
Nominal input frequency	50 Hz / 60 Hz
AC Output (Backup)
Nominal output power	5kW
Maximum apparent output power	8 kVA, 60 s
Backup switching time	< 10 ms
Nominal output current	7.6 A / 7.2 A
THDv (@linear load)	< 2%
Efficiency
Maximum efficiency	96.50%
EU efficiency	96.77%
Maximum efficiency for battery charged by PV	98.37%
Maximum efficiency for battery charge / discharge in AC	97.32%
Protection
Anti-islanding system	Yes
Output overcurrent protection	Yes
Short circuit protection	Yes

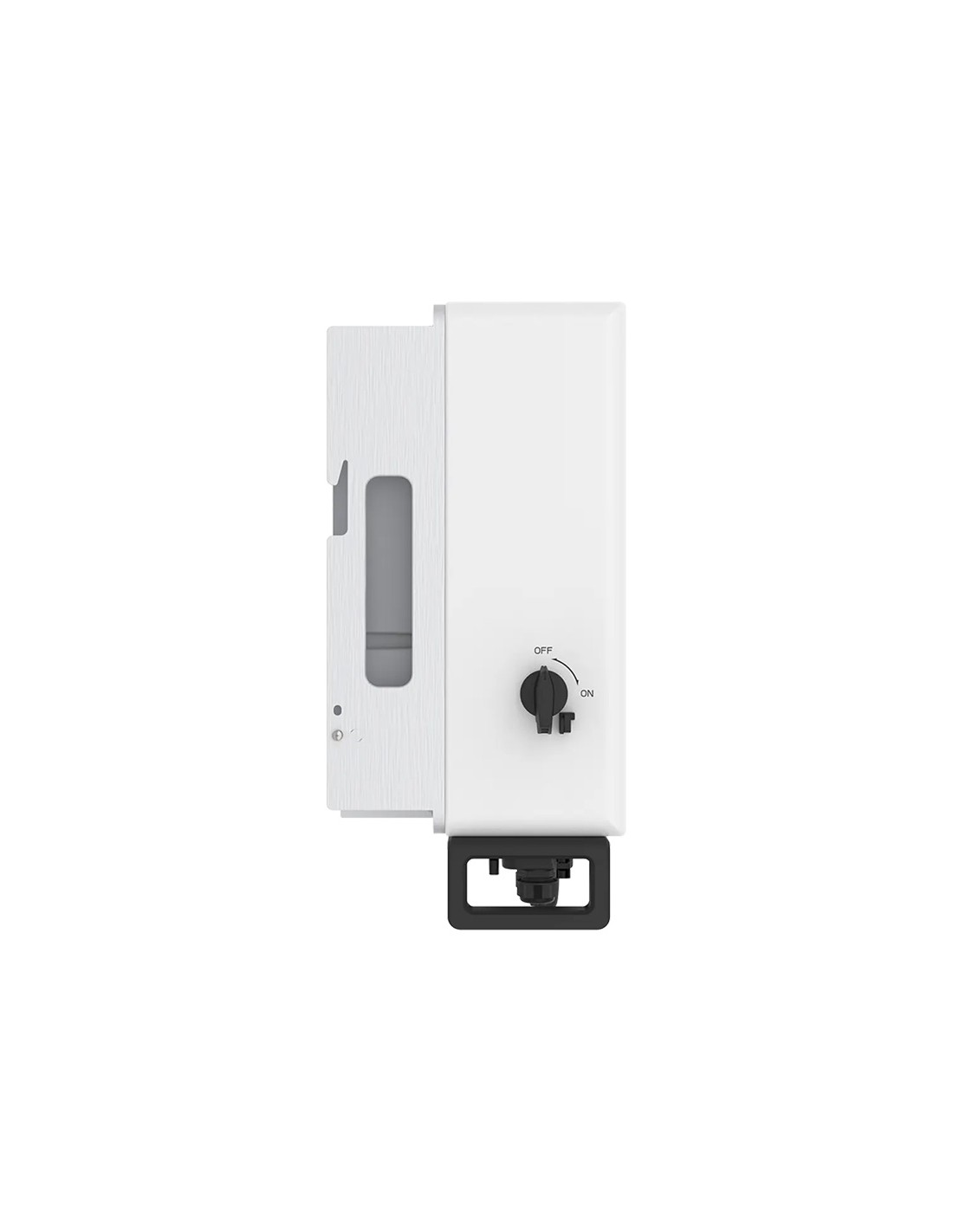

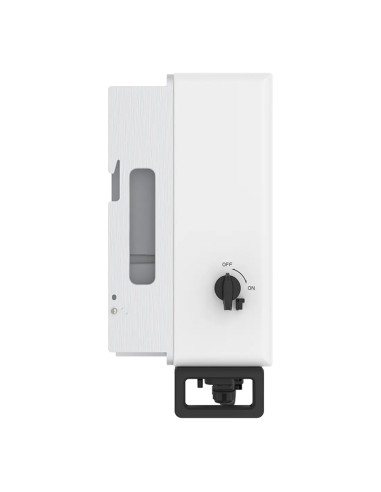

Integrated DC switch	Yes
DC reverse polarity protection	Yes
PV overvoltage protection	Yes
Battery reverse polarity protection	Yes
General Data
Dimensions (W × H × D)	600 × 500 × 210 mm
Weight	27.6 kg
Topology	Transformerless
Self-consumption (night)	< 25 W
Operating ambient temperature range	-25 ~ +60°C
Relative humidity	0 - 95%
Protection degree	IP66

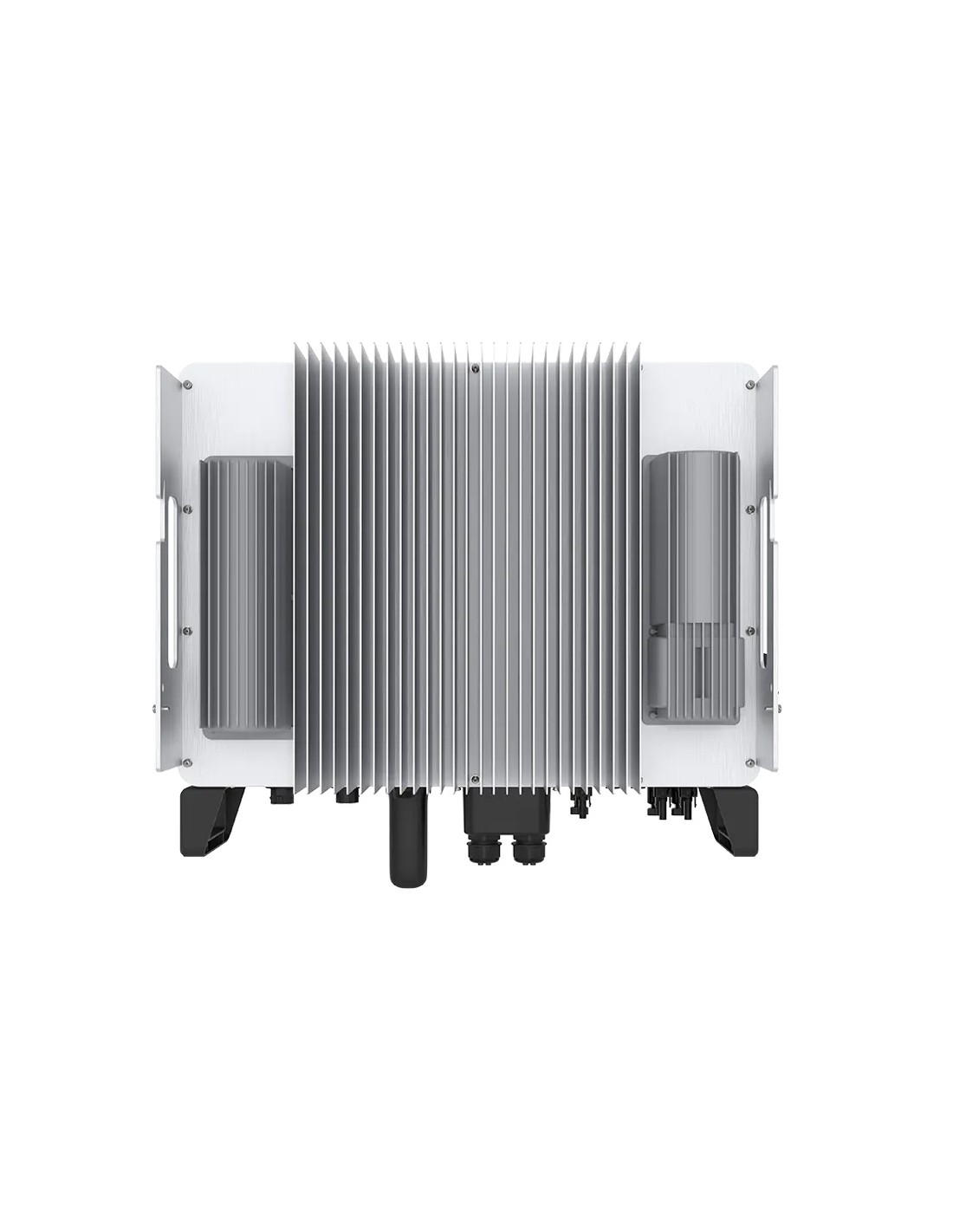

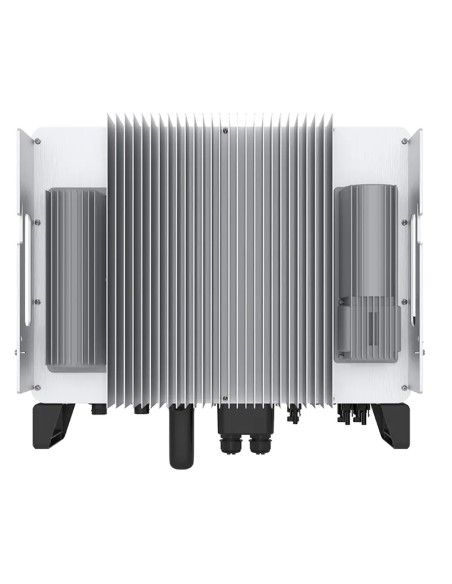

Cooling method	Natural cooling
Maximum operating altitude	4000 m
Grid Connection Standards
Grid connection standards	G98 or G99, VDE-AR-N 4105/VDE V 0124, EN 50549-1, VDE 0126/UTE C 15/VFR:2019, RD 1699/RD 244/UNE 206006/UNE 206007-1, CEI 0-21, C10/11, NRS 097-2-1, TOR, EIFS 2018.2, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA
Safety / EMC Standards
Safety / EMC standards	IEC/EN 62109-1/-2, IEC/EN 61000-6-1/-3

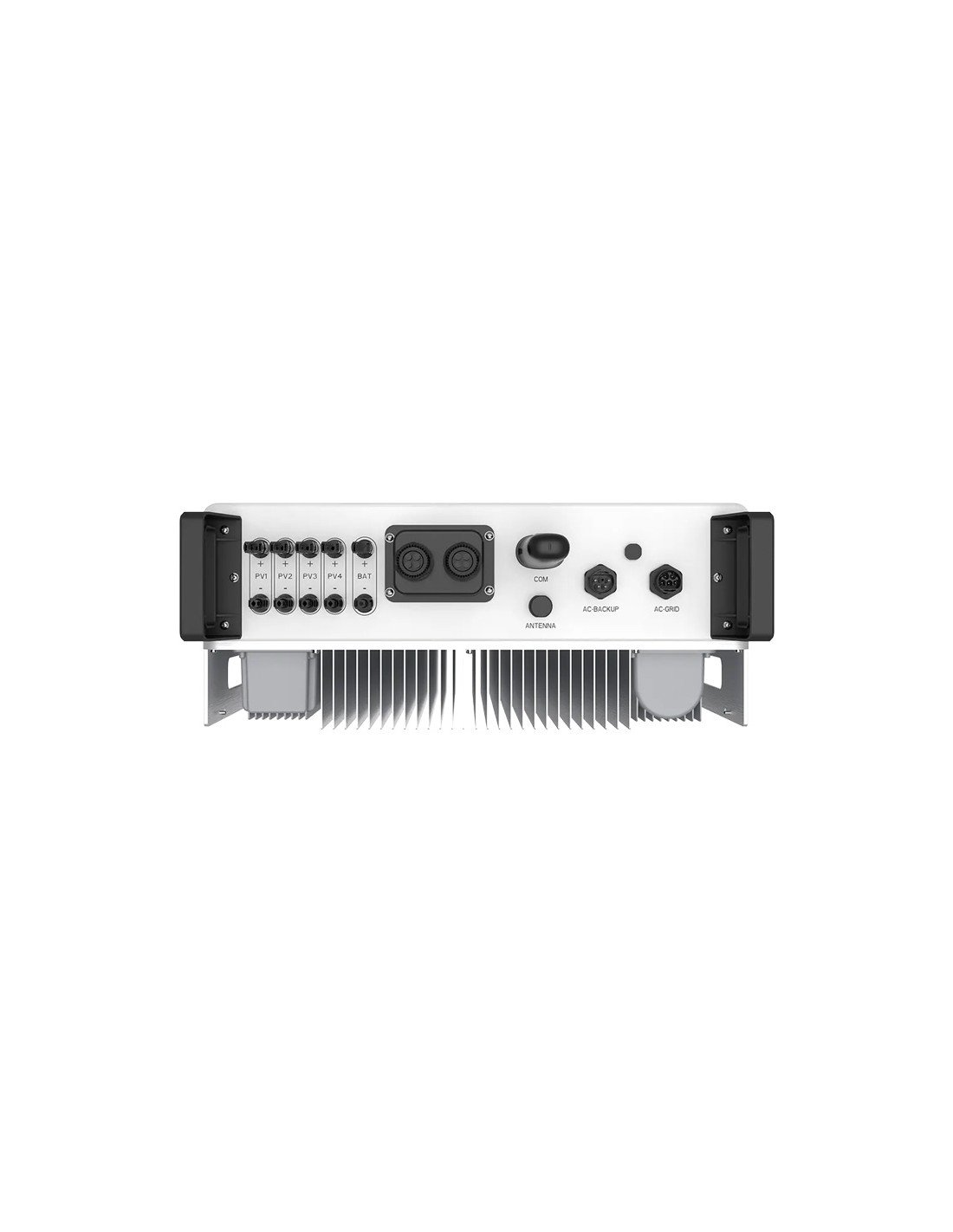

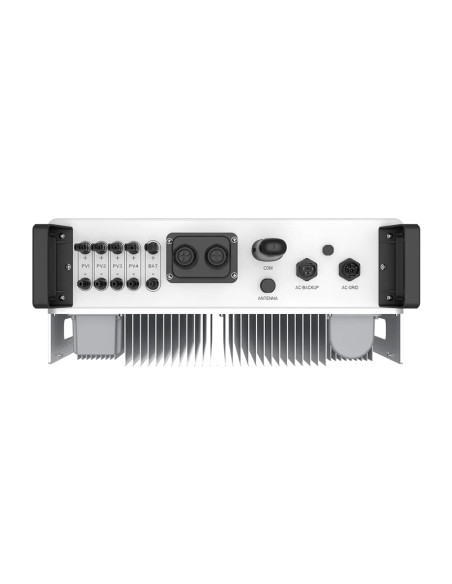

Features
PV connection	MC4 connector
Battery connection	Quick connection plug
AC connection	Quick connection plug
Display	LED indicator and Bluetooth + APP
Communication	CAN, RS485, Optional: Wi-Fi, Cellular, LAN
