€1,904.95 Vat excl.

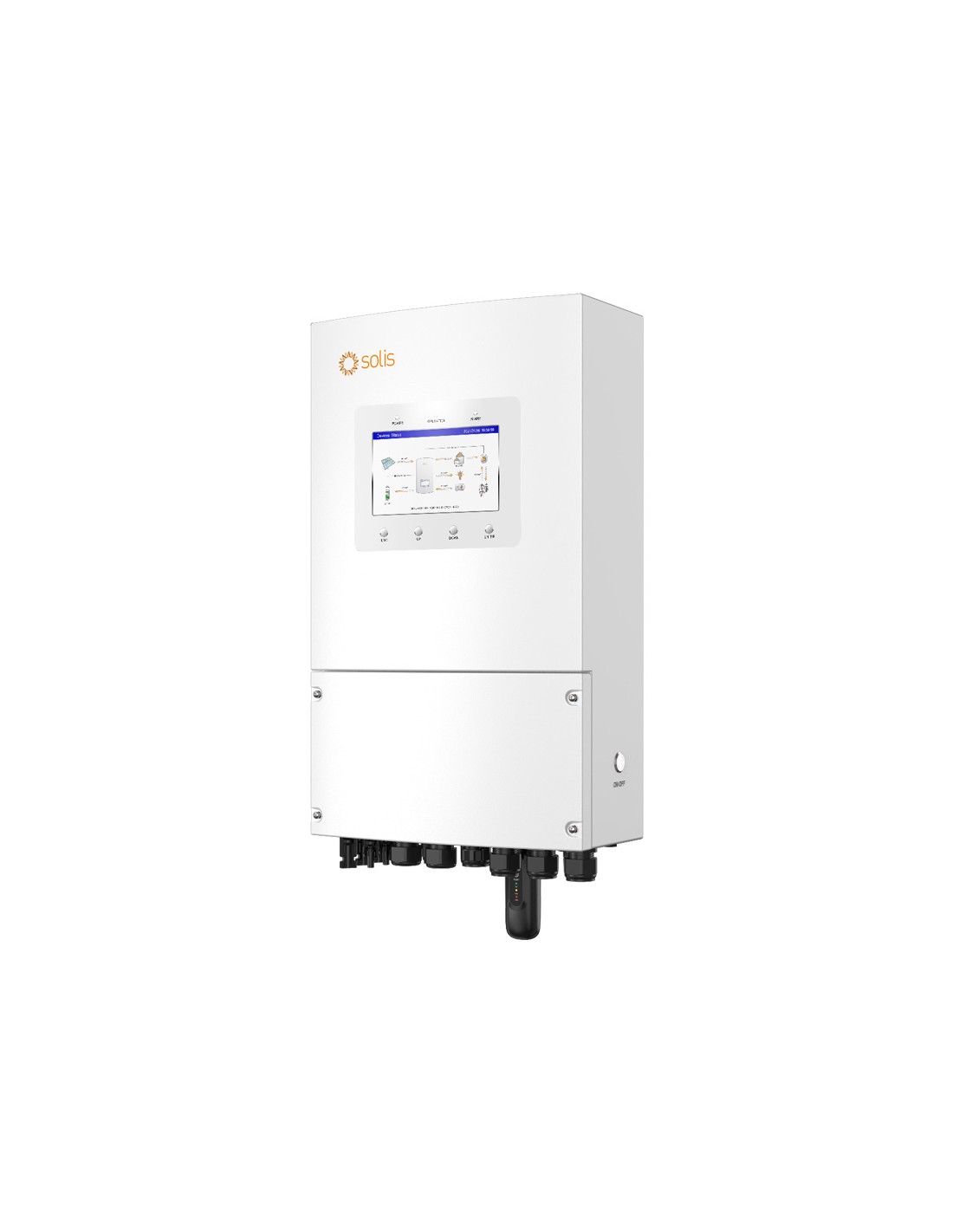

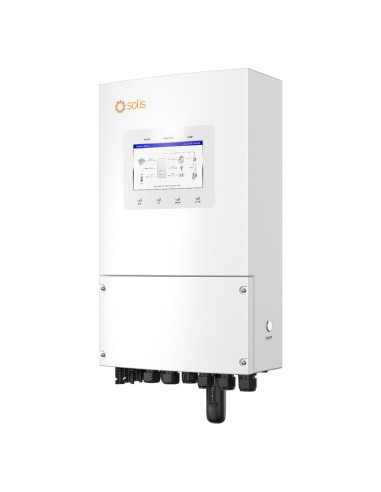

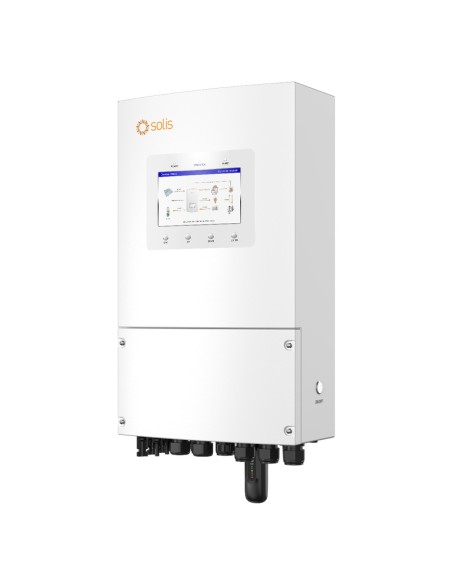

The S6-EH1P8K-L-PLUS series energy storage inverter is suitable for residential photovoltaic energy storage systems and various high-power photovoltaic panels.
The S6-EH1P8K-L-PLUS series energy storage inverter supports MPPT current input up to 32A, suitable for various high-power PV panels. It has 6-stage scheduled charge and discharge function, built-in battery treatment and protection functions, more gentle on batteries. In addition, it can support multiple inverters in parallel to form a single-phase or three-phase system with a maximum power of 48kW. With UPS switching, it provides an independent interface for generator, making power applications more reliable.
| DC Input (PV Side) | |
| Maximum recommended PV field size | 16kW |
| Maximum recommended PV input power | 12.8kW |
| Maximum absolute voltage | 500V |
| Voltage nominal | 330V |
| Starting voltage | 90V |
| MPPT voltage range | 90 - 435V |
| Maximum input current | 32A / 32A |
| Maximum short circuit current | 40A / 40A |
| MPPT number / Maximum number of strings | 2 / 4 |
| Battery | |
| Battery type | Lithium-ion / Lead-acid |
| Permissible voltage range | 120 - 600 V |
| Maximum charge / discharge power | 8kW |
| Maximum charge / discharge current | 190A |
| Communication | CAN / RS485 |
| AC Output (Mains Side) | |
| Rated Output Power | 8kW |
| Maximum Apparent Output Power | 8 kVA |
| Rated Mains Voltage | 220 V / 230 V |
| Rated Mains Frequency | 50 Hz / 60 Hz |
| Rated Mains Output Current | 36.4 A / 34.8 A |
| Maximum output current | 36.4 A / 34.8 A |
| Power Factor | > 0.99 (0.8 leading - 0.8 lagging) |
| THDi | < 2% |
| AC Input (Mains Side) | |
| Input Voltage Range | 187 - 253 V |
| Maximum Input Current | 50A |
| Frequency Range | 45 - 55 Hz / 55 - 65 Hz |
| AC Output (Back-up) | |
| Rated output power | 8kW |
| Maximum apparent output power | 2 times rated power, 10 s |
| Backup switching time | < 4 ms |
| Rated output current | L/N/PE, 220 V / 230 V |
| THDv (@linear load) | < 2% |
| Efficiency | |
| Maximum efficiency | 96.2% |
| EU efficiency | 96.1% |
| Maximum BAT efficiency loaded by PV | 95.3% / 93.9% |
| BAT discharged to AC at max efficiency | 93.8% |
| Protection | |
| Ground fault monitoring | Yes |
| DC reverse polarity protection | Yes |
| Integrated AFCI 2.0 | Optional |
| Protection class / Overvoltage category | I / II (PV and BAT), III (MAINS and BACKUP and GEN) |
| General Data | |
| Dimensions (W × H × D) | 335 × 560 × 253 mm |
| Weight | 23.5kg |
| Topology | High frequency isolation (for battery) |
| Operating ambient temperature range | -40 ~ +60°C |
| Ingress protection protection | IP66 |
| Cooling method | Intelligent fan cooling |
| Maximum operating altitude | 3000 m |
| Network connection standards | |
| Network connection standards | NRS 097-2-1, IEC 62116, IEC 61727, IEC 60068, IEC 61683, EN 50530, MEA, PEA, NBR 16149, NBR 16150 |
| Safety Standards / EMC | |
| Safety standards / EMC | IEC/EN 62109-1/-2, EN 61000-6-2/-3 |
| Features | |
| DC Connection | MC4 Plug (PV Port) / Terminal Block (BAT Port) |
| AC Connection | Terminal Block |
| Screen | 7.0" LCD Display & Bluetooth + APP |
| Communication | RS485, CAN, Optional: Wi-Fi, GPRS, LAN |
