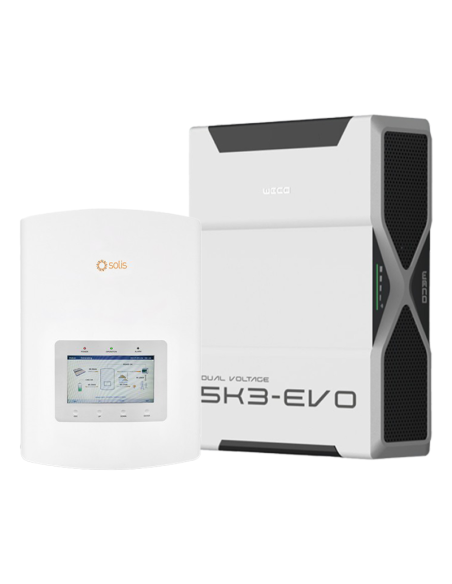

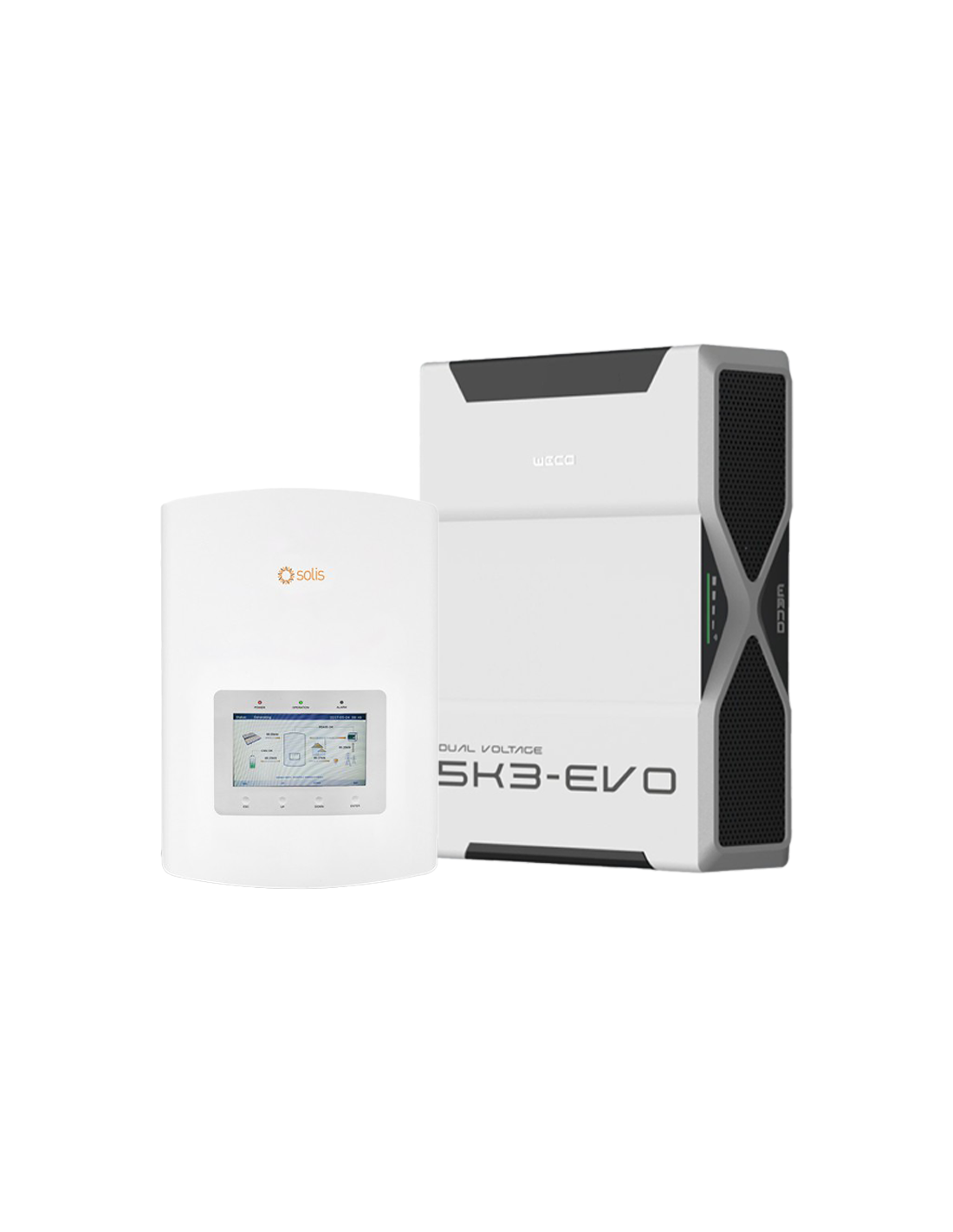

Single-phase storage system Solis 6kW inverter 5.22kWh lithium battery Weco 5k3 EVO

Name: Single-phase storage system Solis 6kW inverter 5.22kWh lithium battery Weco 5k3 EVO
Brand: Solis
SKU: KSA-6EH1P-WECO-EVO-5.2
Price: 2302.3 EUR
Availability: InStock

Reference KSA-6EH1P-WECO-EVO-5.2

€2,302.30

VAT included 10 %

€2,093.00 Vat excl.

Storage system with Solis inverter for grid connection with storage in Weco Lithium battery.

NOTE: SYSTEM DESIGNED FOR WALL MOUNTING.

FOR HORIZONTAL OR VERTICAL FLOOR MOUNTING OPTIONS, CONTACT TECHNICAL SUPPORT.

This pack contains

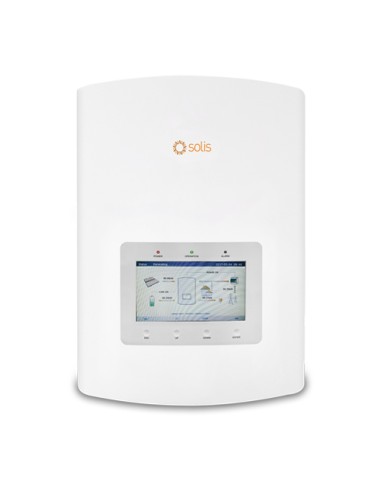

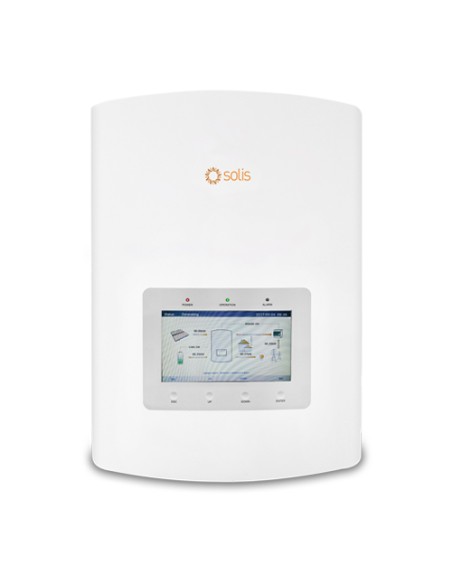

Single-phase hybrid inverter 6kW Solis S5 double MPPT solar photovoltaic

€976.80

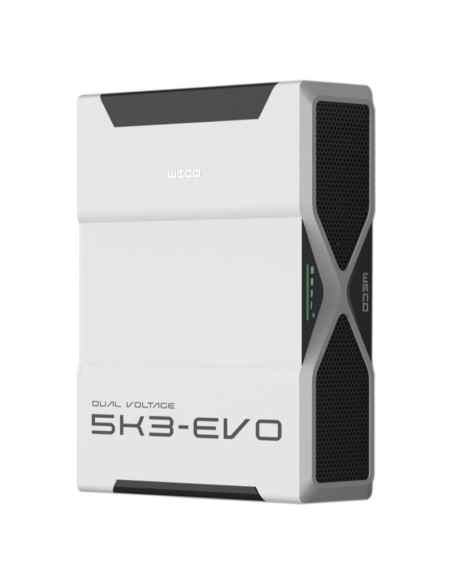

Weco 5K3 EVO Dual Voltage 5.22kWh lithium battery photovoltaic storage

€1,237.50

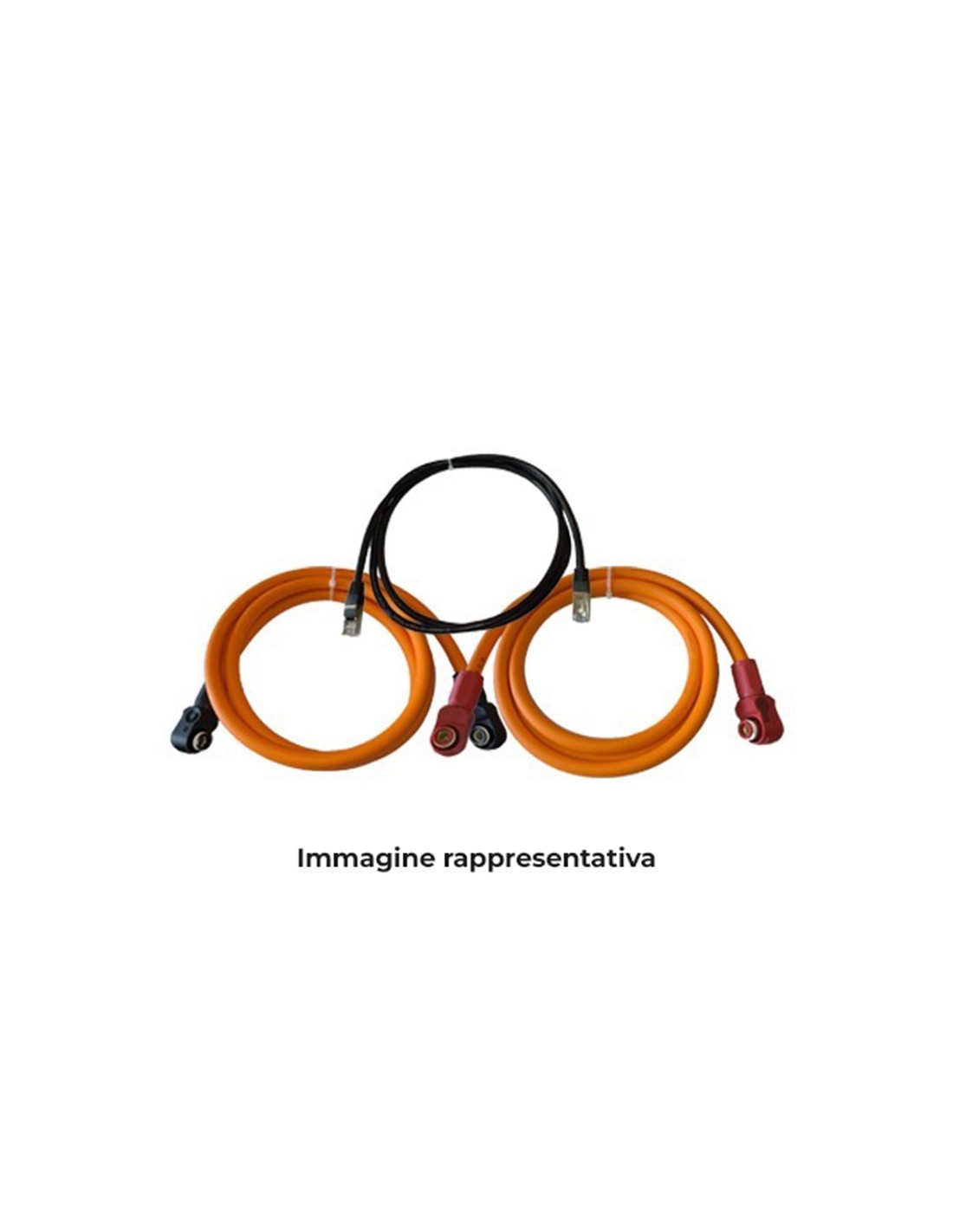

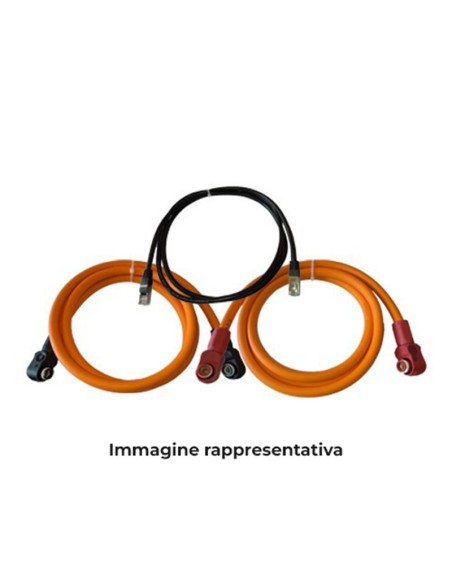

Connection kit between Weco 5k3 EVO batteries and between battery and inverter

€88.00

Single-phase storage system Solis 6kW inverter 5.22kWh lithium battery Weco 5k3 EVO

With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to the power supply of the loads and the storage of energy in the WECO lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

COMPONENTS OF THE KIT


1	Inverter Hybrid	Inverter Hybrid Single phase 6kW Photovoltaic System with Lithium storage	Download

1	Lithium Battery	Lithium Battery 5.22kWh Weco 5k3 EVO	Download

1	Connection kit	Connection kit between Weco 5k3 EVO batteries and between battery and inverter

Main features of the inverter:

Uninterrupted power supply, 20ms reaction;
Fanless design, long lifespan;
AFCI protection, proactively reduces fire risk;
With shifting and peak shaving capabilities friendly to grid;
Intelligent EMS function, improving battery's reliability;
Higher charge-discharge efficiency, improving the economic benefits;
Max. string input current 15A;
Multiple working modes to make maximize self-consumption, increase benefit;
With high-frequency isolation technology, making system safer and long lifespan;
24-hour fully intelligent energy management, Real-time grasp of PV plant status;
Compatible with lithium & lead-acid batteries, increased more choice in different markets;
Remotely control & upgrade function, making digital power plant maintenance at your fingertips.

Main features Battery:

The state-of-the-art heating system keeps the battery cells above minimum temperatures, ensuring constant performance even in persistently cold conditions.
Each module is equipped with a sophisticated fire suppression system, offering unparalleled safety and peace of mind.
Parallel up to 105 modules: 548kWh.
Total 8 clusters of 15 batteries: 626kWh
Min2 Modules + HV BOX;
Max17 Modules /1000Vdc.
Total 8 clusters of 17 batteries 710kWh.
