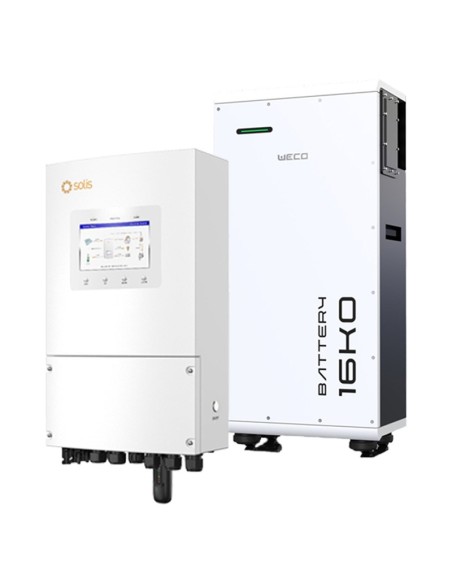

Single-phase storage system Solis 6kW inverter 16kWh lithium battery Weco 16k0
With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.
The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the WECO lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.
COMPONENTS OF THE KIT
|
 | 1 | Inverter Hybrid | Inverter Hybrid Single phase 6kW Photovoltaic System with Lithium storage | Download |
|
 | 1 | Lithium Battery | Lithium Battery 16kWh Weco 16k0 | Download |
|
 | 1 | Connection cable kit | 50mm 200A connection cables for SOLIS inverter and Weco 16K0 battery | |
|
Main features of the inverter:
- Supports a PV input up to 160% of the inverter's nominal DC power, maximizing solar energy usage;
- Overload of 200% for 10 seconds in off-grid mode, ensuring stable start for motors, water pumps, and air conditioners;
- Seamless switching between grid and autonomy in less than 10 ms, ensuring uninterrupted power supply;
- Multiple battery options, compatible with any battery (between 40 V and 60 V);
- Supports connection to the existing photovoltaic grid for export control and off-grid usage;
- Multiple generator connection methods and automatic control, enabling flexible local implementation;
- Supports up to 6 units in parallel, expanding system capacity;
- Smart load management, extending backup time for critical loads;
- Customizable battery backup level for uninterrupted power supply;
- Supports off-grid operation with only PV, reducing initial costs;
- AI-based and compatible with VPP: maximizes savings and unlocks additional revenue;
- 7-inch industrial-grade touchscreen, offering a wider and more intuitive interface for local operation;
- IP66 protection, for operation in harsh conditions.

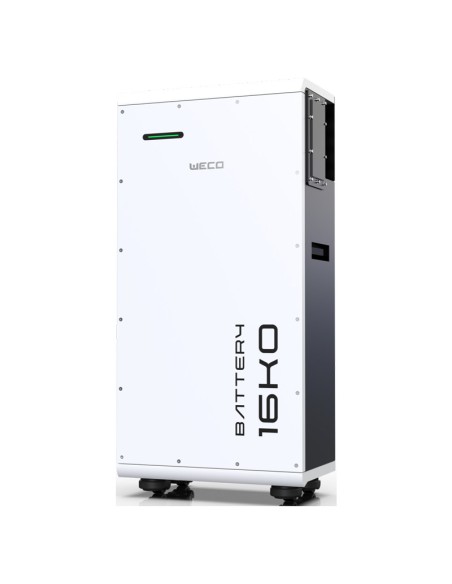

Main features Battery:
- Maximum system capacity: 16.3 kWh;
- Battery system capacity: 16.06 kWh;
- Maximum depth of discharge: up to 98%;
- Module expandability: up to 105 with LV HUB;
- Input protection: IP66;
- Communication interface: RS485, CAN, RS232, Wi-Fi & Bluetooth;
- Dimensions and weight: (WxDxH): 480 × 1000 × 262 mm - 84 kg;
- Max. charge/discharge current: 320 A DC;
- Expected lifecycle: >8000 cycles @25°C 80% DoD.
