With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to the power supply of the loads and the storage of energy in the DYNESS lithium battery over the transfer to the network.

In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

NOTE: After completing the installation of the battery system and verifying its correct functioning, you must access the official DYNESS website to register the product and activate the warranty.
To register, go to the dyness.com website, select service -> Warranty registration and fill out the form.

COMPONENTS OF THE KIT

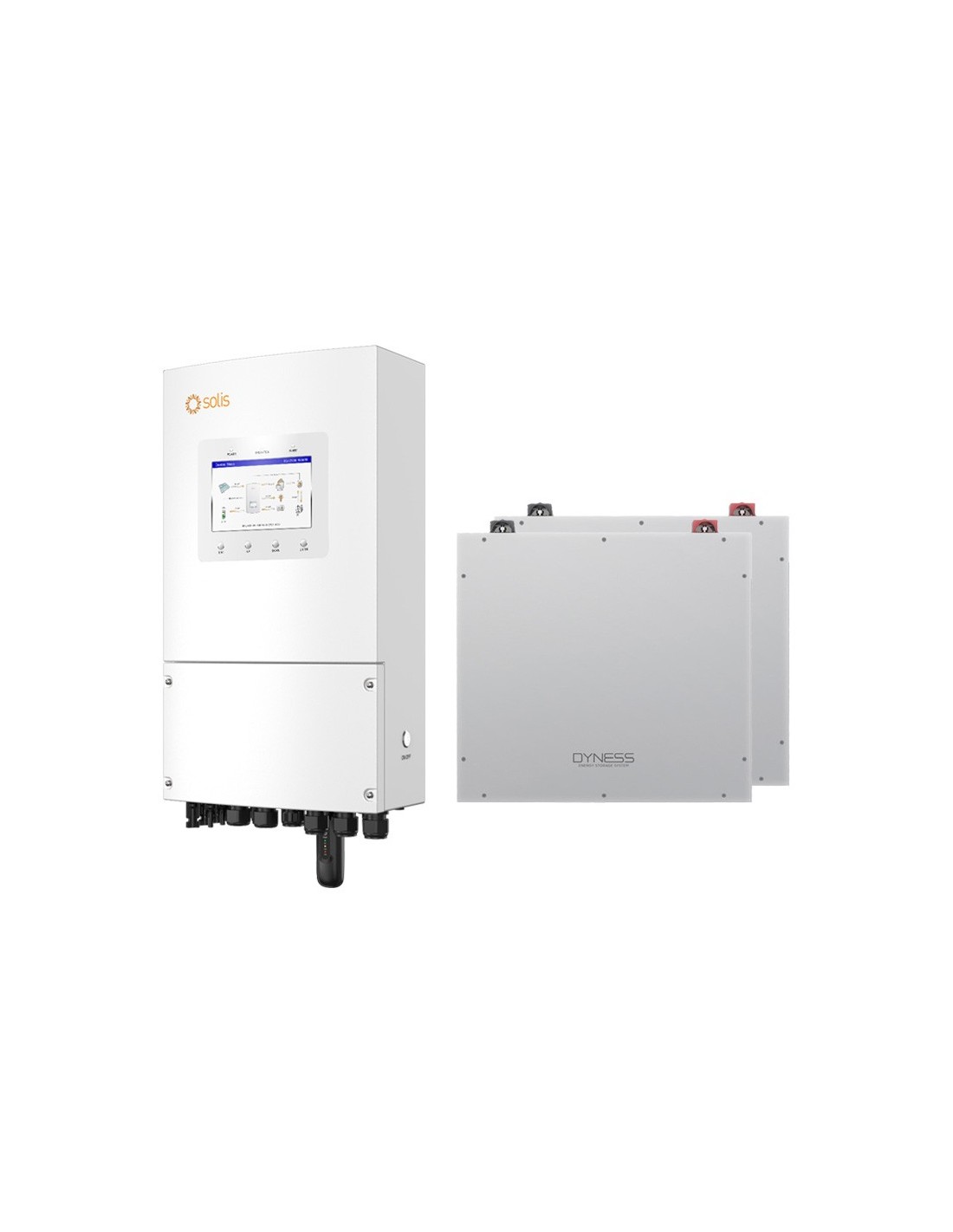

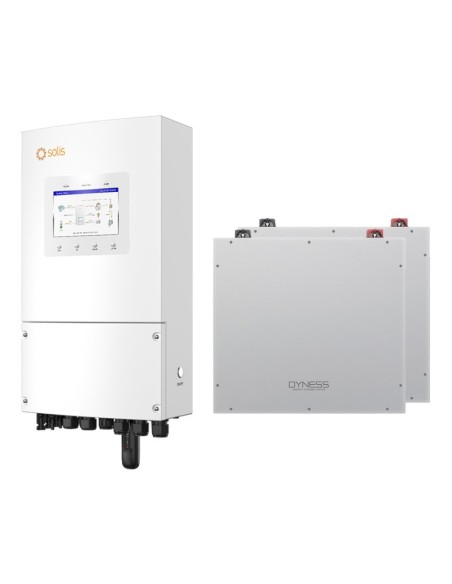

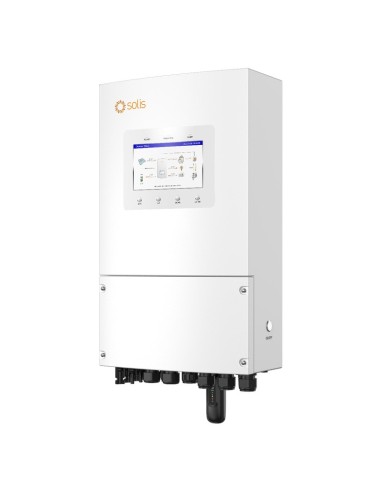

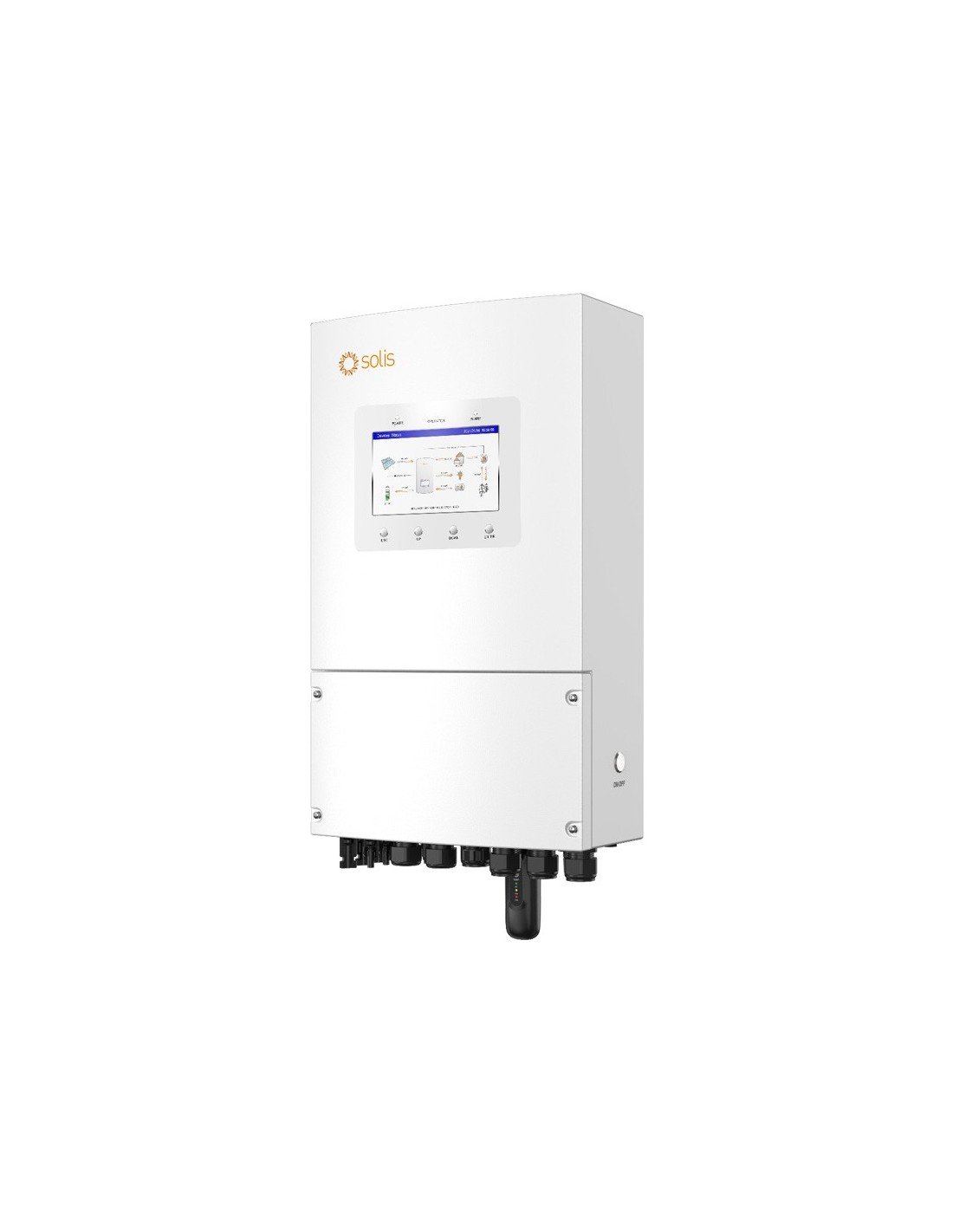

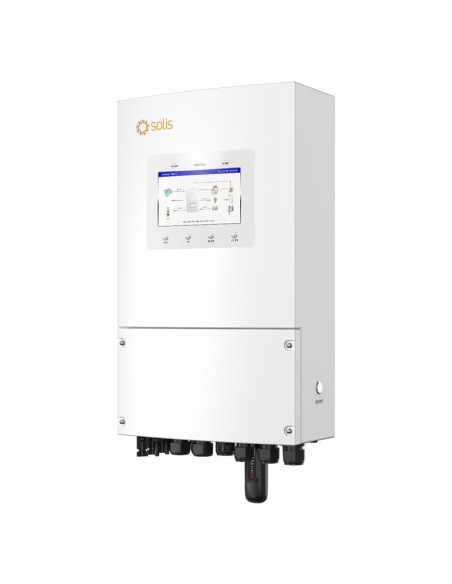

	1	Inverter Hybrid	Inverter Hybrid Single phase 8kW Photovoltaic System with Lithium storage	Download

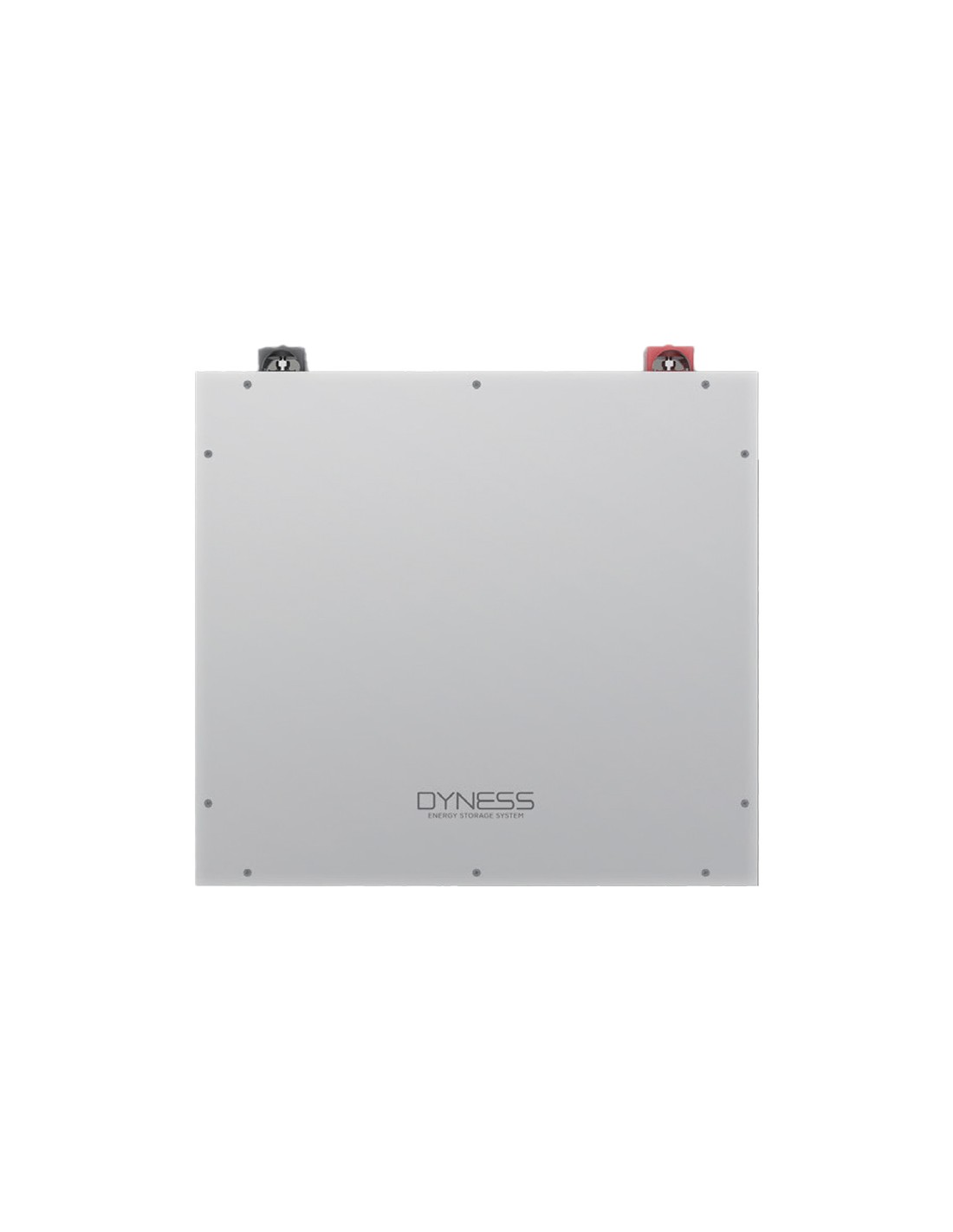

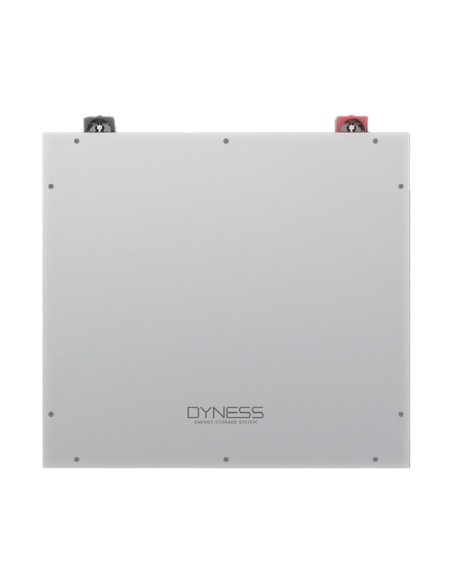

	2	Lithium Battery	Lithium Battery 5.12kWh Dyness DL5.0C	Download

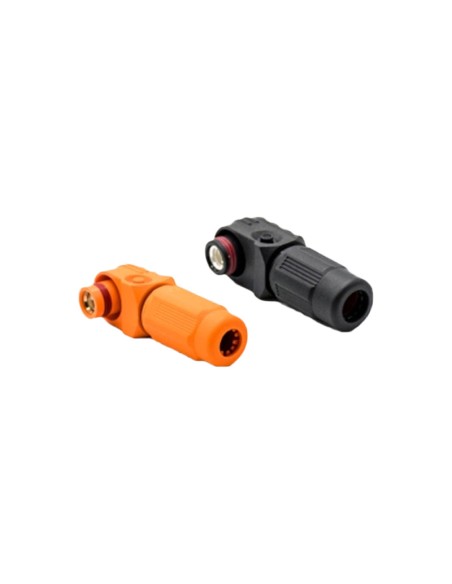

	1	Pair of connectors	Pair of Amphenol connectors for Solis inverters

Main features of the inverter:

• 10 seconds 200% overload;
• Multiple inverters can work together to form a micro-grid;
• Supports dual backup ports for intelligent control of critical and non-critical loads;
• Generator compatible to extend backup time in case of power grid failure;
• Automatic switching time is < 4 ms, for a seamless transition from grid to backup;
• Ensures excellent power stability, keeping the load unaffected by weak grid or generator power fluctuations.



Main features Battery:

• Flexible Expansion: up to 50 units in parallel, 5.12kWh - 256kWh capacity;
• 1C Discharge: simultaneously supplying power to multiple loads, no need to worry about power outages;
• Automatic Self-heating: -20°C to 55°C operating temperature;
• Easy installation: support wall-mounted, floor-mounted, stacked and rack-mounted installations, high space utilization;
• Long-term Reliability: LFP cells, 6000+ cycles, 10 year warranty;
• All-round Safety: short-circuit lockout, surge-resistant, safe and reliable.
