With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.

The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.

The system gives priority to the power supply of the loads and the storage of energy in the DYNESS lithium battery over the transfer to the network.

In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

NOTE: After completing the installation of the battery system and verifying its correct functioning, you must access the official DYNESS website to register the product and activate the warranty.
To register, go to the dyness.com website, select service -> Warranty registration and fill out the form.

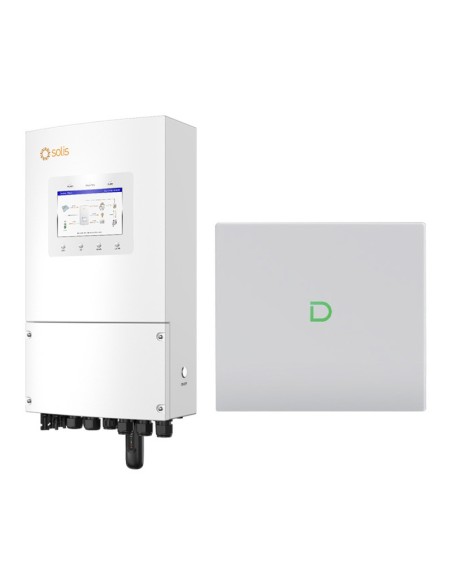

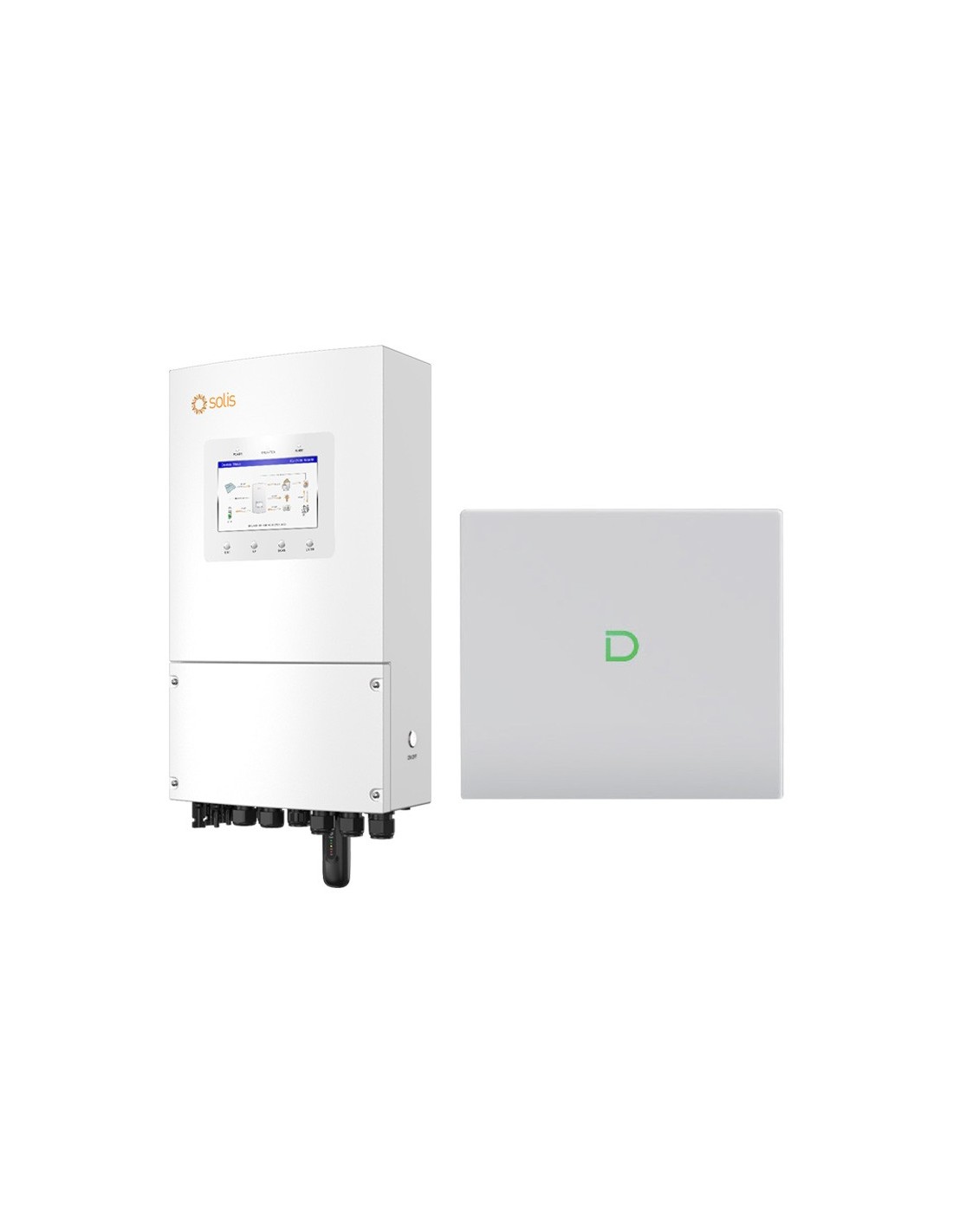

COMPONENTS OF THE KIT

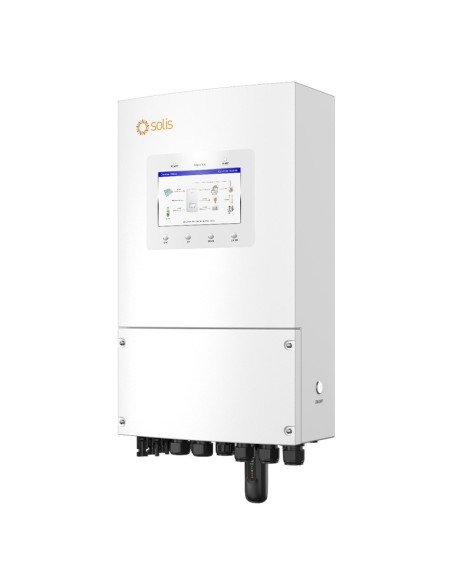

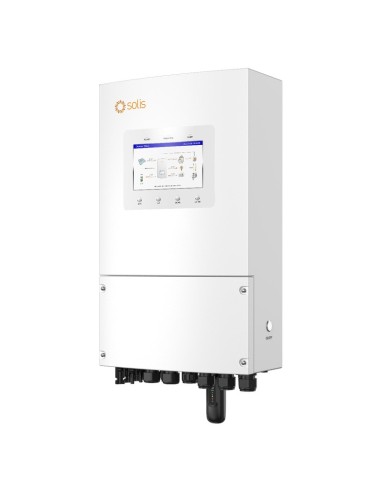

	1	Inverter Hybrid	Inverter Hybrid Single phase 6kW Photovoltaic System with Lithium storage	Download

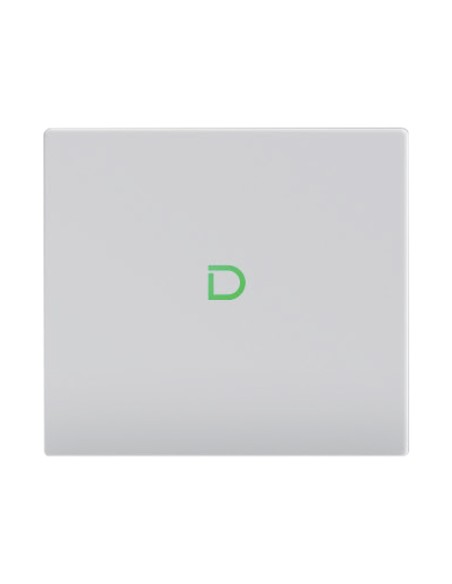

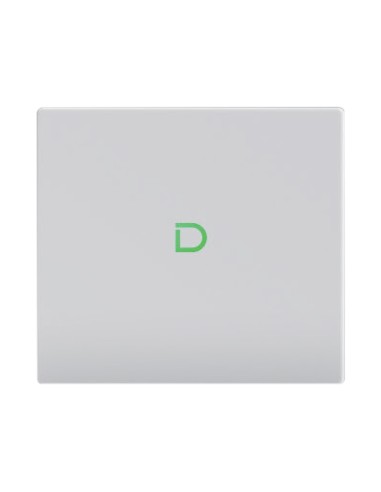

	1	Lithium Battery	Lithium Battery 10.24kWh Dyness Powerbox G2	Download

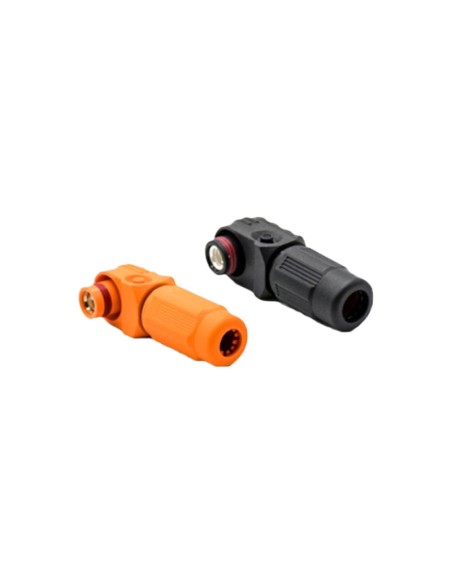

	1	Pair of connectors	Pair of Amphenol connectors for Solis inverters

Main features of the inverter:

• Supports a PV input up to 160% of the inverter's nominal DC power, maximizing solar energy usage;
• Overload of 200% for 10 seconds in off-grid mode, ensuring stable start for motors, water pumps, and air conditioners;
• Seamless switching between grid and autonomy in less than 10 ms, ensuring uninterrupted power supply;
• Multiple battery options, compatible with any battery (between 40 V and 60 V);
• Supports connection to the existing photovoltaic grid for export control and off-grid usage;
• Multiple generator connection methods and automatic control, enabling flexible local implementation;
• Supports up to 6 units in parallel, expanding system capacity;
• Smart load management, extending backup time for critical loads;
• Customizable battery backup level for uninterrupted power supply;
• Supports off-grid operation with only PV, reducing initial costs;
• AI-based and compatible with VPP: maximizes savings and unlocks additional revenue;
• 7-inch industrial-grade touchscreen, offering a wider and more intuitive interface for local operation;
• IP66 protection, for operation in harsh conditions.

Main features Battery:

• Flexible Expansion: Up to 50 units in parallel, capacity from 10.24 kWh to 512 kWh;
• Maximum Safety: Intelligent fire suppression system, reaction within 5 seconds, automatic pressure relief;
• Automatic Heating: Operating temperature from -20°C to 550°C (optional);
• 1C Discharge: Maximum discharge current: 200 A, simultaneous power supply to multiple loads;
• Easy Installation: 30% smaller volume, 15% lighter, saving time and money. labor;
• IP66 Protection: Hassle-free outdoor installation, strong environmental adaptability.
