Three-phase photovoltaic kit 15300W Solis LV 15kW inverter 15.6kWh lithium Weco EVO 5k3
KFS-15300PM-TSM-15EH3P-K02-WECO-EVO-15.6
Last items in stock
€9,088.68
VAT included
10 %
€8,262.56 Vat excl.
Photovoltaic kit for connection to the grid with Weco lithium battery storage, photovoltaic modules and Solis inverter.
Three-phase photovoltaic kit 15300W Solis LV 15kW inverter 15.6kWh lithium Weco EVO 5k3
With the continuous increase in the cost of energy and the continuing decrease in incentives for renewable energy, it is essential to obtain the maximum results from your photovoltaic system.
The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the WECO lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.
The use of the Solis storage system will allow you to maximize the yields of your photovoltaic system, reducing dependence on traditional electricity suppliers.
The system gives priority to the power supply of the loads and the storage of energy in the WECO lithium battery over the transfer to the network. In this way you can use the energy previously stored even when the photovoltaic system does not produce, maximizing domestic self-consumption.

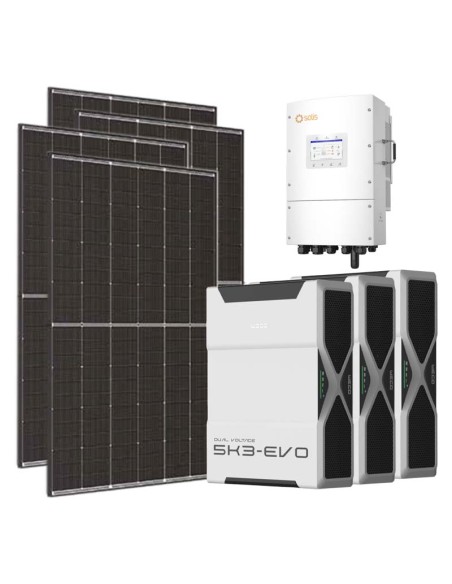

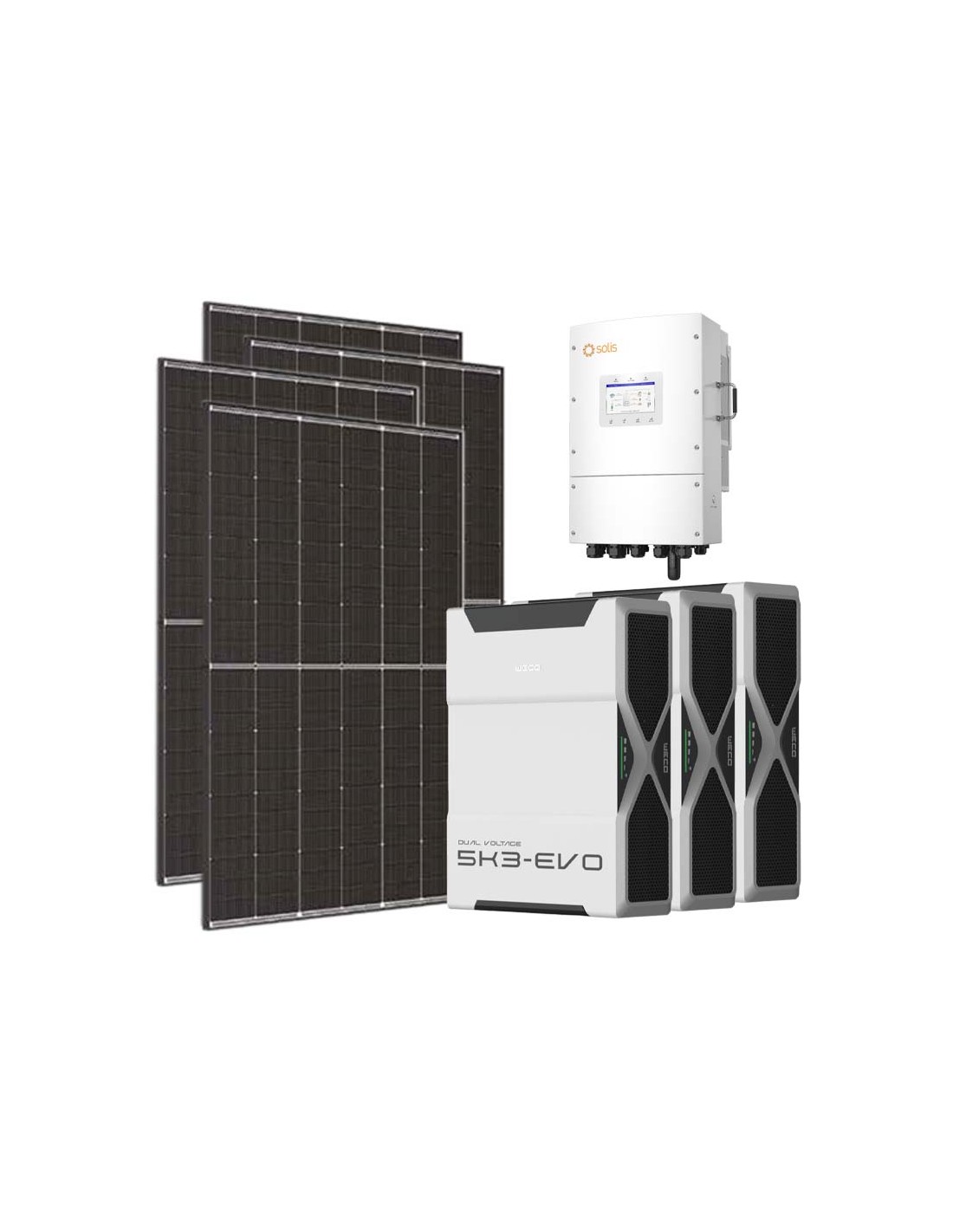

COMPONENTS OF THE KIT
 |

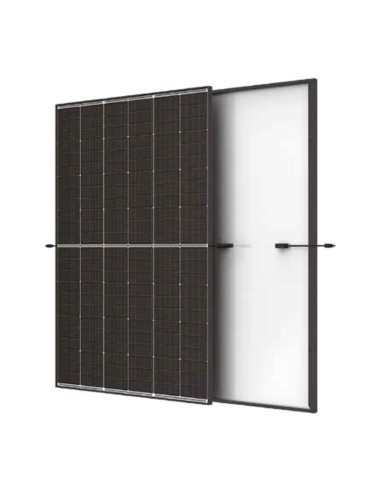

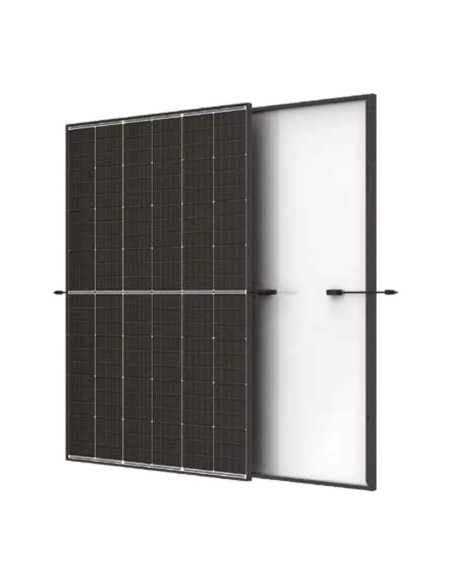

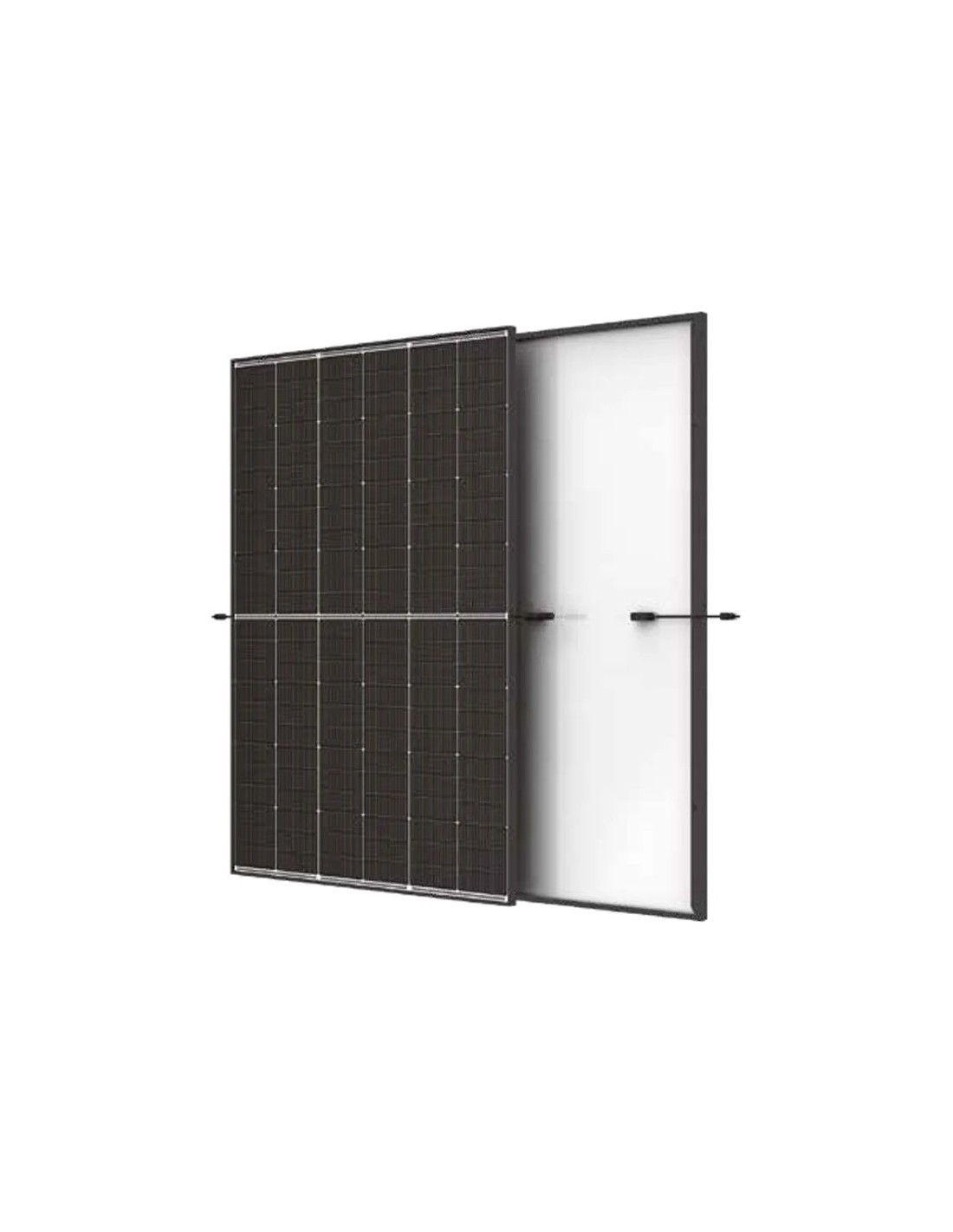

34 | Photovoltaic Solar Panels | Photovoltaic Solar Panel 450W Monocrystalline | Download |
 |

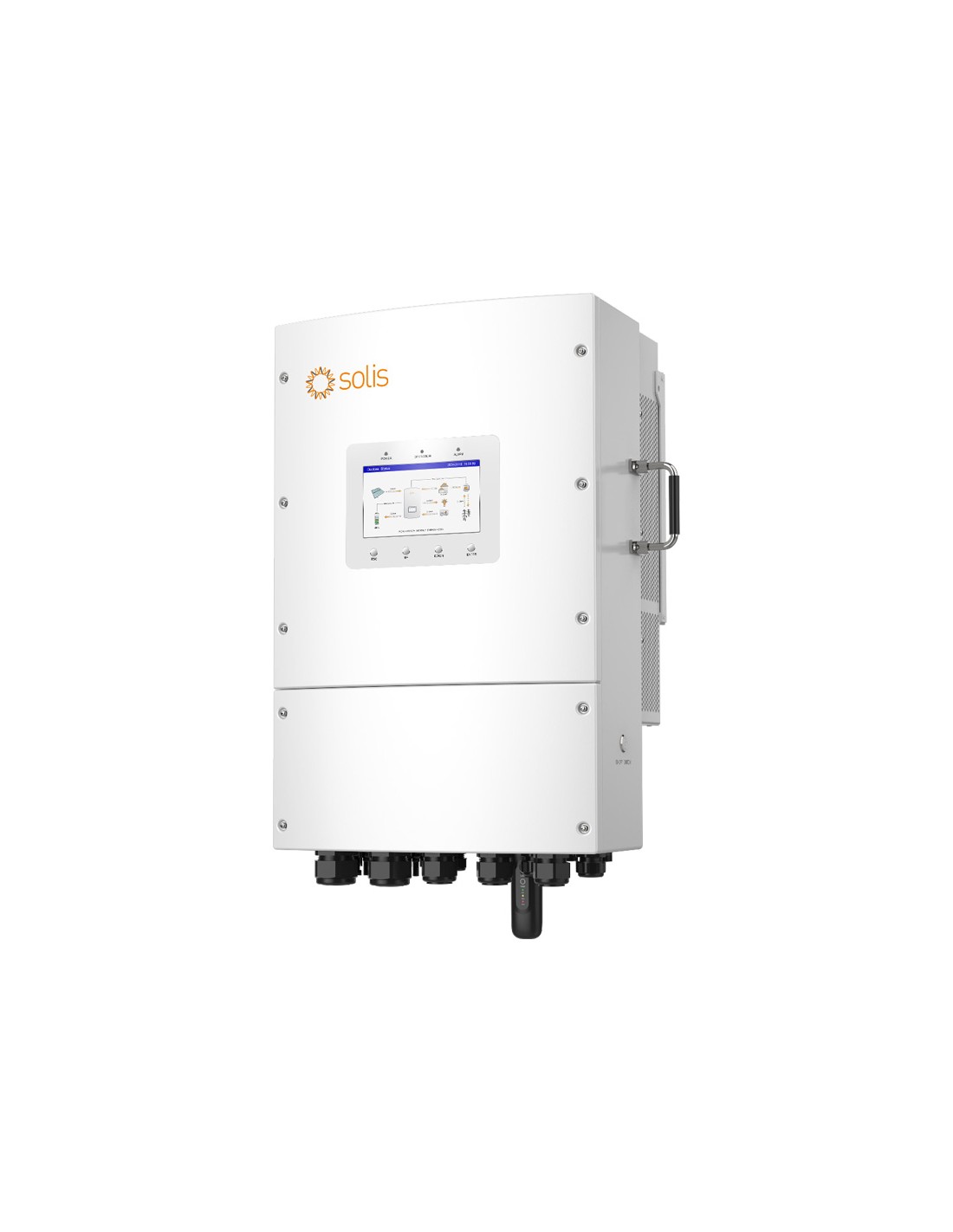

1 | Inverter Hybrid | Inverter Hybrid Three phase 15kW Photovoltaic System with Lithium storage | Download |
 |

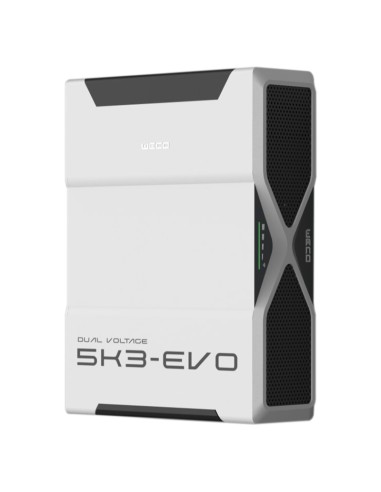

3 | Lithium Battery | Lithium Battery 5.22kWh Weco EVO 5k3 | Download |
 |

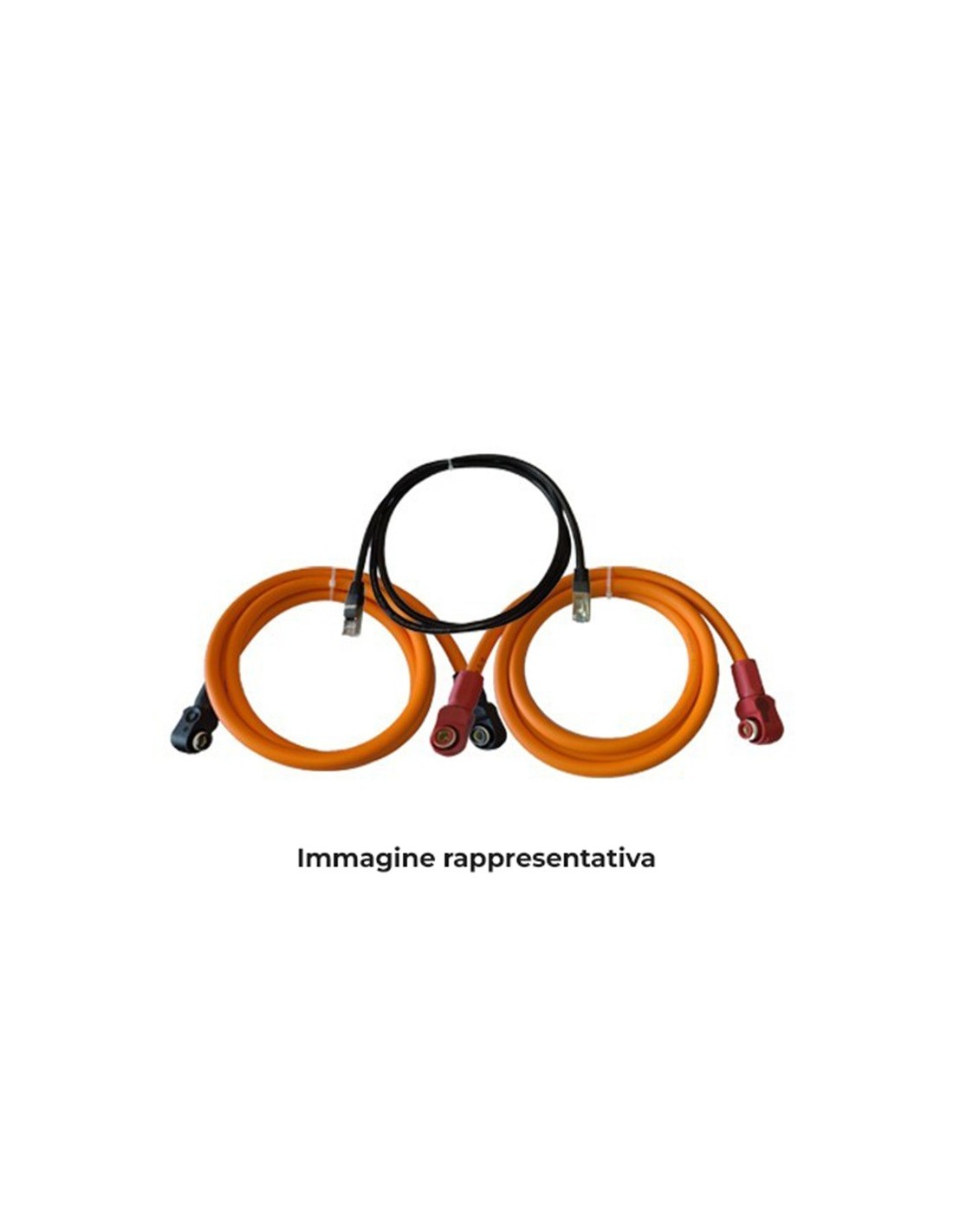

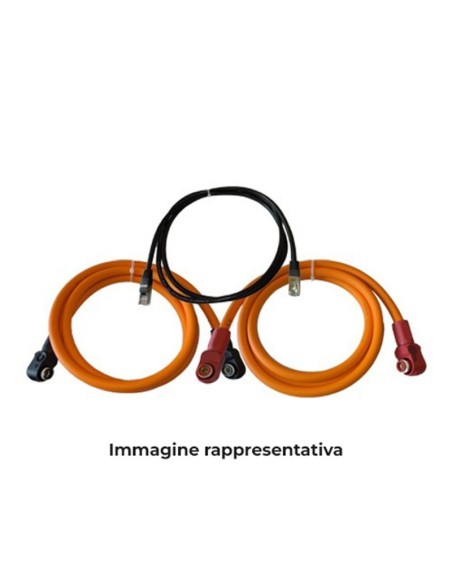

3 | Connection cable kit | Connection kit between Weco 5k3-EVO batteries and between battery and inverter | |

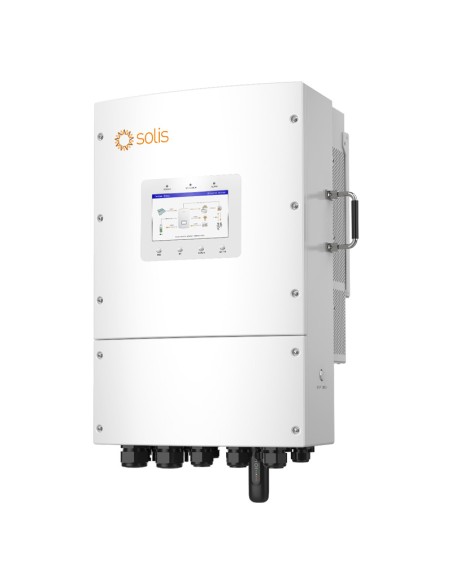

Main features of the inverter:
- Supports PV input up to 160% of the inverter’s rated DC power, maximizing solar energy utilization;
- Supports PV input current up to 21 A, compatible with future higher-power PV modules;
- 200% overload for 10 seconds in off-grid mode, ensuring stable start-up of motors, water pumps, and air conditioners;
- Seamless on/off-grid switching in less than 10 ms, ensuring an uninterrupted power supply;
- Supports unbalanced three-phase output, with each phase supporting a maximum output of 50% of the inverter’s rated power;
- Supports both DC and AC coupling, facilitating PV expansion, battery charging, and load power supply in a reliable manner, even under off-grid conditions;
- Multiple generator connection methods and automatic control enable flexible local deployment; supports up to 6 units in parallel, expanding system capacity;
- Intelligent load management with priority assignment, extending backup time for critical loads;
- Customizable battery backup level for uninterrupted power supply;
- Supports PV-only off-grid operation, reducing initial costs;
- AI-based and VPP compatible: maximizes savings and unlocks additional revenue;
- 7-inch industrial-grade touchscreen, providing a larger and more intuitive interface for local operation;
- IP66 protection, for operation in harsh environments.

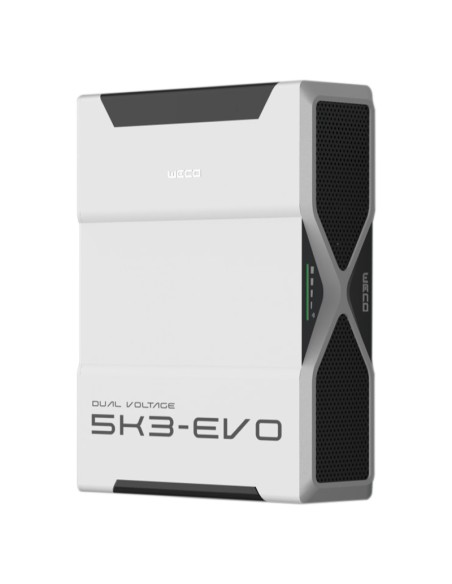

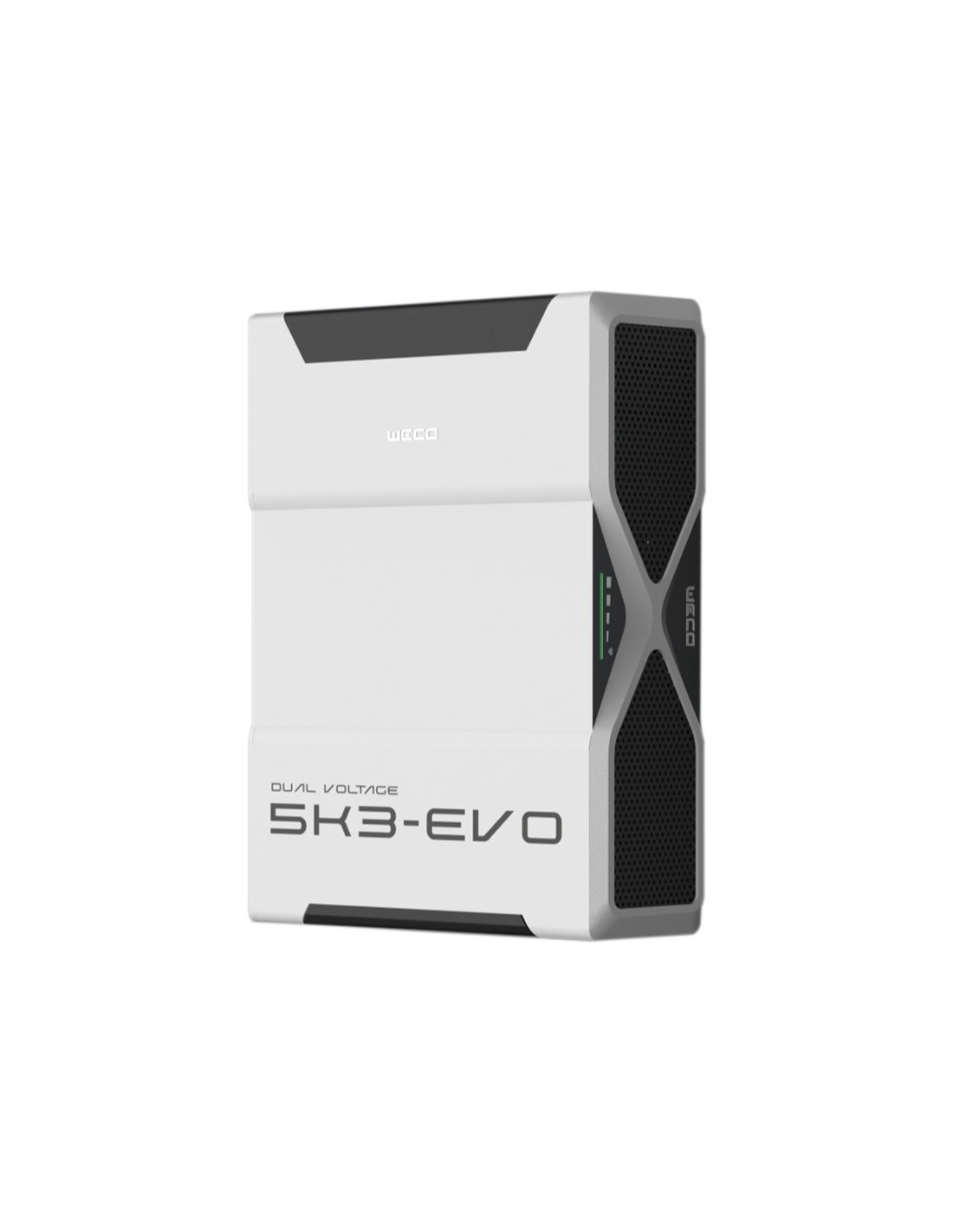

Main features Battery:
- The state-of-the-art heating system keeps the battery cells above minimum temperatures, ensuring constant performance even in persistently cold conditions.
- Each module is equipped with a sophisticated fire suppression system, offering unparalleled safety and peace of mind.
- Parallel up to 105 modules: 548kWh.
- Total 8 clusters of 15 batteries: 626kWh
- Min2 Modules + HV BOX;
- Max17 Modules /1000Vdc.
- Total 8 clusters of 17 batteries 710kWh.
Customer Service
 |
0882 22 82 47 |
- Typology
- Three-phase
- Battery type
- Lithium
- Accumulation capacity
- 15.66kWh
- Inverter power
- 15kW
- Manufacturer Inverter
- SOLIS
- Range Potenza Kit
- 15kW - 16kW
- Panel power (W)
- 450W
- Panel brand
- Trinasolar
- Battery brand
- Weco
- Inverter series
- S6-EH3PK02-NV-YD-L
- Battery series
- 5k3-EVO
