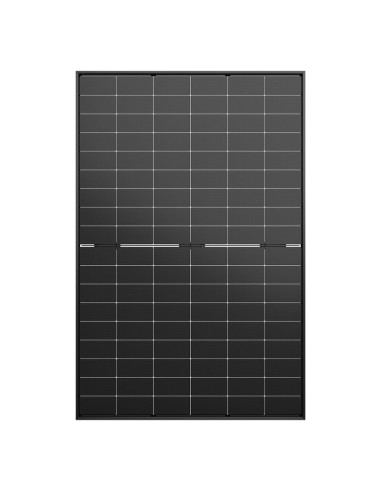

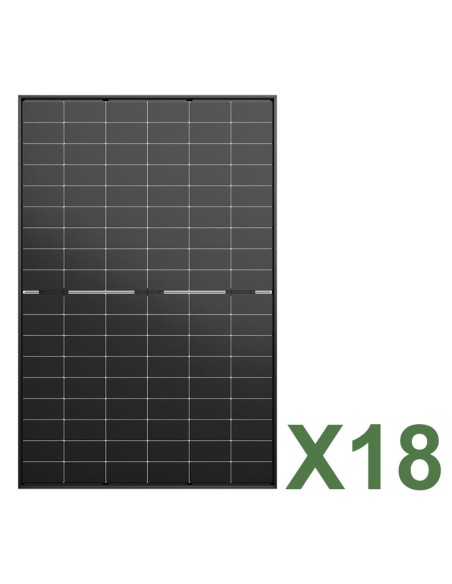

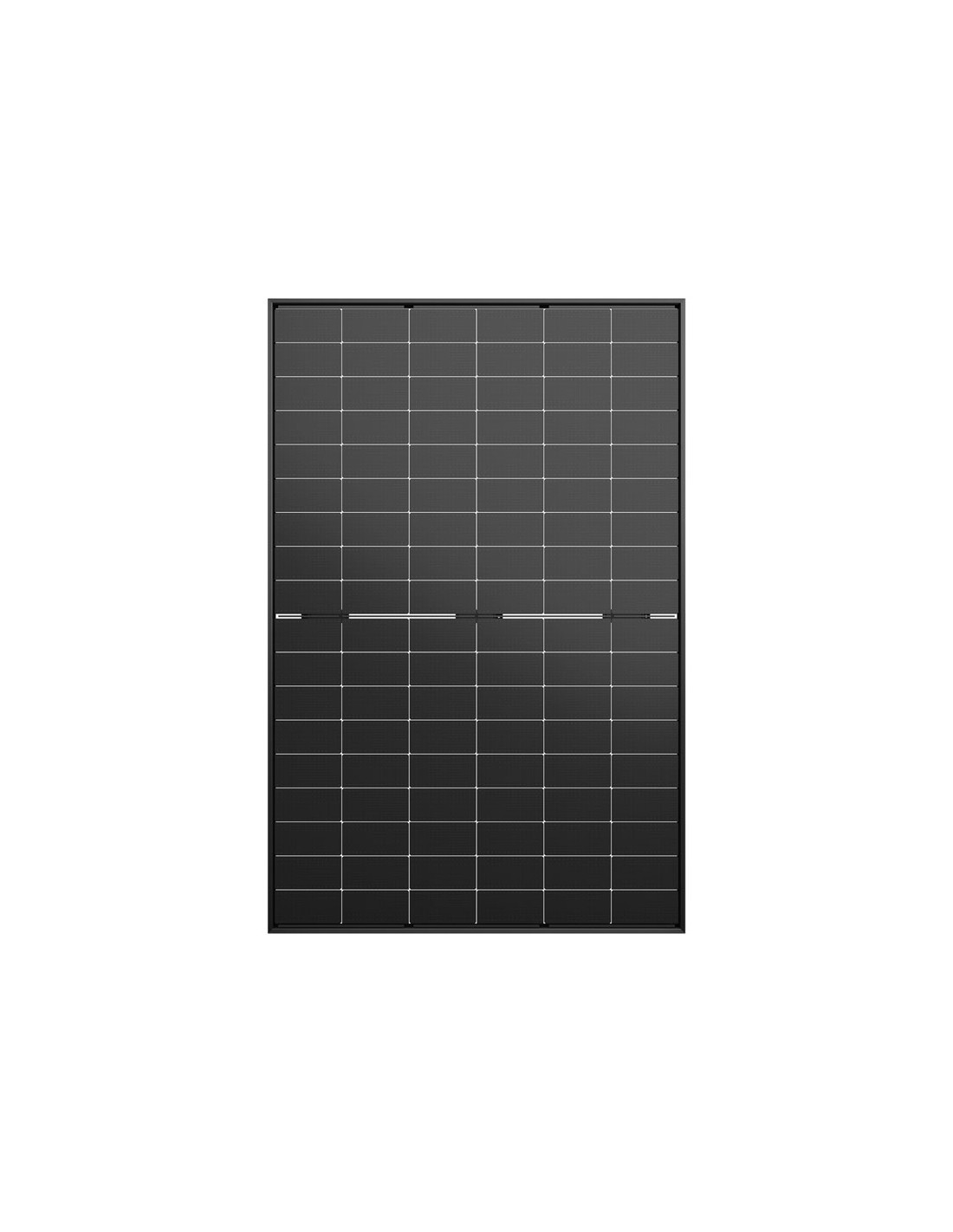

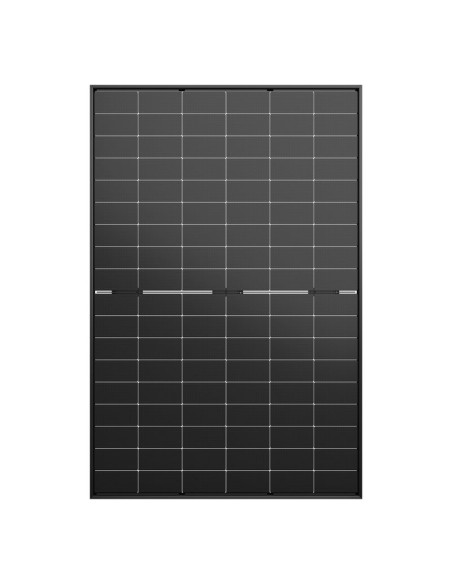

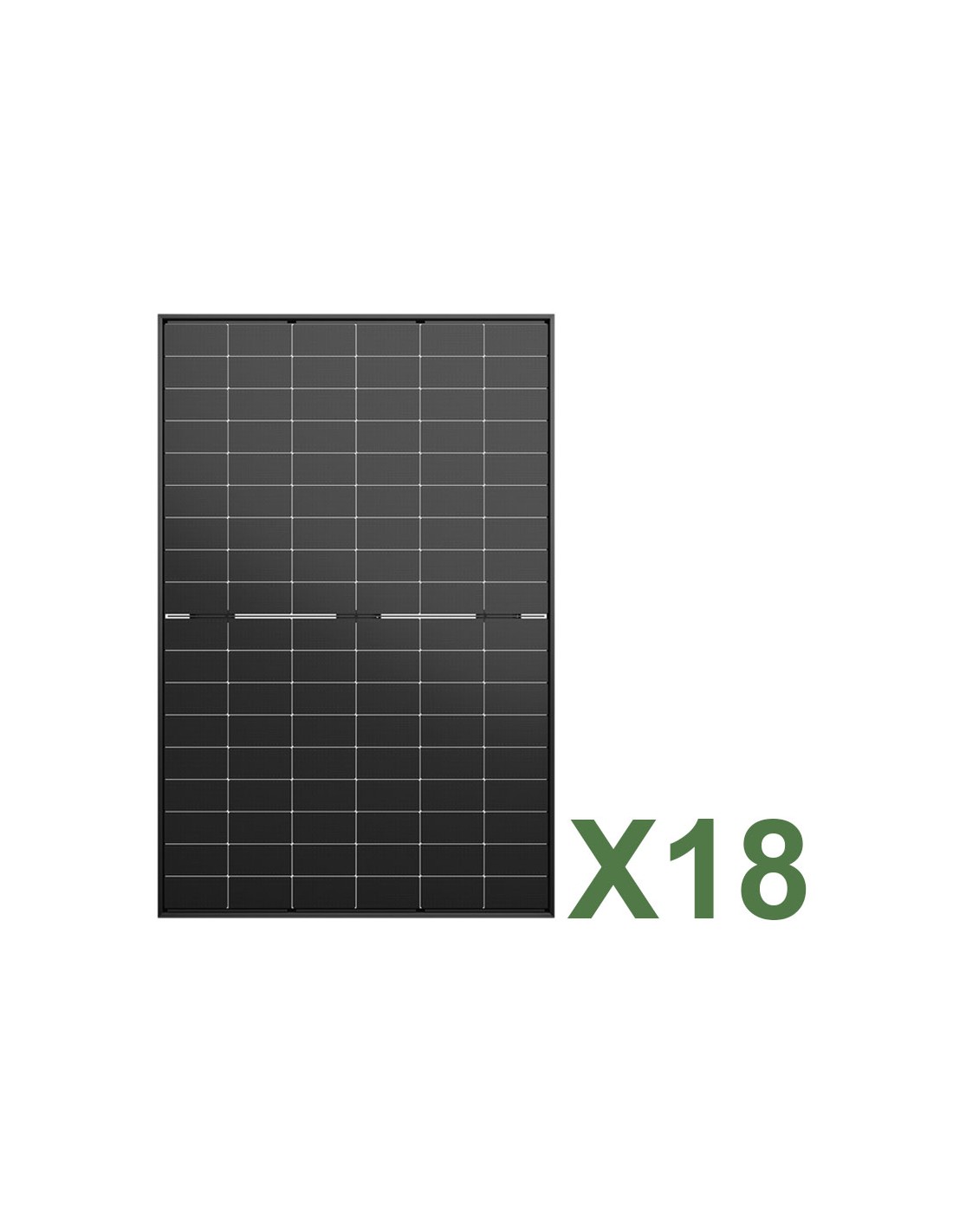

Set of 18 Jinko Solar Tiger Neo 515W total 9270W Mono Bifacial Photovoltaic Solar Panel with Black Frame
Set of 18 Jinko Solar Tiger Neo 515W total 9270W Mono Bifacial Photovoltaic Solar Panel with Black Frame
  • New
  • Pack
Set of 18 Jinko Solar Tiger Neo 515W total 9270W Mono Bifacial Photovoltaic Solar Panel with Black Frame
Set of 18 Jinko Solar Tiger Neo 515W total 9270W Mono Bifacial Photovoltaic Solar Panel with Black Frame

Set of 18 Jinko Solar Tiger Neo 515W total 9270W Mono Bifacial Photovoltaic Solar Panel with Black Frame

SET18-JKM515N-54HL4M-BDV-Z2-EU
€1,647.00
VAT included 10 %

€1,497.24 Vat excl.

Photovoltaic solar panel 515W with Monocrystalline silicon cel and Half Cell, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid)



Set of 18 Jinko Solar Tiger Neo 515W total 9270W monocrystallines Bifacial Photovoltaic Solar Panel with Black Frame

Model: JKM515N-54HL4M-BDV-Z2-EU


Features

  • N-type Technology: N-type modules with Tunnel Oxide Passivating Contacts (TOPCon) technology offer lower LID/LeTID degradation and better low light performance.
  • HOT 3.0 Technology: N-type modules with JinkoSolar's HOT 3.0 technology offer better reliability and efficiency.
  • Dual-Sided Power Generation: Dual-sided power generation gain increases with backside exposure to light, significantly reducing LCOE.
  • Mechanical Load Enhanced: Certified to withstand: 5400 Pa front side max static test load 2400 Pa rear side max static test load
  • SMBB Technology: Better light trapping and current collection to improve module power output and reliability.
  • Anti-PID Guarantee: Minimizes the chance of degradation caused by PID phenomena through optimization of cell production technology and material control.


For more details, download the following documents:


Technical features:

ELECTRICAL CHARACTERISTICS
MODEL JKM515N-54HL4M-BDV-Z2-EU
Peak Power (Pmax) 515W
Voltage at Pmax (Vmp) 34.62V
Current at Pmax (Imp) 14.888A
Open-Circuit Voltage (Voc) 40.89V
Short-Circuit Current (Isc) 15.78A
Maximum System Voltage 1500VDC (IEC)
Maximum Rated Fuse 35A
MECHANICAL CHARACTERISTICS
Number of Cells 108 (2x54)
Cell Type Mono
Junction Box IP68 Certified
Protection Class Class 2
IEC Fire Protection Class Class C
Cable Section 4.0 mm² (+): 400 mm , (-): 200 mm or custom length
Dimensions 1961×1134×30 mm
Weight 27Kg



Customer service


0882 22 82 47

Nominal Output (Pmax) W
515W
Nominal Voltage V
24V
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
108
8370000067207
