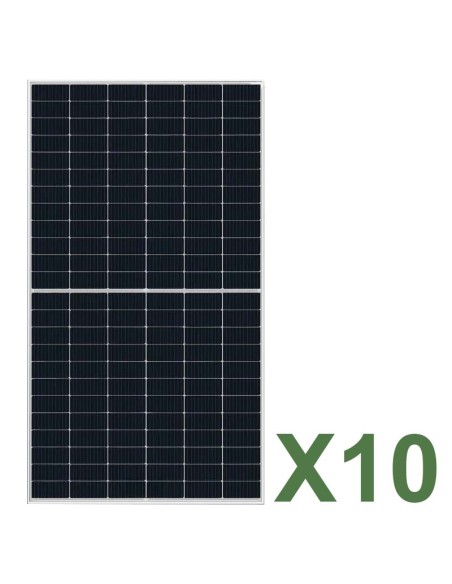

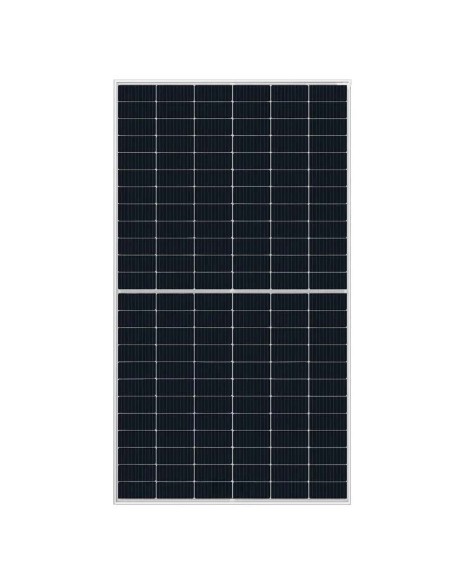

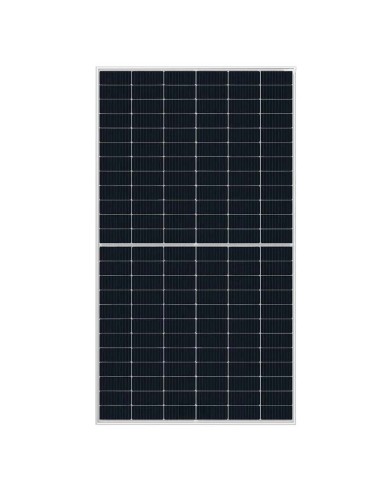

Set of 10 TCL SOLAR T CLASS 620W total 6200W mono bifacial photovoltaic solar panels
SET10-HSM-ND66-GR620
€1,157.50
VAT included
10 %
€1,052.30 Vat excl.
Bifacial Photovoltaic solar panel N-type TOPCon Dual Glass 620W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
Set of 10 TCL SOLAR T CLASS 620W total 6200W mono bifacial photovoltaic solar panels
Model: HSM-ND66-GR620
Features
High energy yield
- Consistent energy production across all weather conditions;
- Bifacial energy generation.
Elegant design
- Sleek panel aesthetic;
- High-durability frame and heat-strengthened glass.
Reliable operation
- Rigorous supply chain qualification procedures;
- Easy to install;
- Backed by a bankable company-
For more details, download the following documents:
- Datasheet: [Download]
Technical features:
| ELECTRICAL CHARACTERISTICS | |
| MODEL | HSM-ND66-GR620 |
| Peak Power (Pmax) | 620W |
| Voltage at Pmax (Vmp) | 40.98V |
| Current at Pmax (Imp) | 15.13A |
| Open Circuit Voltage (Voc) | 48.94V |
| Short Circuit Current (Isc) | 16.05A |
| Maximum System Voltage | 1500V DC (IEC) |
| Maximum Series Fuse Rating | 30A |
| Module Efficiency | 23.0% |
| MECHANICAL CHARACTERISTICS | |
| Number of Cells | 132 |
| Solar Cells | N-type TOPCon module |
| Frame | anodized aluminum alloy |
| Junction Box | IP68, 3 diodes |
| Connectors | Stäubli MC4-EVO2 |
| Dimensions | 2382 × 1134 × 30 mm |
| Weight | 32.6 kg |
| Packaging | 36 pieces per pallet |
| Certifications | Standard IEC 61215, IEC 61730 Fire rating class A (IEC 61730-2 / UL 790) Protection class II (IEC 61140) |
- Nominal Output (Pmax) W
- 620W
- Connector Type
- MC4 o connettori compatibili
- Type Panel
- framed
- Product Origin
- Asian
- Cell type
- Monocrystalline
- Number of cells
- 132
- Single-sided/Double-sided
- Double-sided
- Frame color
- Aluminum
