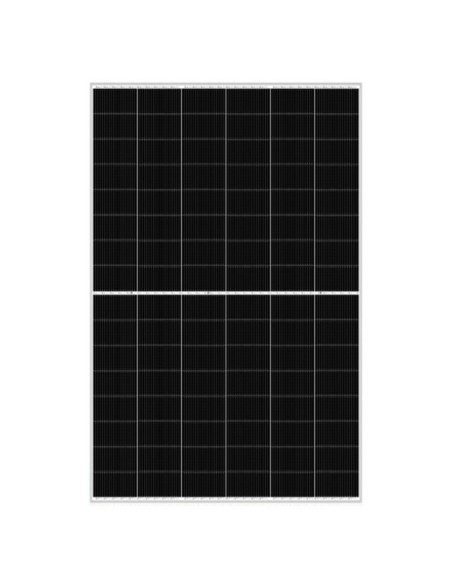

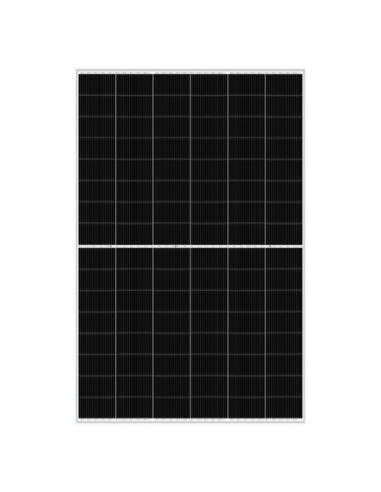

Set of 18 455W total 8190W bifacial photovoltaic solar panels mono EGING PV

Pack

Set of 18 455W total 8190W bifacial photovoltaic solar panels mono EGING PV

Name: Set of 18 455W total 8190W bifacial photovoltaic solar panels mono EGING PV
Brand: Eging PV
SKU: SET18-EG-455NT48-HRc/BF-DG
Price: 1293.3 EUR
Availability: InStock

Reference SET18-EG-455NT48-HRc/BF-DG

€1,293.30

VAT included 10 %

€1,175.76 Vat excl.

Photovoltaic solar panel 455W with Monocrystalline silicon cel and Half Cell, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid)

This pack contains

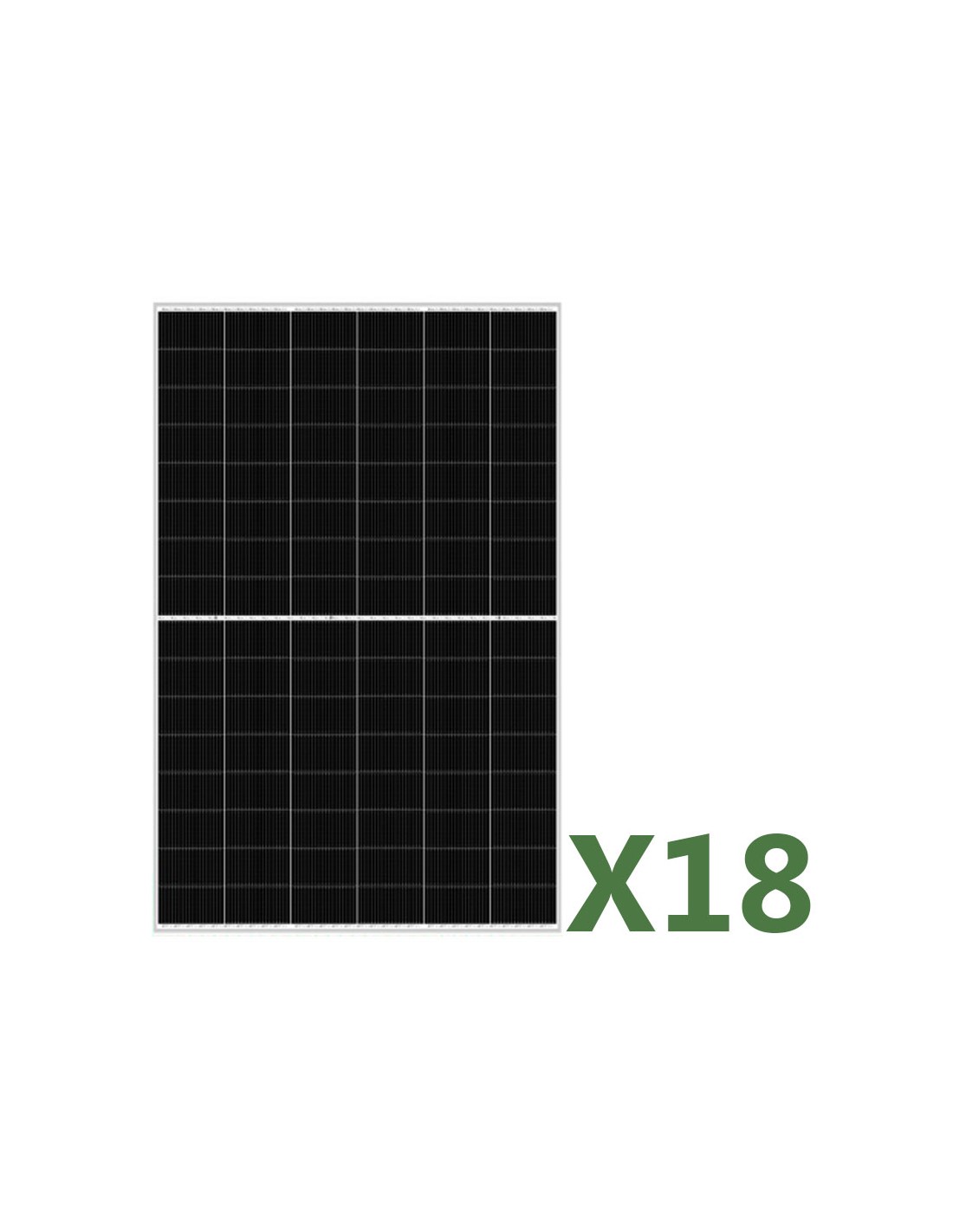

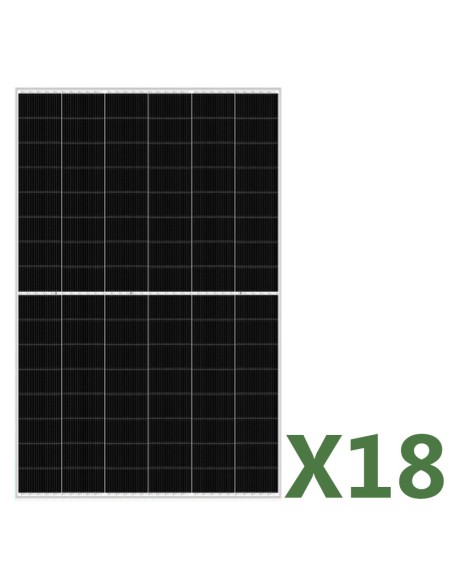

18x

455W bifacial photovoltaic solar panel monocrystalline EGING PV half cells

€71.85

Set of 18 455W total 8190W bifacial photovoltaic solar panels monocrystalline EGING PV half cells

Model: EG-455NT48-HRc/BF-DG

Features

SMBB cell design: Super multi Busbar cells bring lower resistance and increased Busbar reflectance ensures higher power output;
Low degradation: Adopt N-Type TOPCon cell technology, lower degradation and better temperature co-effeciency，greatly increased on generation performance;
Excellent Low-light Performance: Advanced solar cell and glass surface texturing technology allows for excellent performance in low-light environments;
PID Resistant: Excellent PID resistance performance optimized by unique structural design;
Lower LCOE: Super lower LCOE.

For more details, download the following documents:

Datasheet: [Download]

Technical features:

ELECTRICAL CHARACTERISTICS
MODEL	EG-455NT48-HRc/BF-DG
Nominal Output (Pmax)	455W
Voltage at Pmax (Vmp)	30.08V
Current at Pmax (Imp)	15.13A
Open Circuit Voltage (Voc)	35.61V
Short Circuit Current (Isc)	15.91A
Maximum System Voltage	1500VDC
Maximum Series Fuse Rating	35A
Module Efficiency	22.8%
MECHANICAL CHARACTERISTICS
Number of cells	96
Type of cell	N-type Mono
Thickness of glass	1.6mm
Type of frame	Anodized aluminum alloy
Junction Box	IP68
Connectors	MC4 compatible
Length of Cabel	Portrait：+300mm/-300mm
Cables	4.0 mm²
Dimensions	1762 x 1134 x 30 mm
Weight	21kg
