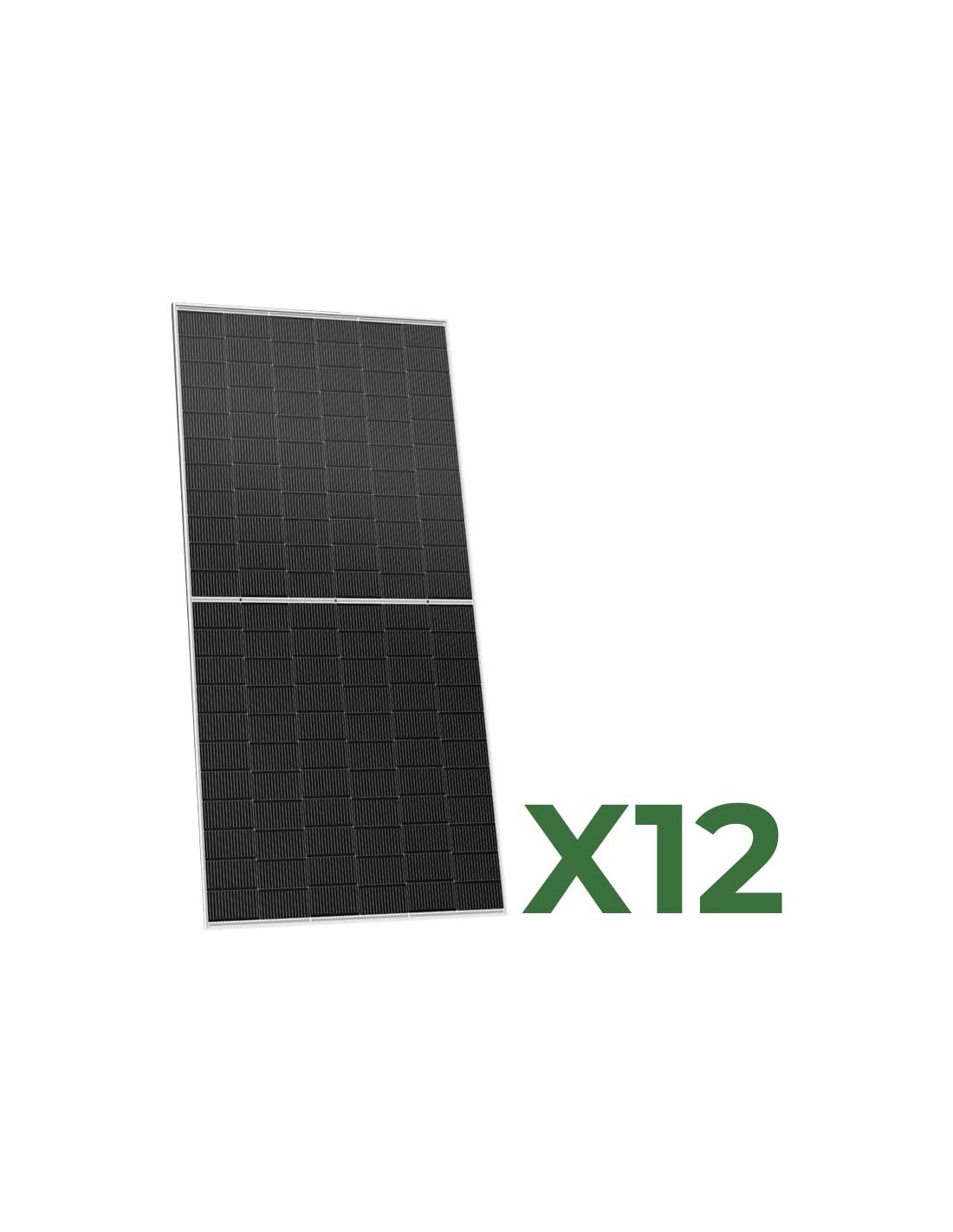

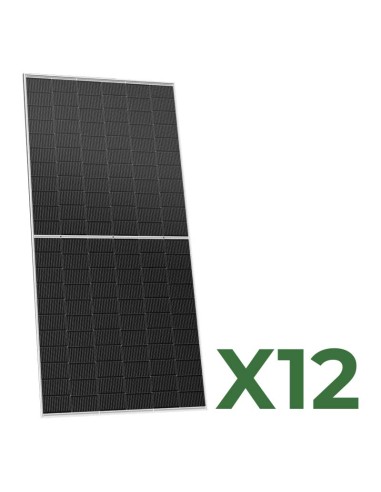

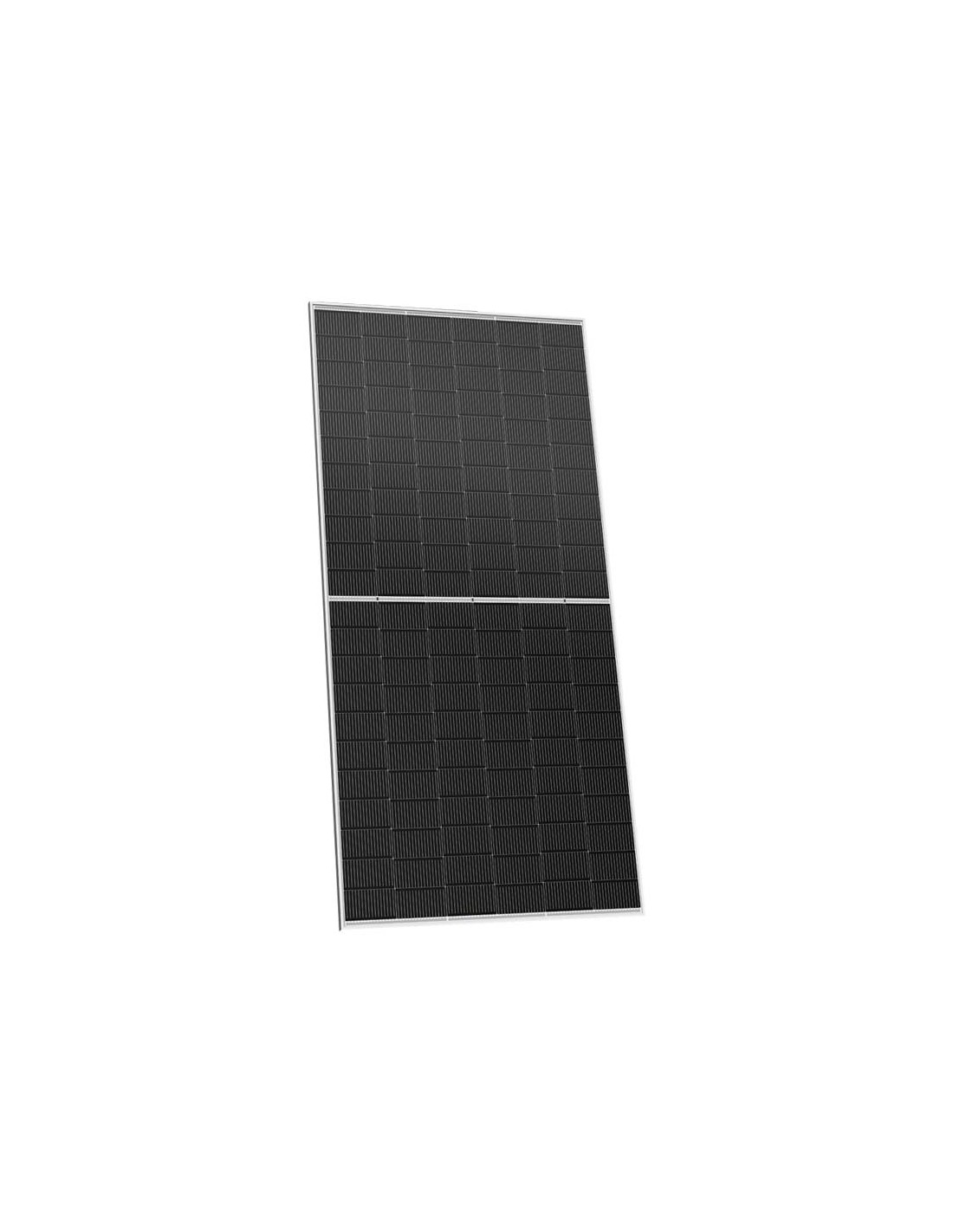

Set of 12 bifacial photovoltaic solar panels 620W tot. 7440W Mono TRINASOLAR Vertex N
Set of 12 bifacial photovoltaic solar panels 620W tot. 7440W Mono TRINASOLAR Vertex N
  • New
  • Pack
Set of 12 bifacial photovoltaic solar panels 620W tot. 7440W Mono TRINASOLAR Vertex N
Set of 12 bifacial photovoltaic solar panels 620W tot. 7440W Mono TRINASOLAR Vertex N

Set of 12 bifacial photovoltaic solar panels 620W tot. 7440W Mono TRINASOLAR Vertex N

SET12-TSM-620NEG19RC
€1,166.28
VAT included 10 %

€1,060.20 Vat excl.

Bifacial Photovoltaic solar panel N-type TOPCon Dual Glass 620W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).

This pack contains



Set of 12 bifacial photovoltaic solar panels 620W tot. 7440W Mono TRINASOLAR Vertex N

Model: TSM-620NEG19RC

Features

  • Maximum power output: 620W;
  • Positive power tolerance: (0~+5W);
  • Maximum efficiency: up to 23.0%.

For more details, download the following documents:

Technical features:

ELECTRICAL CHARACTERISTICS
MODELTSM-620NEG19RC
Nominal Output (Pmax)620W
Voltage at Pmax (Vmp)41.1V
Current at Pmax (Imp)14.99A
Open Circuit Voltage (Voc)49.6V
Short Circuit Current (Isc)15.91A
Maximum System Voltage1500V DC (IEC)
Maximum Series Fuse Rating35A
Module Efficiency23.0%
MECHANICAL CHARACTERISTICS
Number of cells132
Type of cellTOPCon N-type module
Type of frame30mm anodized aluminum alloy
Junction BoxIP68 rated
Cables4.0 mm2
Dimensions2382 × 1134 × 30 mm
Weight33,0kg
Packaging36 pcs per pallet



Customer Service

0882 22 82 47
[email protected]

Nominal Output (Pmax) W
620W
Connector Type
MC4 o connettori compatibili
Type Panel
framed
Product Origin
Asian
Cell type
Monocrystalline
Number of cells
132
Single-sided/Double-sided
Double-sided
8370000058229
