€84.78 Vat excl.

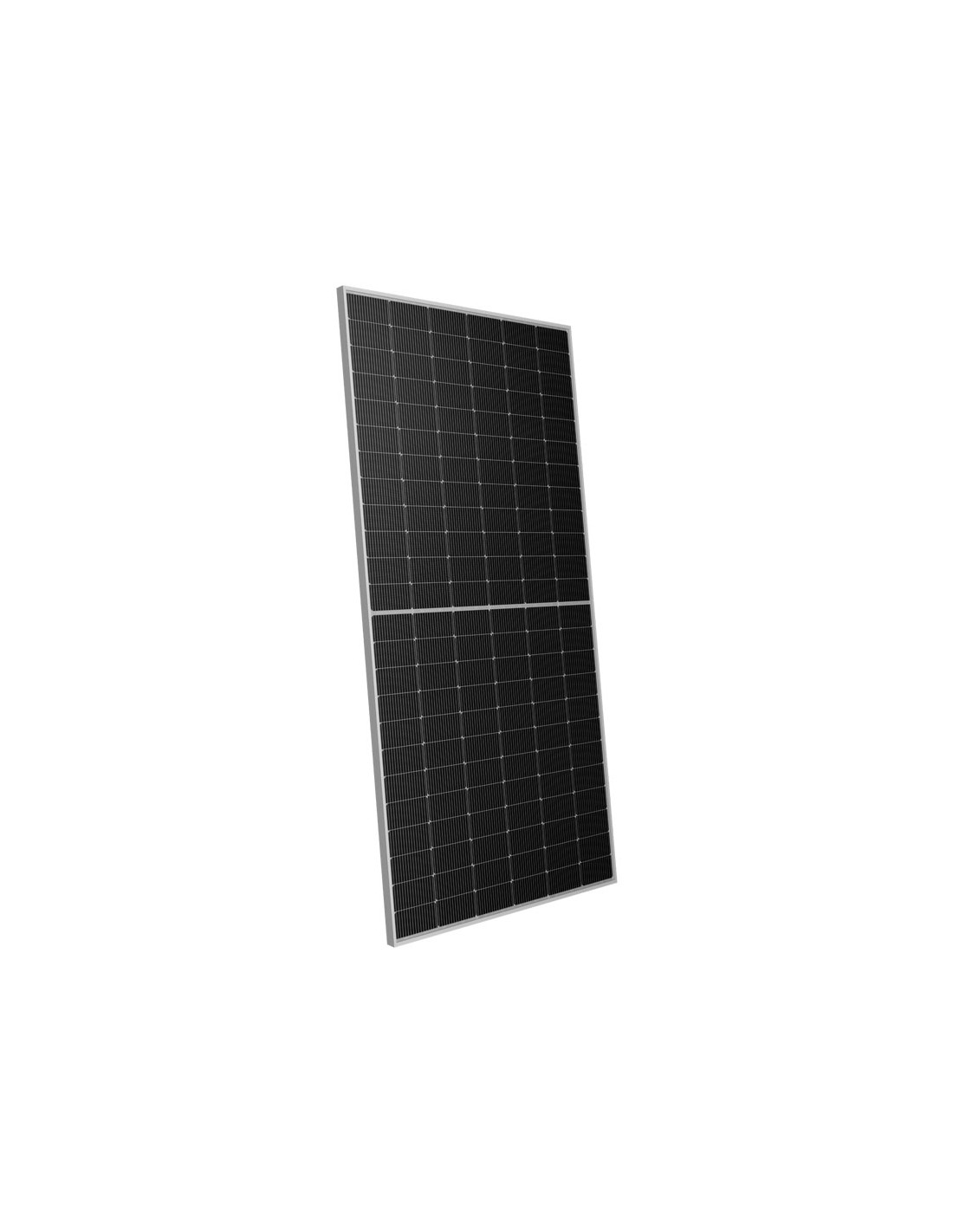

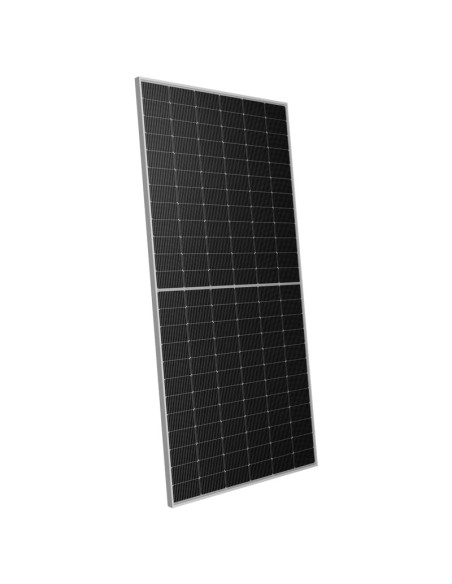

Photovoltaic solar panel 595W with monocrystalline silicon cells, ideal for the construction of photovoltaic plants is connected to the web (photovoltaic plants on-grid) and both of photovoltaicisland (photovoltaic plants off-grid).
The 144-cell Half Cut module from the Half Cell Line combines the high production efficiency of half cell technology with an excellent quality/price ratio. The half-cell configuration improves the electrical distribution inside the panel to increase the product's yield. In addition, this product uses TOPCon bifacial technology, which allows sunlight to be captured on both sides of the module, further increasing overall efficiency. The Half Cut range from the Half Cell Line is suitable not only for industrial installations but also for residential and commercial installations.
| ELECTRICAL CHARACTERISTICS | |
| TEMPLATE | OR10H595MNDB |
| Peak power (Pmax) | 595W |
| Voltage at Pmax (Vmp) | 44.48V |
| Current at Pmax (Imp) | 13.38A |
| Voltage open circuit current (Voc) | 53.12V |
| Short circuit current (Isc) | 14.13A |
| Maximum system voltage | 1500V |
| Maximum fuse rating | 30A |
| Module efficiency | 23.03% |
| MECHANICAL CHARACTERISTICS | |
| Cells | 144 M10 HALF monocristalline N-TYPE |
| Frame | Double thickness anodized aluminum alloy |
| Junction Box | IP68 certified |
| Cable Section | 4.0 mm² |
| Dimensions | 2278 x 1134 x 30 mm |
| Weight | 31.4 Kg |
| Pallet panels | 36 pieces per pallet |
