Voltage converter DC-DC Orion isolated 360W 110/24-15A Victron Energy

Voltage converter DC-DC Orion isolated 360W 110/24-15A Victron Energy

Name: Voltage converter DC-DC Orion isolated 360W 110/24-15A Victron Energy
Brand: Victron Energy
SKU: ORI110243610
Price: 519.82 EUR
Availability: InStock

Reference ORI110243610

€519.82

VAT included 22 %

€426.08 Vat excl.

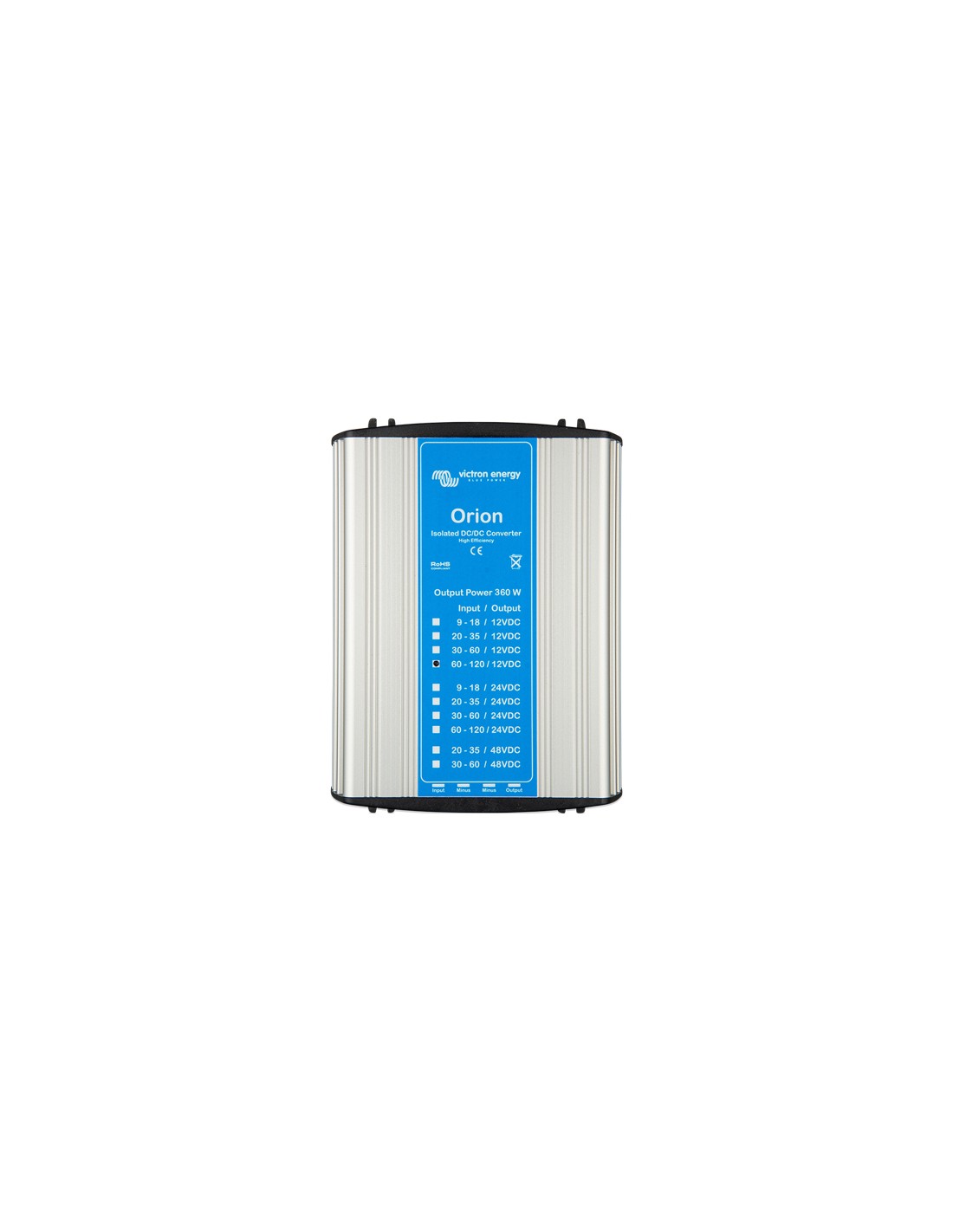

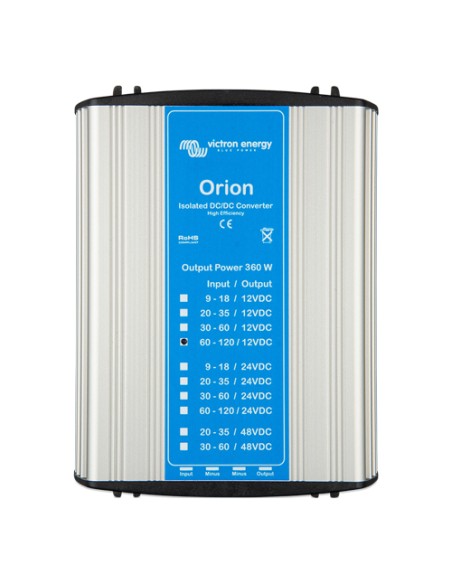

The Orion DC-DC converter is used to convert the 60-140V input voltage into 12.5V or 24V adjustable output for a maximum power of (360W).

Voltage converter DC-DC Orion isolated 360W 110/24-15A Victron Energy

Product code: ORI110243610
Galvanic isolation: yes
Nominal power: 360W
Input voltage: 110V (60 – 140V)
Output voltage: 12,5V o 24V
Output voltage stability: 2%
Output voltage tolerance: 3%
No-load current: <25mA
Efficiency: About 85%
Isolation: >400Vrms between input, output and enclosure
Cooling with fan: yes
Operating temperature: from - 20 to + 40°C (from 0 to 100°F). Linear reduction up to 0A at 70°C (160°F)
Connections: blade pressure connectors 6,3mm (0,25 pollici)
Safety: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2
Dimensions HxLxP (mm): 82 x 132 x 190 mm
Weight: 1,4kg
