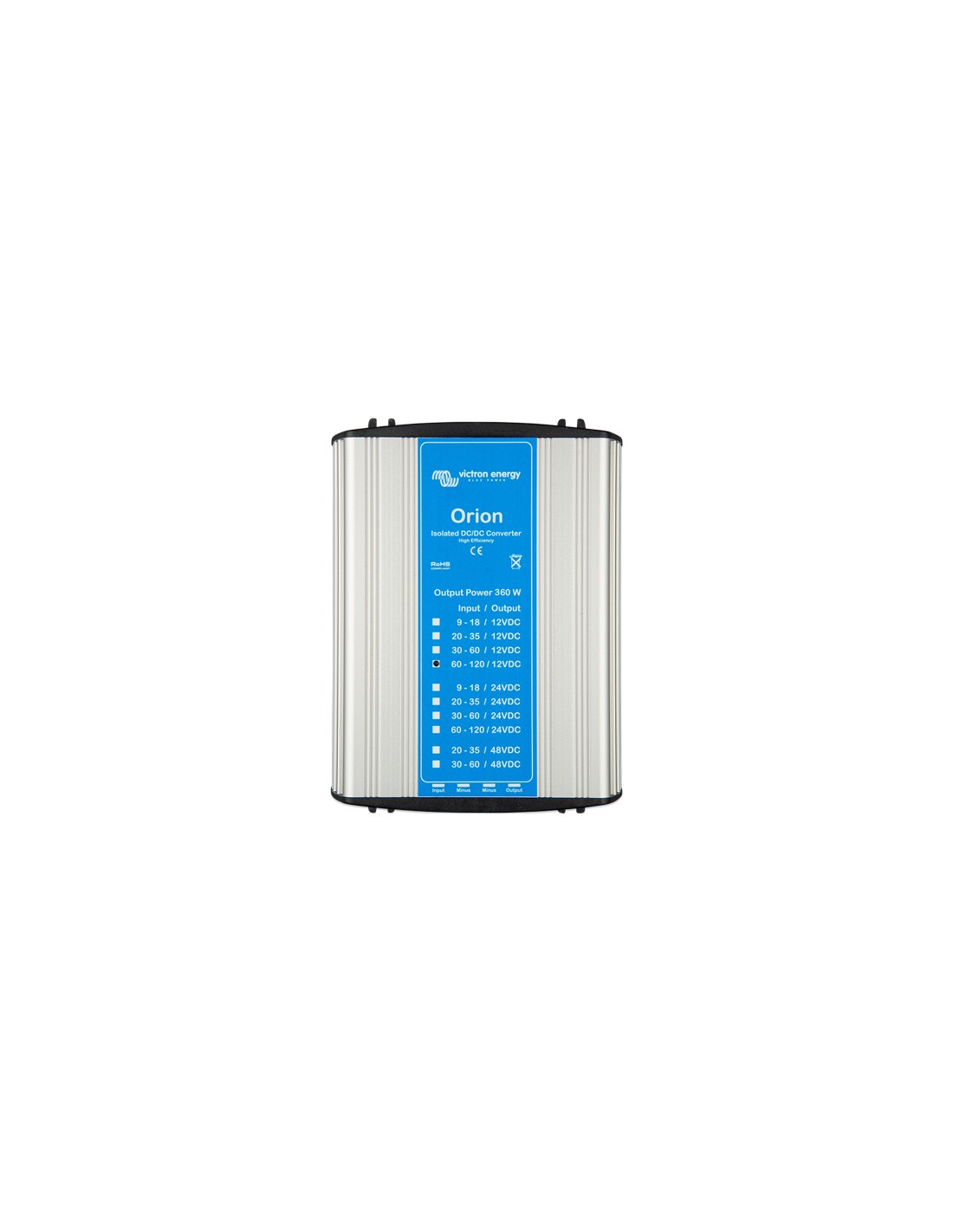

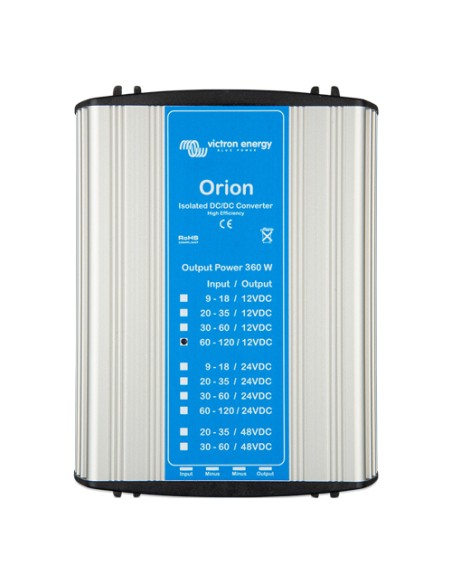

Voltage converter DC-DC Orion isolated 360W 110/12-30A Victron Energy

• Product code: ORI110123610
• Galvanic isolation: yes
• Nominal power: 360W
• Input voltage: 110V (60 – 140V)
• Output voltage: 12,5V o 24V
• Output voltage stability: 2%
• Output voltage tolerance: 3%
• No-load current: <25mA
• Efficiency: About 85%
• Isolation: >400Vrms between input, output and enclosure
• Cooling with fan: yes
• Operating temperature: from - 20 to + 40°C (from 0 to 100°F). Linear reduction up to 0A at 70°C (160°F)
• Connections: blade pressure connectors 6,3mm (0,25 pollici)
• Safety: EN 60950, EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2
• Dimensions HxLxP (mm): 82 x 132 x 190 mm
• Weight: 1,4kg

For more details, download the following documents:

• Datasheet: [Download]
