UNDER 600V DC 2 STRING FIELD for SOLAR PHOTOVOLTAIC

UNDER 600V DC 2 STRING FIELD for SOLAR PHOTOVOLTAIC

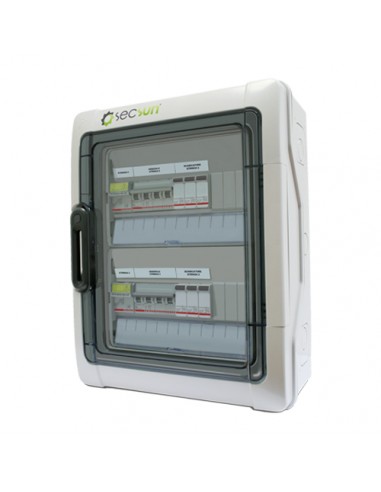

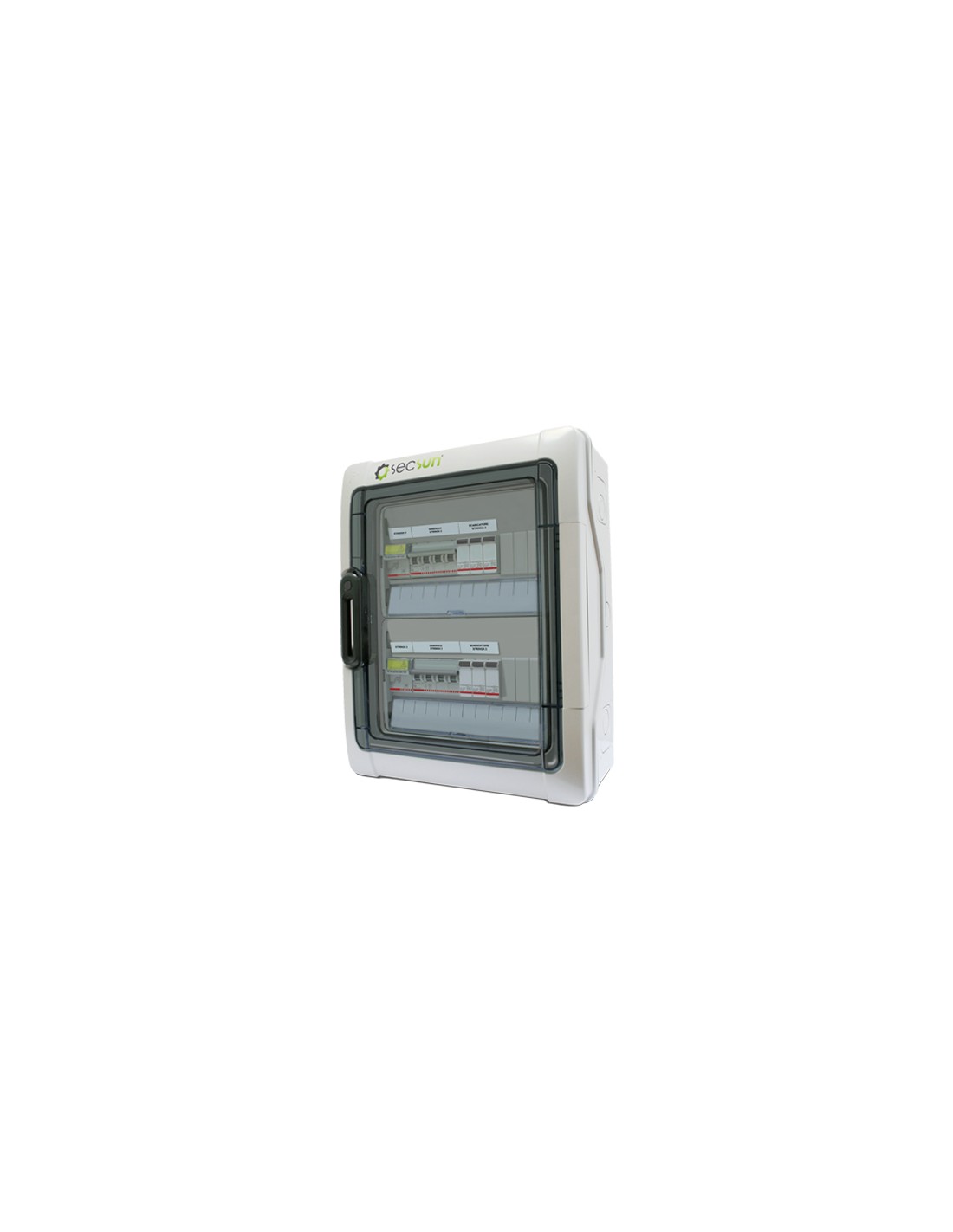

DC field combiner box 2 independent strings 600 VDC

Reference QDC2I-600

€358.38

VAT included 10 %

€325.80 Vat excl.

I Quadri DC sono indispensabili per assicurare sicurezza all'impianto fotovoltaico. I quadri DC sono posti tra i moduli fotovoltaici e gli inverter e servono ad interrompere in caso di manutenzione il flusso di corrente continua verso l'inverter.

DC field combiner box 2 independent strings 600 VDC

Technical features

ELECTRICAL CHARACTERISTICS
Code	QDC2I-600
Type	DC
DC Configuration	2IN-2OUT
Inputs/Strings	2
DC Outputs	2
Type	Independent
Rated Voltage	600 V
Rated Current per Input	16 A
Fuse/Protection Rating	16 A
SPD	600 VDC - Type 2
Disconnect Switch/Circuit Breaker	30 A - 1000 VDC
Protection Rating	IP65
REFERENCE STANDARDS
Reference Standard	CEI EN 61439-1/2

Customer Service

0882 22 82 47

[email protected]

Nominal tension (V): 600V
Overall dimension: 350 x 300 x 160mm
Protection grade: IP65
AC/DC side: DC side
CC Configuration: 2IN-2OUT
No. of strings: 3
Panel type: Independent
Relevant legislation: CEI EN 61439-1/2
Rated current per input: 16A

EAN13 8380103370043
