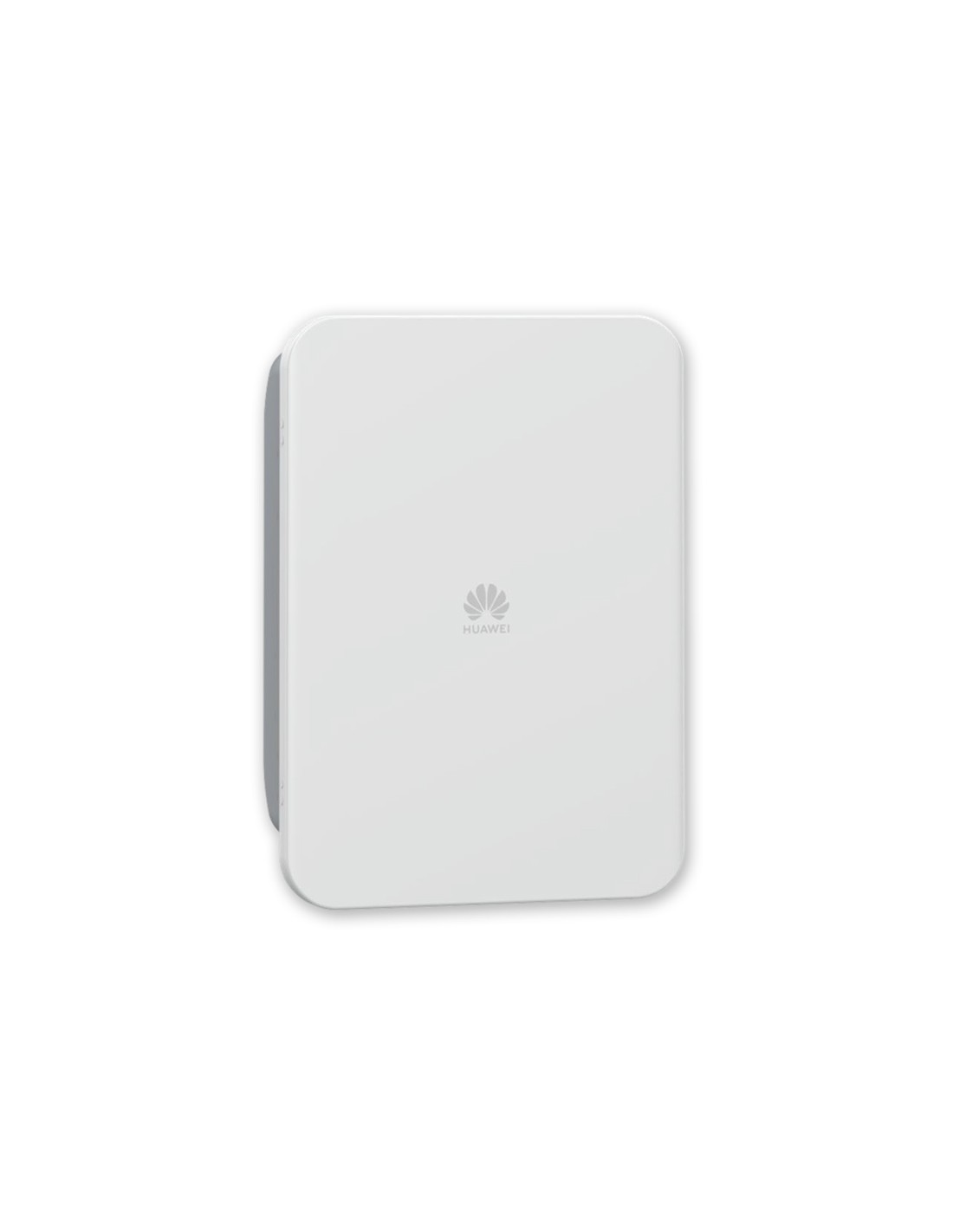

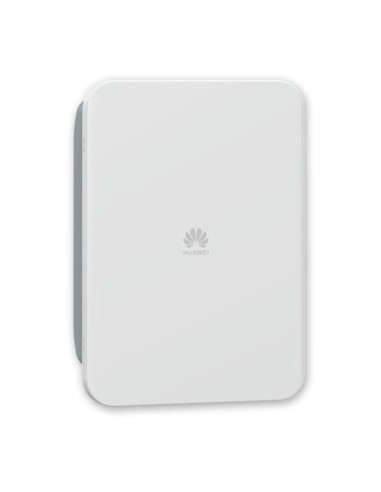

Three-Phase Backup System SmartGuard 63A-T0 HUAWEI for photovoltaic systems
HUA-SMART-GUARD-63A-T0
€782.82
VAT included
10 %
€711.65 Vat excl.
- Simple: Three-phase whole home backup, One-fits-all;
- Seamless: ≤20ms Ultra-fast switchover to power backup mode;
- Reliable: Provide bypass mode when a fault occurs ;
- Intelligent: Ready for DG, intelligent loads management with EMMA.

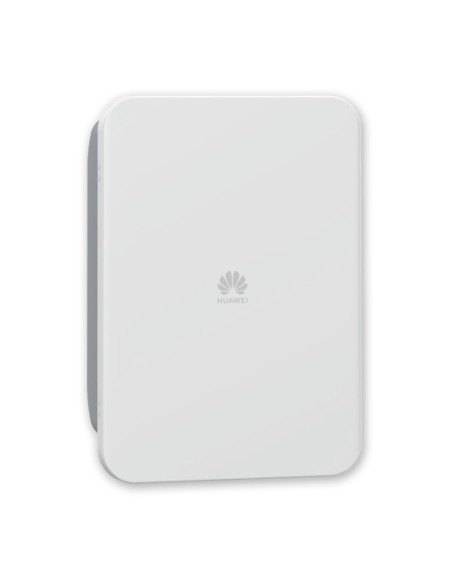

Three-Phase Backup System SmartGuard 63A-T0 HUAWEI for photovoltaic systems
- Simple: Three-phase whole home backup, One-fits-all;
- Seamless: ≤20ms Ultra-fast switchover to power backup mode;
- Reliable: Provide bypass mode when a fault occurs ;
- Intelligent: Ready for DG, intelligent loads management with EMMA.
For more details, download the following documents:
-
Datasheet [Download]
Technical features:
| PERFORMANCE | |
| Grid connection | Single phase |
| Rated AC voltage | 220/230/240V L/N+PE |
| Maximum current (from grid) | 63A |
| Maximum current (from inverter) | 60A |
| Maximum current (at load of backup) | 63A |
| Maximum Current (at Non-BackupLoad) | 63A |
| Low Voltage Switchover | Supported |
| Switchover Time | ≤ 20 ms (in non-stop mode) |
| Bypass Operation Mode | Manual |
| DG Mode | Remote Control |
| INTERFACE | |
| Output power | 9.5 ~ 13.2V @ 100mA, ≤ 3m |
| LAN and WAN | 10 / 100Mbps, ≤ 100m |
| WLAN | AP Mode, 802.11b/g/n (2.4GHz ~ 2.4835GHz) |
| RS485 | 9600 / 19200 / 115200bps,× 2, ≤ 50m |
| Digital input | ×2, ≤ 20m; Active port |
| Digital output | ×2, ≤ 20m |
| DG Do Port | Passive Port, 1-100mA ≤24V |
| ATS | It is necessary to prepare the ATS, which supports automatic control and automatic power on and reset. |
| MEASUREMENT RANGE | |
| Current range | ≤ 63 A |
| Energy precision | ± 1% |
| DEVICE MANAGEMENT | |
| Smart Energy Controllers | up to 3 |
| Smart Chargers | up to 2 |
| Heat Pump | up to 1 |
| Shelly Device | up to 20 |
| ENVIRONMENT | |
| Cooling | Natural convection |
| Relative humidity range | 5%-95% RH (non-condensing) |
| Maximum operating altitude | 4000 m (derating above 2000 m) |
| Degree of protection | IP55 |
| Operating temperature range | -25°C~50°C |
| COMPATIBLE DEVICE | |
| Intelligent Energy Controller |
Max. 3 inverters supported in parallel connection (MAP0) Max. 1 inverter supported (M1/MB0) |
| Intelligent Charger | SCharger-7KS/22KT-S0 |
| Heat Pump | SG-ready |
| Device Shelly | Shelly Plus Plug S, Shelly Plus 2PM, Shelly Pro 2PM |
- Typology
- Single-phase
8370000051381
