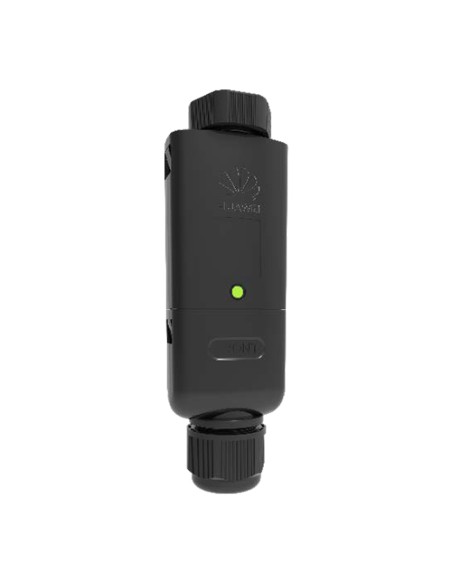

Smart Dongle WLAN-FE HUAWEI intelligent monitoring system for inverters
HUW-SUN-SmartDongle-WLAN-FE-AP+STA
€64.52
VAT included
10 %
€58.65 Vat excl.
Intelligent monitoring system for HUAWEI inverters - Smart Dongle WLAN-FE.
Smart Dongle WLAN-FE HUAWEI intelligent monitoring system for SUN2000 fast ethernet inverter
Principal features
- Smart: WLAN & fast ethernet (FE) communication support 3rd-party monitoring system;
- Simple: Plug & Play support max.10 devices;
- Reliable: IP65, automatic reconnection.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| General Data | |
| Max. Devices supported | 10 |
| Max. inverters supported | 10 |
| Connection interface | USB |
| Ethernet interface | 10/100M Ethernet |
| Installation | Plug-and-play |
| Indicator | LED Indicator |
| Dimensions (W * H * D) | 146 x 48 x 33 mm |
| Weight | 90 g |
| Degree of protection | IP65 |
| Power consumption (typical) | 2.5 W |
| Operation mode | AP + STA |
| Encryption Algorithm | Encryption Mechanism：WPA/WPA2 Encryption：TKIP/CCMP/AES |
| Wireless Parameter | |
| Supported standards & frequencies | 802.11b/g/n（2.412G—2.484G） |
| Environment | |
| Operating temperature range | -30 ℃ to +65 ℃ |
| Relative humidity range | 5 - 95% RH |
| Storage temperature range | -40℃ to +70℃ |
| Max. operating altitude | 4,000 m |
| Standard Compliance (more available upon request) | |
| Certificate | SRRC, CE, RCM |
| Inverter Compatibility | |
| Inverter model | SUN2000-2/3/3.68/4/4.6/5/6-L1 SUN2000-3/4/5/6/8/10-M1 SUN2000-12/15/17/20KTL-M2 SUN2000-12/15/17/20/25KTL-M5 SUN2000-30/36/40/50KTL-M3 SUN2000-100/115KTL-M2 |
