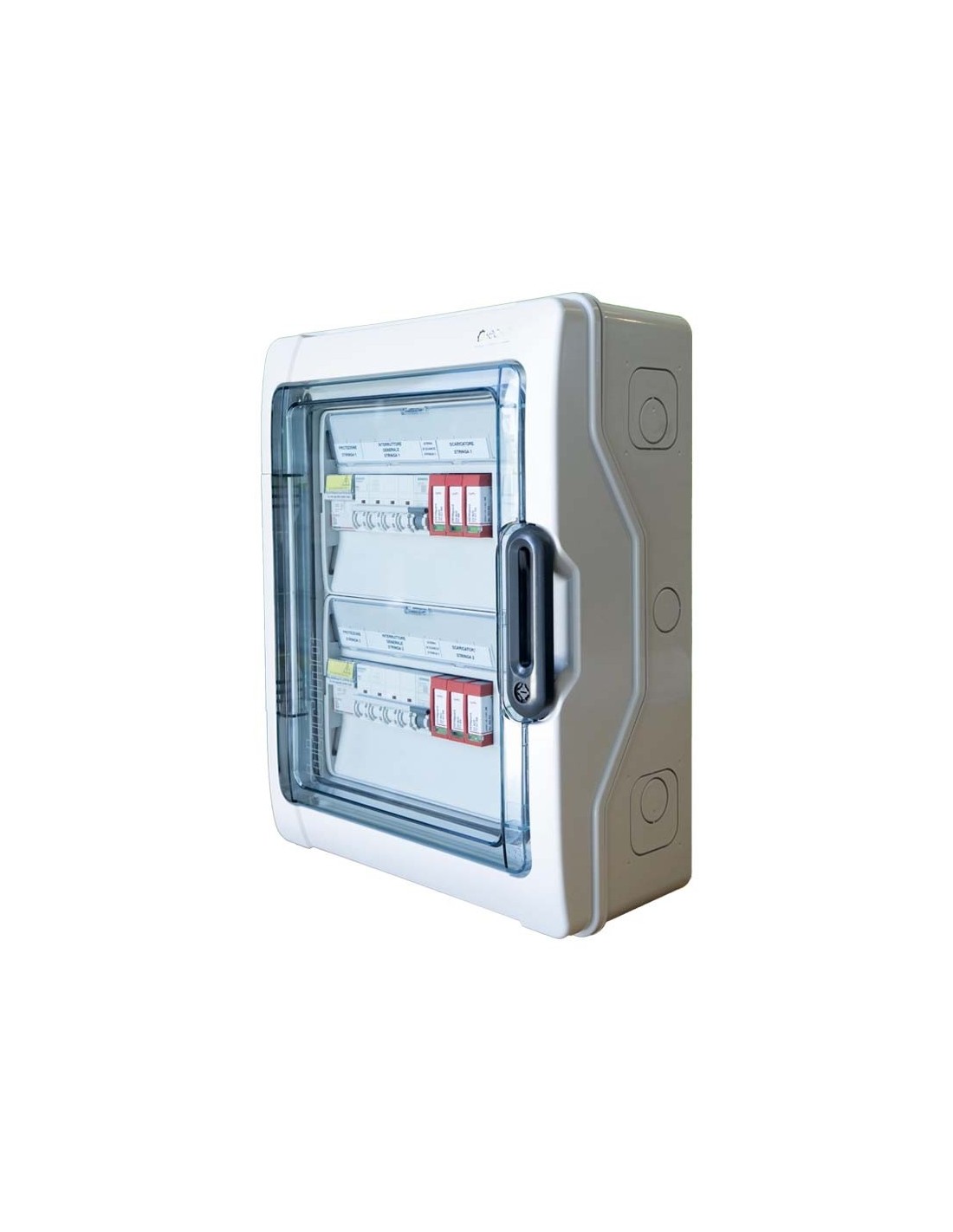

DC Panel 2 Independent 1000VDC strings with Trip Coil
QCMB2102
€911.22
VAT included
10 %
€828.38 Vat excl.
DC switchboards are essential for ensuring the safety of a photovoltaic system. They are placed between the photovoltaic modules and the inverters and are used to interrupt the flow of direct current to the inverter in the event of maintenance.

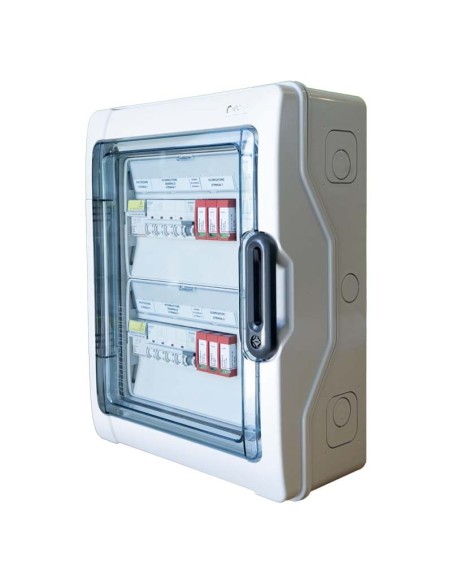

DC Panel 2 Independent 1000VDC strings with Trip Coil
Technical features
| ELECTRICAL CHARACTERISTICS | |
| Code | QCMB2102 |
| Type | DC |
| DC Configuration | 2IN-2OUT |
| Inputs/Strings | 2 |
| DC Outputs | 2 |
| Type | Independent |
| Rated Voltage | 1000 V |
| Rated Current per Input | 16 A |
| Fuse/Protection Rating | 16 A |
| SPD | 1000 VDC - Type 2 |
| Disconnector/Circuit Breaker | 63 A - 1000 VDC |
| Protection Rating | IP65 |
| REFERENCE STANDARDS | |
| Reference Standard | CEI EN 61439-1/2 |
Customer service
 |
0882 22 82 47 |
- AC/DC side
- DC side
- CC Configuration
- 2IN-2OUT
8380103570047
