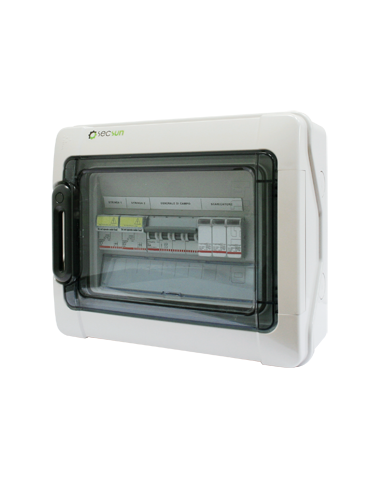

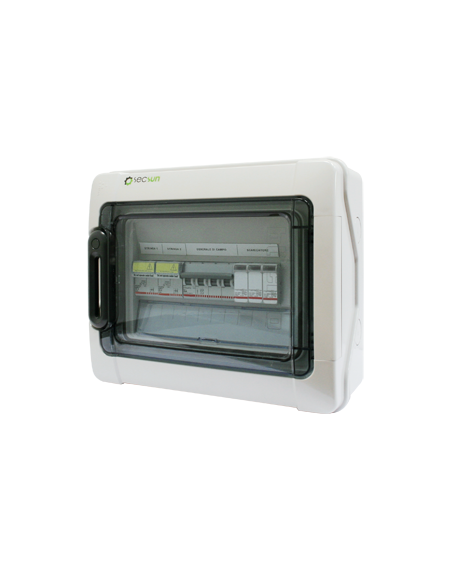

DC field panel 2 strings in parallel 600VDC
QDC2-600
€188.63
VAT included
10 %
€171.48 Vat excl.
I Quadri DC sono indispensabili per assicurare sicurezza all'impianto fotovoltaico. I quadri DC sono posti tra i moduli fotovoltaici e gli inverter e servono ad interrompere in caso di manutenzione il flusso di corrente continua verso l'inverter.
DC field panel 2 strings in parallel 600VDC
Technical features
| ELECTRICAL CHARACTERISTICS | |
| Code | QDC2I-600 |
| Type | DC |
| DC Configuration | 2IN-1OUT |
| Inputs/Strings | 2 |
| DC Outputs | 1 |
| Type | Parallel |
| Nominal Voltage | 600 V |
| Maximum Permitted Voltage | 600 VDC |
| Nominal Current per Input | 16 A |
| Maximum Current per Input | 16 A |
| Total Nominal Current | 32 A |
| Total Maximum Current | 32 A |
| Fuse/Protection Rating | 16 A |
| SPD | 600 VDC - Type 2 |
| Disconnect Switch/Circuit Breaker | 32 A - 1000 VDC |
| Degree of Protection | IP65 |
| REFERENCE STANDARDS | |
| Reference Standard | CEI EN 61439-1/2 |
- Nominal tension (V)
- 600V
- Overall dimension
- 310 x 250 x 140 mm
- Protection grade
- IP65
- AC/DC side
- DC side
- CC Configuration
- 2IN-1OUT
- No. of strings
- 2
- Panel type
- Parallel
- Relevant legislation
- CEI EN 61439-1/2
- Rated current per input
- 16A
8380101470042
