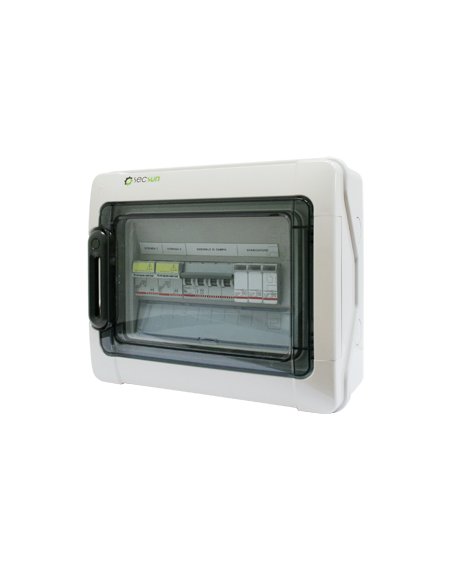

Field combiner box 2 strings in parallel 1000 VDC
QDC2-1000
€340.64
VAT included
10 %
€309.67 Vat excl.
I Quadri DC sono indispensabili per assicurare sicurezza all'impianto fotovoltaico. I quadri DC sono posti tra i moduli fotovoltaici e gli inverter e servono ad interrompere in caso di manutenzione il flusso di corrente continua verso l'inverter.
Field combiner box 2 strings in parallel 1000 VDC
Technical features
| ELECTRICAL CHARACTERISTICS | |
| Code | QDC2-1000 |
| Type | DC |
| DC Configuration | 2IN-1OUT |
| Inputs/Strings | 2 |
| DC Outputs | 1 |
| Type | Parallel |
| Rated Voltage | 1000 V |
| Rated Current per Input | 16 A |
| Fuse/Protection Rating | 16 A |
| SPD | 1000 VDC - Type 2 |
| Disconnector/Circuit Breaker | 32 A - 1000 VDC |
| Protection Rating | IP65 |
| REFERENCE STANDARDS | |
| Reference Standard | CEI EN 61439-1/2 |
Customer Service
- Nominal tension (V)
- 1000V
- Overall dimension
- 310 x 250 x 140mm
- Protection grade
- IP65
- AC/DC side
- DC side
- CC Configuration
- 2IN-1OUT
- No. of strings
- 2
- Panel type
- Parallel
- Relevant legislation
- CEI EN 61439-1/2
- Rated current per input
- 16A
8380101670046
