I Quadri DC sono indispensabili per assicurare sicurezza all'impianto fotovoltaico. I quadri DC sono posti tra i moduli fotovoltaici e gli inverter e servono ad interrompere in caso di manutenzione il flusso di corrente continua verso l'inverter.

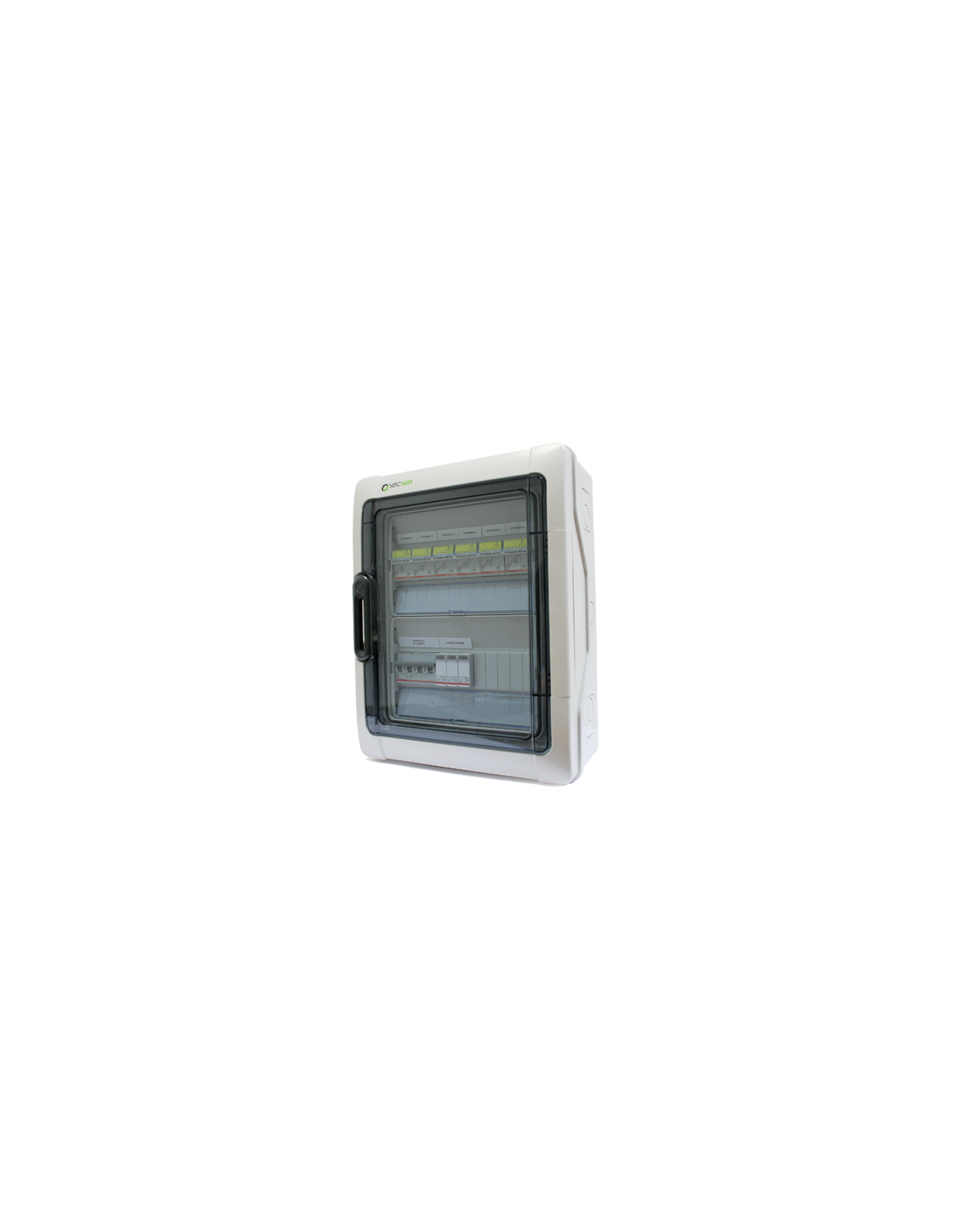

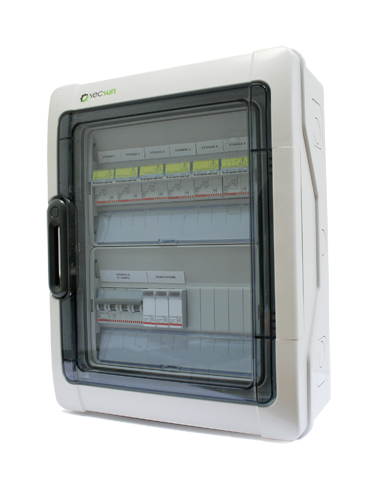

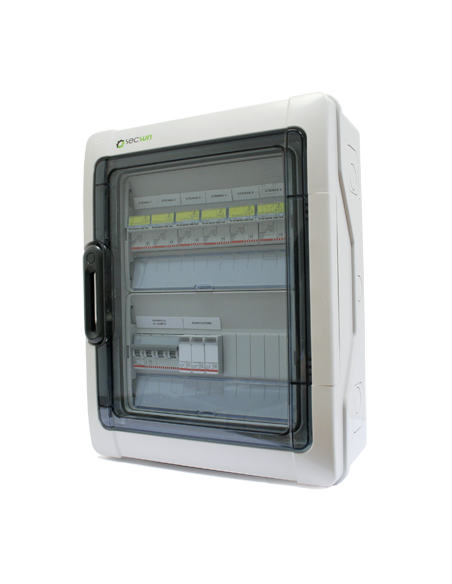

DC Frameworks are essential to ensure safety to the PV system. DC Frameworks are placed between the photovoltaic modules and the inverters and serve to stop in case of maintenance the flow of current to the inverter. They also serve to protect the system against overcurrent and overvoltage. Frameworks are composed of DC fuse holder, cylindrical fuses and surge arresters.
The careful choice of equipment constituting the electronic equipment is carried out in compliance with the CEI-EN60439-1 (CEI 17-13 / 1).
- 6 Fuseholder breaker: 2P 12 fuse12A - 1000VDC
- 1 Surge arrester: 2P+ground (1000VDC)
- 1 Disconnector: 160A (1000 VDC)
- Protection: IP 65
- Framework Measures: 350 x 300 x 160 mm (WxHxL)
For assistance with configuration and installations call
0039 0882 22 82 47 or write to
