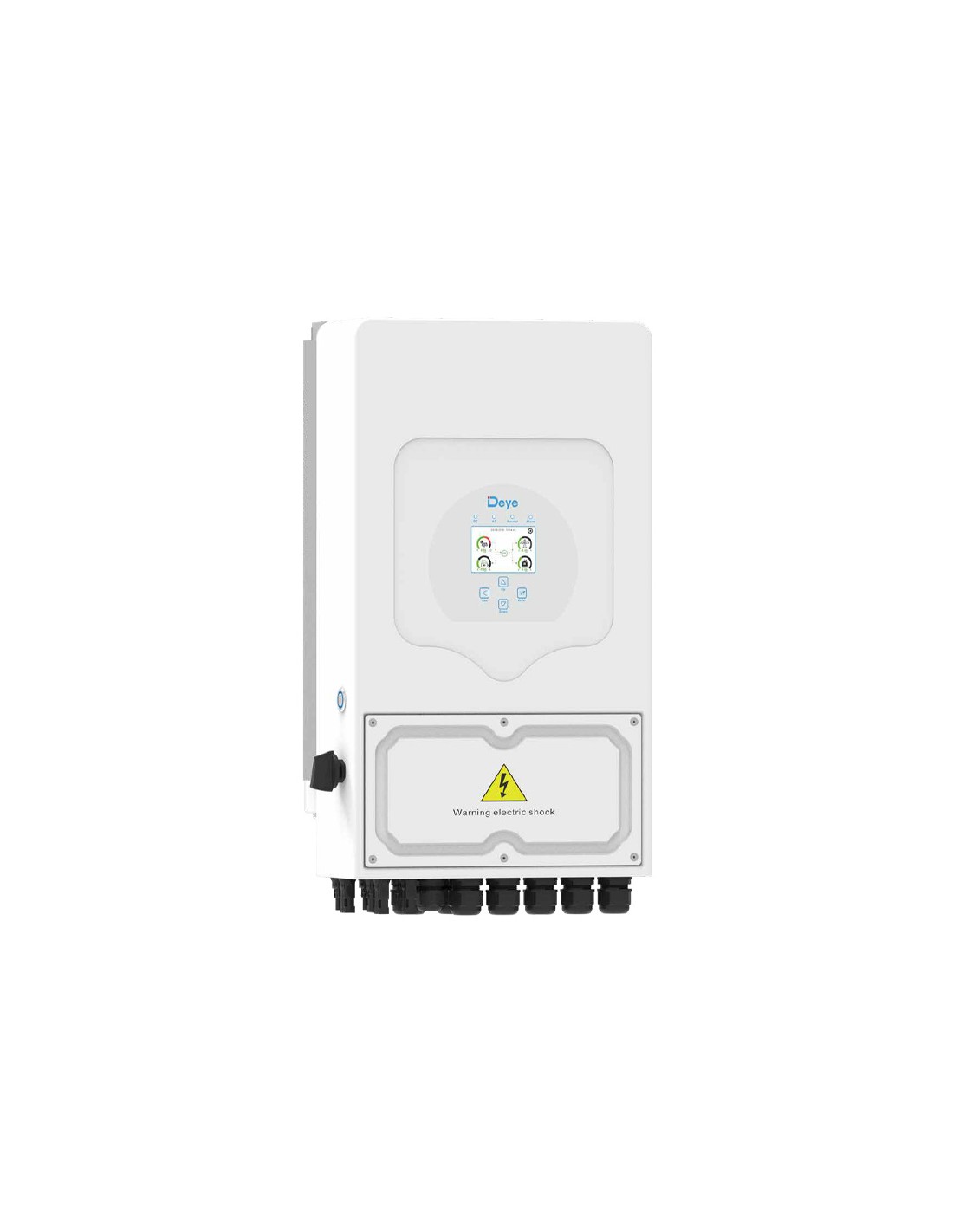

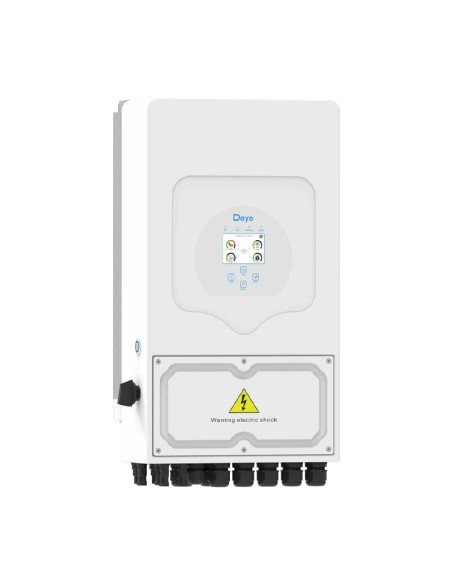

Single-phase hybrid inverter 6kW Deye SG05LP1 photovoltaic lithium storage
SUN-6K-SG05LP1-EU-AM2-PLUS
€880.88
VAT included
10 %
€800.80 Vat excl.
The Deye hybrid inverter is suitable for residential and commercial use, maximizes the rate of self-consumption of solar energy and increases energy independence.
CT included in the package.
Single-phase hybrid inverter 6kW Deye SG05LP1
The Deye hybrid inverter is suitable for residential and commercial use, maximizes the self-consumption rate of solar energy and increases energy independence. During the day, the PV system generates electricity that will initially be supplied to the loads, then the excess energy will charge the battery.
CT included in the package.
Key Benefits
- LCD color touch display, IP65 protection rating;
- AC coupler for retrofitting existing solar systems;
- Maximum 16 modules in parallel for on-grid and off-grid operation;
- Supports multiple batteries in parallel;
- Maximum charge/discharge current of 135A;
- 6 time intervals for charging/discharging the battery battery;
- Supports energy storage from a diesel generator.
Technical features
| Battery Input Data | |||
| Model | SUN-6K-SG05LP1-EU-AM2-PLUS | ||
| Battery Type | Lead-Acid or Lithium-Ion | ||
| Battery Voltage Range (V) | 40-60 V | ||
| Maximum Charging Current (A) | 135 A | ||
| Maximum Discharge Current (A) | 135 A | ||
| Charging Strategy for Lithium-ion Batteries | Self-Adaptation to the BMS | ||
| PV String Input Data | |||
| Maximum DC Input Power (W) | 9600 W | ||
| PV Input Voltage (V) | 500 V | ||
| MPPT Range (V) | 150-425 V | ||
| Nominal PV Input Voltage | 370 V | ||
| Startup Voltage (V) | 125 V | ||
| Maximum input current in PV mode (A) | 18A+18A | ||
| Maximum input short-circuit current (A) | 27A+27A | ||
| Number of MPPT trackers | 2 | ||
| Number of strings per MPPT tracker | 1+1 | ||
| AC Input/Output Ratings | |||
| Rated AC Input/Output Active Power (W) | 6000W | ||
| Maximum AC Input/Output Apparent Power (VA) | 6600W | ||
| Peak Power (Off-Grid) | 2 times rated power, 10 S | ||
| Rated AC Input/Output Current (A) | 27.3/26.1 A | ||
| Maximum AC input/output current (A) | 30/28.7 A | ||
| Maximum continuous AC current (from mains to load) (A) | 40A | ||
| Power factor adjustment range | 0.8 leading - 0.8 lagging | ||
| Output frequency and voltage | 50/45-55, 60/55-65 Hz | ||
| Total harmonic distortion of the current THDi | <3% (of nominal power) | ||
| Efficiency | |||
| Maximum Efficiency | 97.60% | ||
| Euro Efficiency | 96.50% | ||
| MPPT efficiency | > 99% | ||
| Protection | |||
| DC Reverse Polarity Protection | Integrated | ||
| AC Output Overcurrent Protection | Integrated | ||
| Thermal Protection | Integrated | ||
| AC Output Overvoltage Protection | Integrated | ||
| AC Output Short Circuit Protection | Integrated | ||
| Component Monitoring DC | Integrated | ||
| Arc Fault Circuit Interrupter (optional) | Integrated | ||
| Anti-Islanding Protection, DC Switch | Integrated | ||
| Insulation Impedance Detection | Integrated | ||
| Residual Current Detection | Integrated | ||
| Surge Protection Level | TYPE II (DC), TYPE II (CA) | ||
| Certifications and Standards | |||
| Adjusting the grid | IEC 61727, IEC 62116, CEI 0-21, EN 50549, NRS 097, RD 140, UNE 217002, OVE-Richtlinie R25, G98, G99, VDE-AR-N 4105 | ||
| Safety standard/electromagnetic compatibility | IEC/EN 61000-6-1/2/3/4, IEC/EN 62109-1, IEC/EN 62109-2 | ||
| General data | |||
| Operating temperature range (℃) | From -40 to +60℃, > 45℃ Derating | ||
| Cooling | Intelligent Cooling | ||
| Noise (dB) | < 45 | ||
| Communication with BMS | RS485/RS232/CAN | ||
| Weight (kg) | 24.9 | ||
| Dimensions (mm) | 330×580×232 (excluding connectors and brackets) | ||
| Protection rating | IP65 | ||
| Installation style | Wall-mount wall | ||
| Warranty | 5/10 years | ||
- MPPT number
- 2
- Typology
- Single-phase
- Inverter power
- 6.0kW
- Manufacturer Inverter
- Deye
