BOS-GM5.1 Deye 5.12kWh high voltage lithium battery photovoltaic storage
BOS-GM5.1
€1,030.45
VAT included
10 %
€936.77 Vat excl.
The Deye RW-M6.1 lithium battery is a cutting-edge energy storage solution designed for both residential and commercial applications.

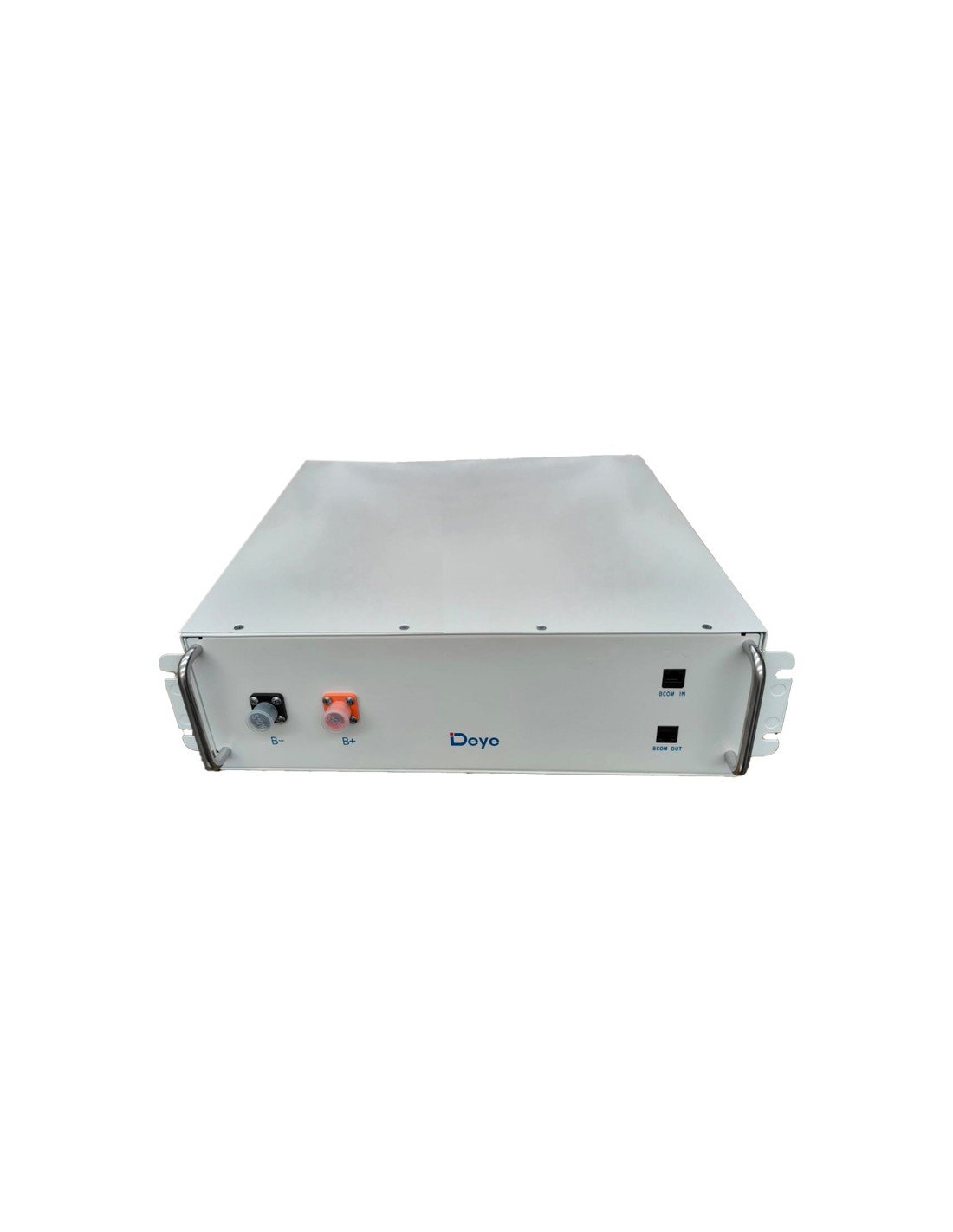

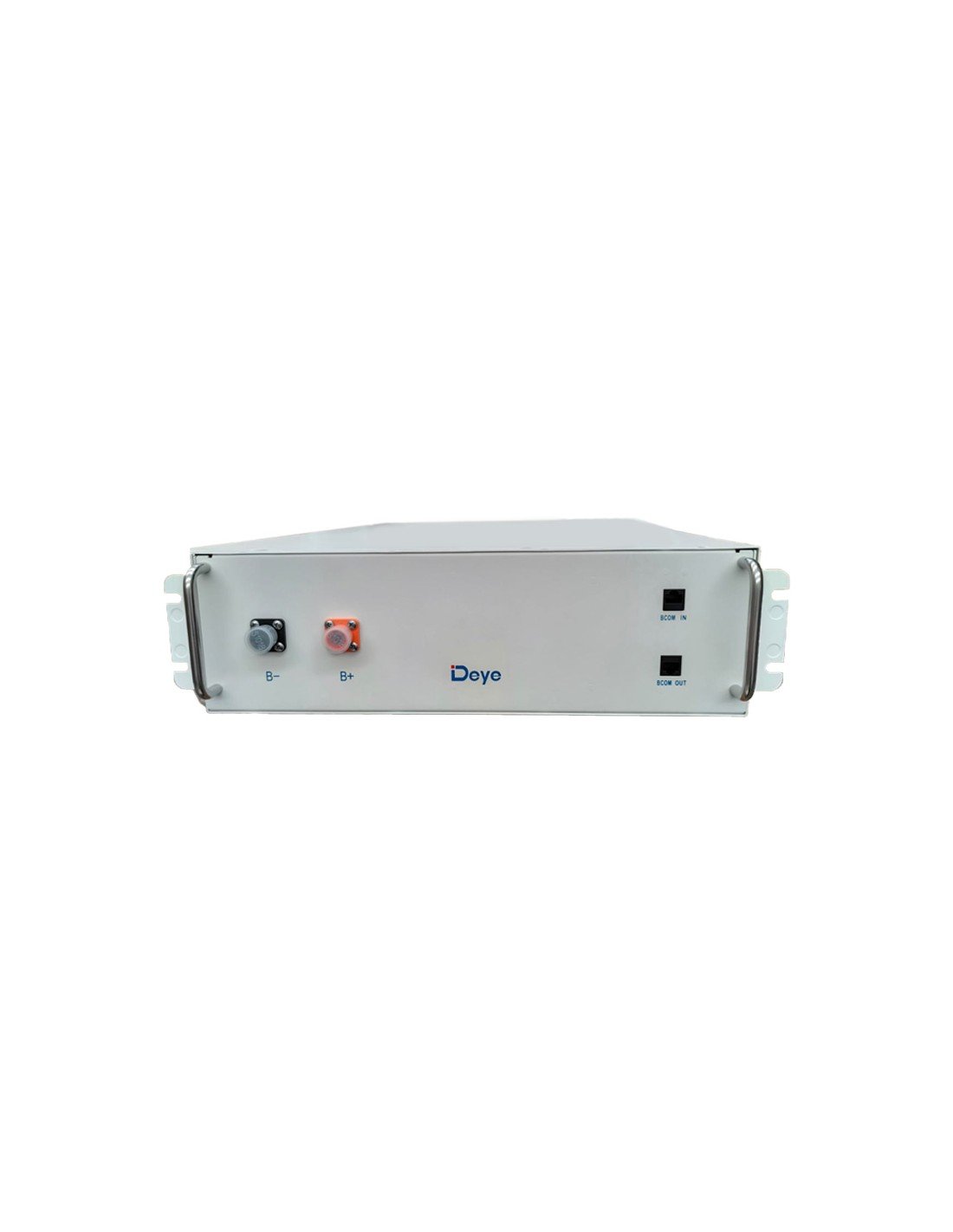

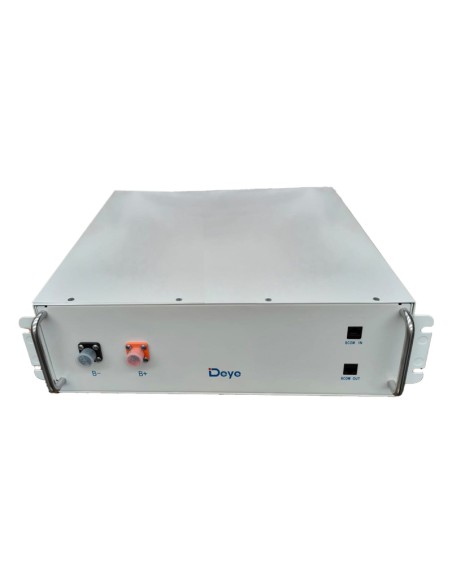

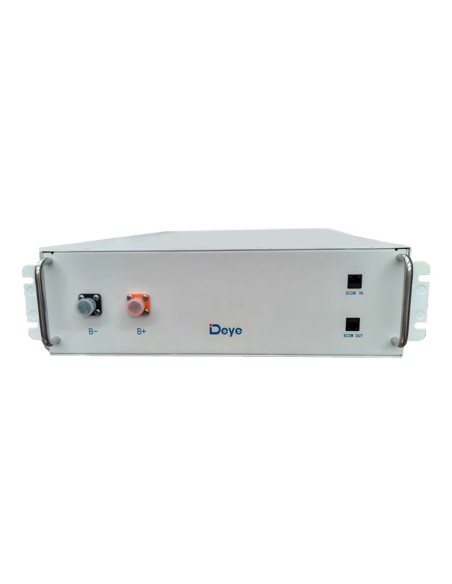

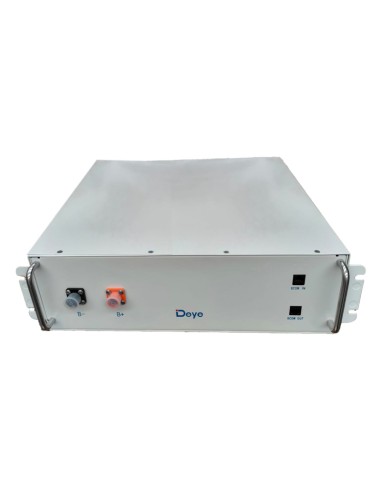

BOS-GM5.1 Deye 5.12kWh high voltage
The lithium BOS-GM5.1 high voltage battery is a cutting-edge energy storage solution designed for both residential and commercial applications.
With a wide range of configurations and capacities, the BOS-G series offers a versatile solution to meet your specific energy needs.
Main features
- High quality LiFePO4 battery for greater safety and longevity;

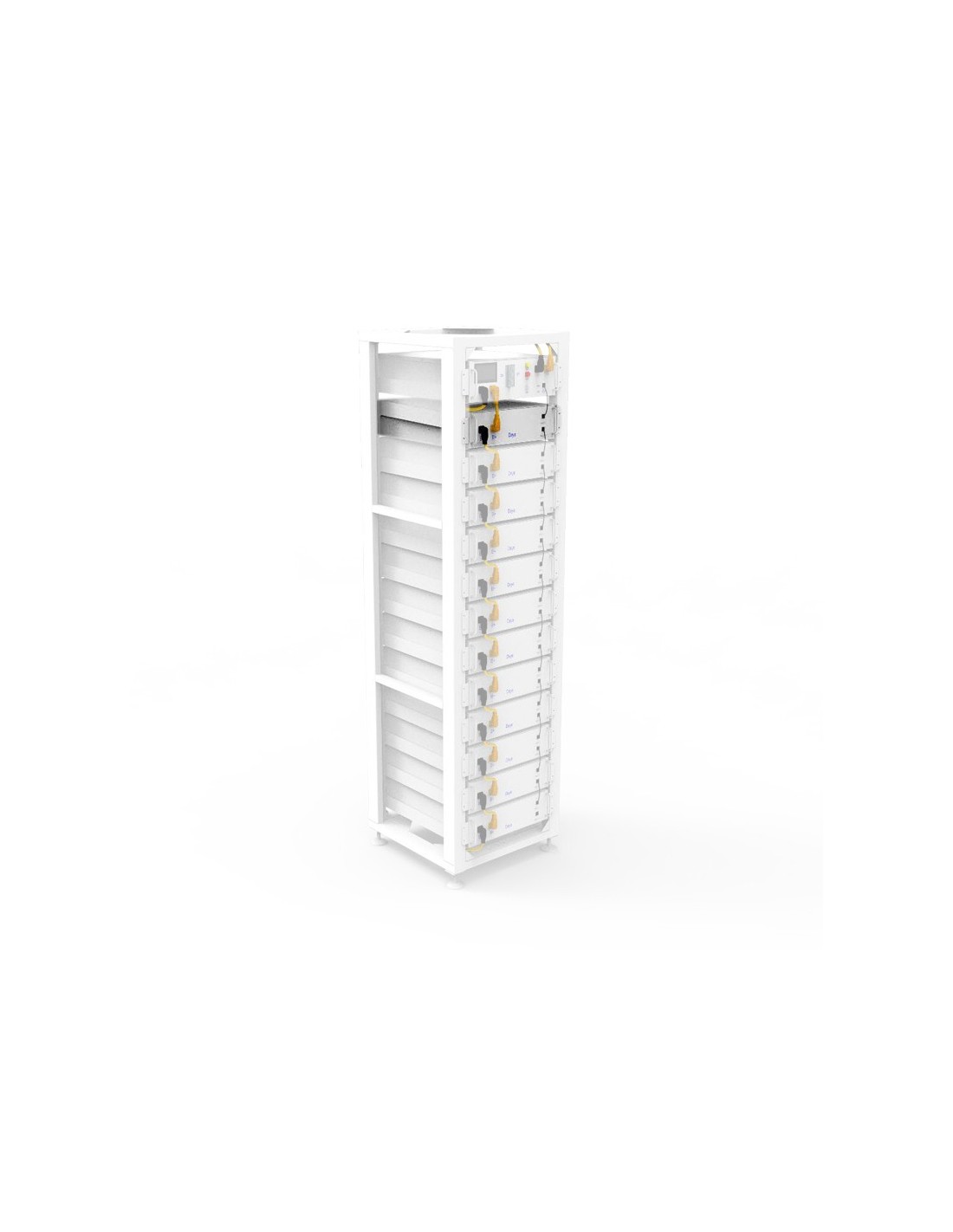

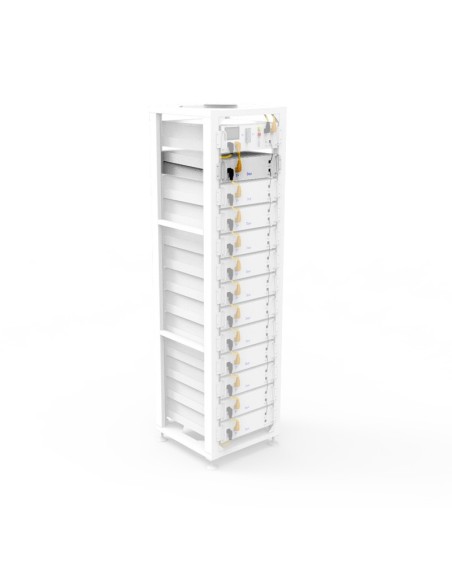

- Modular design with capacity ranging from 15.36 kWh to 61.44 kWh;
- Flexible system voltage options from 153.6V to 614.4V;
- Intelligent battery management system (BMS) for optimal performance and protection;
- Compact and lightweight design for easy installation and maintenance;
- 10-year warranty for maximum peace of mind.
For more details, download the following documents:
- Datasheet: [Download]
Technical features
| BOS-G | |
| Cell Chemistry | LiFePO4 |
| Module Capacity (Ah) | 100 |
| Module Nominal Voltage | 51.2 |
| Battery Module Qty In Series (Optional) | 3 (min.) 8 12 (max.) |
| System Nominal Voltage (V) | 153.6 409.6 614.4 |
| System Operating Voltage | 124.8~175.2 332.8~467.2 499.2~700 |
| System Energy (kWh) | 15.36 40.96 61.44 |
| System Usable Energy (kWh) | 13.8 36.86 55.29 |
| Charge/Discharge Current (A) | Recommend: 50 Max: 100 Peak (2 mins, 25°C): 125 |
| Recommend Depth of Discharge | 90% |
| Dimension (W/H/D mm) | 589 x 590 x 1640 |
| Weight (kg) | 258 |
| Status Indicator | Yellow: Battery High Voltage Power On Red: Battery System Alarm |
| IP Rating of Enclosure | IP20 |
| Operating Temperature | Charge: 0~55°C / Discharge: -20°C~55°C |
| Cycle Life | 25±2°C,0.5C/0.5C, EOL70%≥6000 |
| Installation | Rack Mounting |
| Communication | CAN2.0, RS485 |
| Certification | CE/IEC62619 /VDE2510-50/ UL1973 /UL9540A/UN38.3 |
- Overall dimension
- 589 x 590 x 1640 mm
- Voltage (V)
- 51.2V
- Accumulation capacity
- 5.12kWh
