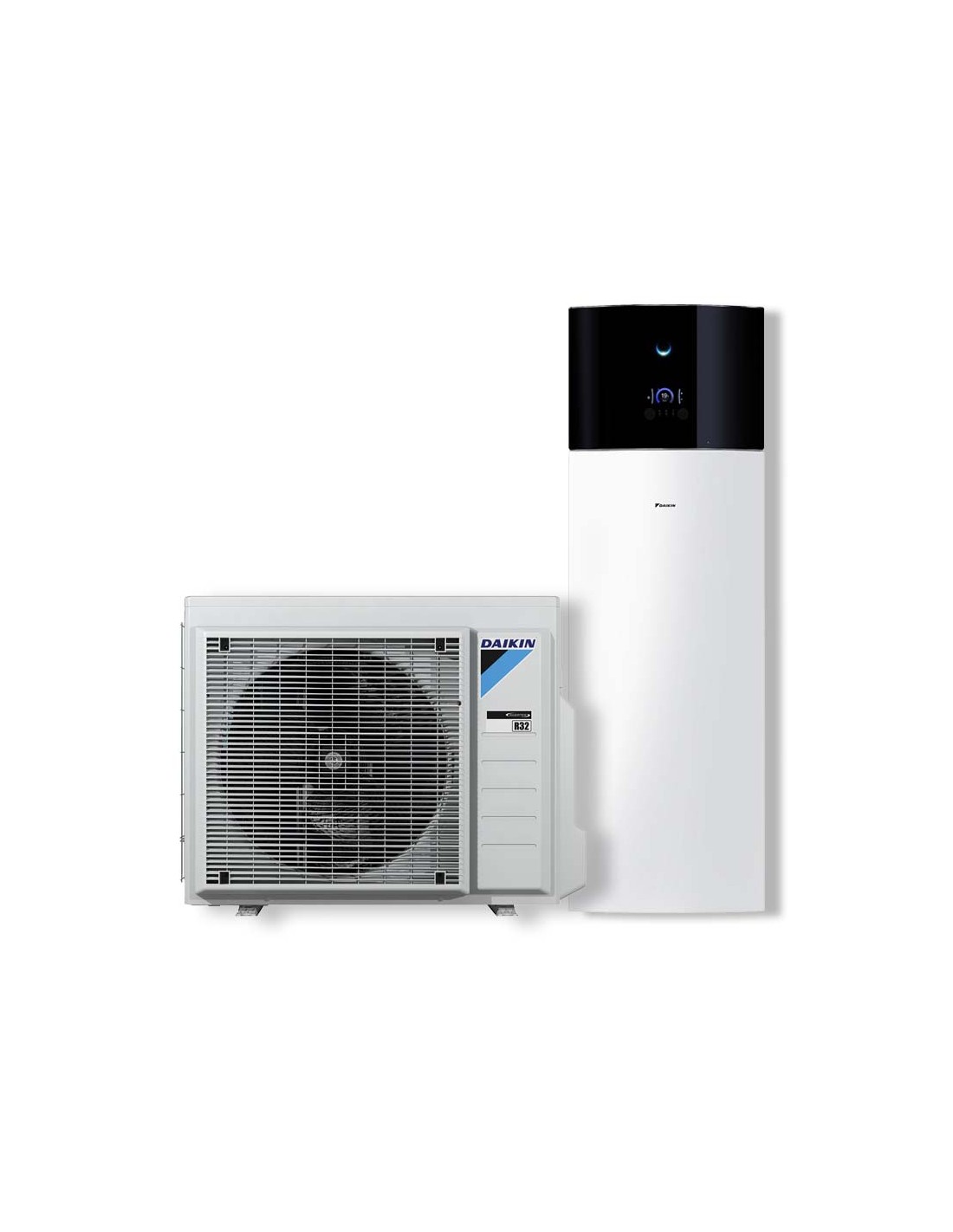

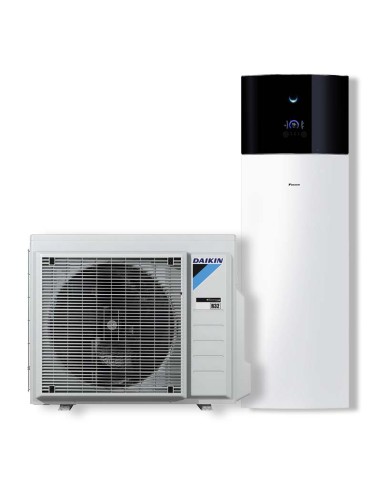

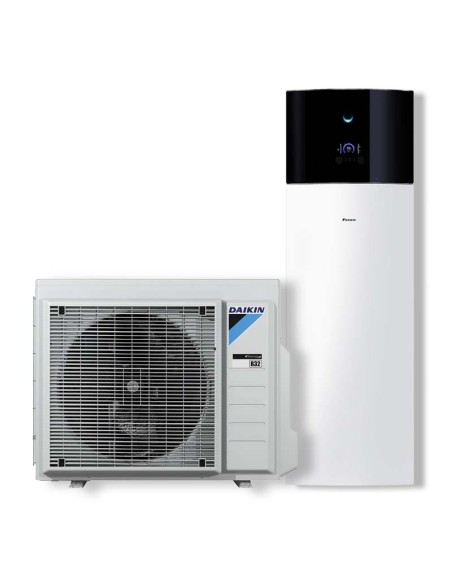

Daikin ALTHERMA 3 R F 8kW single-phase air-to-water heat pump kit with 180 L DHW production
Main Features
- A stainless steel hot water storage tank of 180 or 230 L combined with a heat pump ensures easy installation;
- All hydraulic components are integrated, so no third-party components are needed;
- The electronic board and hydraulic components are located at the front for easy access;
- Reduced installation space: 600 x 600 mm;

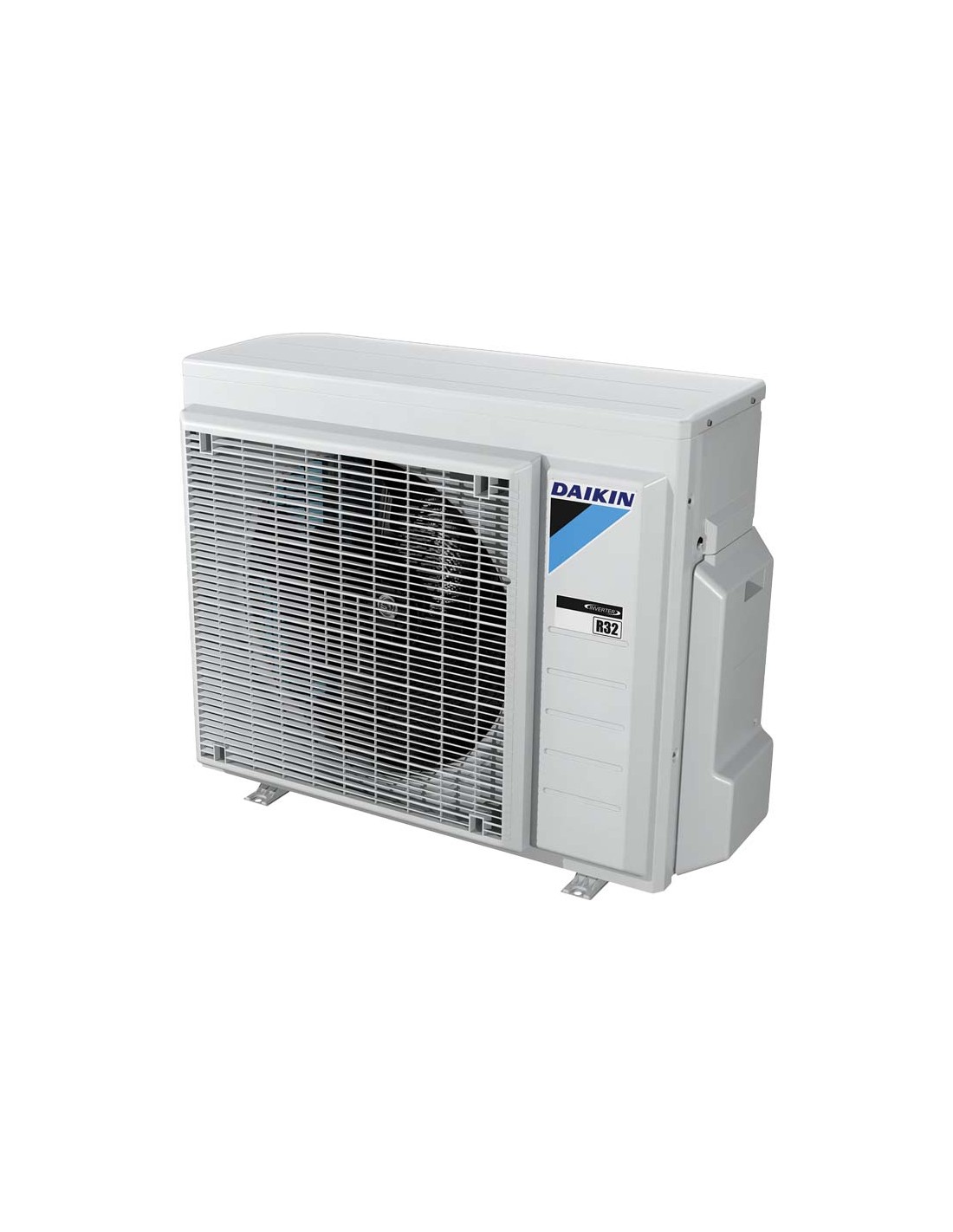

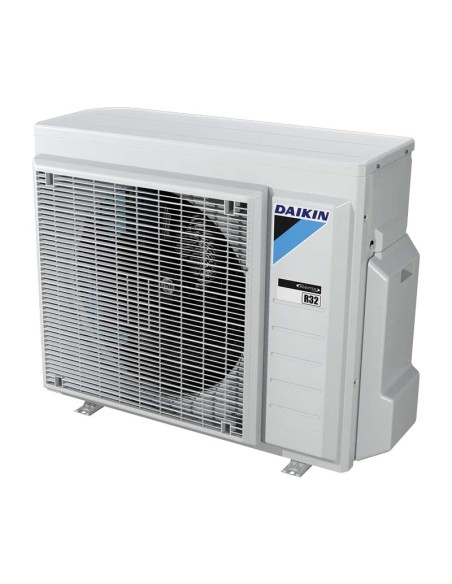

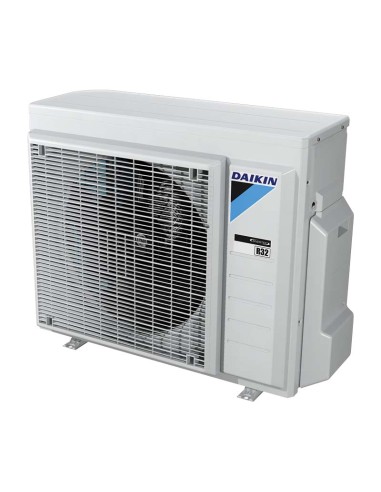

- The outdoor unit can extract heat from the outside air, even at -25°C.
- Indoor unit dimensions: 1650 x 595 x 625 mm - 119 kg;
- Outdoor unit dimensions: 740 x 884 x 387 mm - 58.5 kg.
Technical Features:
- Heating capacity (kW): 9,37(1)/7,28(2);
- Nominal cooling capacity (kW): 8,57(1)/6,34(2);
- Max outlet temperature 65°C;
- Cooling terminal: Water;
- Heating terminal: Water;
- Hot water production: Yes;
- Hot water storage (DHW): Yes;
- Storage capacity (l): 180 L;
- Power supply: Single-phase;
- Control panel, sludge filter, and 10 L expansion tank included;
- Energy class: A+++;
- Refrigerant gas: R32;
- Remote control and monitoring via app included.
For more details, download the following documents:
Additional Features
The Daikin air/water heat pump kit consists of a single-phase outdoor unit of 8kW and an indoor air-to-water heat pump unit EHVX08S18E6V with a 180-liter tank. The Daikin Integrated R32 air/water split system offers heating, cooling, and domestic hot water production (DHW) with very high efficiency.

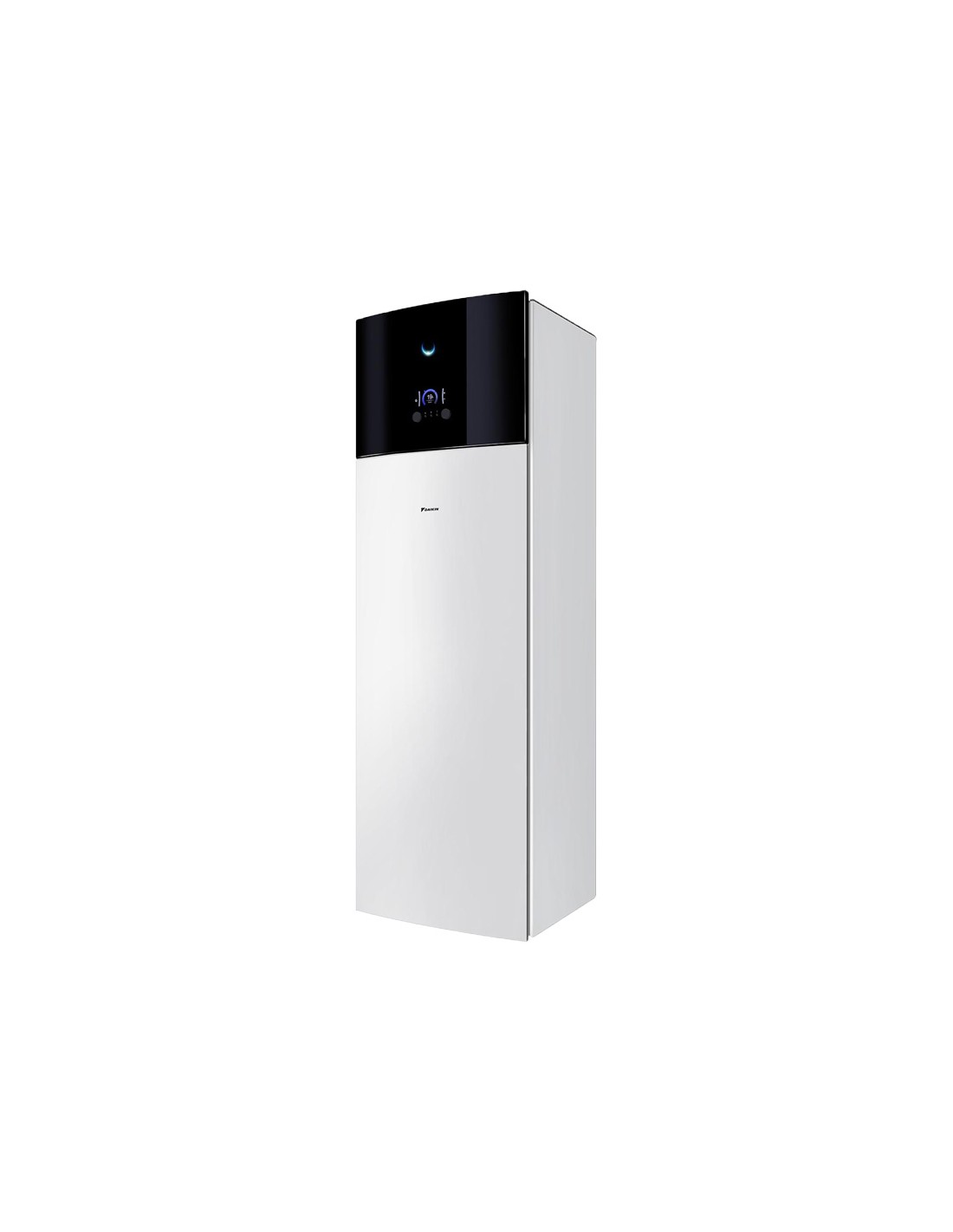

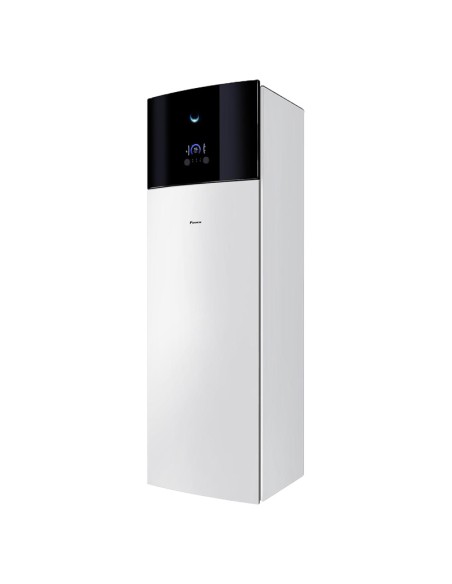

The indoor unit, featuring an elegant and modern design, ensures high performance for every application, thanks to the supply temperature that can reach up to 65°C, ideal for both radiators and underfloor heating. It stands out for its easy installation, as all system connections and refrigerant gas are located on the top of the unit.
Maintenance is also easy, thanks to the front access to the electronic board and hydraulic components. Additionally, it is possible to control and monitor the system remotely via an app.
NOTE: The m² value is indicative, it depends on the insulation, climate zone and type of distribution system.
NOTE: Mandatory inspection included in the price.
