Daikin ALTHERMA 3 R F 16kW three-phase air-to-water heat pump kit with 230 L DHW production
Main Features
- Combination of a stainless steel hot water tank with 230L and a heat pump for easy installation;
- Complete hydraulic equipment, no third-party components required;
- Electronic board and hydraulic components located at the front for easy access;
- Compact installation size reduced to 595 x 634 mm;
- Integrated backup heater available in two versions, 6 or 9 kW;
- Heat pump operation down to -25°C;

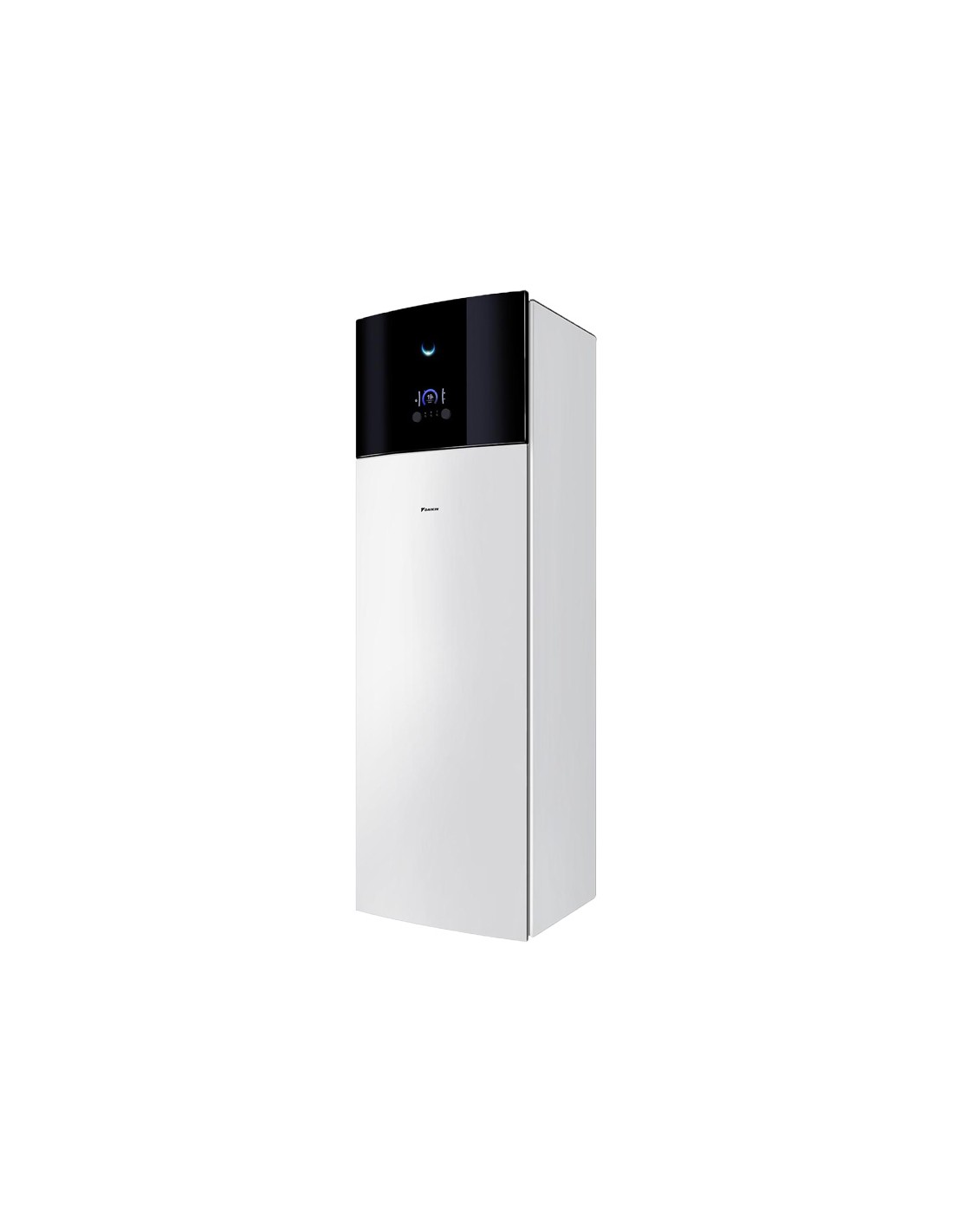

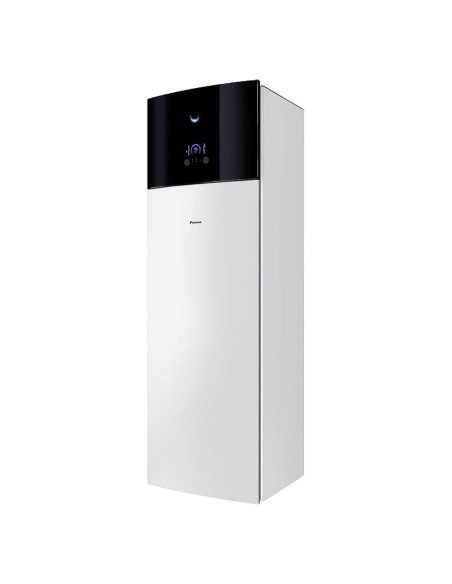

- Indoor unit dimensions: 1855 x 595 x 634 mm - 133kg;

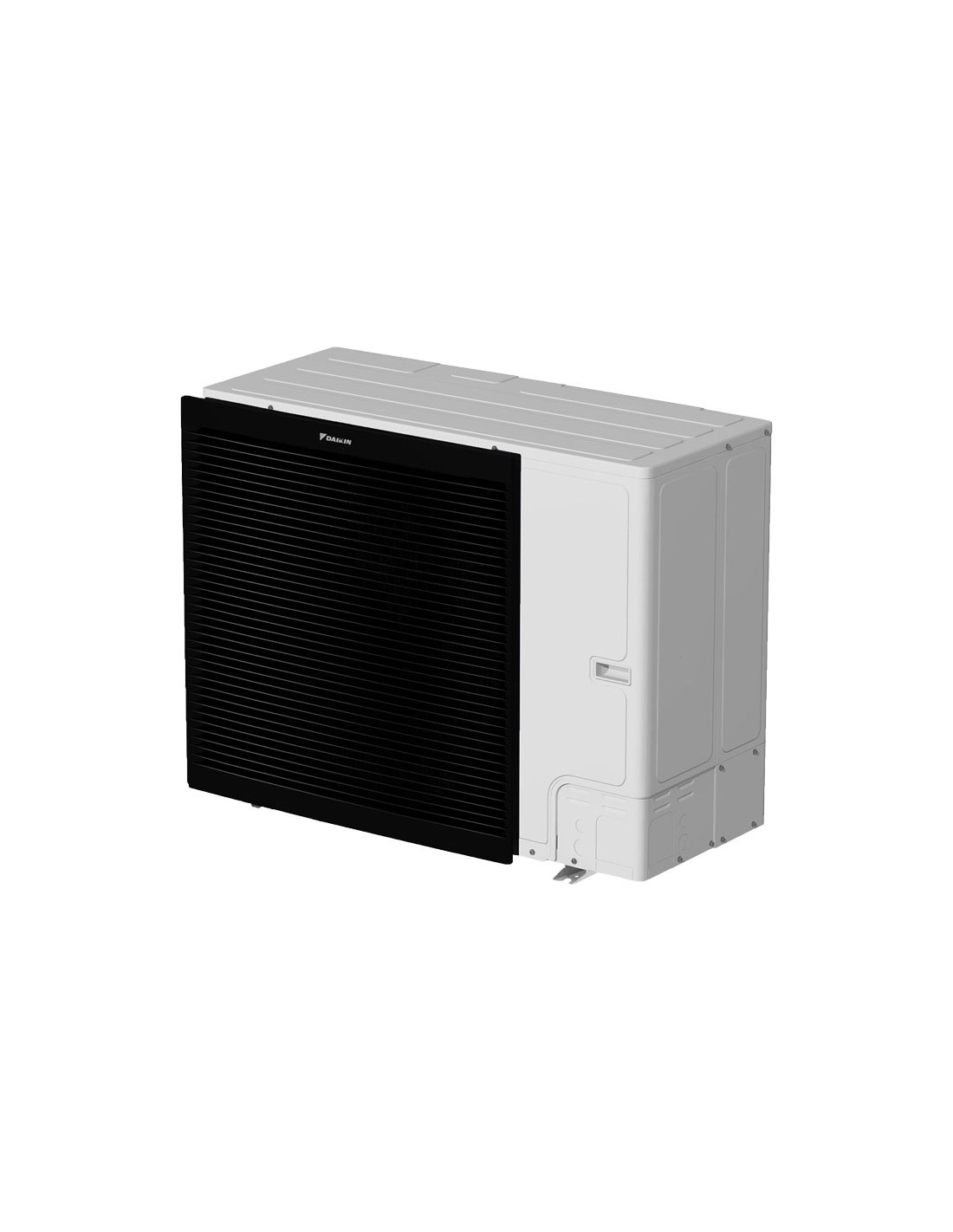

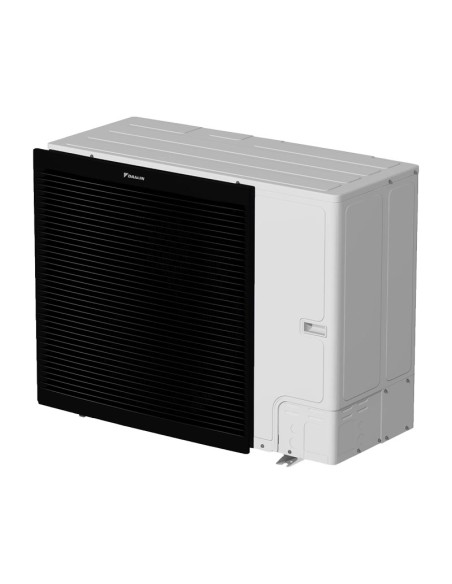

- Outdoor unit dimensions: 870 x 1100 x 460 mm - 101kg.
Technical Specifications:
- Heating capacity (kW): 15,96(1)/10,84(2);
- Cooling capacity nominal (kW): 17,95(1)/13,53(2);
- Max outlet temperature 60°C;
- Cooling terminal: Water;
- Heating terminal: Water;
- Hot water production: Yes;
- Hot water storage (ACS): Yes;
- Storage capacity (l): 230 L;
- Power supply: Three-phase;
- Energy class: A+++;
- Refrigerant gas: R32;
- Remote control and monitoring via optional app.
For more details, download the following documents:
Additional Features

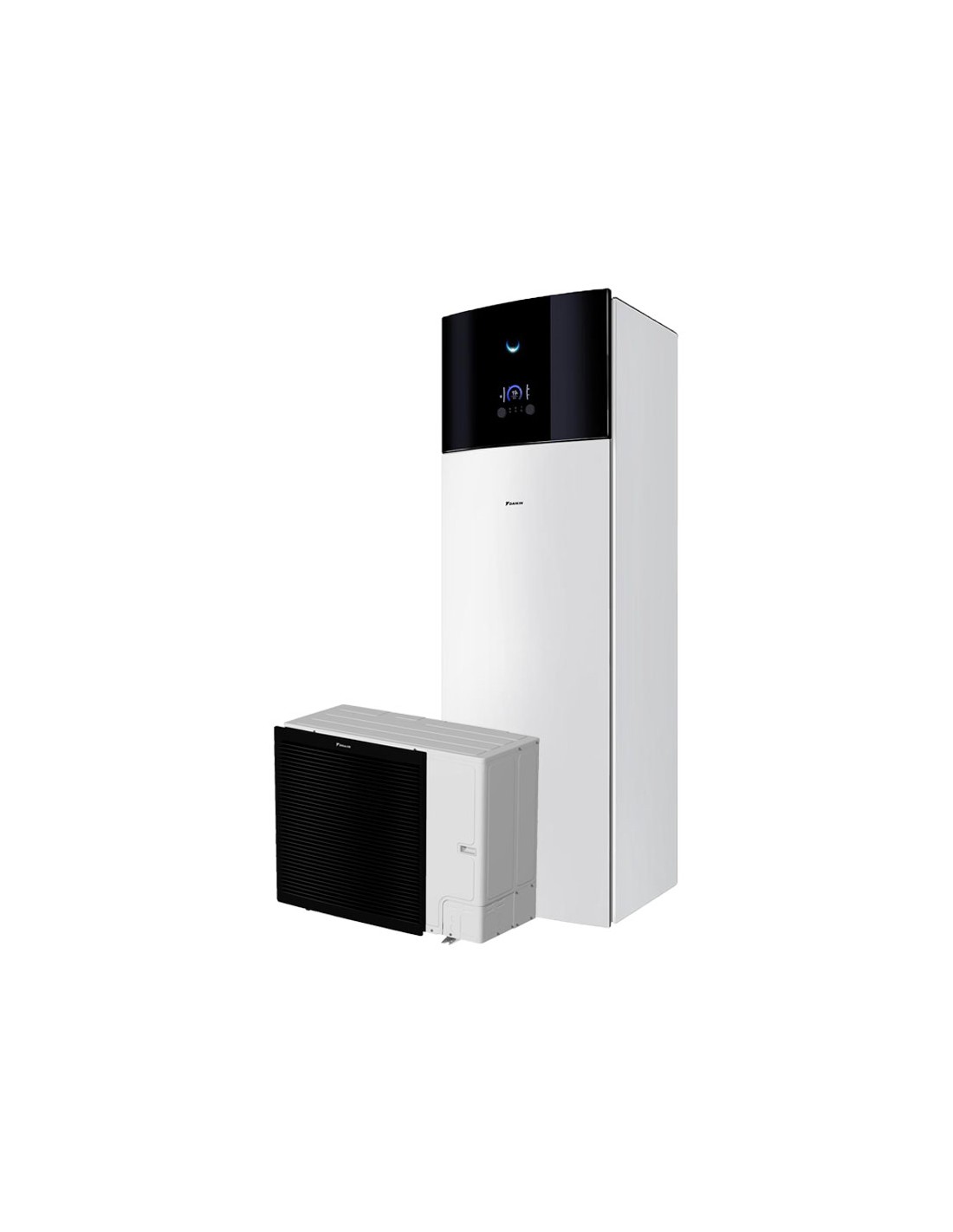

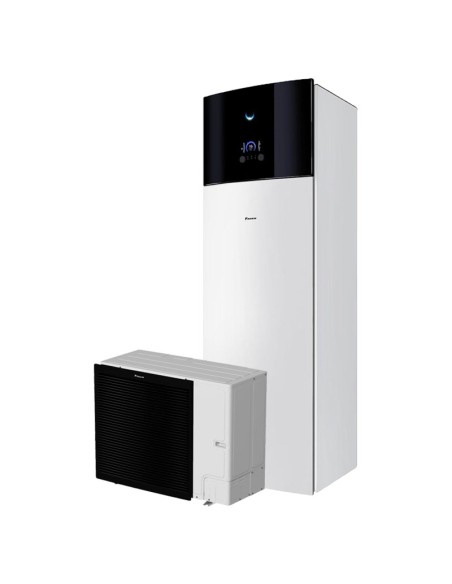

The Daikin air/water heat pump kit consists of a three-phase outdoor unit with 16 kW and an indoor air-water heat pump EBVX16S23D6V with a 230-liter tank. The Daikin Split air/water system Integrated R32 offers heating, cooling, and production of domestic hot water (ACS) with extremely high efficiency.
The indoor unit, featuring an elegant and modern design, guarantees high performance for any application, thanks to the outlet temperature that can reach up to 60°C, ideal for both radiators and underfloor heating systems, and stands out for its easy installation as all system and refrigerant gas connections are located at the top of the unit.
Maintenance is also simple, thanks to the front accessibility of the electronic board and hydraulic components. Additionally, it is possible to control and monitor the system remotely via an app.
NOTE: The m² value is indicative, it depends on the insulation, climate zone and type of distribution system.
NOTE: Mandatory inspection included in the price.
