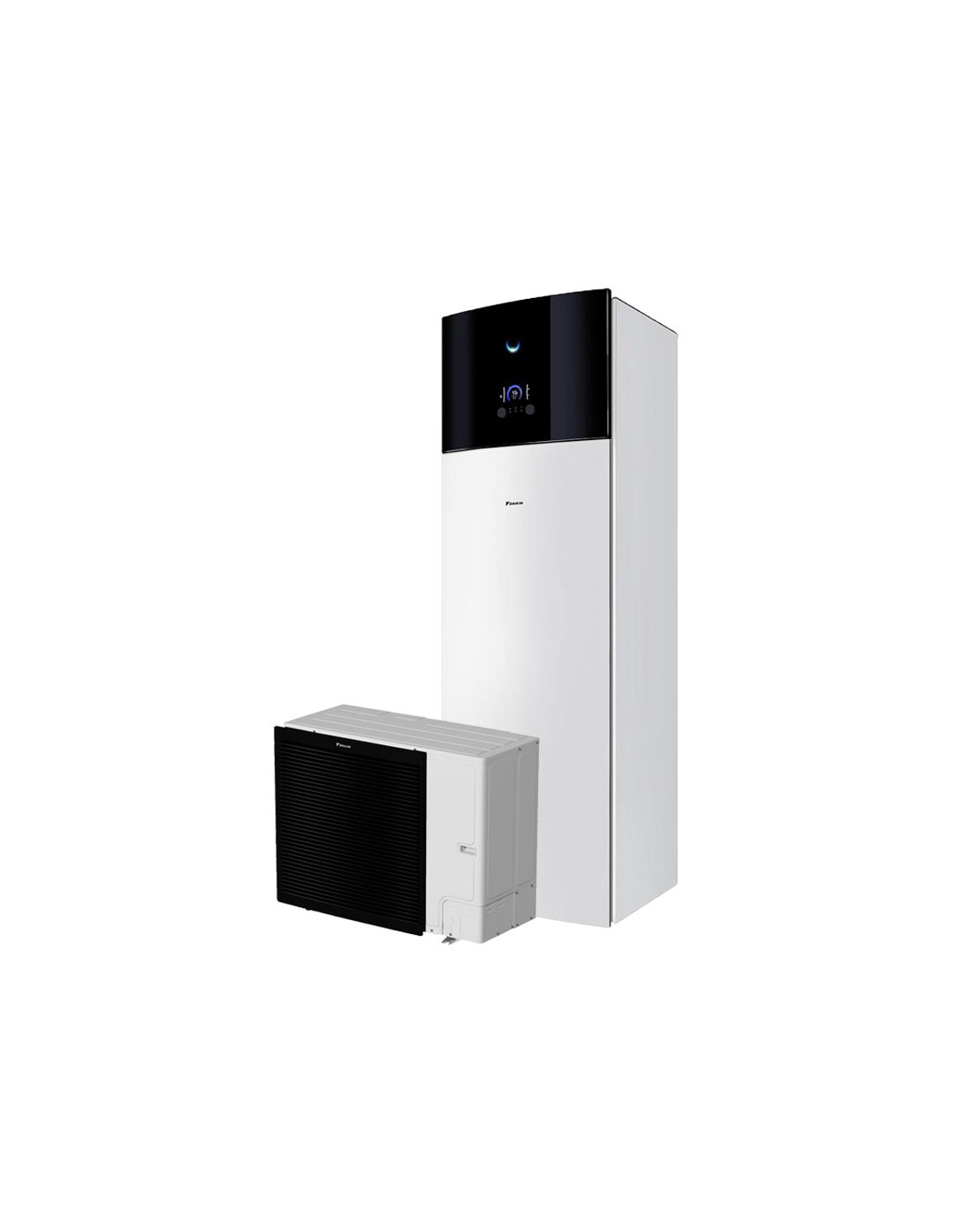

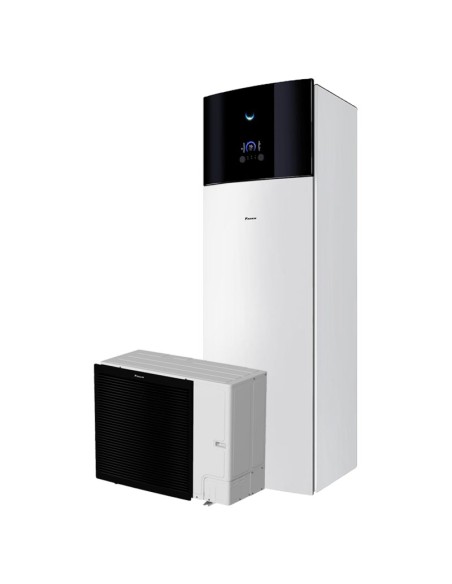

Daikin ALTHERMA 3 R F 11kW three-phase air-to-water heat pump kit with 230 L DHW production
Main Features
- Combination of a 230L stainless steel domestic hot water tank and a heat pump for easy installation;
- Complete hydraulic equipment, no third-party components required;
- Control panel and hydraulic components located at the front for easy access;
- Small installation footprint of 595 x 634 mm;
- Integrated backup heater available in two versions, 6 or 9 kW;
- Heat pump operation down to -25°C;
- Indoor unit dimensions: 1855 x 595 x 634 mm - 133 kg;

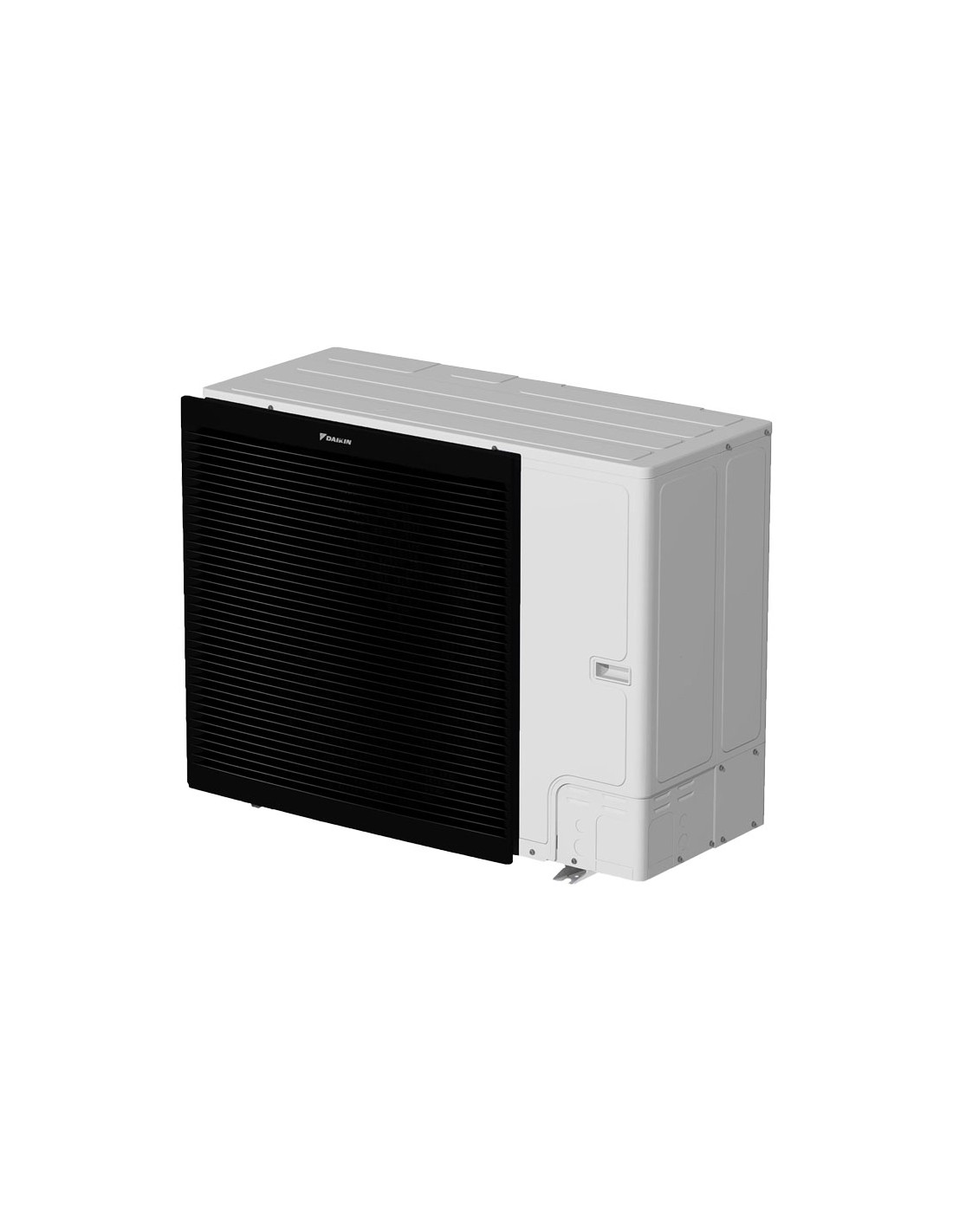

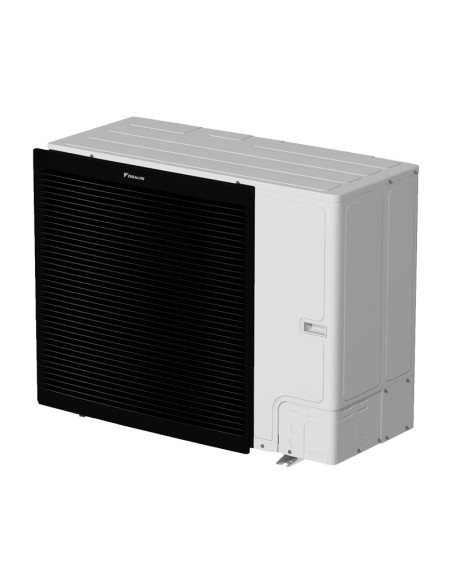

- Outdoor unit dimensions: 870 x 1100 x 460 mm - 101 kg.
Technical Features:
- Heating capacity (kW): 12.44(1)/9.02(2);
- Nominal cooling capacity (kW): 17.44(1)/13.15(2);
- Max. flow temperature 60°C;
- Cooling terminal: Water;
- Heating terminal: Water;
- Domestic hot water: Yes;
- DHW storage: Yes;
- Storage capacity (l): 230 L;
- Power supply: Three-phase;
- Energy class: A+++;
- Refrigerant gas: R32;
- Remote control and monitoring via app optional.
For more details, download the following documents:
Additional Features
The Daikin air/water heat pump kit consists of a three-phase outdoor unit of 11kW and an indoor air-to-water heat pump unit EBVX11S23D6V with a 230-liter tank. The Daikin Integrated R32 air/water split system offers heating, cooling, and domestic hot water production (DHW) with very high efficiency.

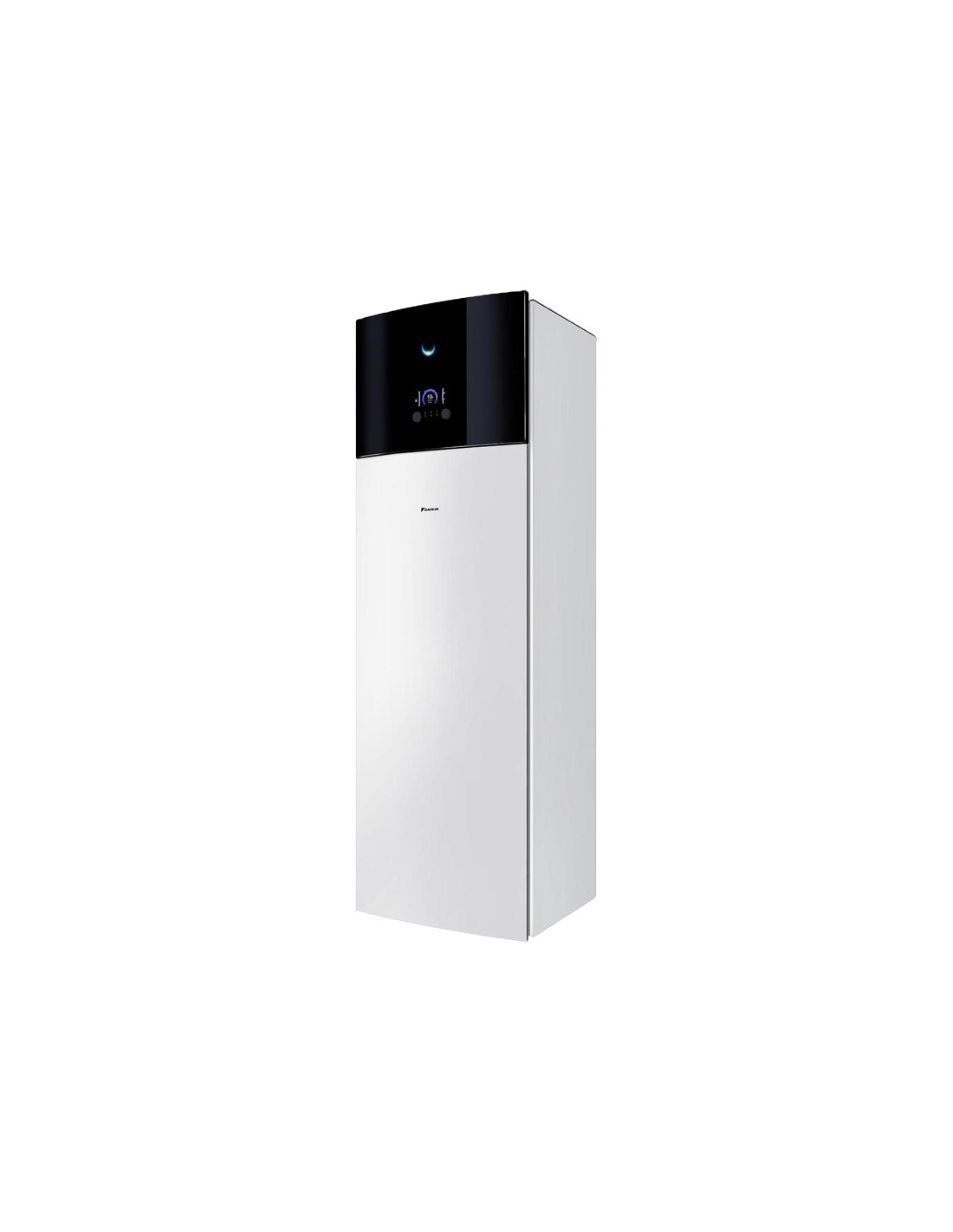

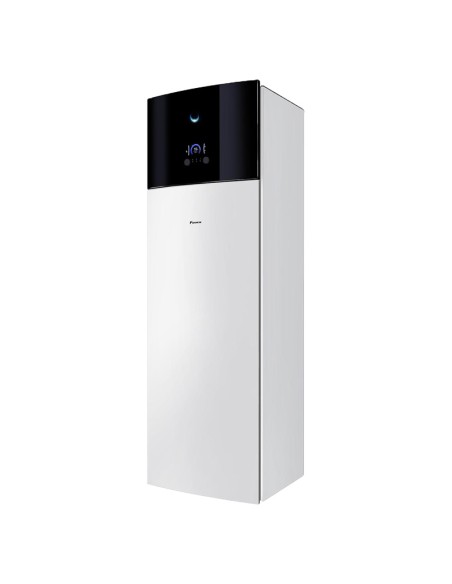

The indoor unit, featuring an elegant and modern design, ensures high performance for every application, thanks to the supply temperature that can reach up to 60°C, ideal for both radiators and underfloor heating. It stands out for its easy installation, as all system connections and refrigerant gas are located on the top of the unit.
Maintenance is also easy, thanks to the front access to the electronic board and hydraulic components. Additionally, it is possible to control and monitor the system remotely via an app.
NOTE: The m² value is indicative, it depends on the insulation, climate zone and type of distribution system.
NOTE: Mandatory inspection included in the price.
